Technical Data Sheet
Levanto Fluted Wall Hung Vanity Unit 1375 Two Drawer Two Door Centre Basin
7893

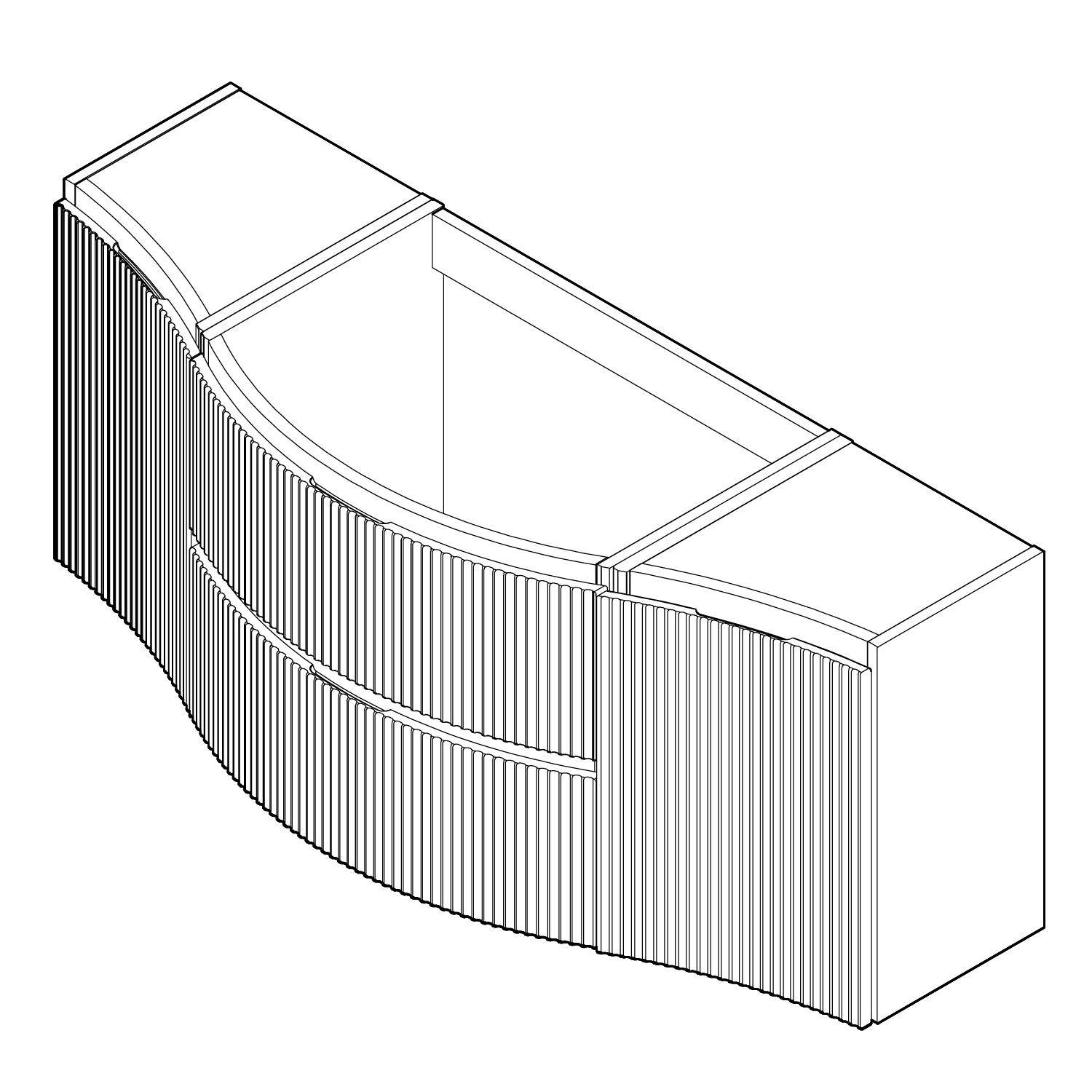

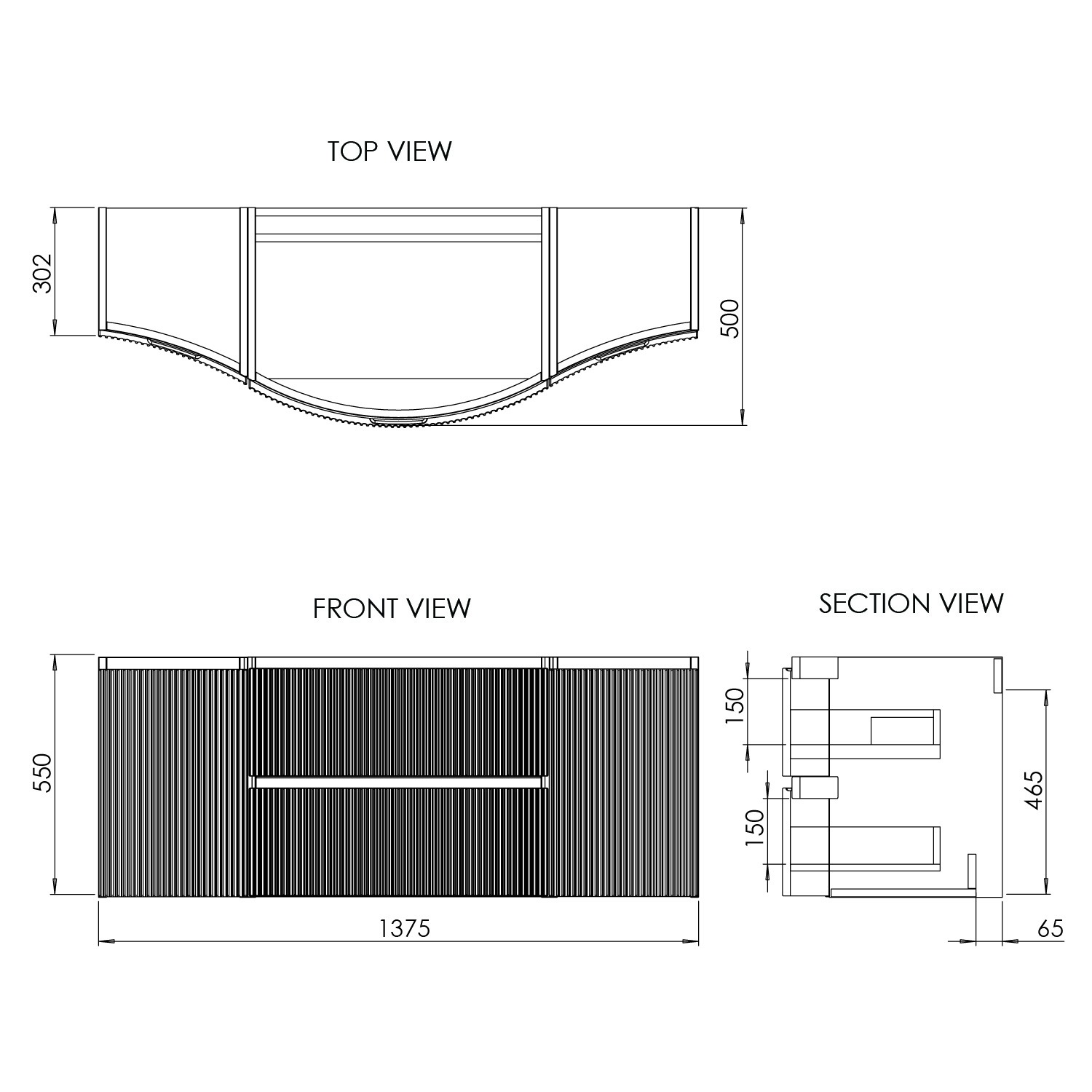

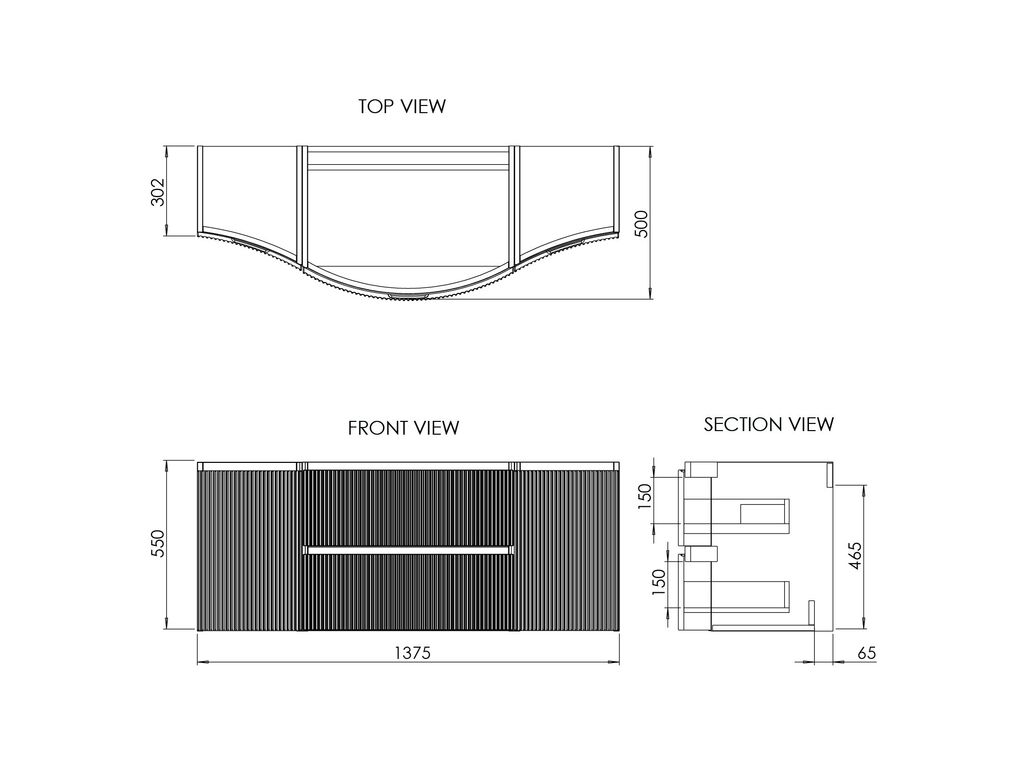

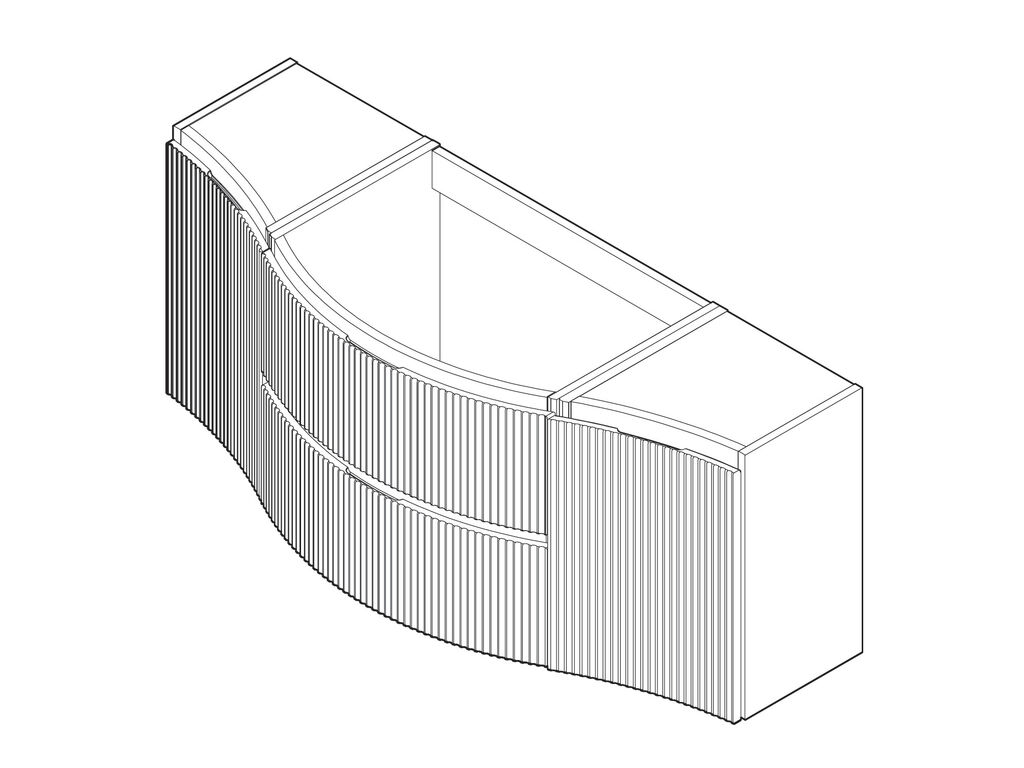

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
1375 x 500 x 550mm
Carcass Material:
MDF 16/25mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
MDF 18mm Fluted
Fascia Detail:
Convex Front
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 300mm runners
Shelves:
1 removable - Glass 5mm
Removable Shelf Supports:
Clamps
Fixation Method:
Fixed Through Rear Rail, 50mm from top @ 450mm centres
Door Open Unit Depth:
906mm
Service Void Depth:
65mm
Compatible Basins:
9267, 9271, 9218, 3583, 9069, 3584, 3585, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9202
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 1mm.
In The Box:
Levanto Fluted Wall Hung Vanity Unit 1375 Two Drawer Two Door Centre Basin
Instructions
Fitting kit
