Technical Data Sheet
Fremont Ceramic Sit-On Basin 405 White
9113

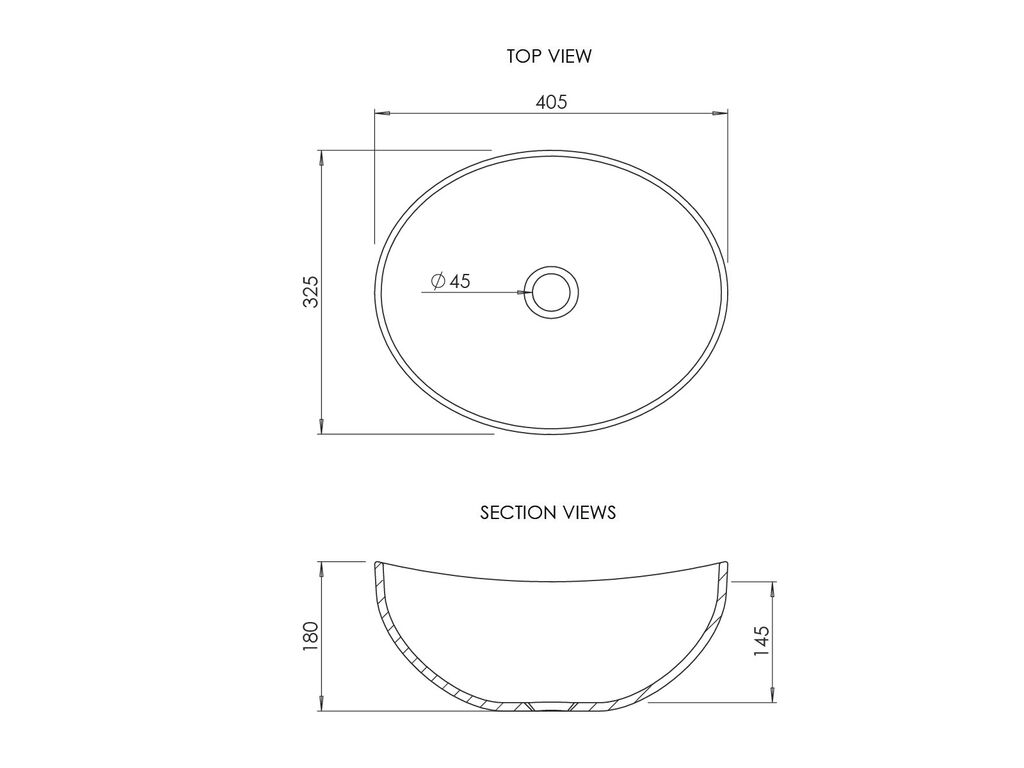

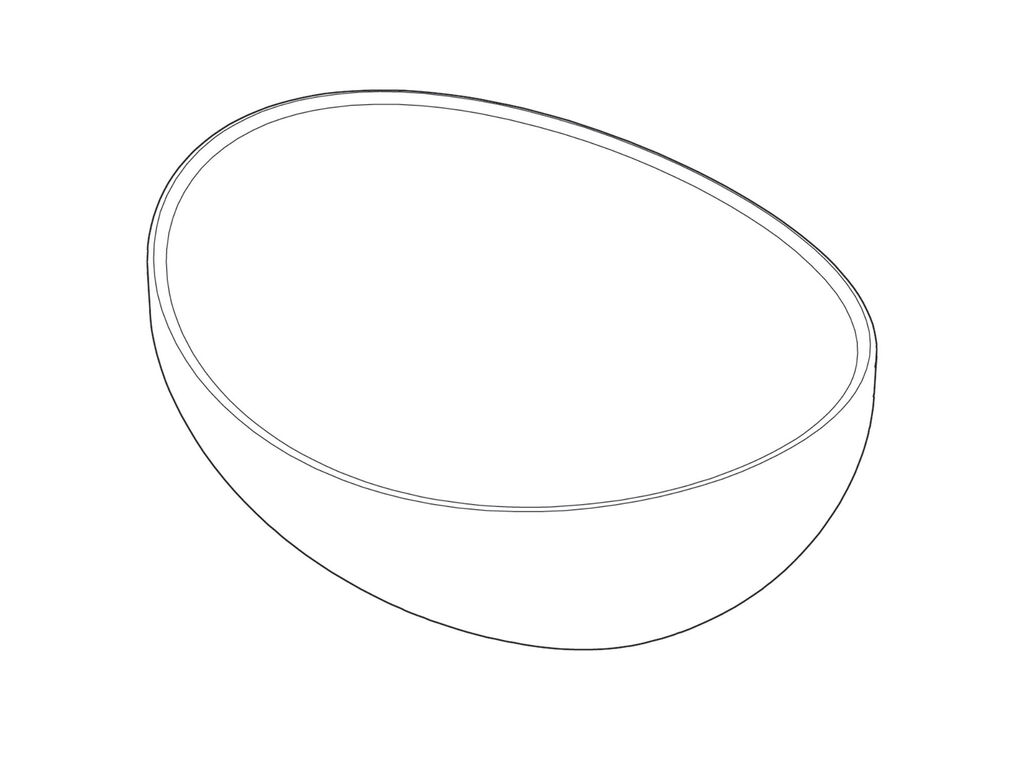

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
405 x 325 x 180mm
Weight:
4.90 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Oval
Bowl Shape:
Oval
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
390 x 310 x 150mm
Depth at Centre:
325mm
Number of Tap Holes:
0
Max Water Temperature:
100°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Fremont Ceramic Sit-On Basin 405 White
