Technical Data Sheet
Vinci Cast Sit-On Basin 400 Matt White
3689

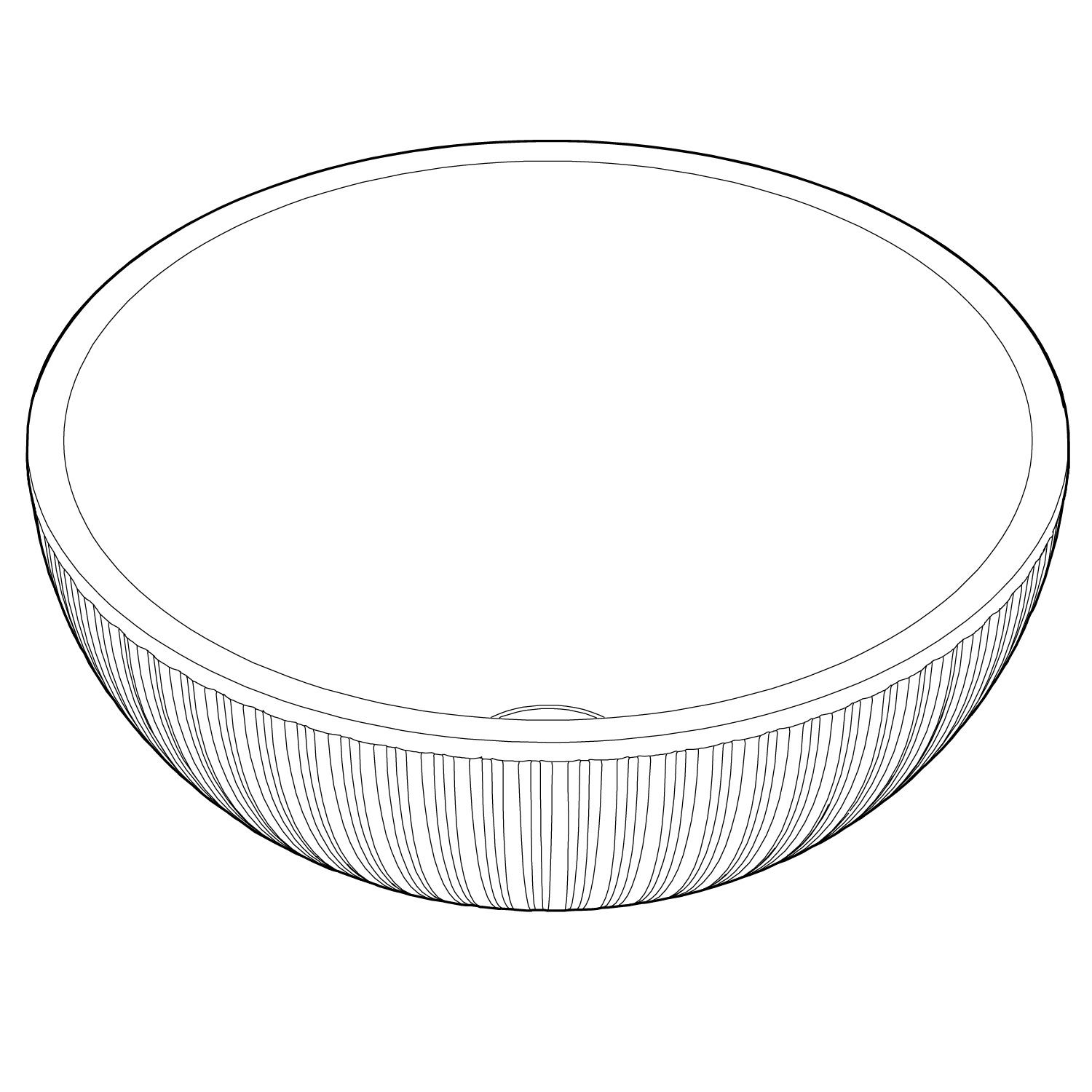

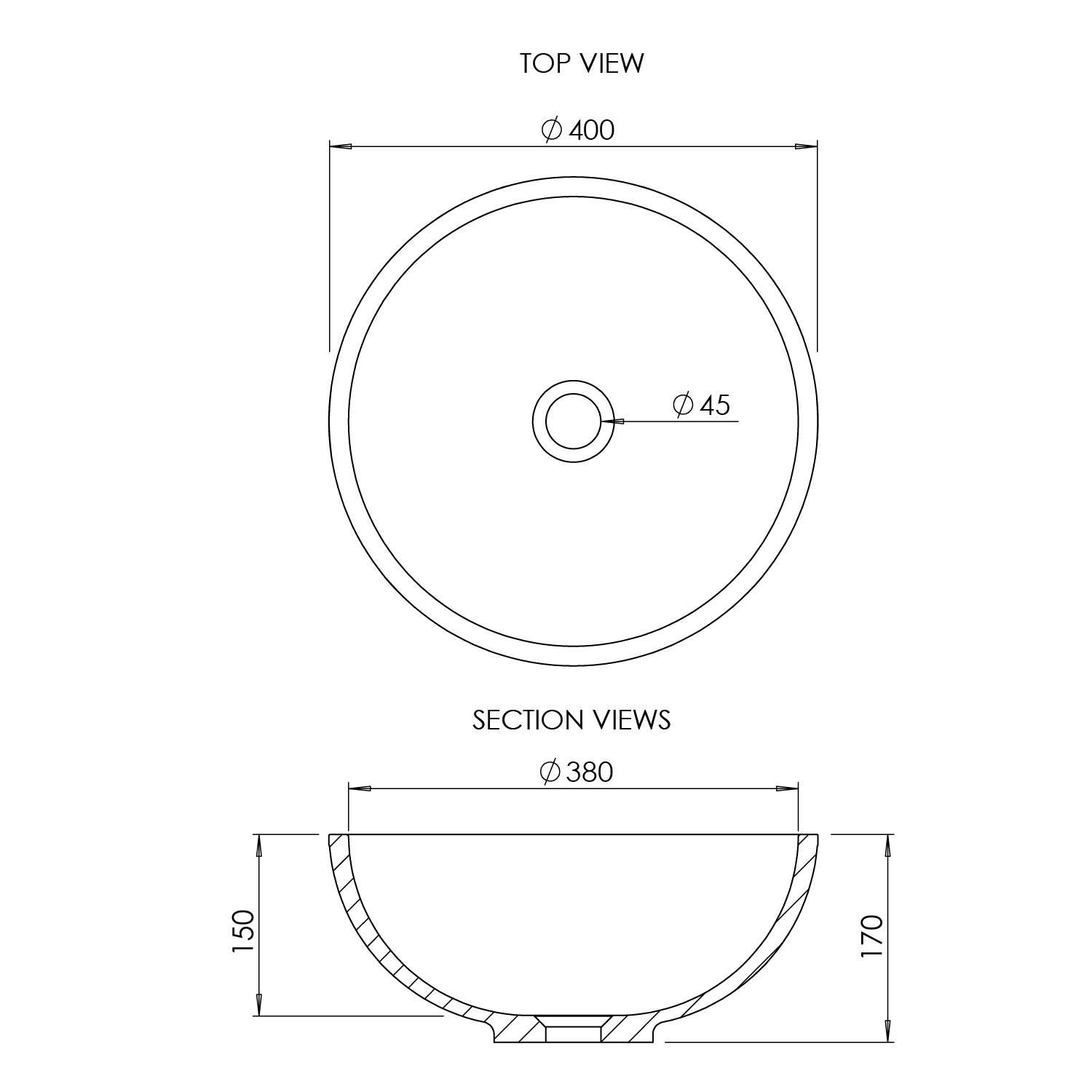

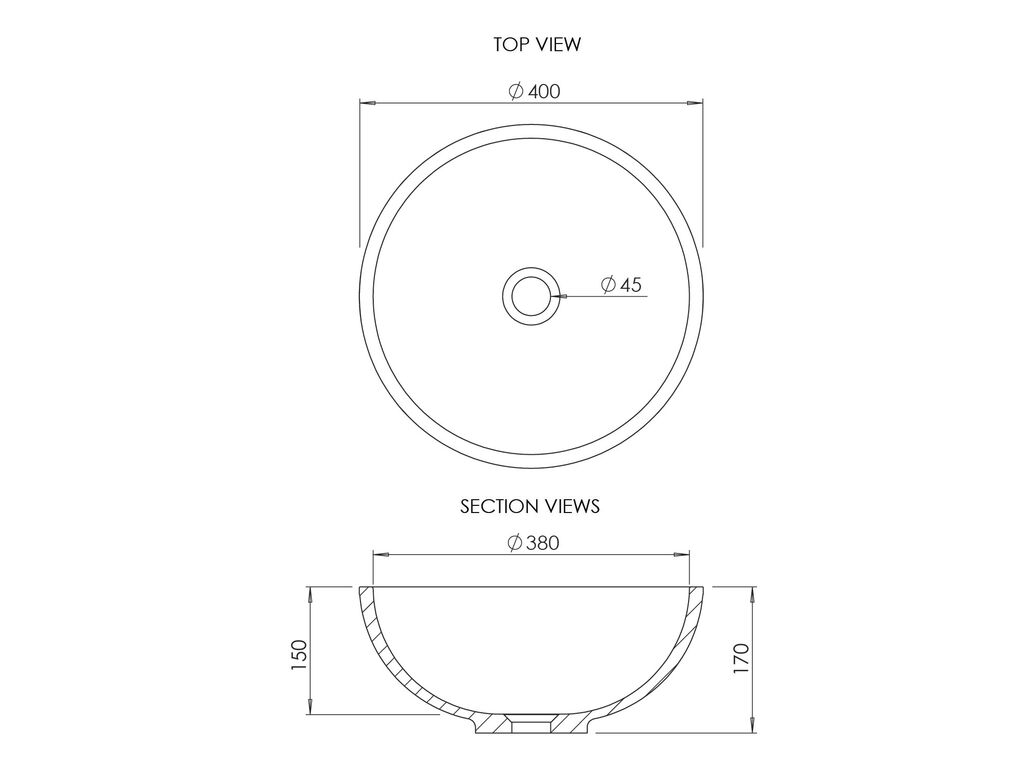

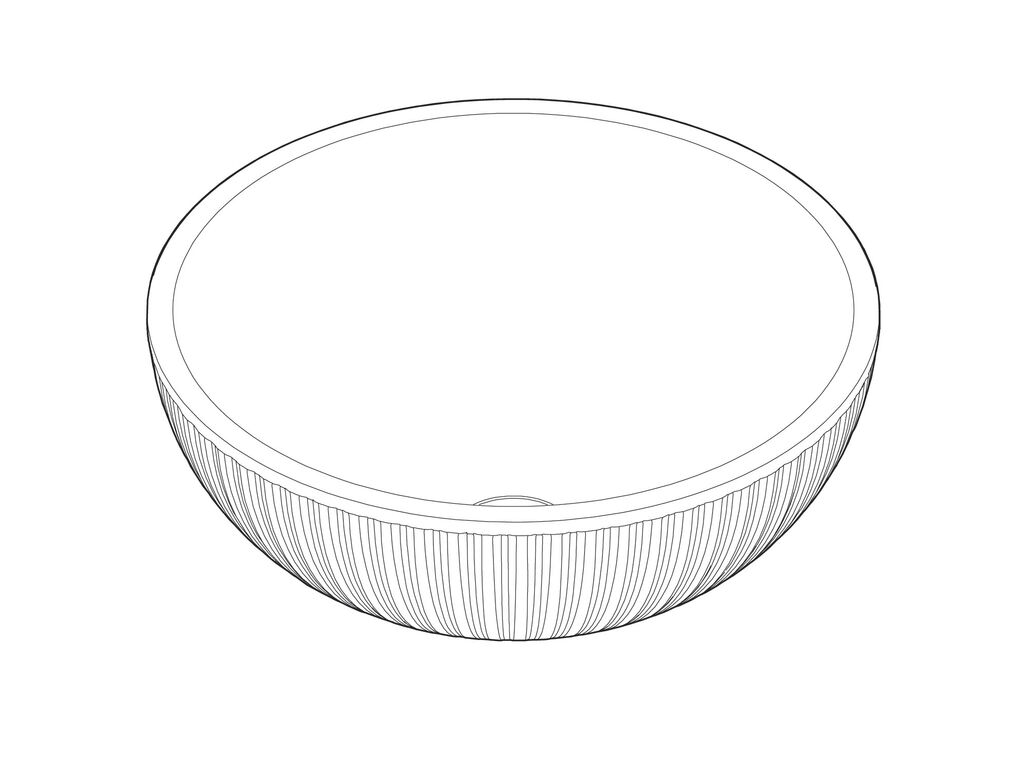

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
400 x 400 x 170mm
Weight:
5.96 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Matt
Basin Exterior:
White Matt
Overall Shape:
Circular Fluted
Bowl Shape:
Circle
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
380 x 380 x 150mm
Depth at Centre:
400mm
Number of Tap Holes:
0
Tap Hole Position:
No Tap Hole
Max Water Temperature:
65°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Vinci Cast Sit-On Basin 400 Matt White
