Technical Data Sheet
Albarese Cast Sit-On Basin 610 Gloss White
3583

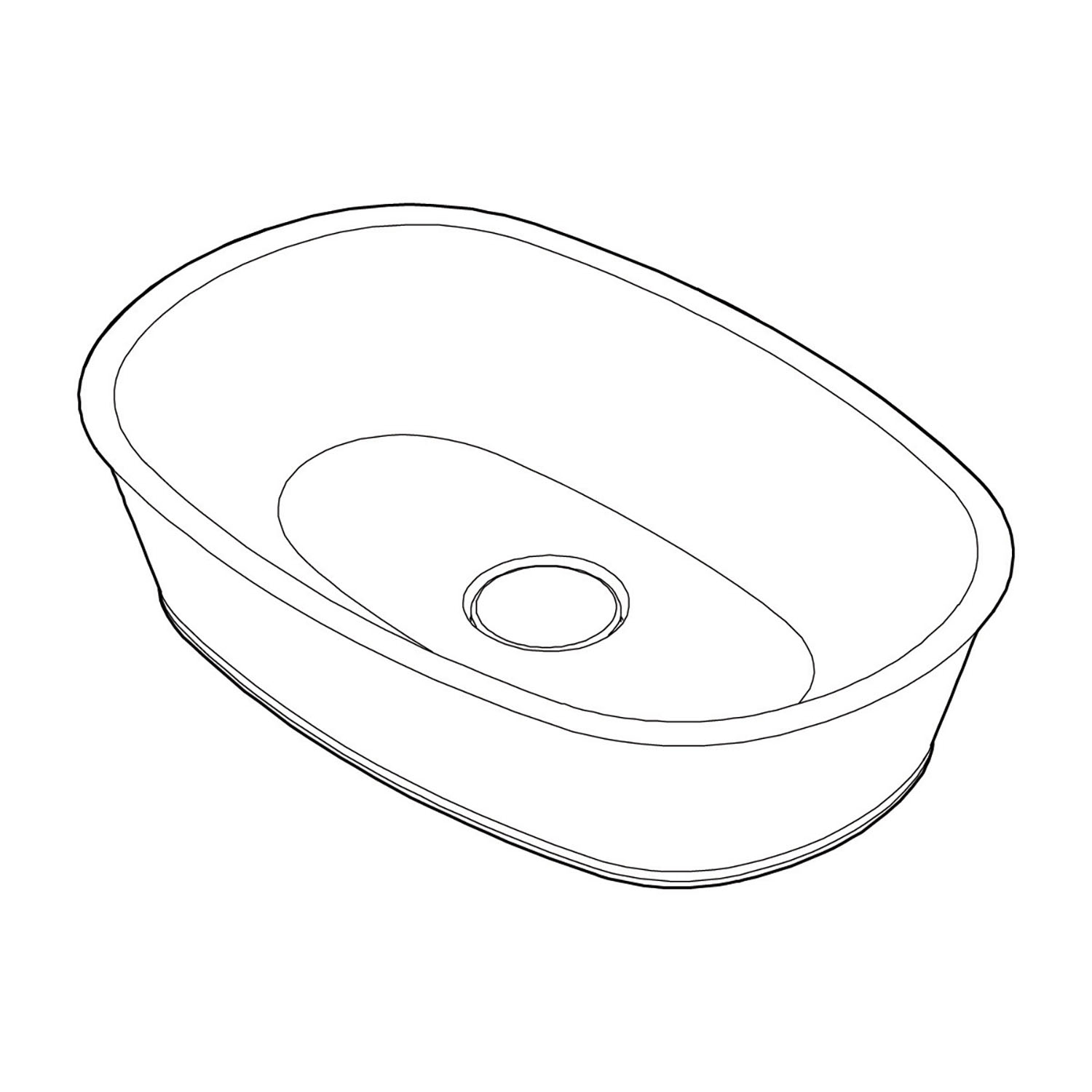

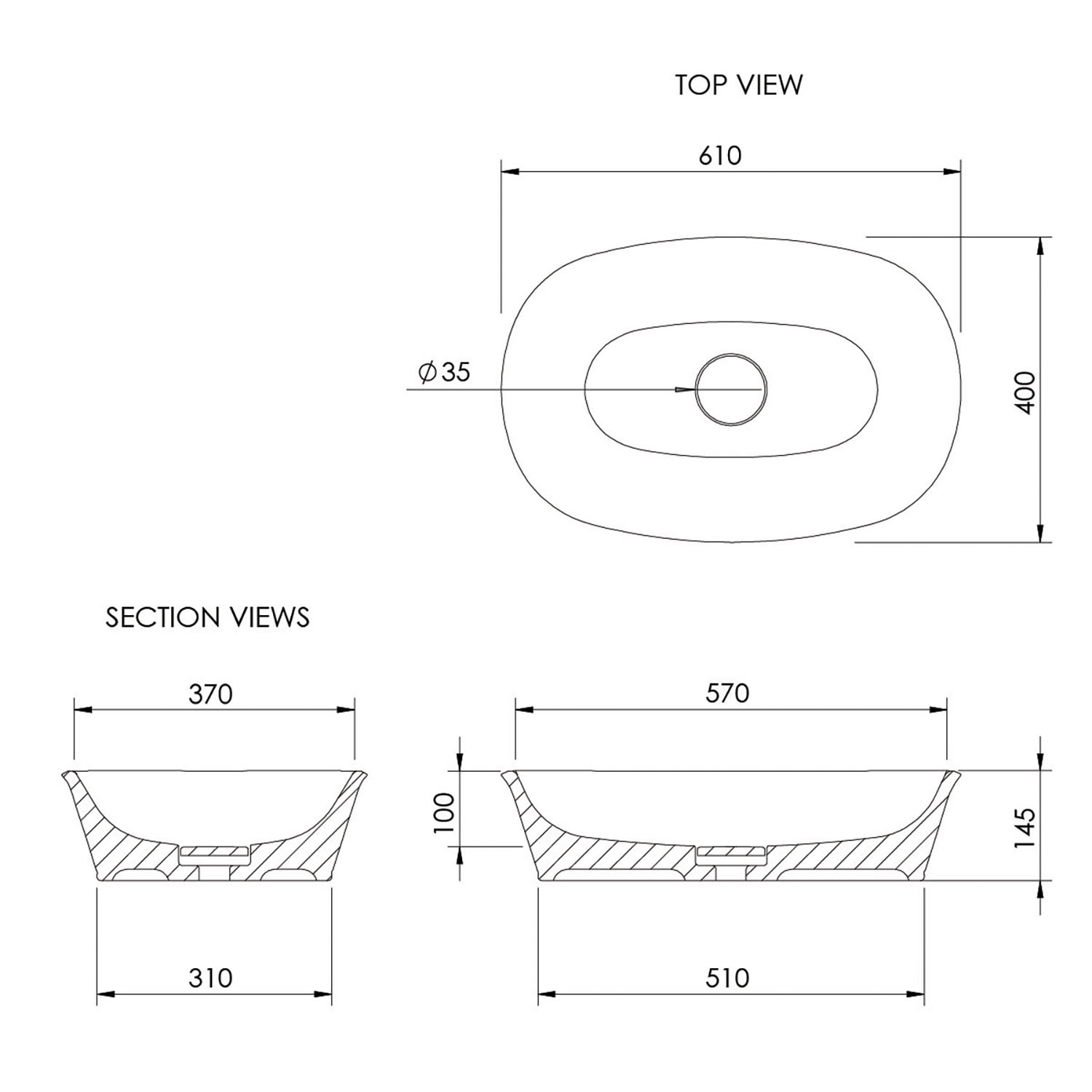

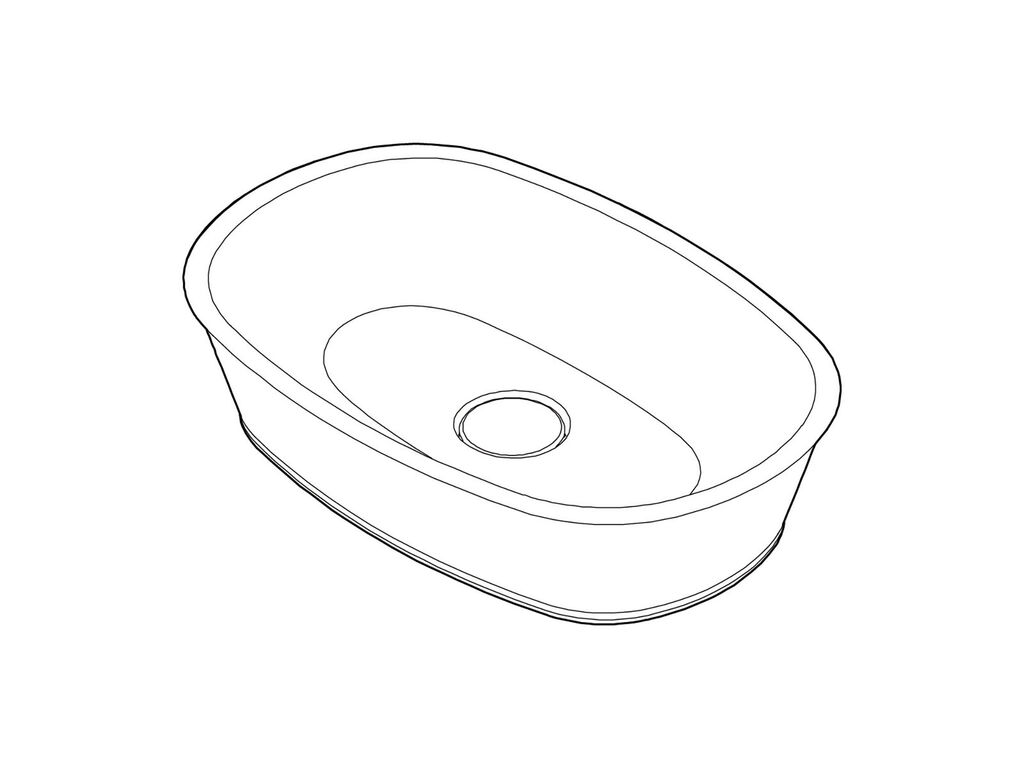

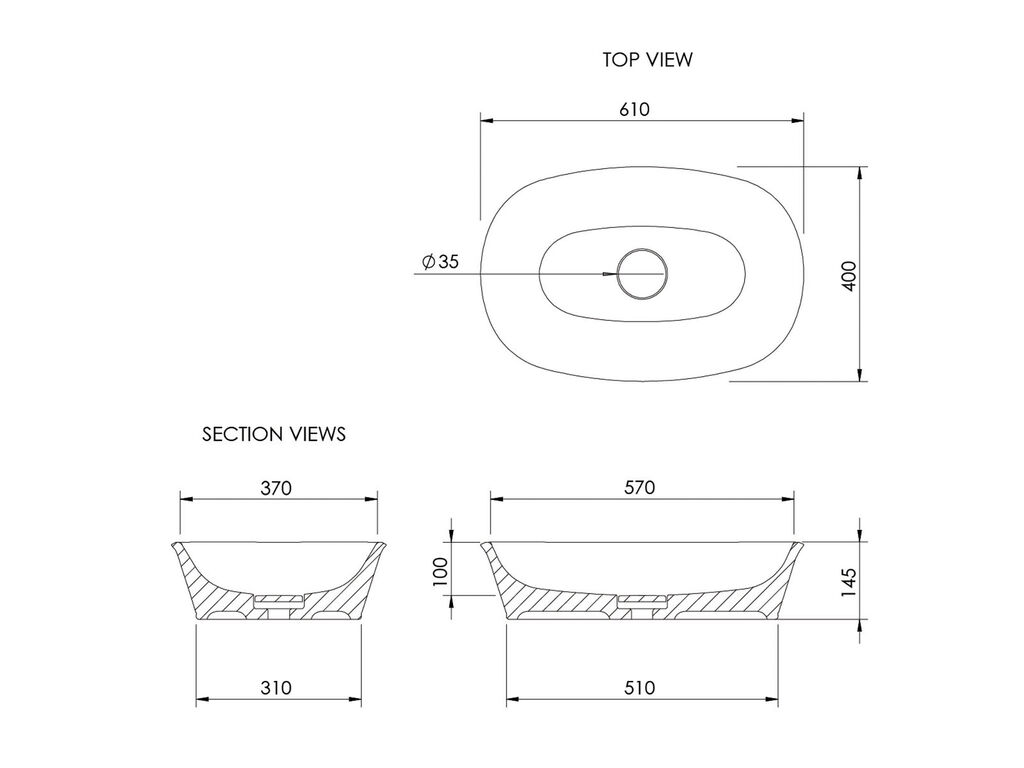

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
610 x 400 x 145mm
Weight:
13.54 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Oval
Bowl Shape:
Oval
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
570 x 370 x 100mm
Depth at Centre:
370mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Albarese Cast Sit-On Basin 610 Gloss White
Fitting kit
