Technical Data Sheet
Florida Ceramic Sit-On Basin 380 White
9202

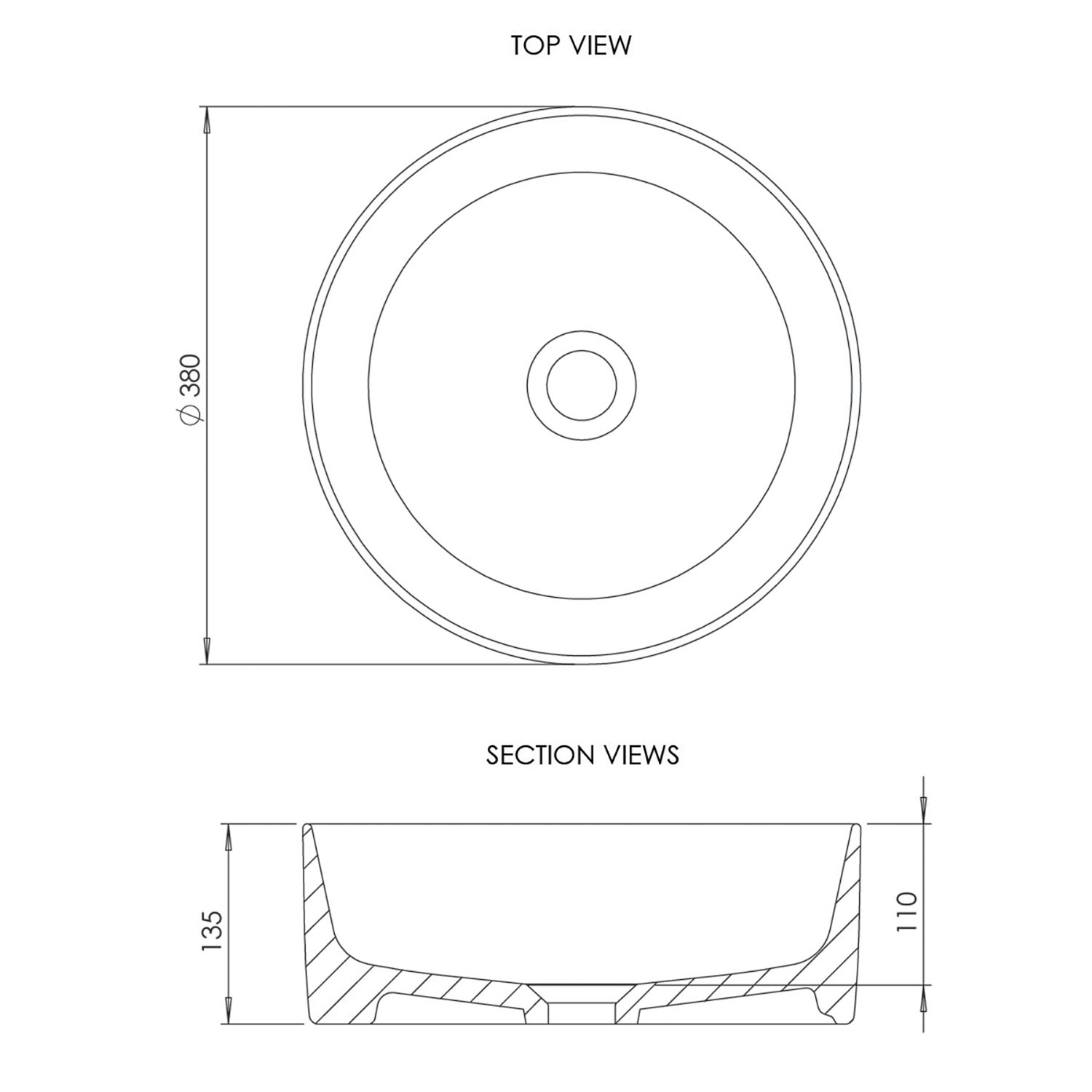

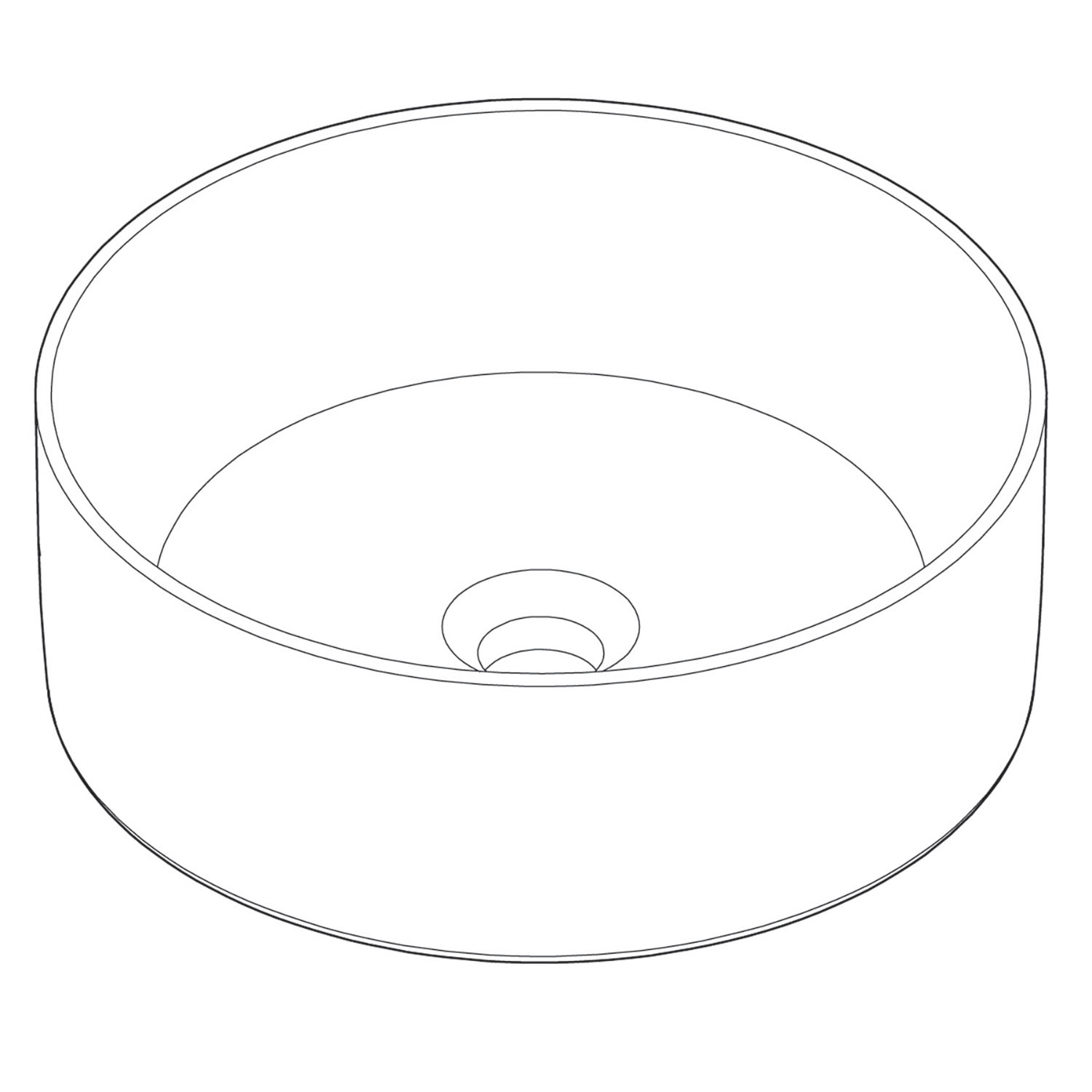

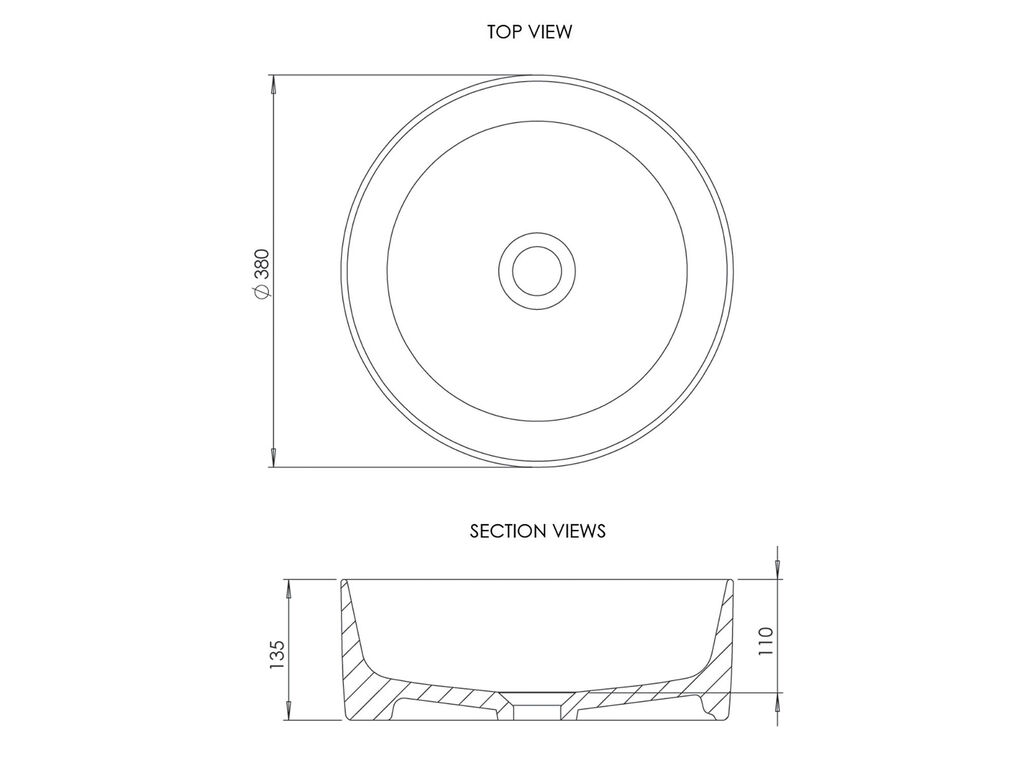

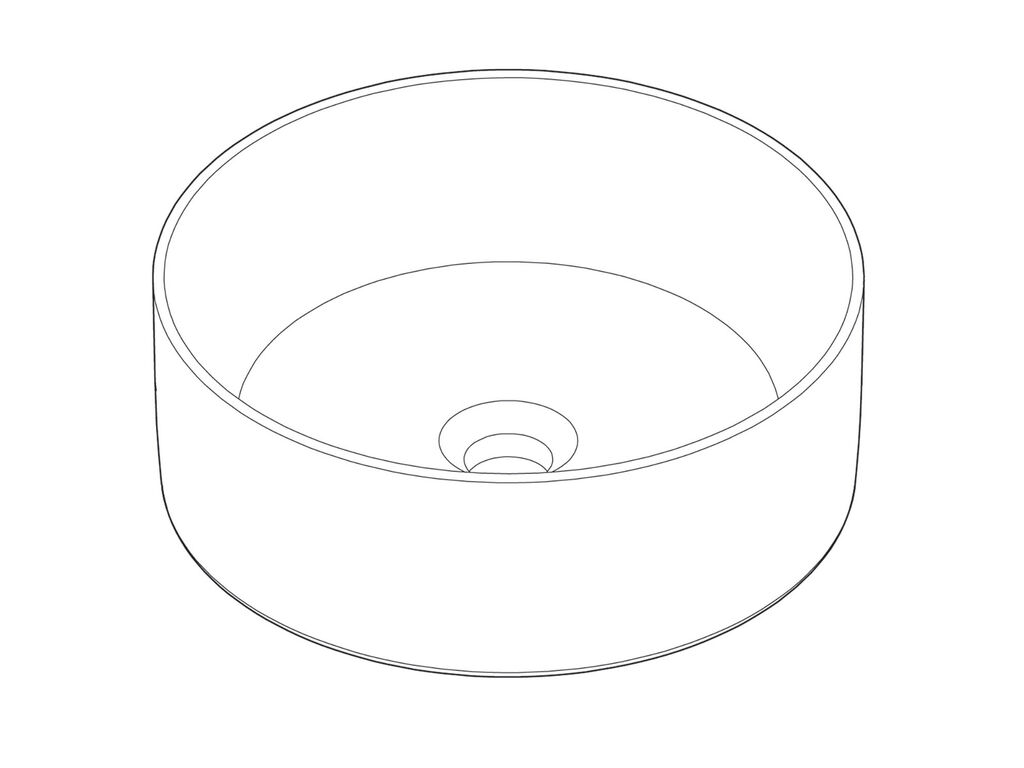

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
380 x 380 x 135mm
Weight:
6.18 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Circular
Bowl Shape:
Circle
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
375 x 375 x 110mm
Number of Tap Holes:
0
Max Water Temperature:
100°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Florida Ceramic Sit-On Basin 380 White
Instructions
