Technical Data Sheet

Orta Glass Vanity Wing Basin 1380 Centre Bowl White

9218

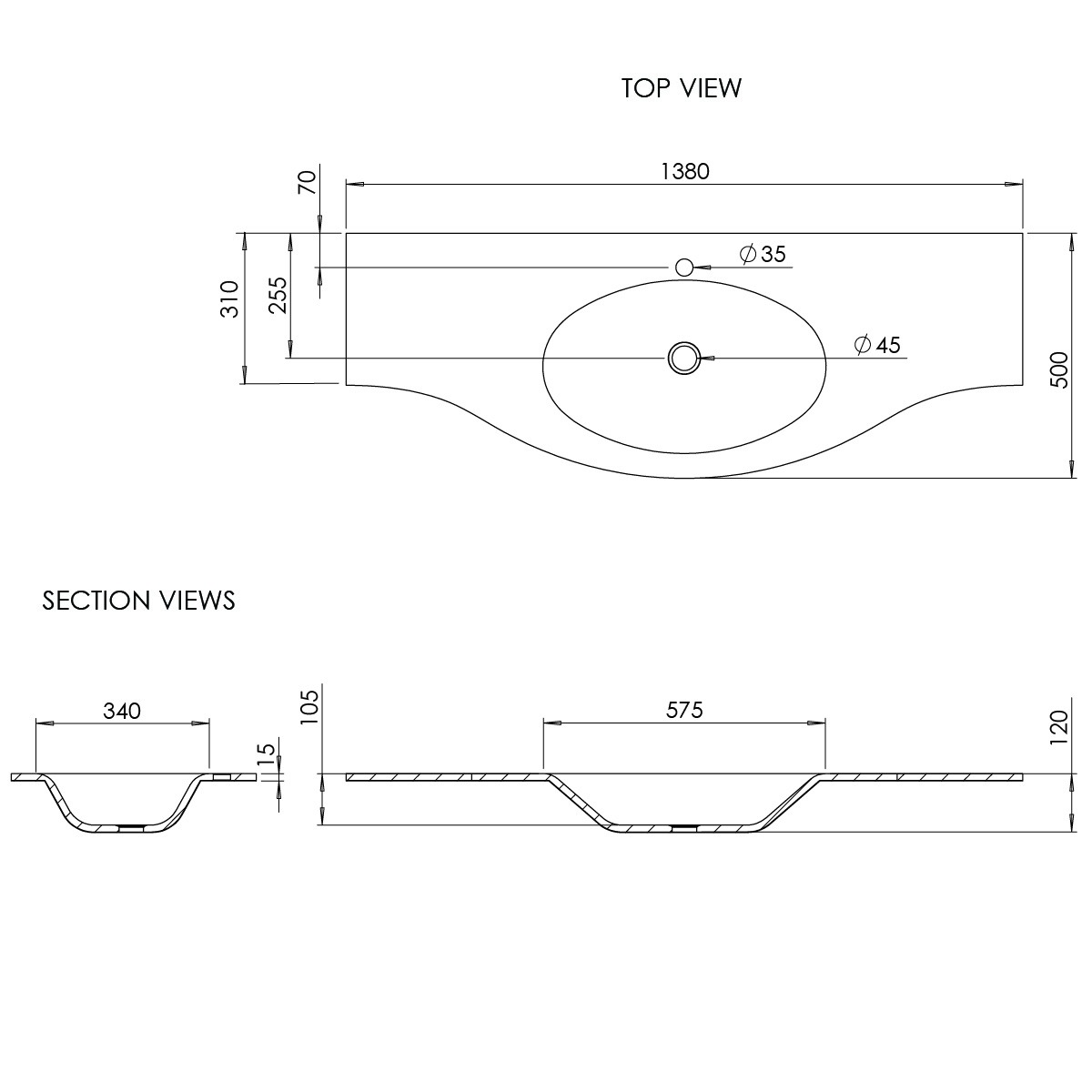

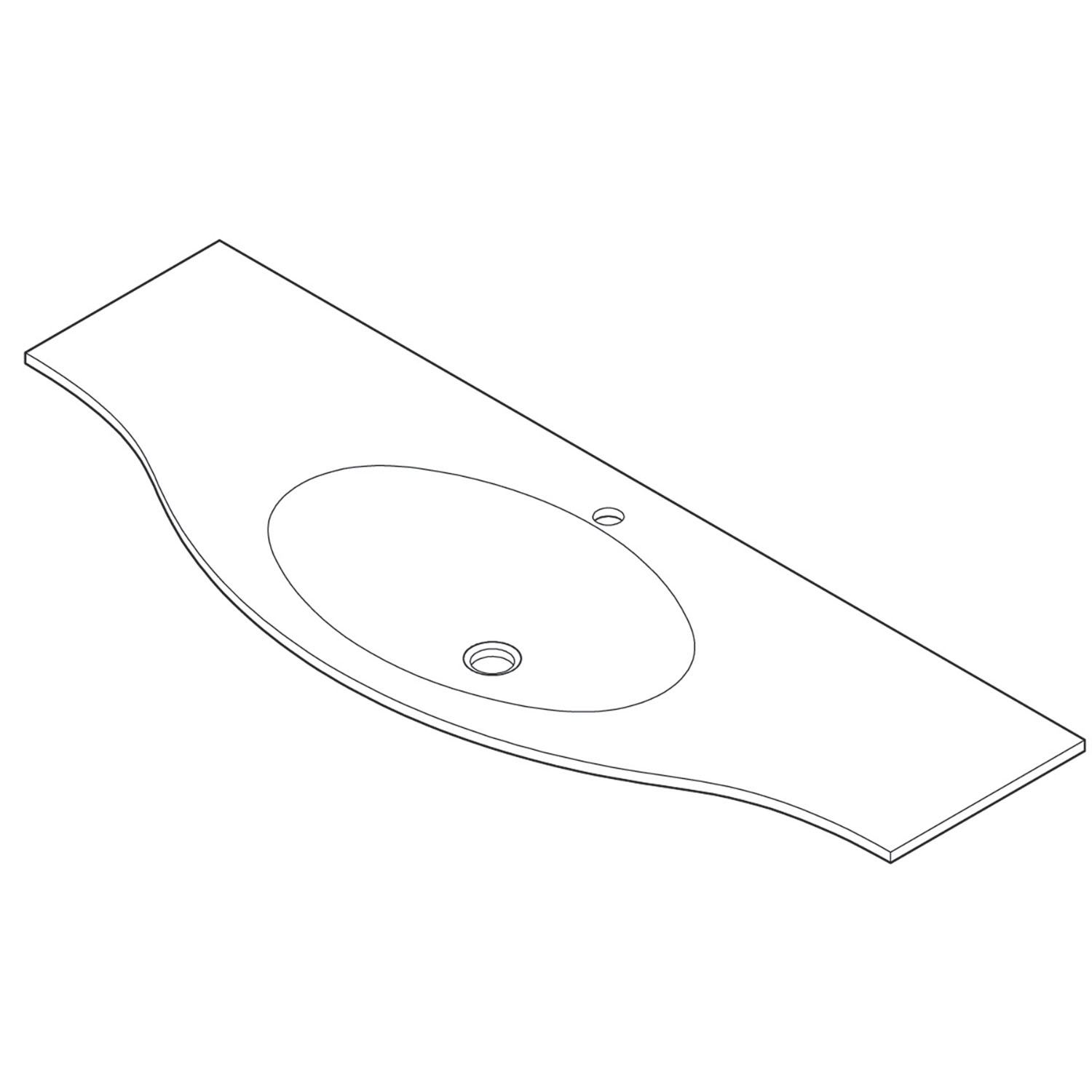

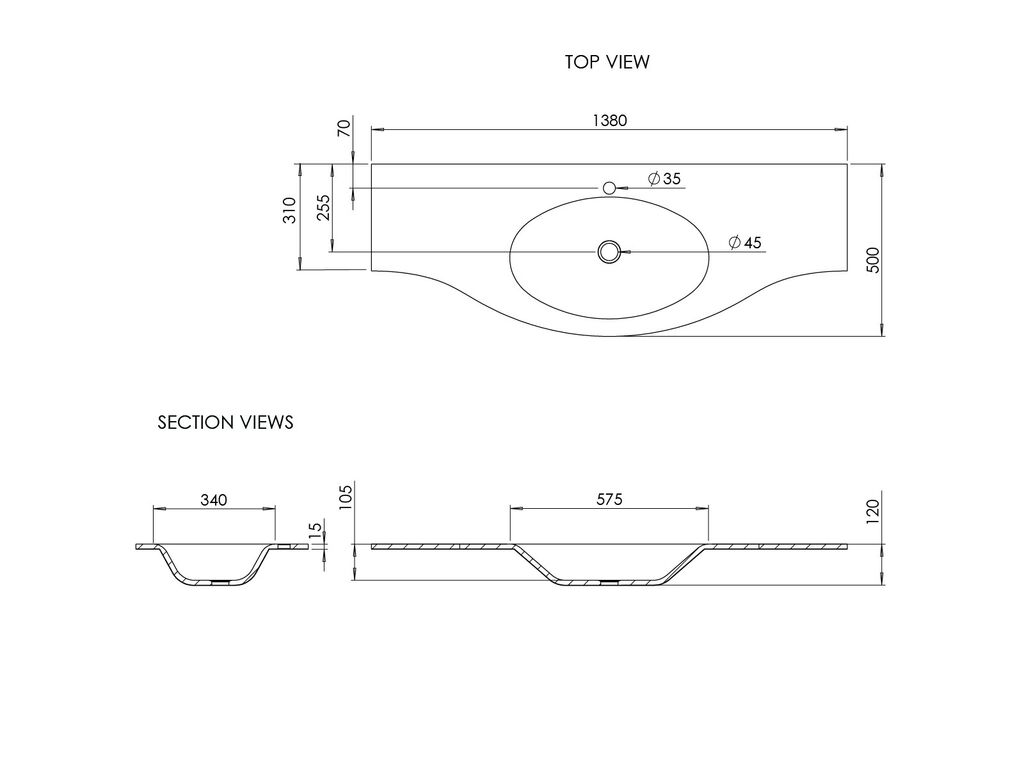

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Dimensions (WxDxH):

1380 x 500 x 120mm

Weight:

23.23 kg

Basin Type:

Vanity Wing Basin

Basin Construction Material:

Glass

Basin Interior:

White Gloss

Basin Exterior:

White Gloss

Overall Shape:

Convex Double Wing

Bowl Shape:

Rectangular

Configuration:

Centre Bowl

Number of Bowls:

Internal Bowl (WxDxH):

575 x 340 x 105mm

Depth at Centre:

105mm

Number of Tap Holes:

Tap Hole Diameter:

35 mm

Tap Hole Position:

Centre Rear of Top Surface

Max Water Temperature:

45°C

Overflow Type:

No Overflow

Waste Hole Diameter:

45 mm

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 3mm.

Technical Note:

The waste assembly should be hand-tightened only. This avoids placing unnecessary stress on the glass.

In The Box:
