Technical Data Sheet
Bouro Cast Sit-On Basin 470 White
3584

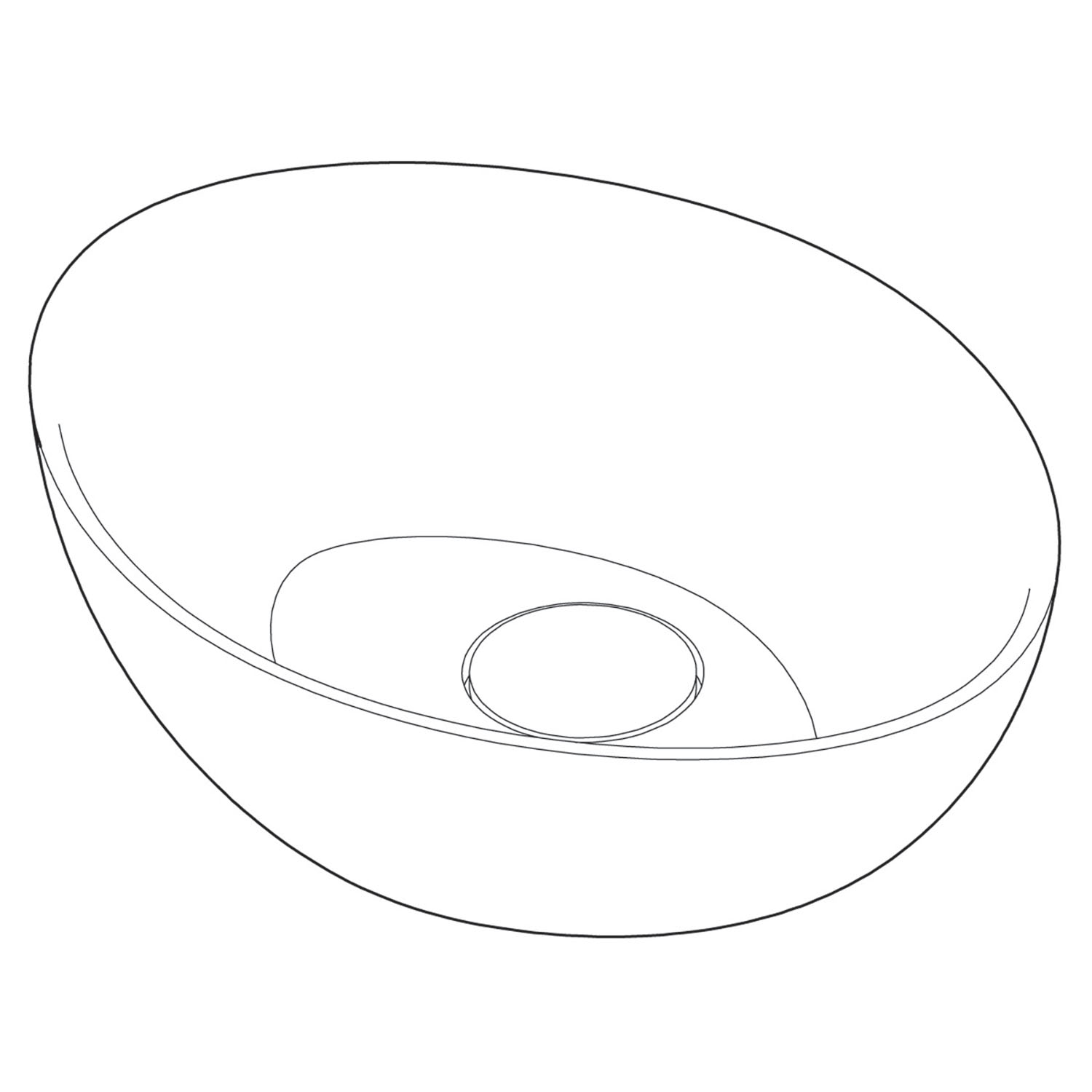

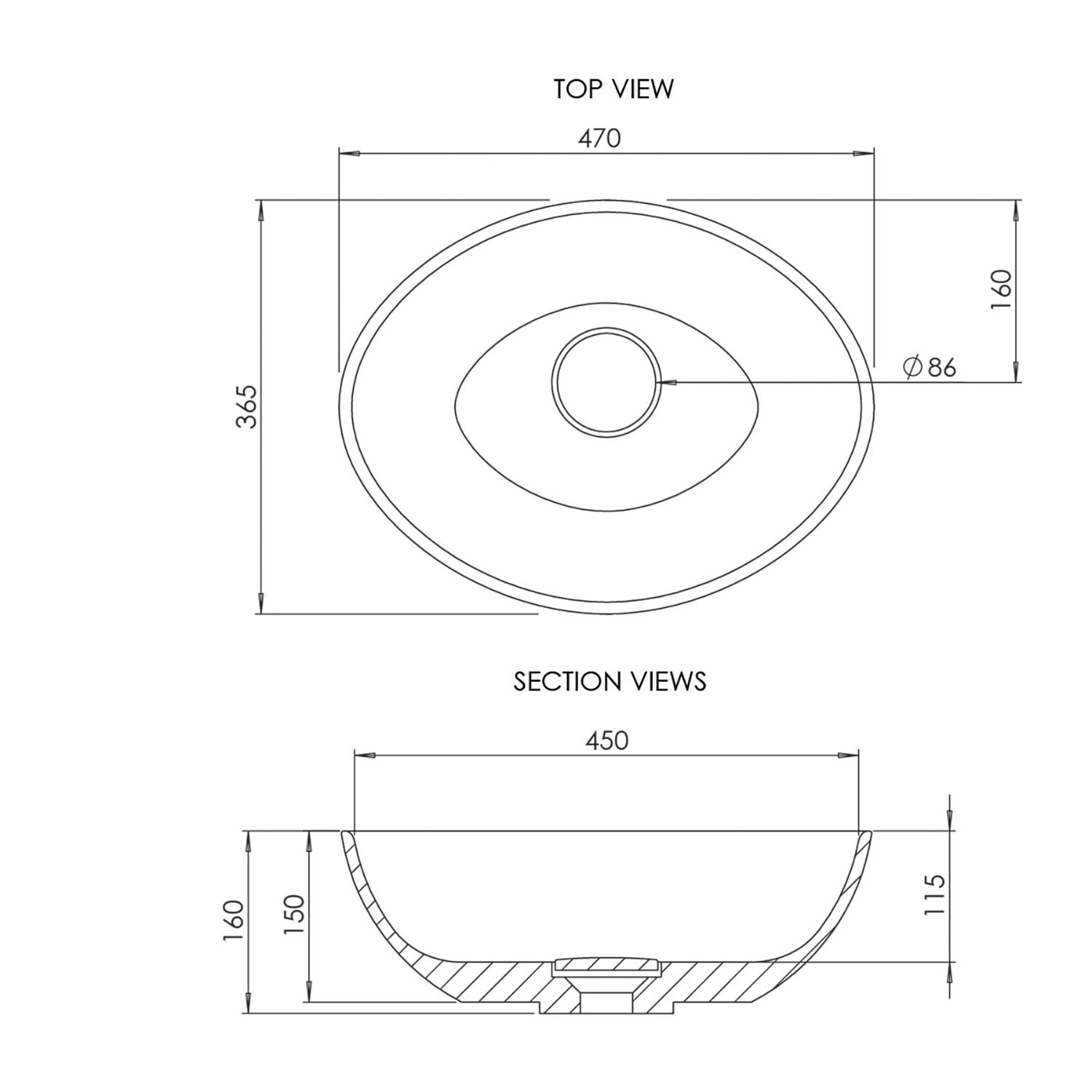

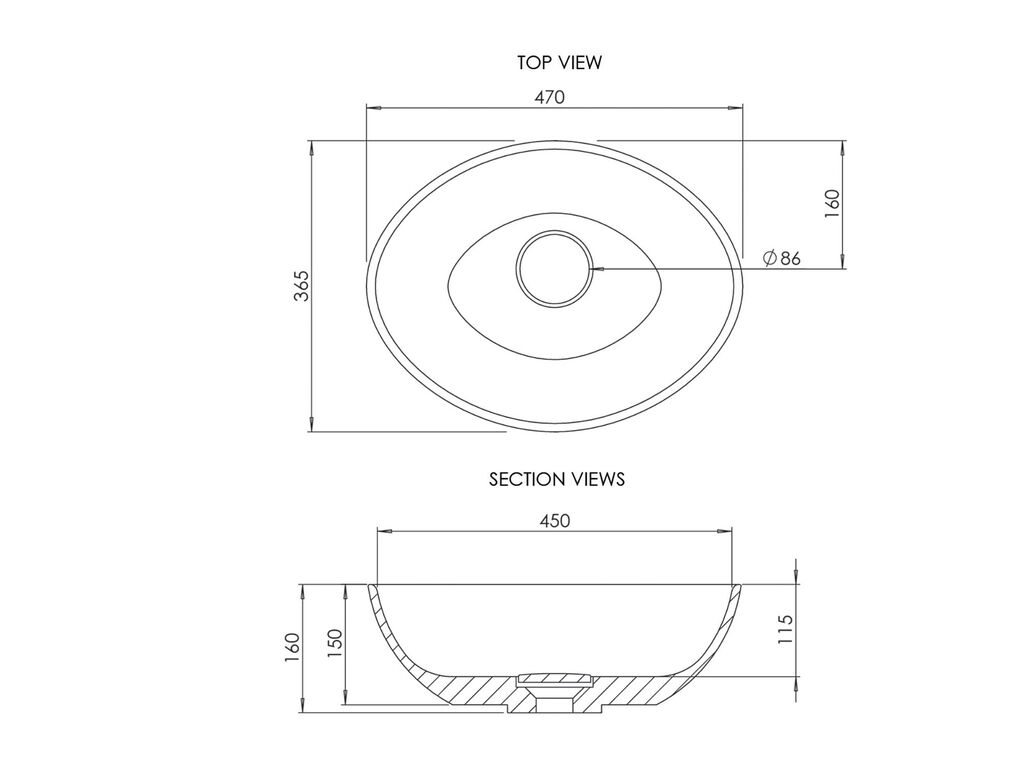

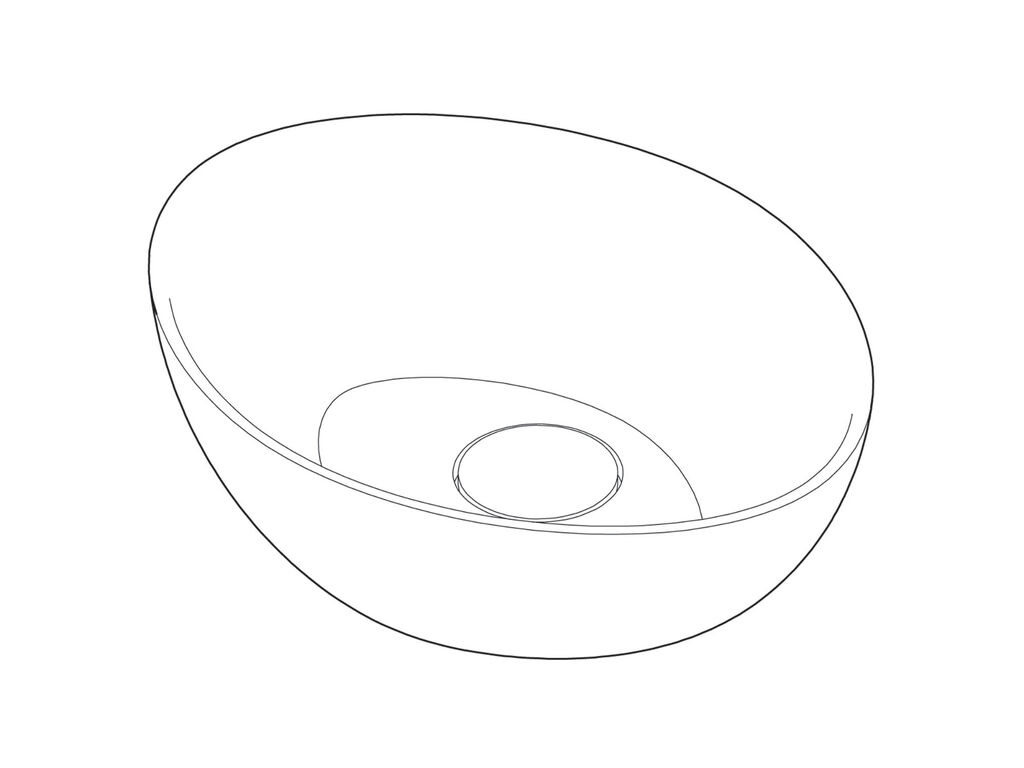

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
470 x 363 x 160mm
Weight:
7.76 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Circular
Bowl Shape:
Circle
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
450 x 340 x 115mm
Max Water Temperature:
65°C
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, No
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Bouro Cast Sit-On Basin 470 White
Instructions
