Technical Data Sheet
Dakota Ceramic Sit-On Basin 500 White
9294

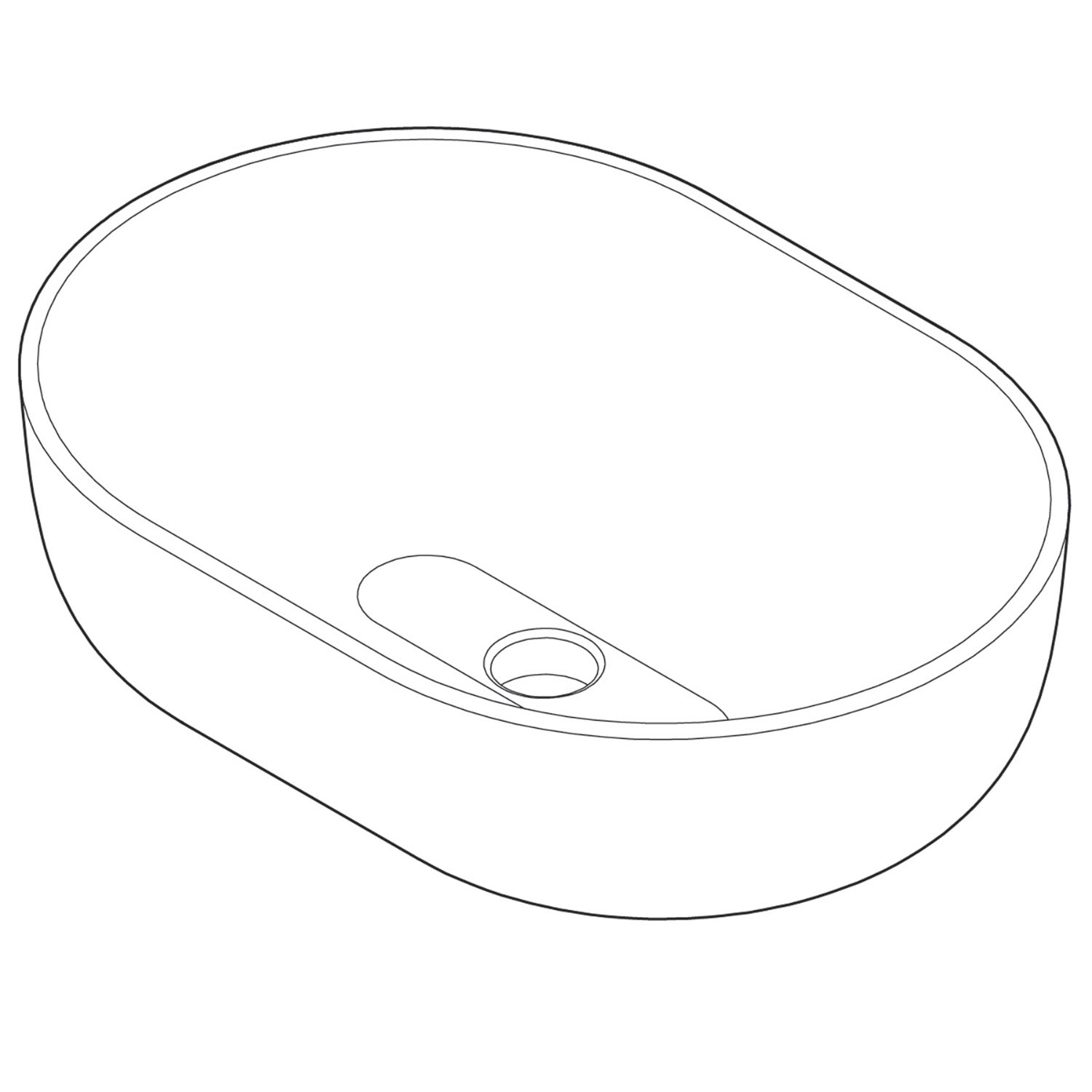

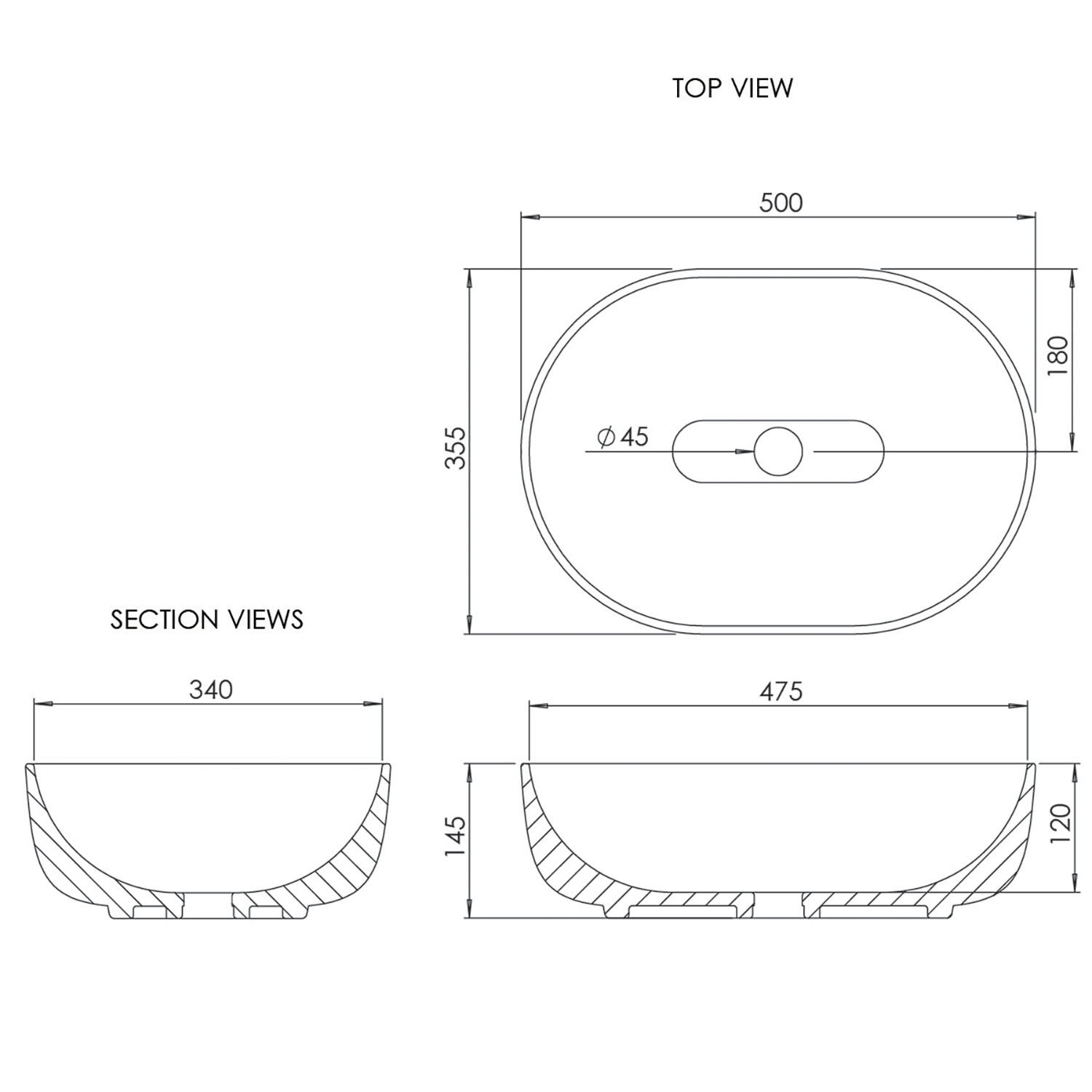

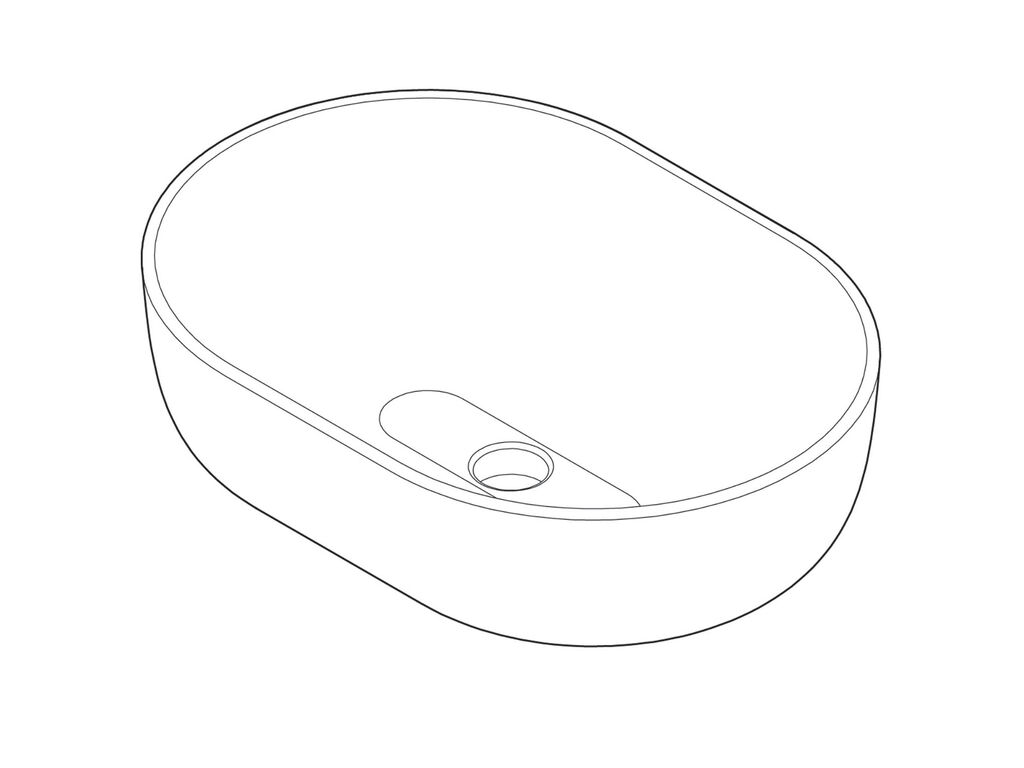

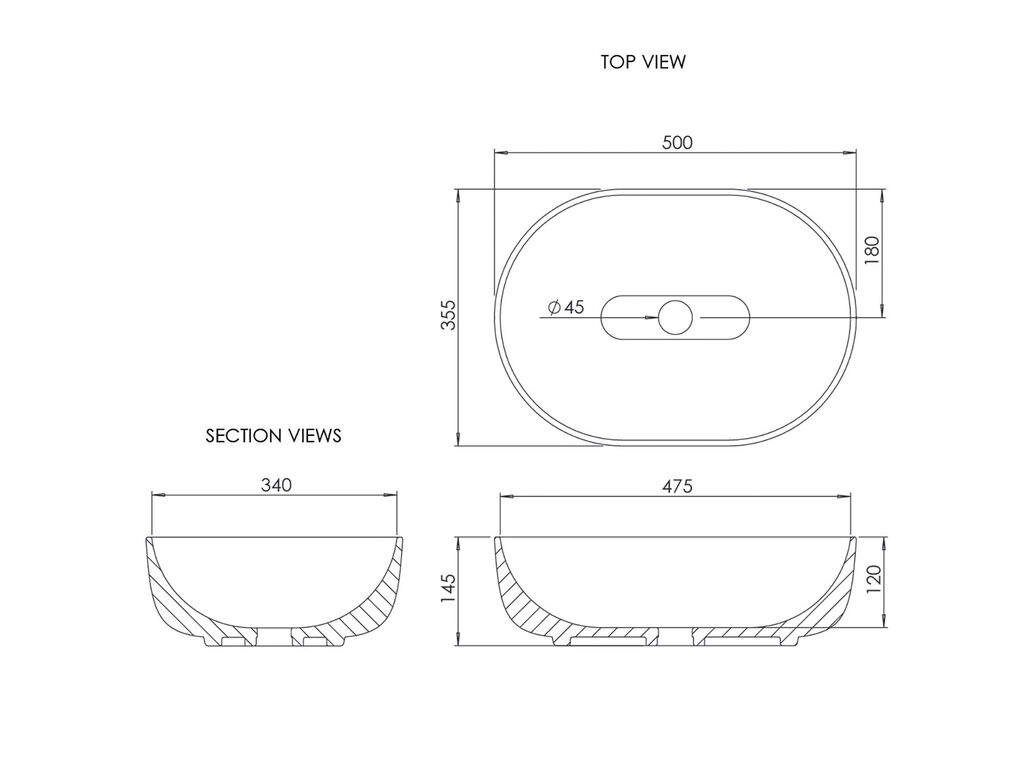

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
500 x 355 x 145mm
Weight:
8.46 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Oval
Bowl Shape:
Oval
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
475 x 340 x 120mm
Depth at Centre:
357mm
Number of Tap Holes:
0
Max Water Temperature:
100°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Dakota Ceramic Sit-On Basin 500 White
Instructions
