Technical Data Sheet
Orta Glass Vanity Wing Basin 1380 Centre Bowl Black
9271

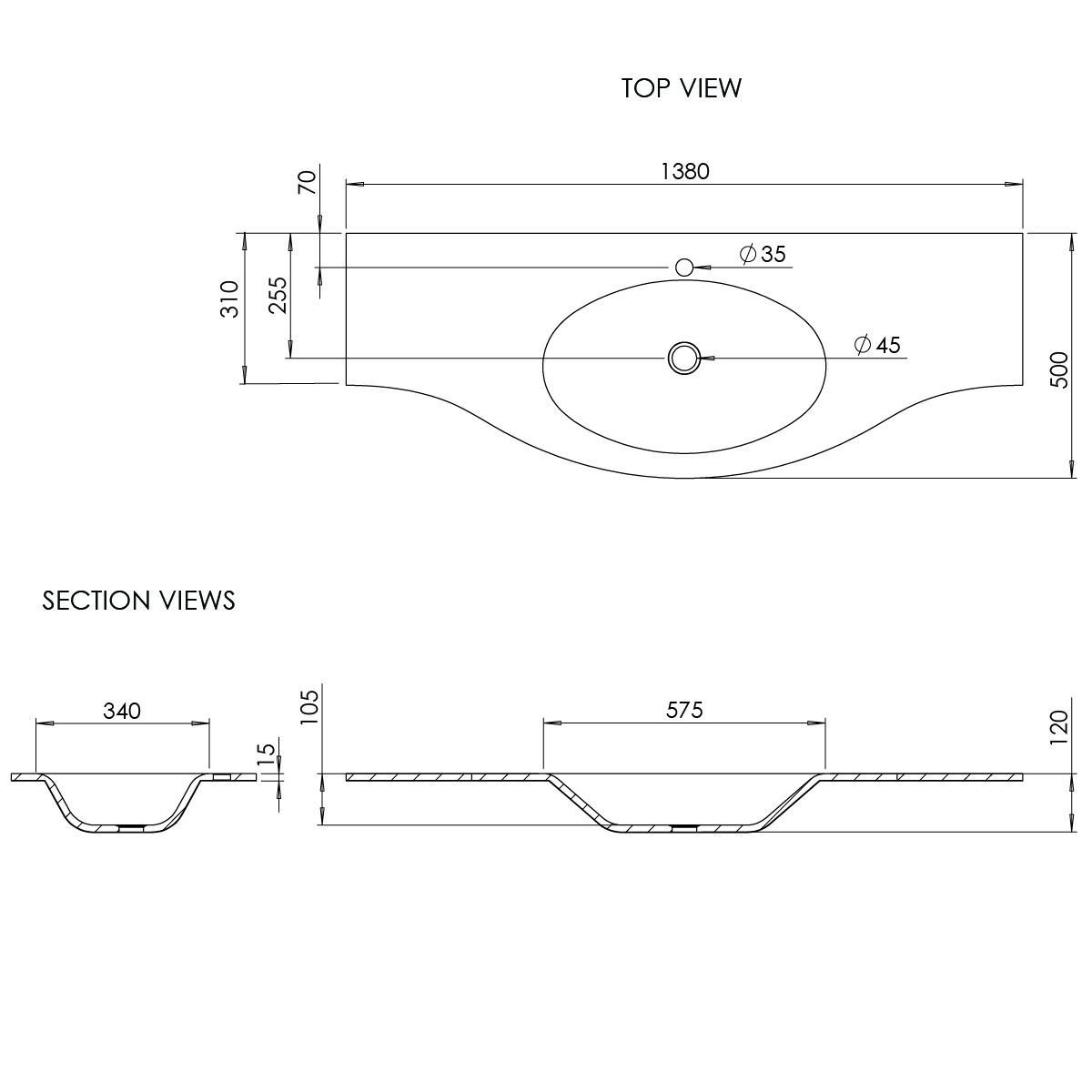

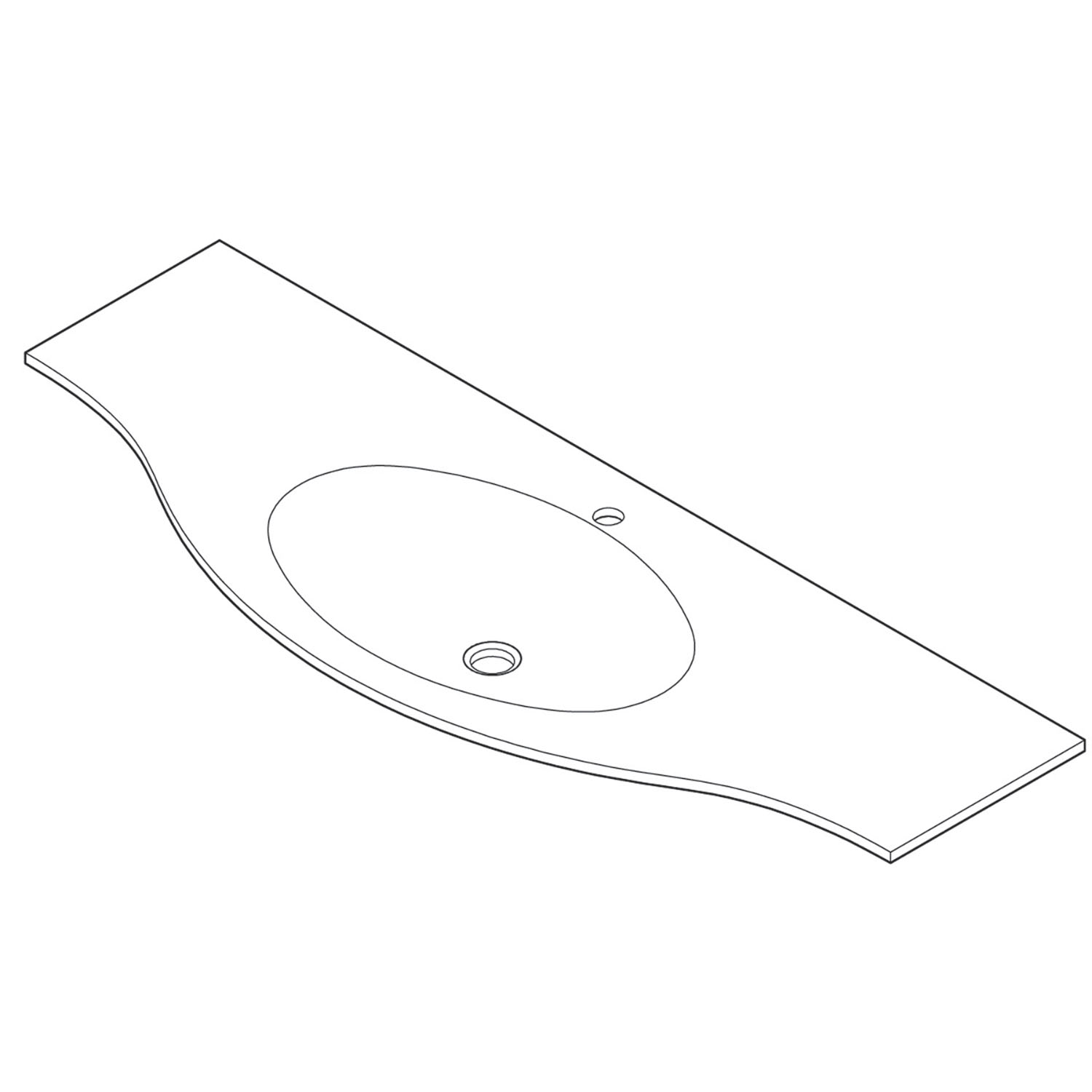

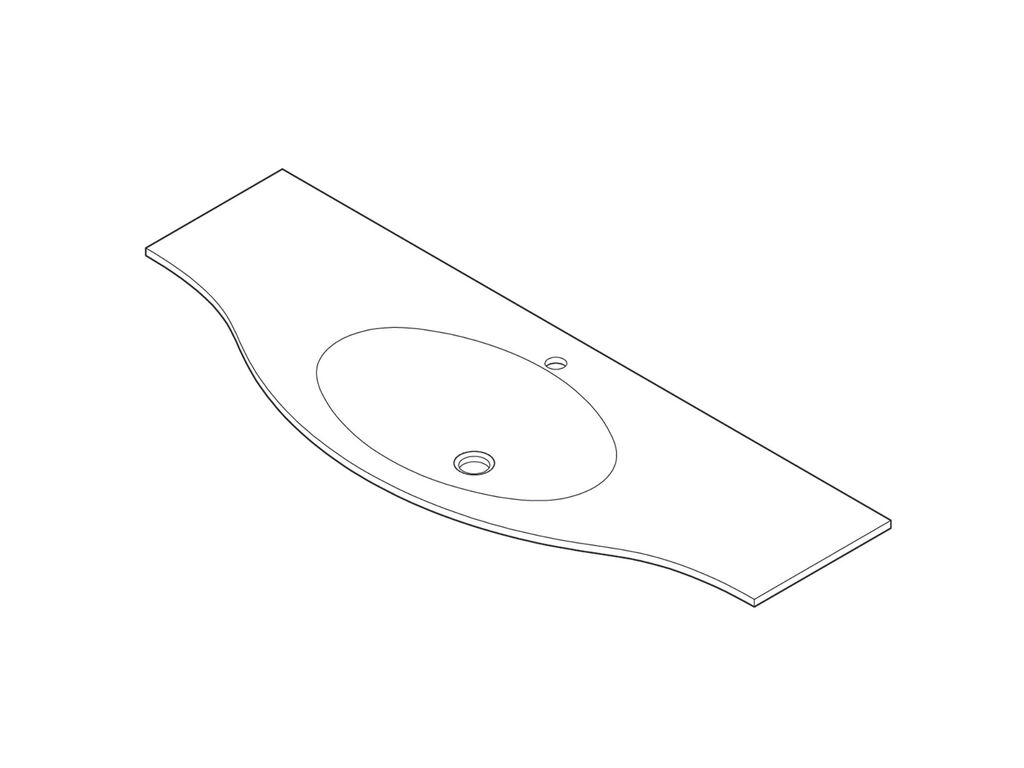

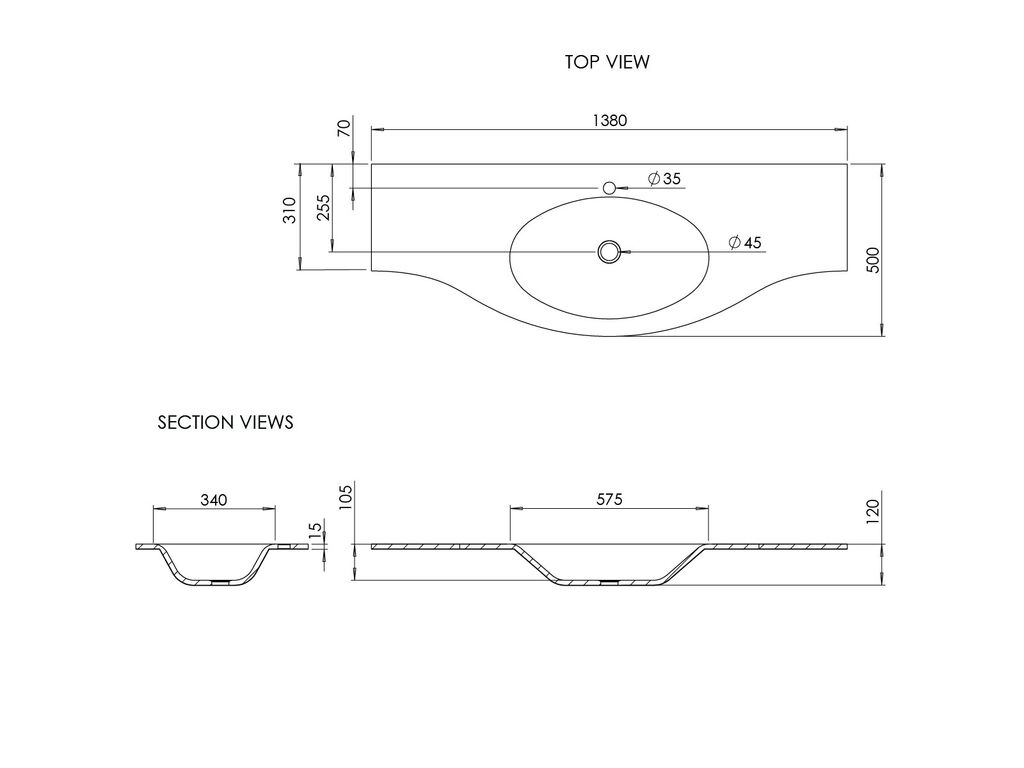

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1380 x 500 x 120mm
Weight:
23.23 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Glass
Basin Interior:
Black Matt
Basin Exterior:
Black Matt
Number of Bowls:
1
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Max Water Temperature (°C):
45
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
Technical Note:
The waste assembly should be hand-tightened only. This avoids placing unnecessary stress on the glass.
In The Box:
Orta Glass Vanity Wing Basin 1380 Centre Bowl Black
Instructions
Fitting kit
