Technical Data Sheet
Tucson Ceramic Sit-On Basin 260 White
9169

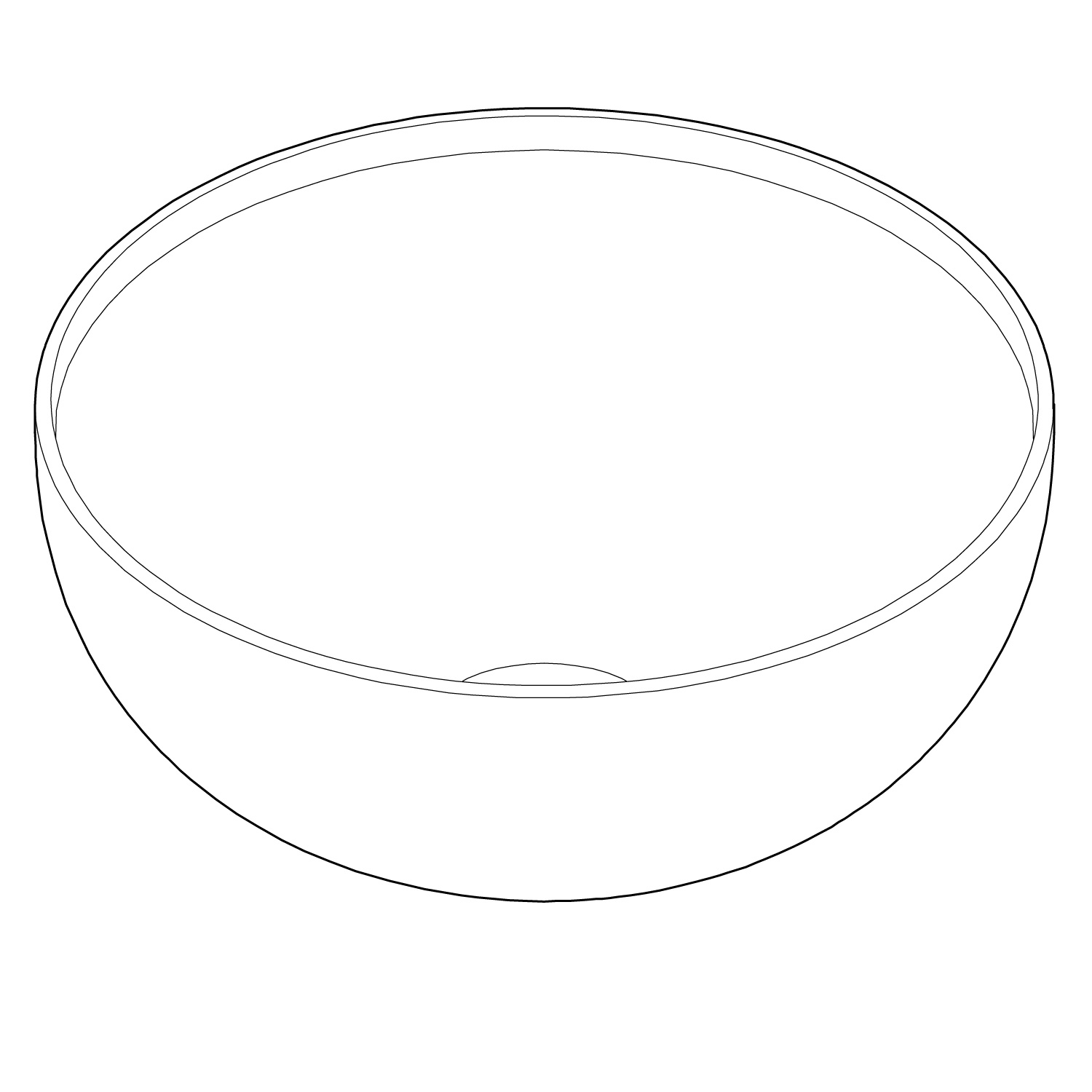

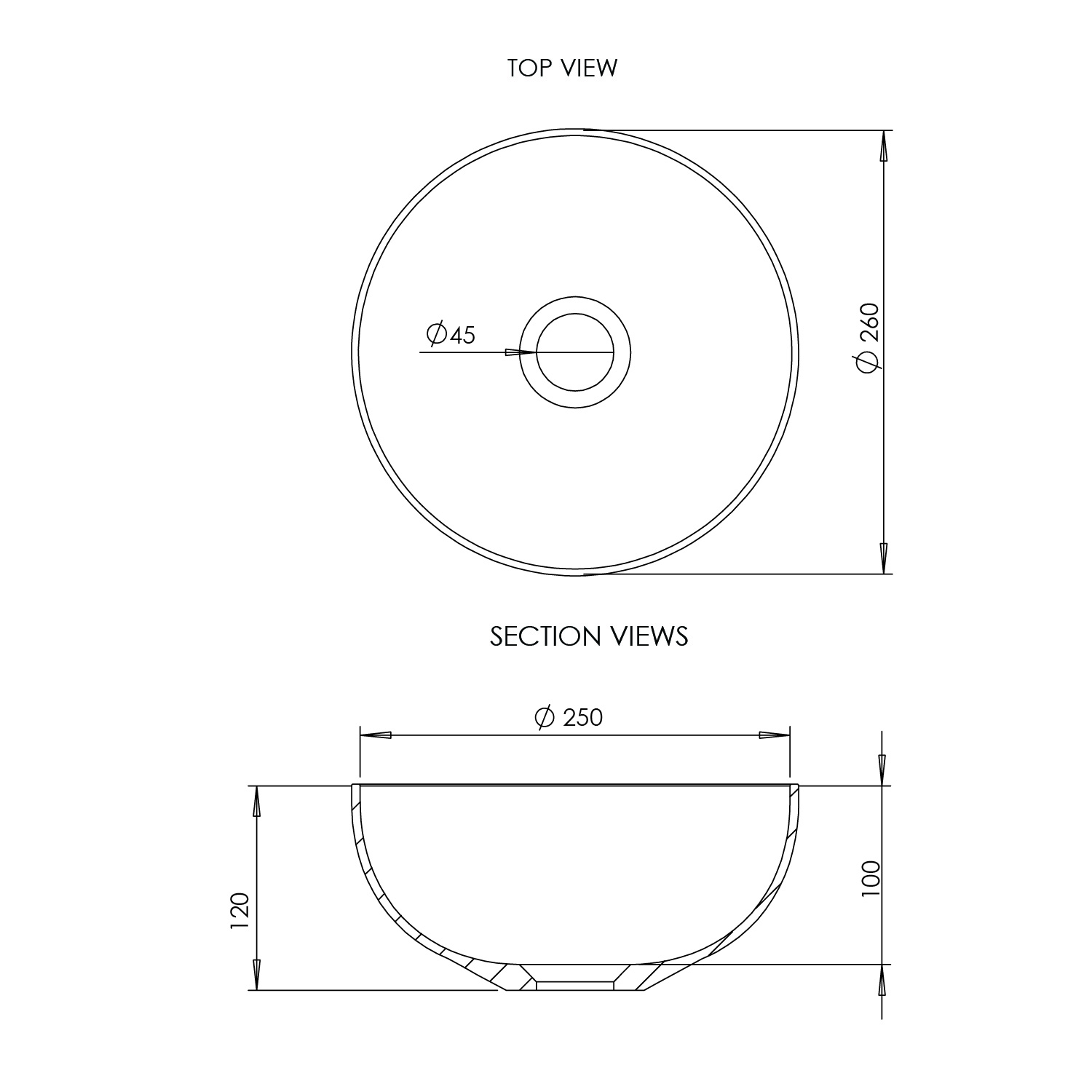

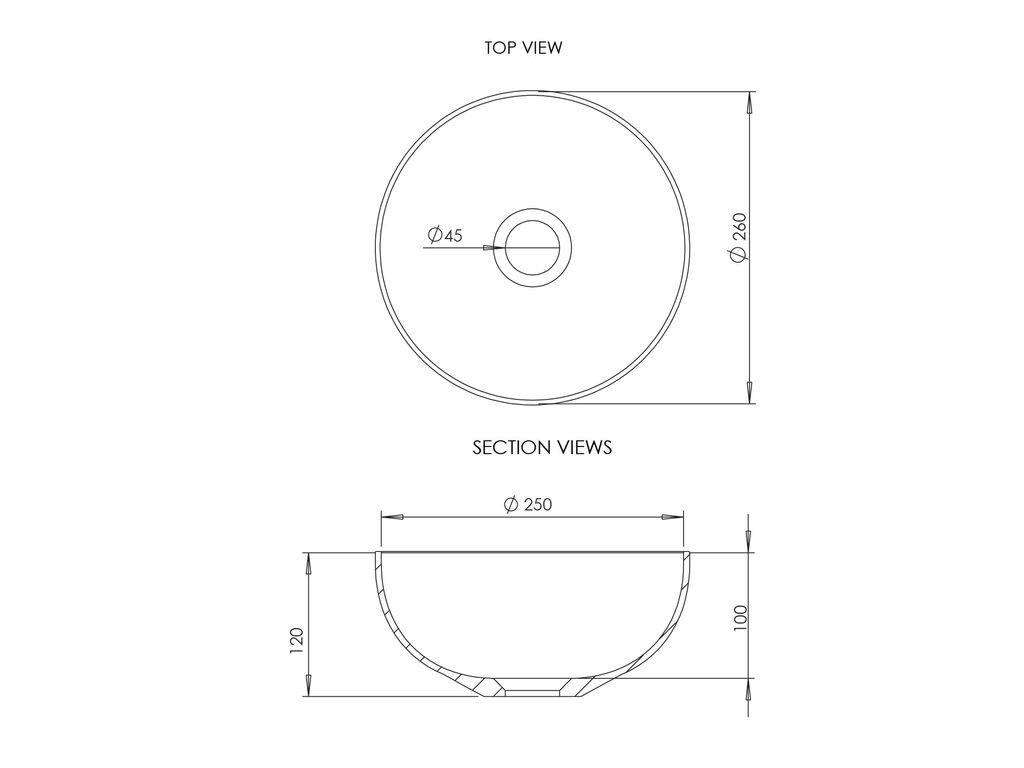

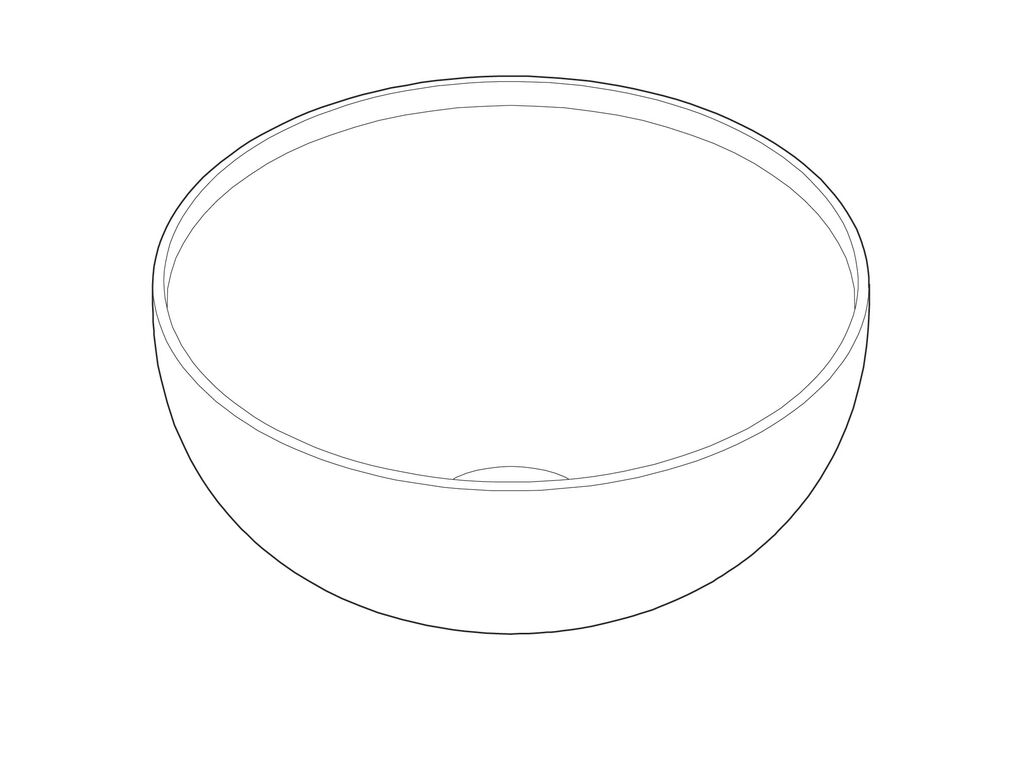

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
260 x 260 x 120mm
Weight:
2.20 kg
Basin Type:
Sit-On Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Circular
Bowl Shape:
Circle
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
243 x 243 x 100mm
Depth at Centre:
260mm
Number of Tap Holes:
0
Max Water Temperature:
100°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Tucson Ceramic Sit-On Basin 260 White
