Technical Data Sheet

Levanto Fluted Wall Hung Vanity Unit 1040 Two Drawer One Door Left Hand Basin

7891

Calypso Logo

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

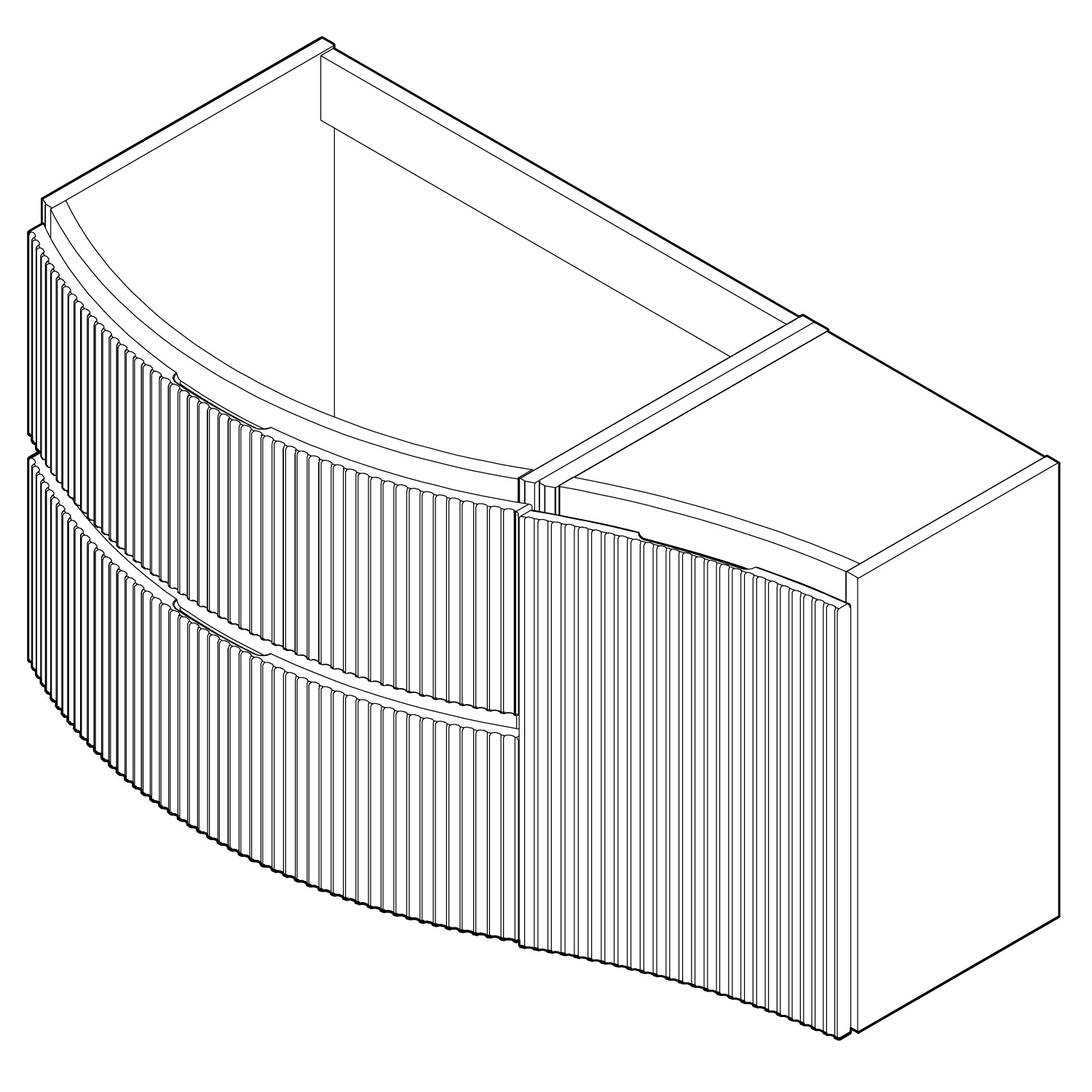

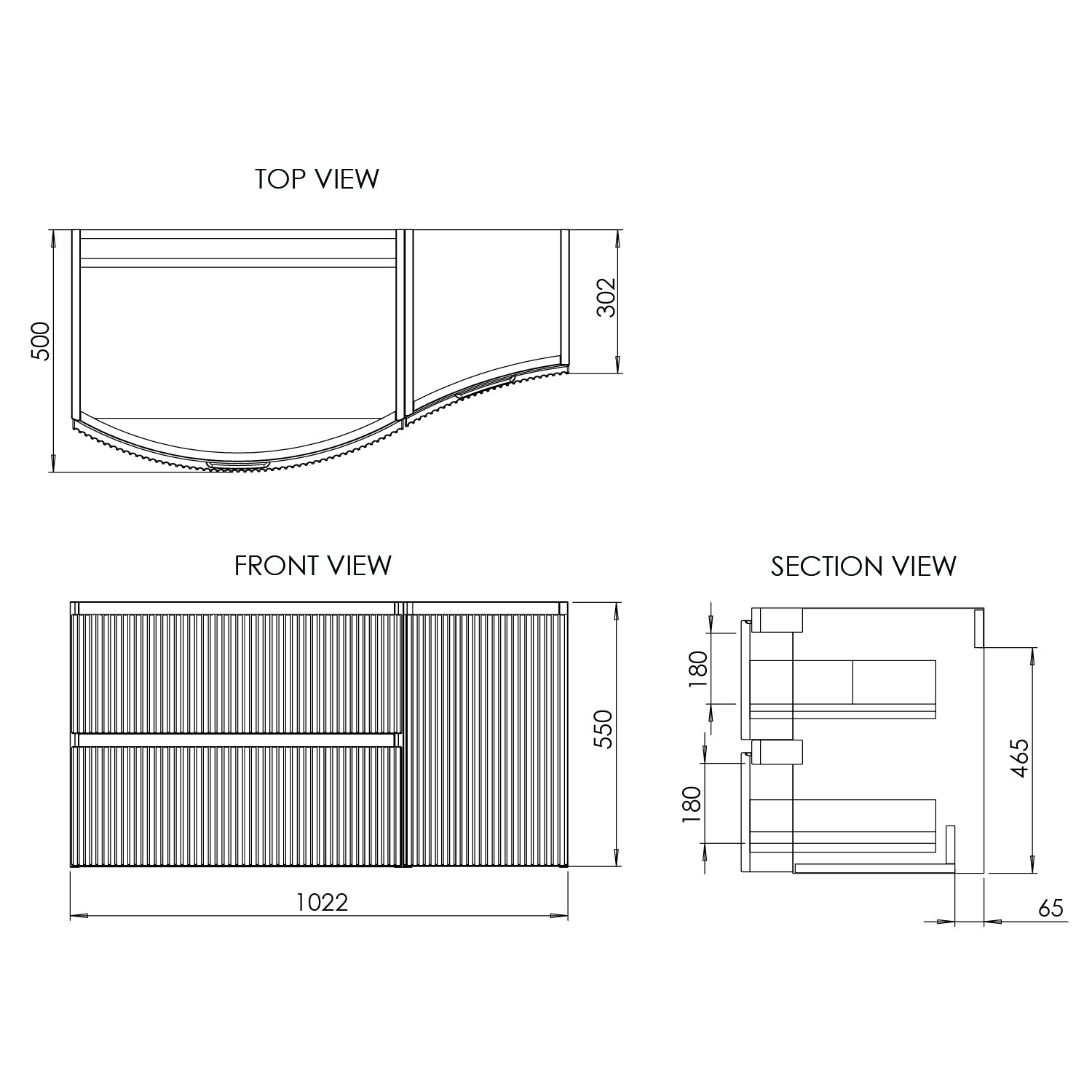

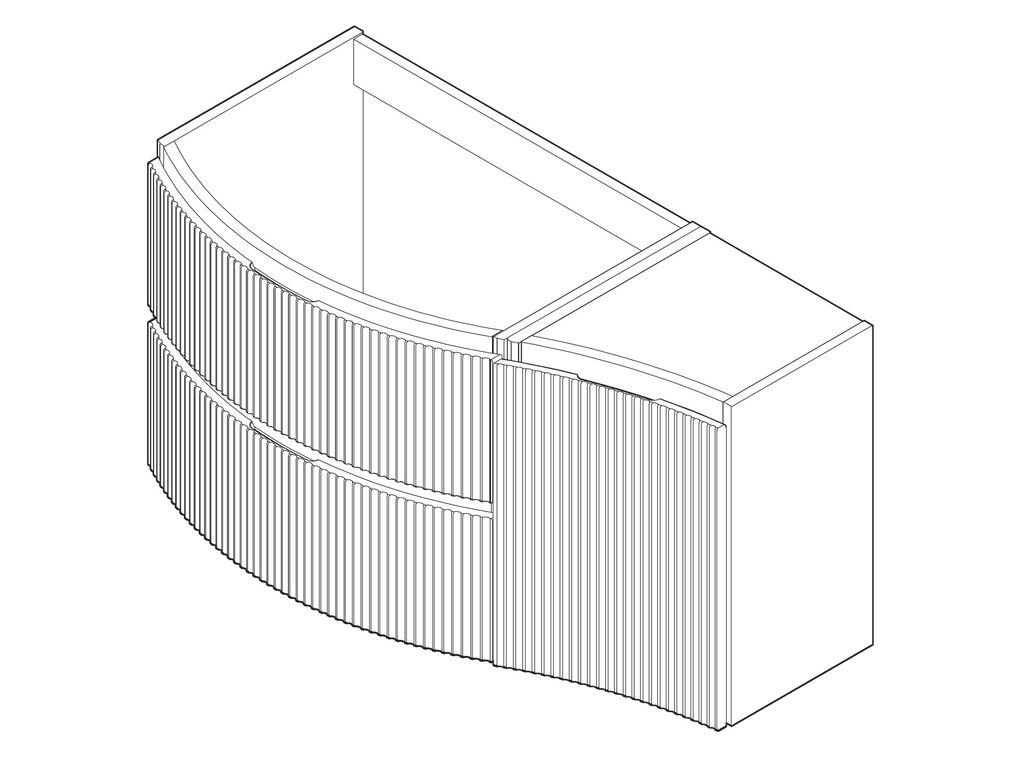

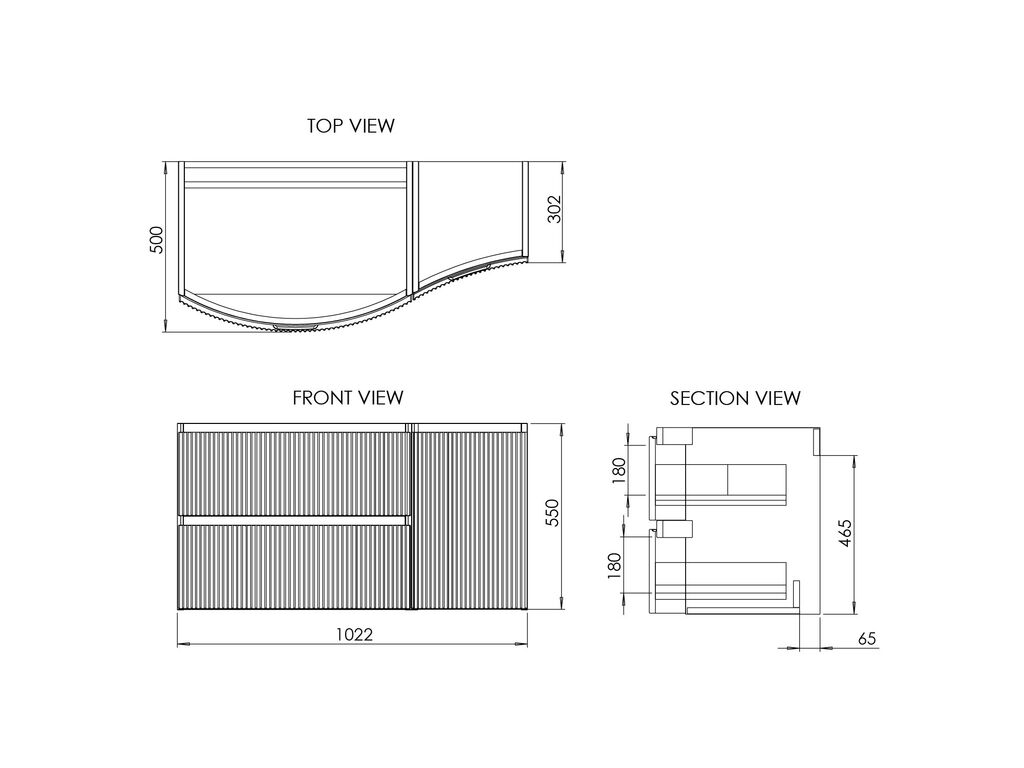

3D Line Drawing2D Line Drawing

Technical Details

Furniture Type:

Wall Hung Vanity Unit

Dimensions (WxDxH):

1022 x 500 x 550mm

Carcass Material:

MDF 16/25mm

Carcass Edging:

PVC Edging

Carcass Service Area:

Open Back

Fascia Style:

MDF 18mm Fluted

Fascia Detail:

Convex Front

End Panel Material:

MDF 18mm

End Panel Detail:

Slab

Door Openings:

1

Door(s) Hinge Side:

Right Hinged

Hinges Detail:

Soft Close

Hinge Bracket Cover Plates:

Not Included

Handle Type:

Integrated Handle

Drawers:

2 drawers, Soft Close, 300mm runners

Shelves:

1 removable - Glass 5mm

Removable Shelf Supports:

Clamps

Fixation Method:

Fixed Through Rear Rail, 50mm from top @ 450mm centres

Door Open Unit Depth:

906mm

Service Void Depth:

65mm

Compatible Basins:

In The Box:

Levanto Fluted Wall Hung Vanity Unit 1040 Two Drawer One Door Left Hand Basin
