Technical Data Sheet
Farra Cast Vanity Wing Basin 1035 Left Bowl White
9266

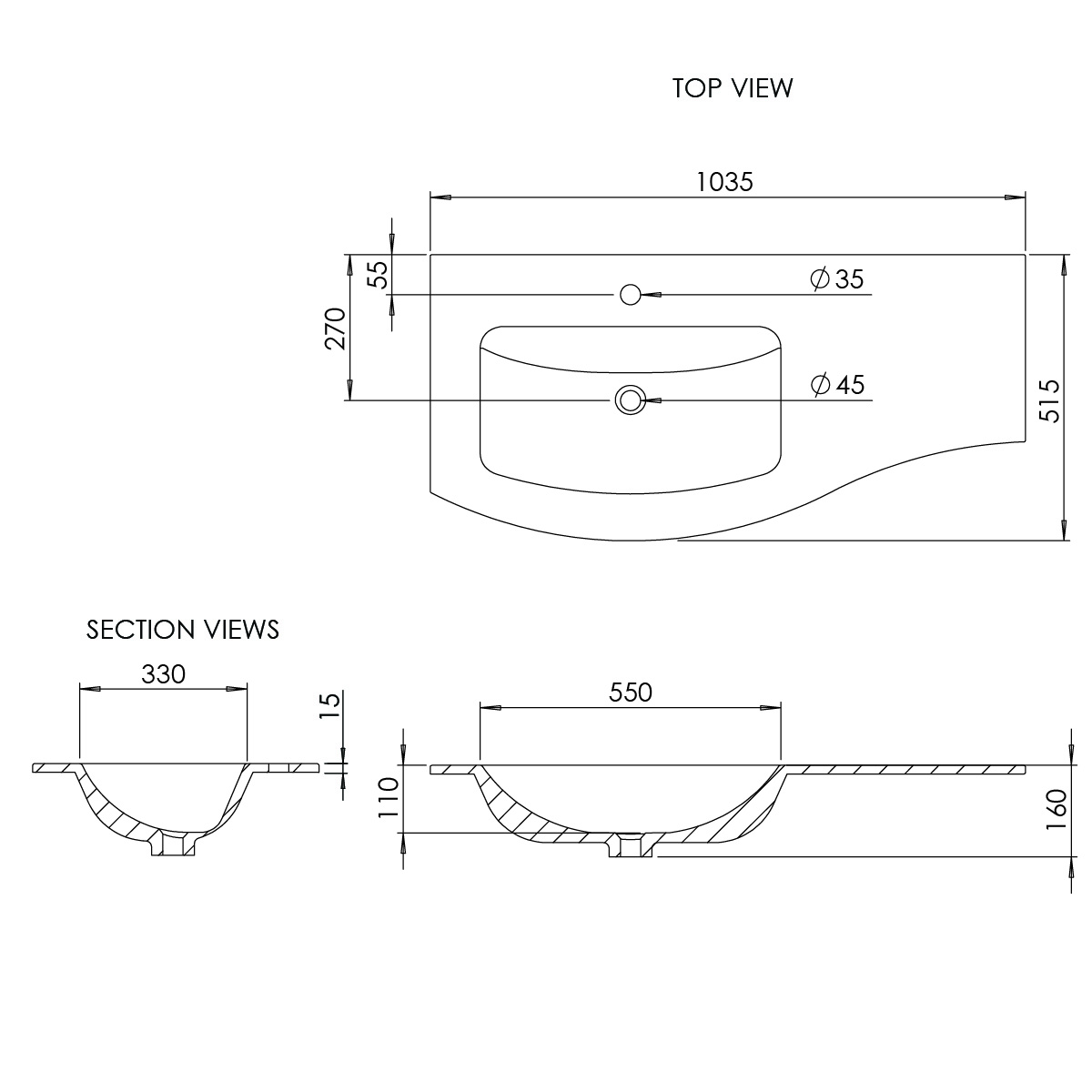

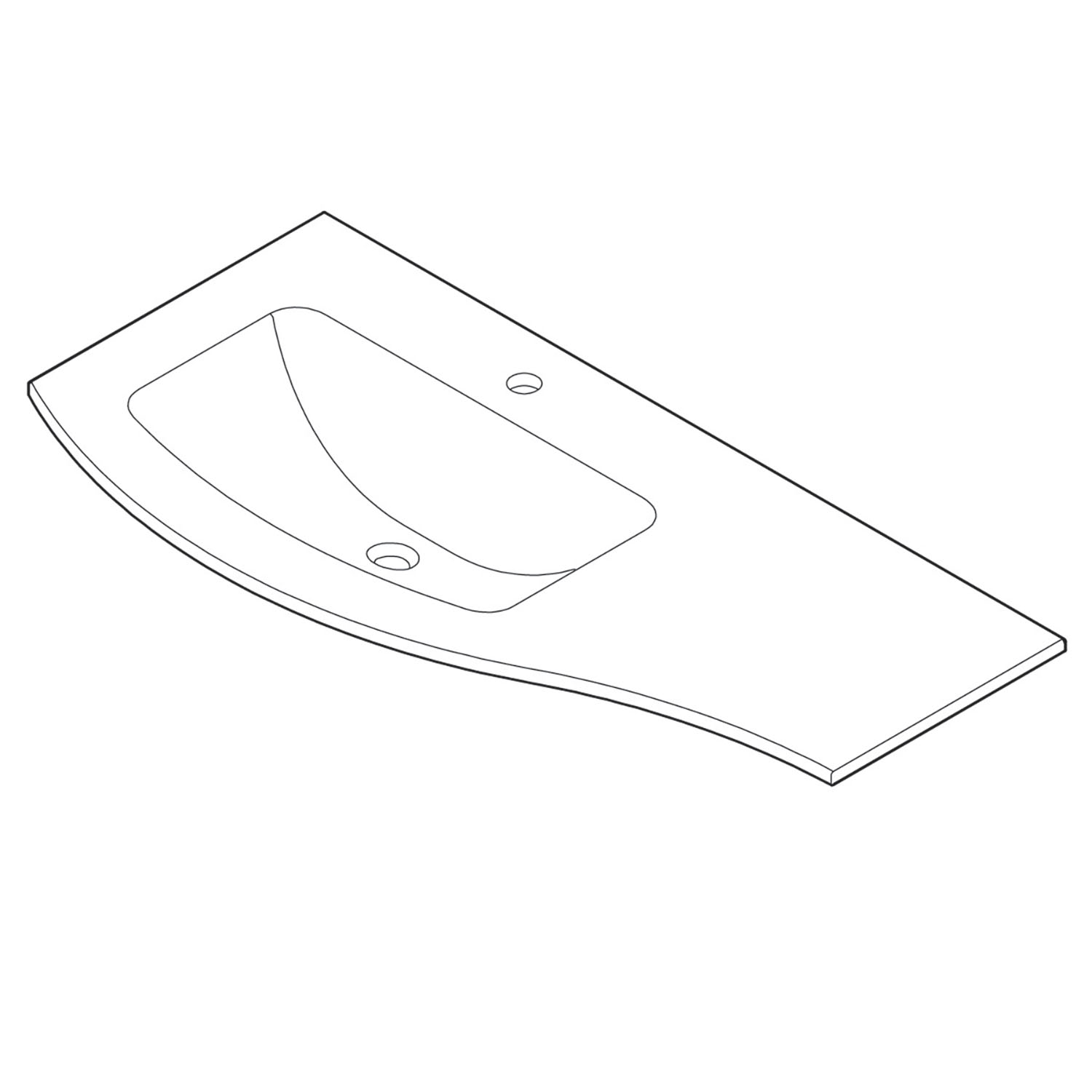

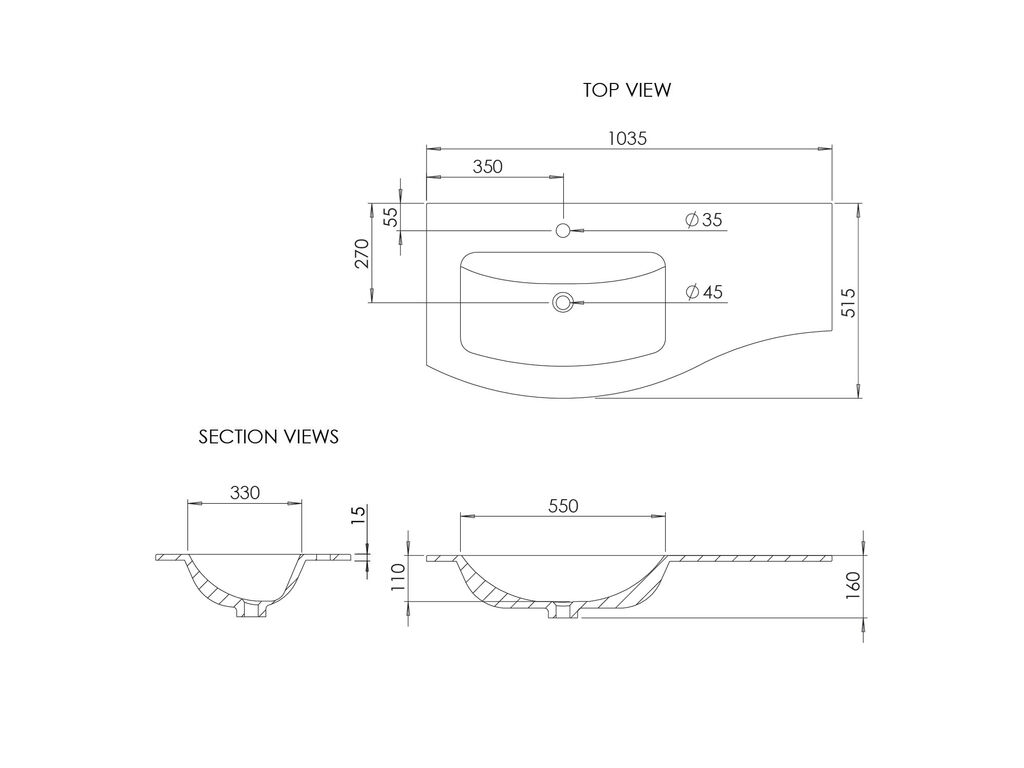

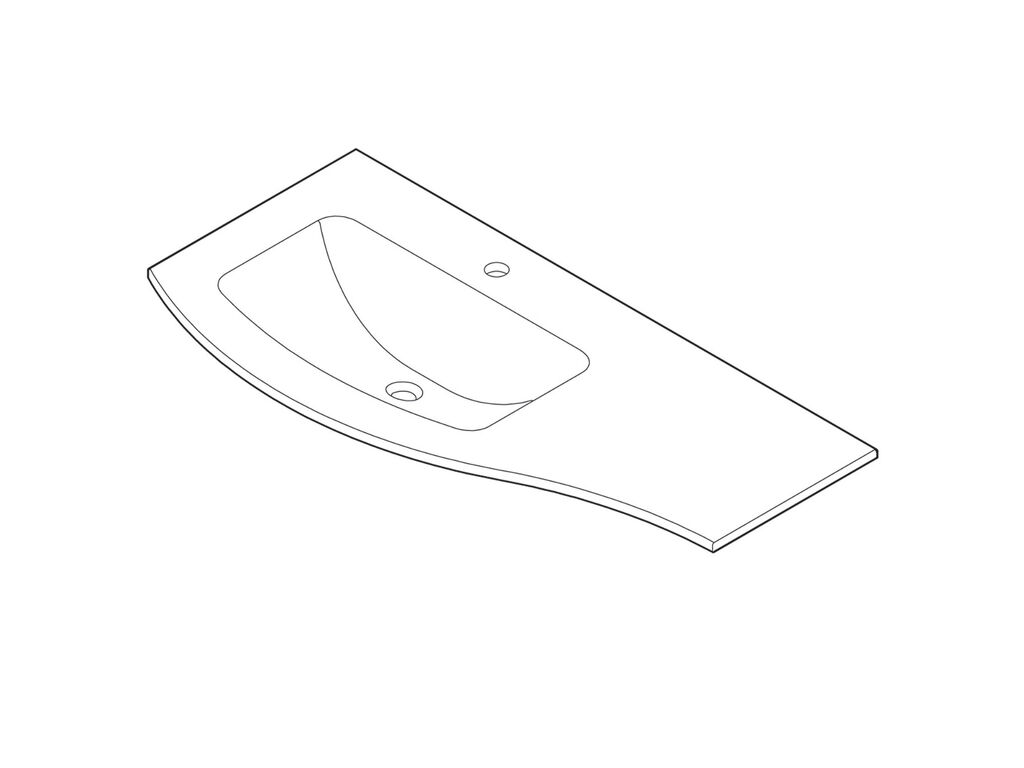

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1035 x 515 x 160mm
Weight:
15.62 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Irregular
Bowl Shape:
Rectangular with Convex Front
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
550 x 330 x 110mm
Depth at Centre:
513mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Left Rear of Top Surface
Max Water Temperature:
65°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 2,Type 3
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Farra Cast Vanity Wing Basin 1035 Left Bowl White
