Technical Data Sheet
Orta Glass Vanity Wing Basin 1040 Left Bowl White
9217

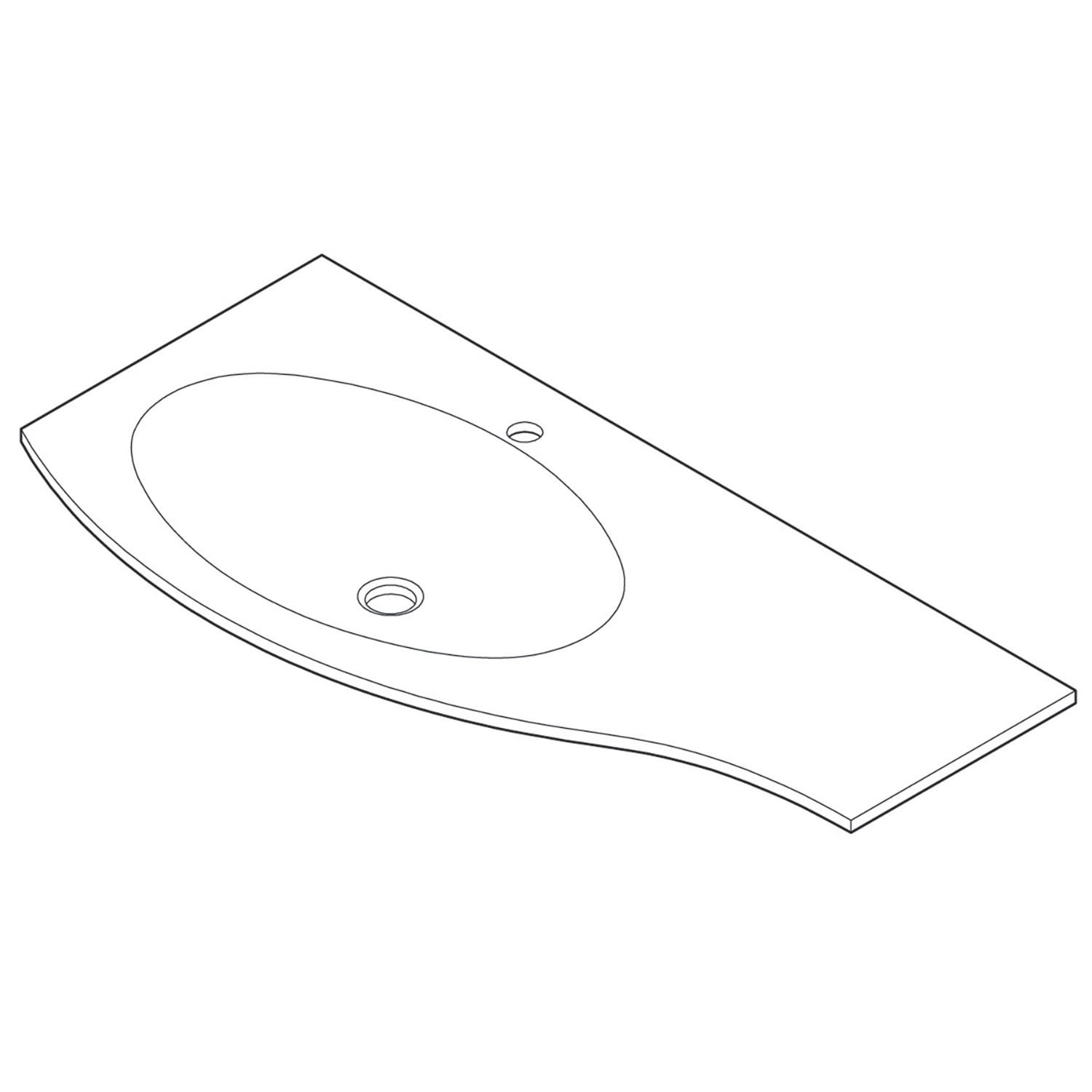

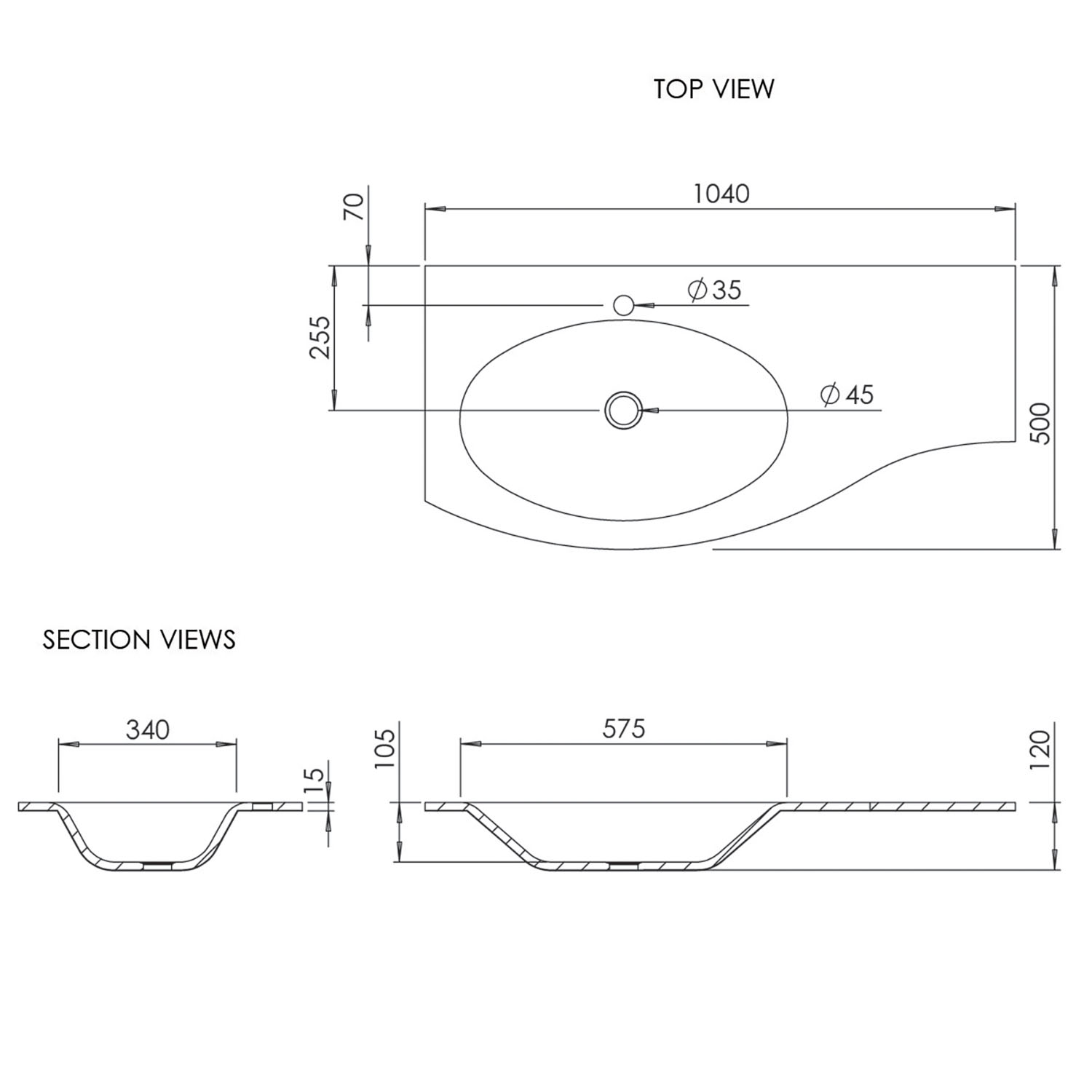

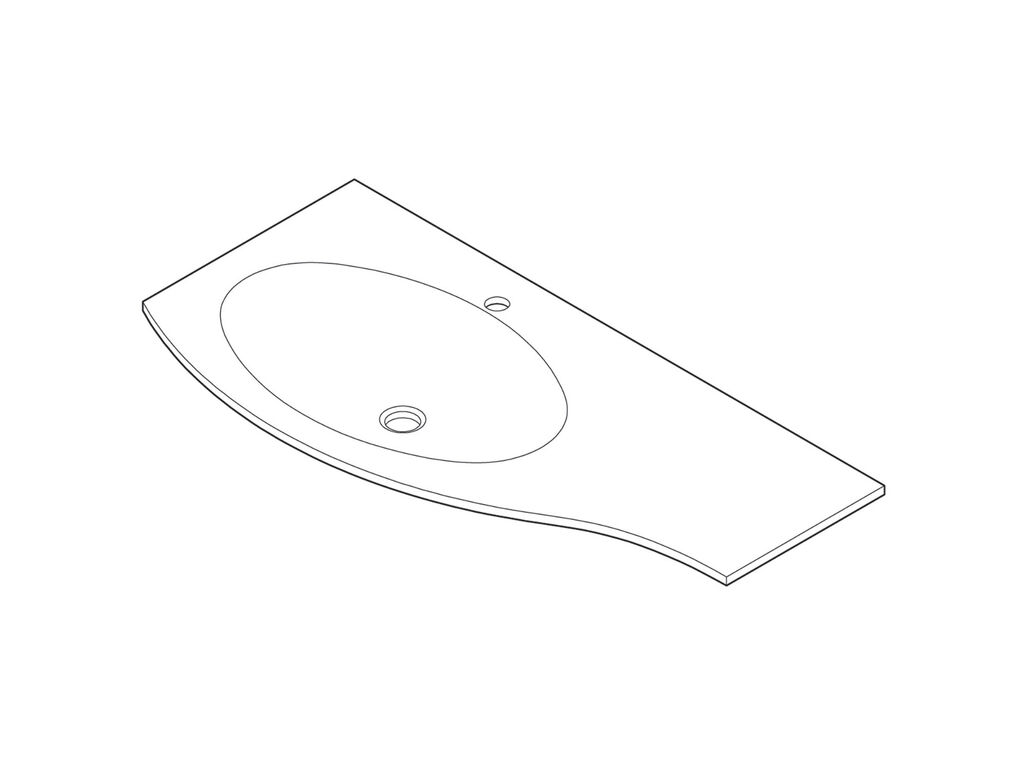

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1040 x 505 x 130mm
Weight:
16.66 kg
Basin Type:
Vanity Wing Basin
Basin Construction Material:
Glass
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Irregular
Bowl Shape:
Oval
Configuration:
Left Hand Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
520 x 295 x 115mm
Depth at Centre:
505mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Left Rear of Top Surface
Max Water Temperature:
45°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
Technical Note:
The waste assembly should be hand-tightened only. This avoids placing unnecessary stress on the glass.
In The Box:
Orta Glass Vanity Wing Basin 1040 Left Bowl White
Instructions
