Technical Data Sheet
Charlbury Washstand 1420 Four Door Two Drawer
5973

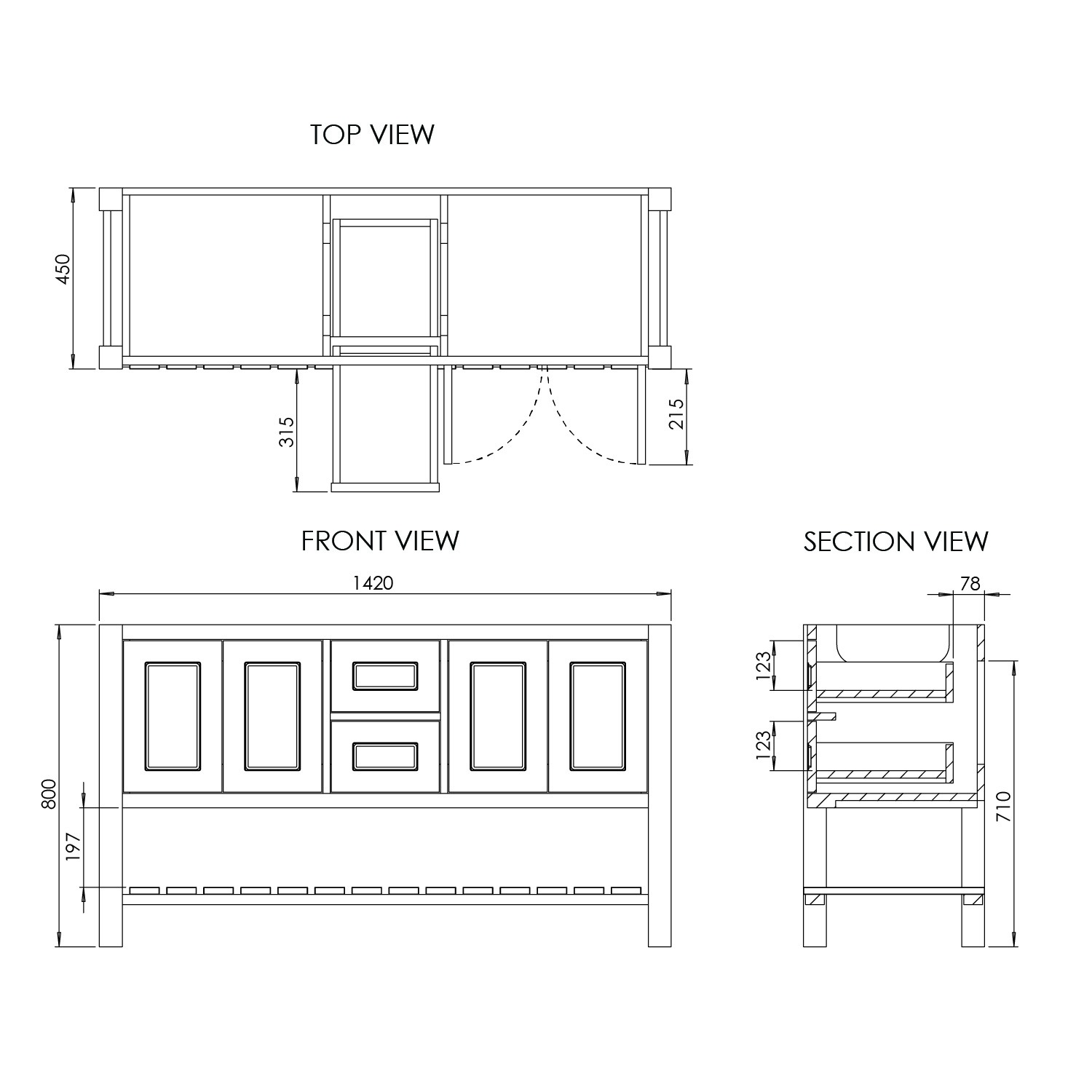

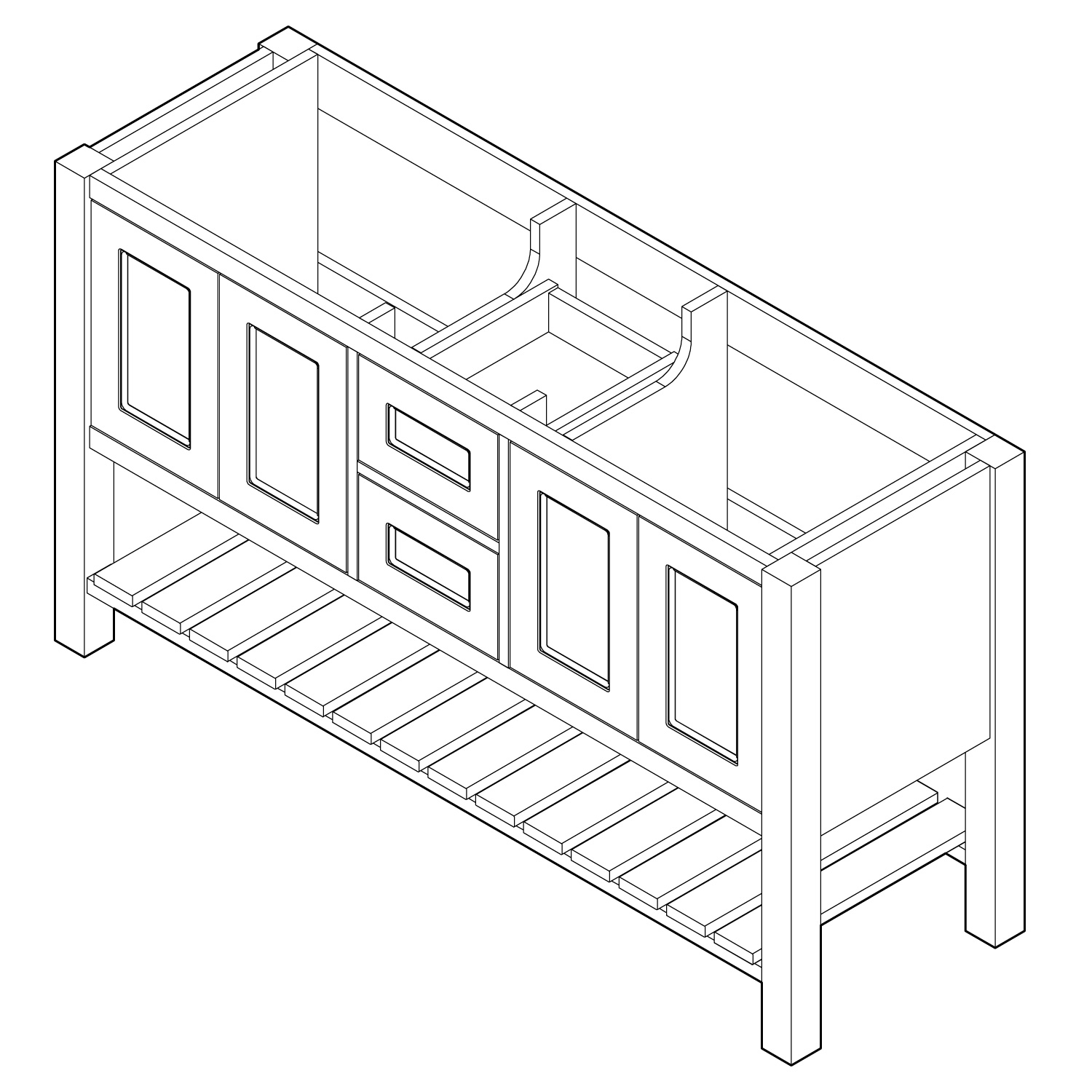

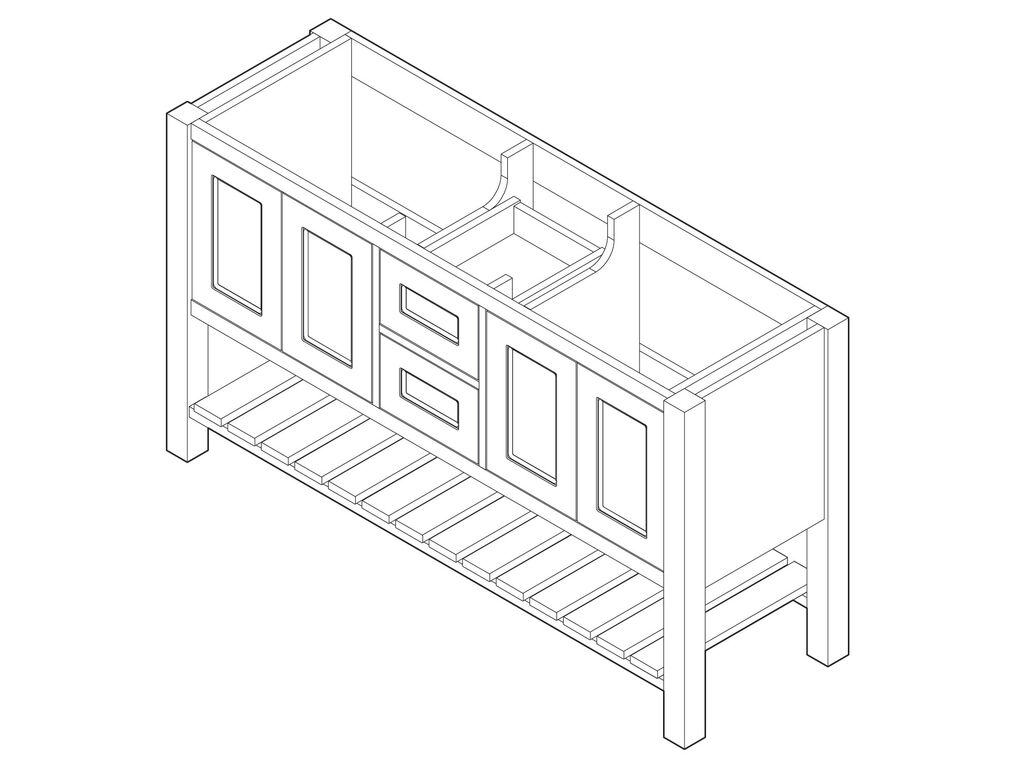

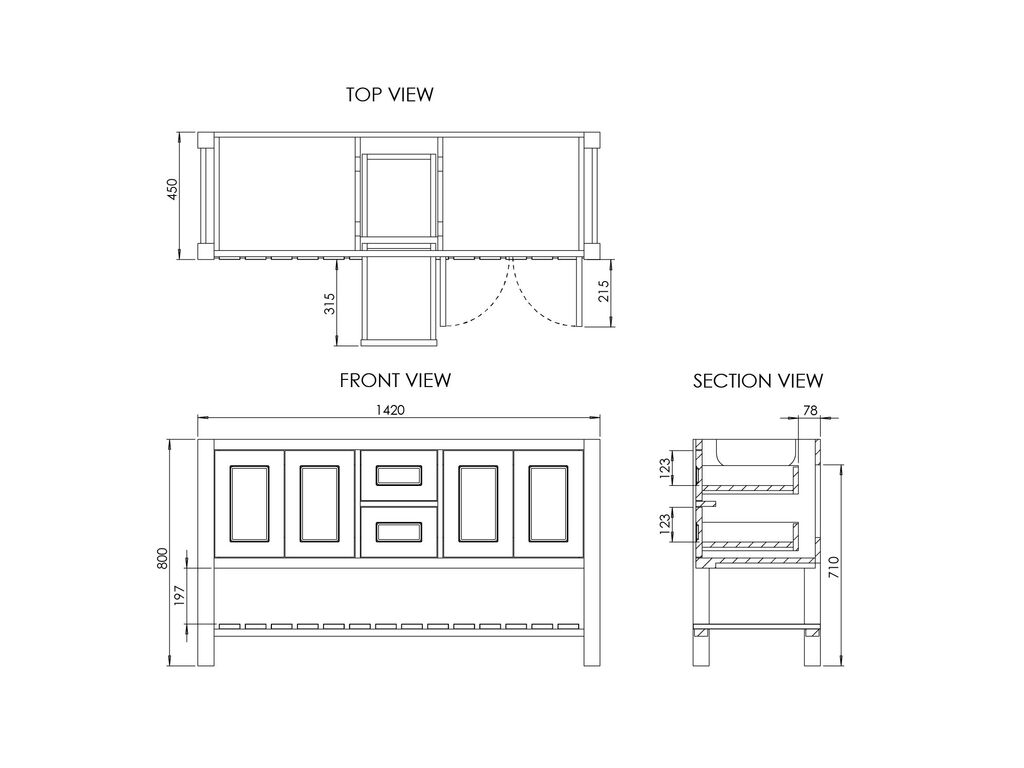

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Washstand Unit
Dimensions (WxDxH):
1420 x 450 x 800mm
Fascia Style:
Shaker
End Panel Detail:
Slab
Door Openings:
4
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Handle Type:
Handle Not Included
Drawers:
2 drawers
Shelves:
1 fixed
Leg / Foot Type:
Pre-drilled, Legs Included
Door Open Unit Depth:
715mm
Compatible Basins:
3705SY, 3583, 9069, 3584, 3585, 9294, 8929, 8928, 8951, 9114, 9113, 9318, 9317, 3593, 9208, 9319, 9285, 9282, 9283, 3689, 9169, 8967, 8966, 8952, 3705, 9202
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Charlbury Washstand 1420 Four Door Two Drawer
