Technical Data Sheet
Calypstone Worktop with Double Undermount Basin 1444 Storm Grey
3705

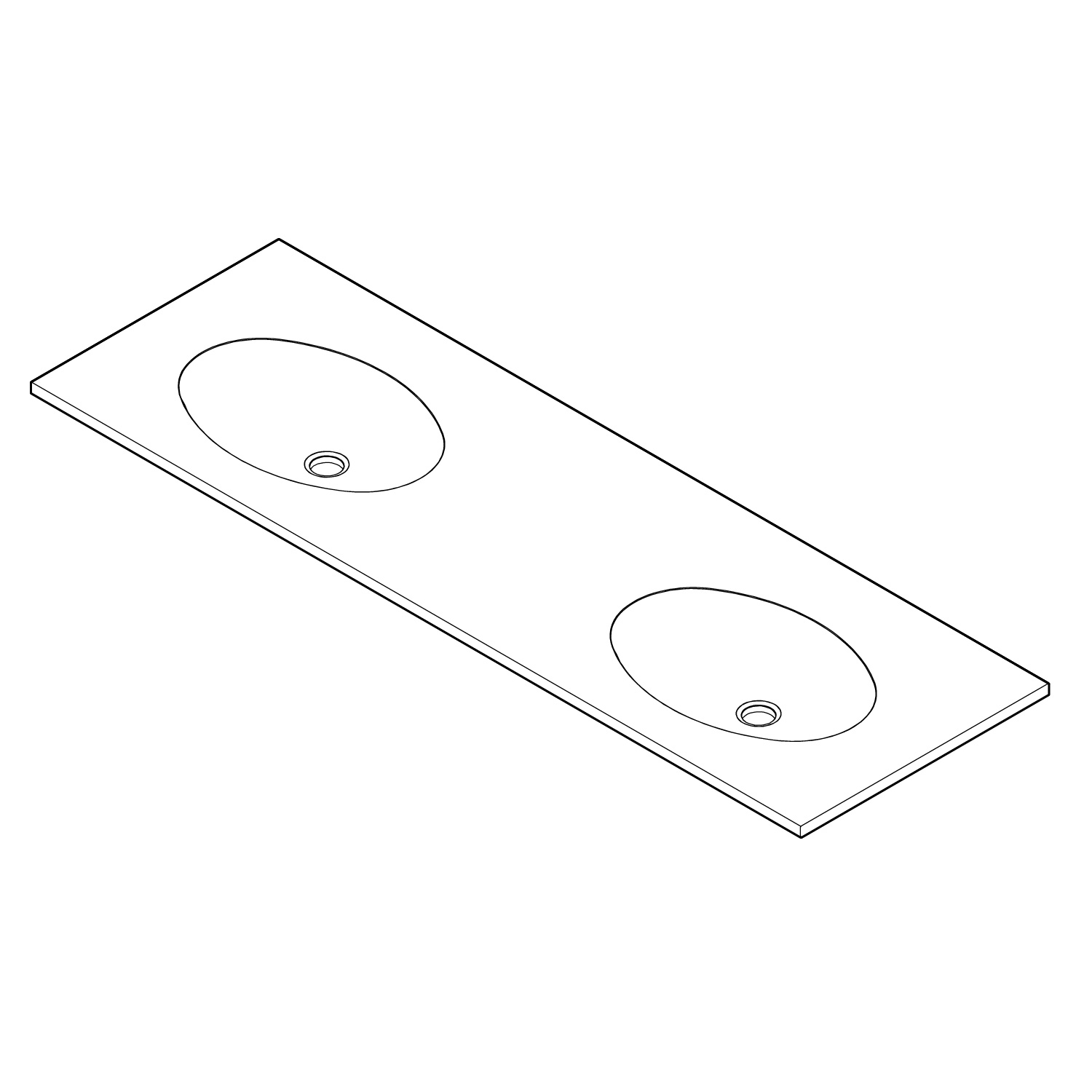

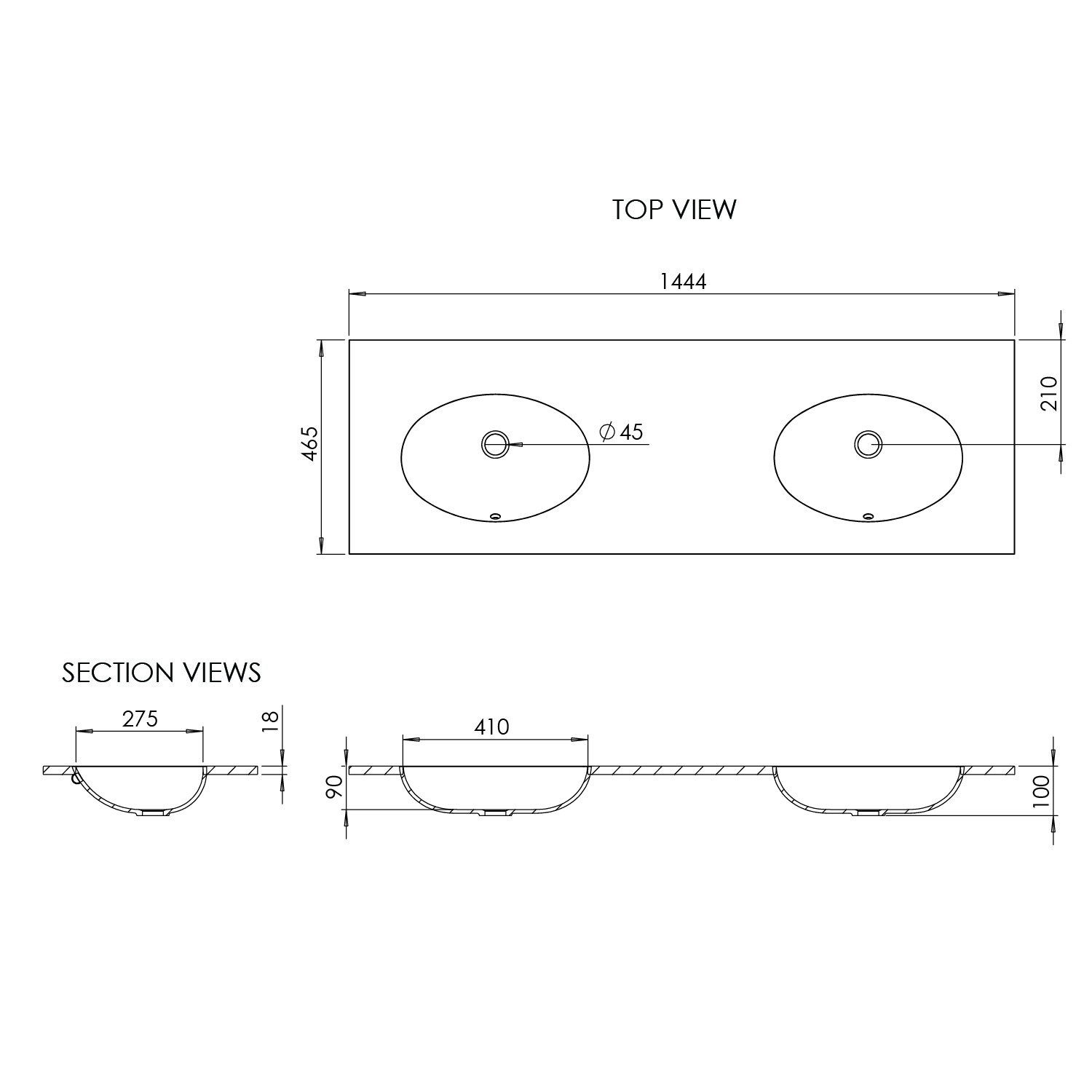

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1444 x 465 x 120mm
Weight:
18.68 kg
Basin Type:
Worktop with Undermount Basin
Basin Construction Material:
Cast Marble
Basin Interior:
Storm Grey Gloss
Basin Exterior:
White Gloss
Worktop:
Calypstone
Overall Shape:
Circular
Bowl Shape:
Circular
Configuration:
Double Bowl
Number of Bowls:
2
Internal Bowl (WxDxH):
408 x 276 x 103mm
Depth at Centre:
465mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Calypstone Worktop with Double Undermount Basin 1444
