Technical Data Sheet
Charlbury Washstand 940 One Drawer
5972

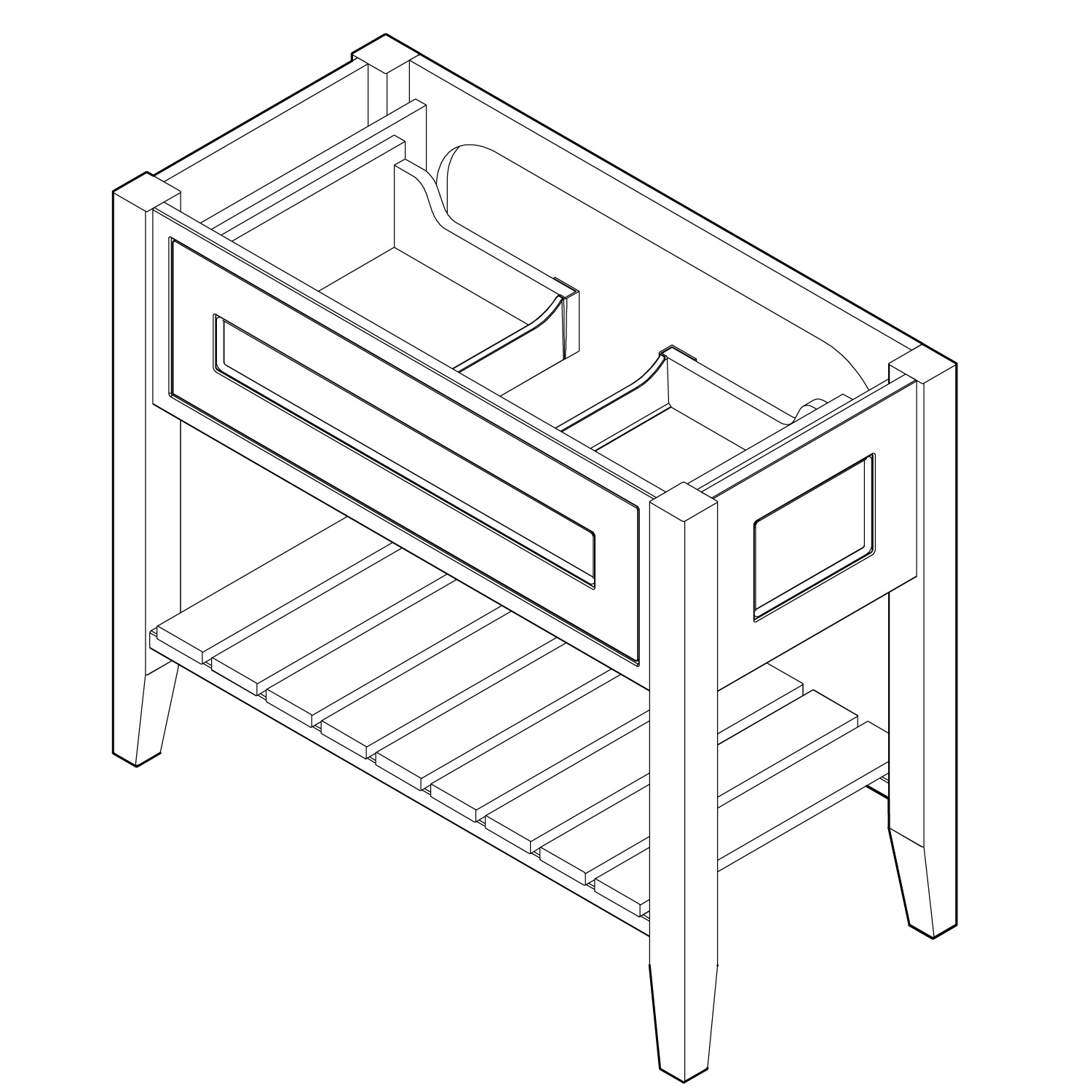

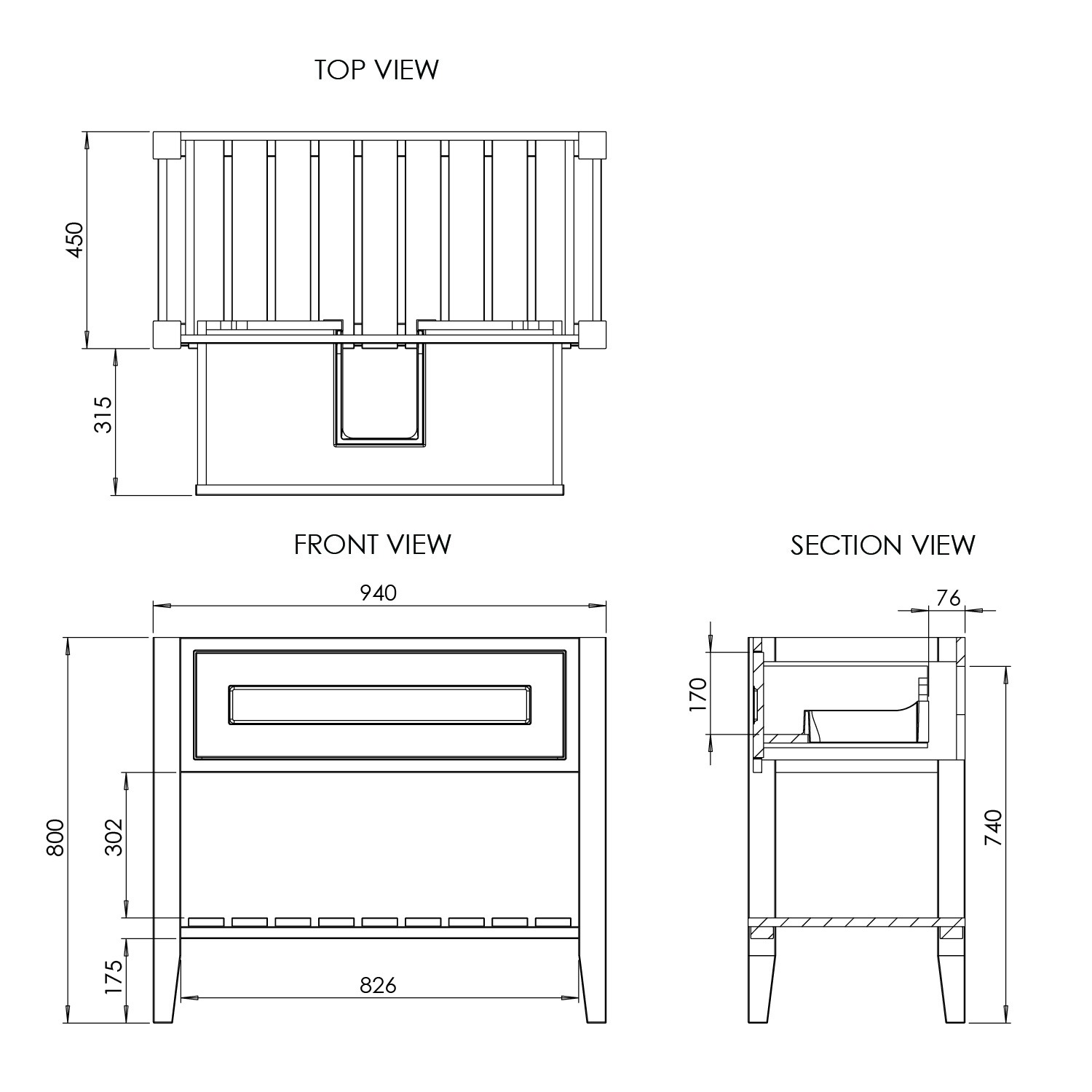

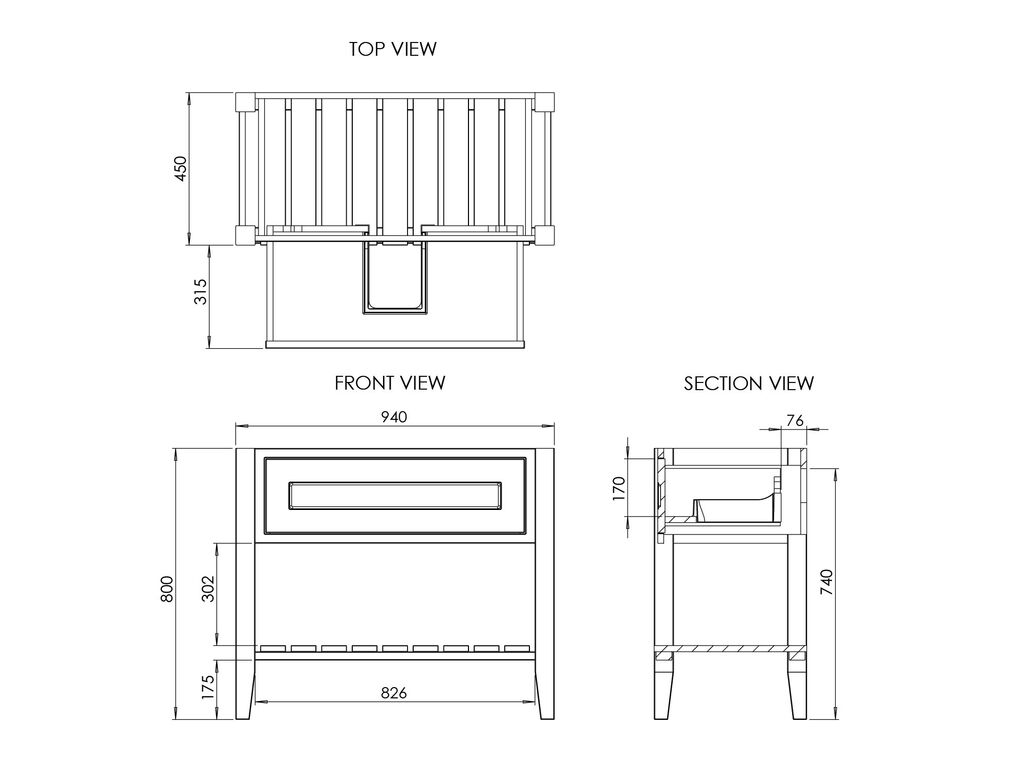

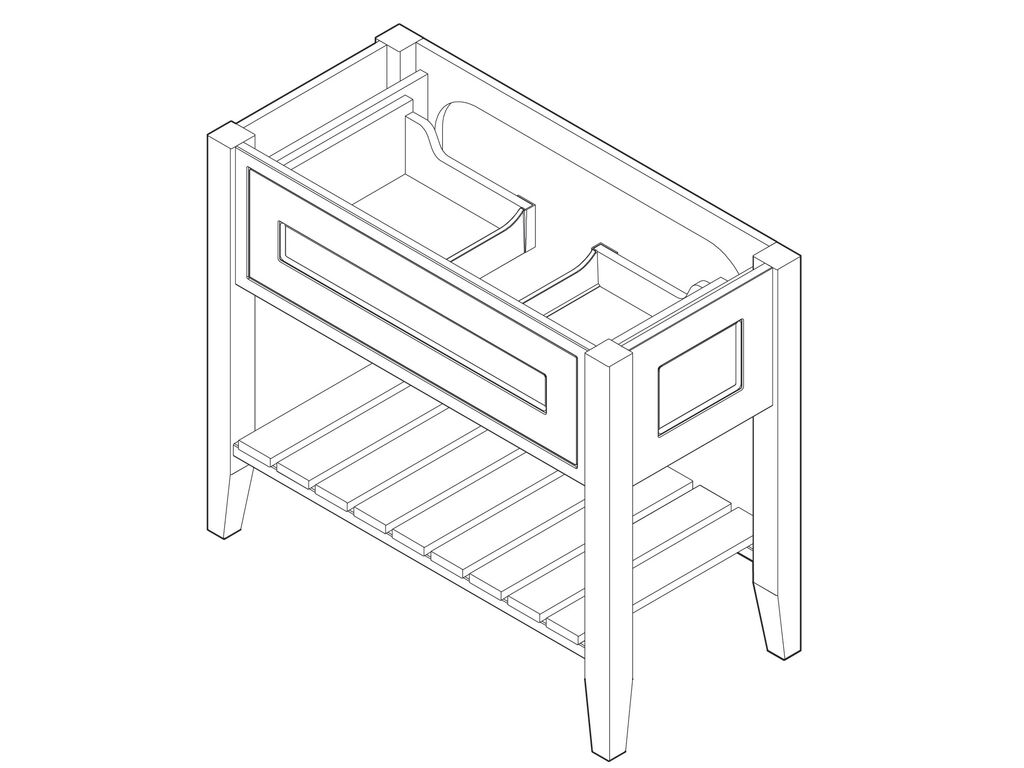

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Washstand Unit
Dimensions (WxDxH):
940 x 450 x 800mm
Carcass Service Area:
Open back
Fascia Style:
Shaker
Fascia Detail:
Shaker Frame
End Panel Detail:
Slab
Handle Type:
Handle Not Included
Drawers:
1 drawer
Shelves:
1 fixed
Leg / Foot Type:
Pre-drilled, Legs Included
Compatible Basins:
3702SY, 3583, 9069, 3584, 3585, 9294, 8929, 8928, 8951, 9114, 9113, 9318, 9317, 3593, 9208, 9319, 9282, 9285, 9283, 9169, 3689, 8967, 8966, 8952, 3702, 9202
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Charlbury Washstand 940 One Drawer
