Technical Data Sheet
Calypstone Worktop with Undermount Basin 964
3702

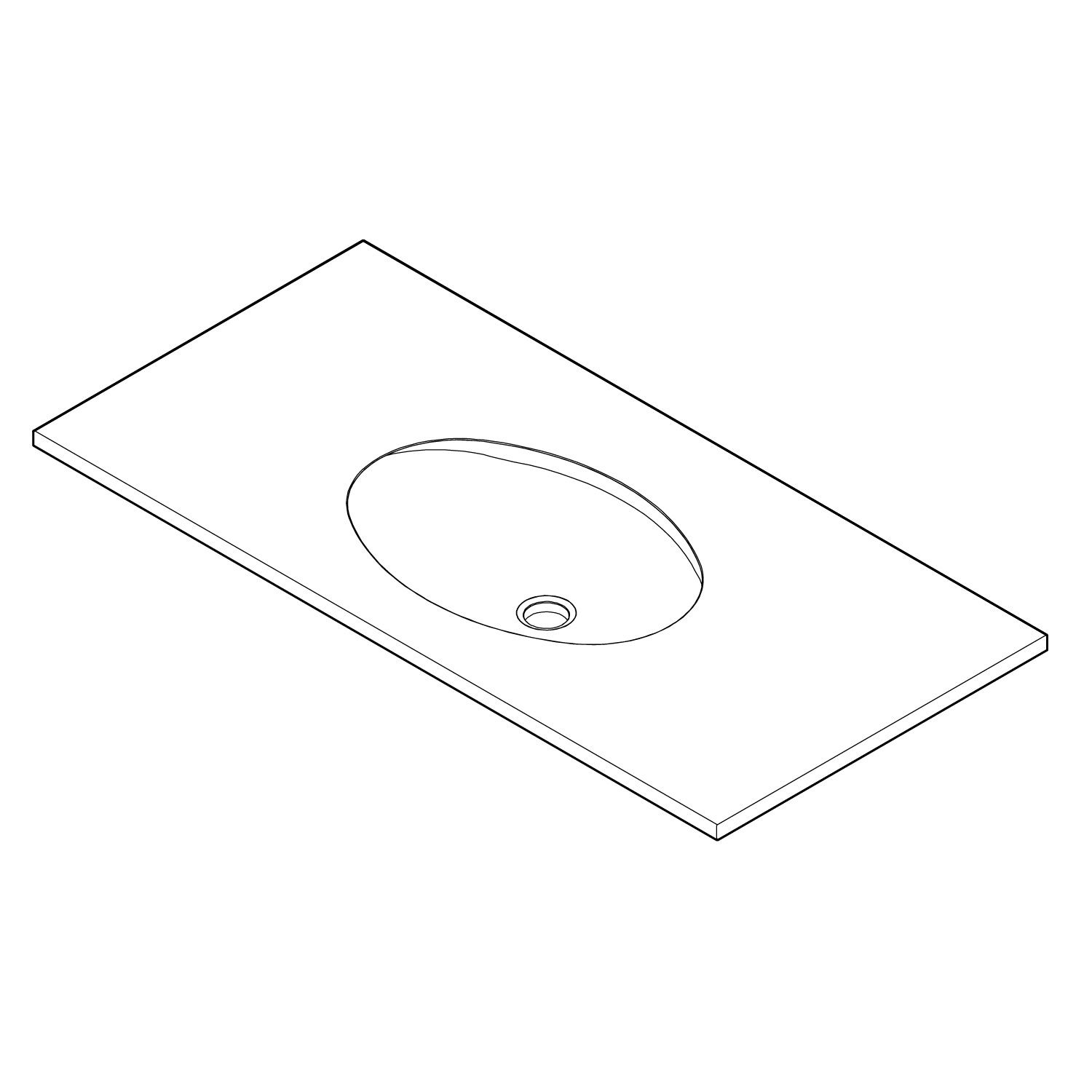

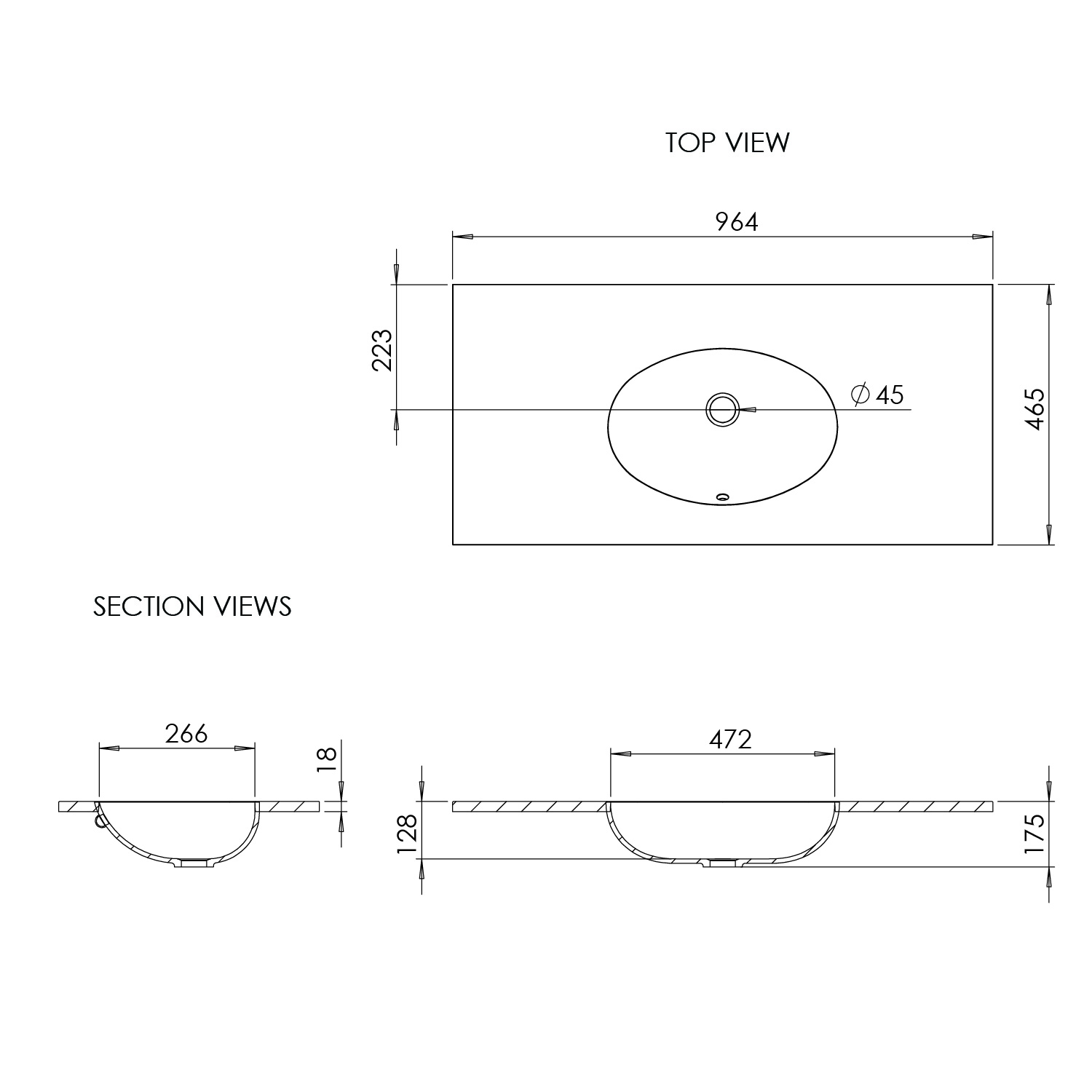

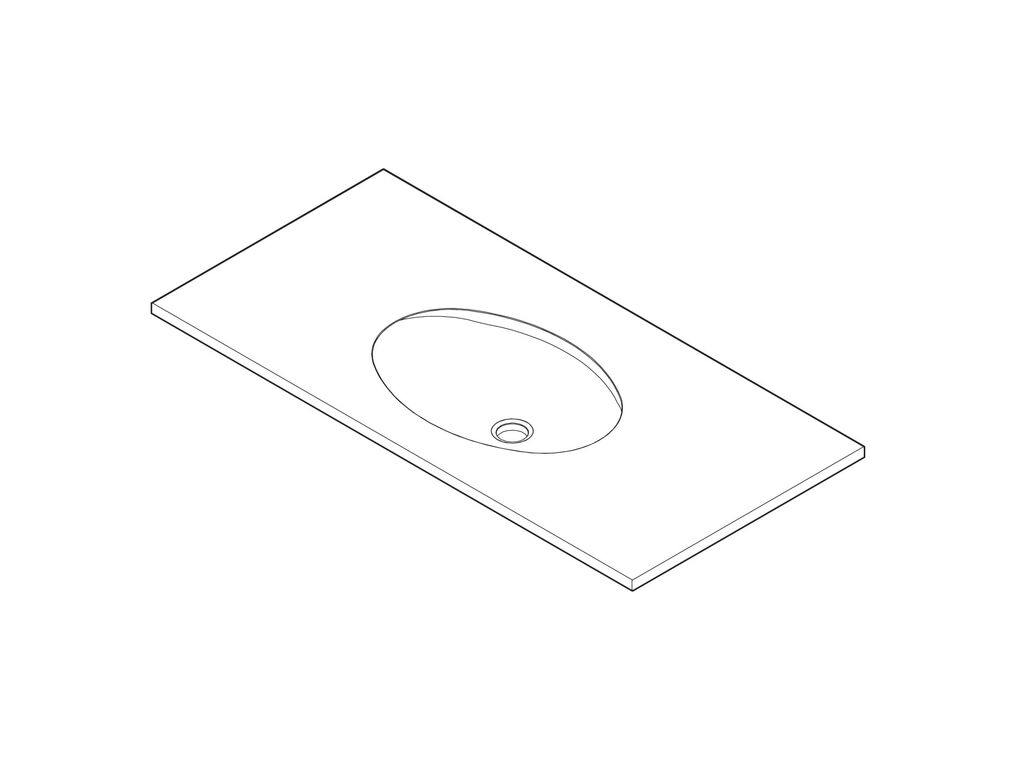

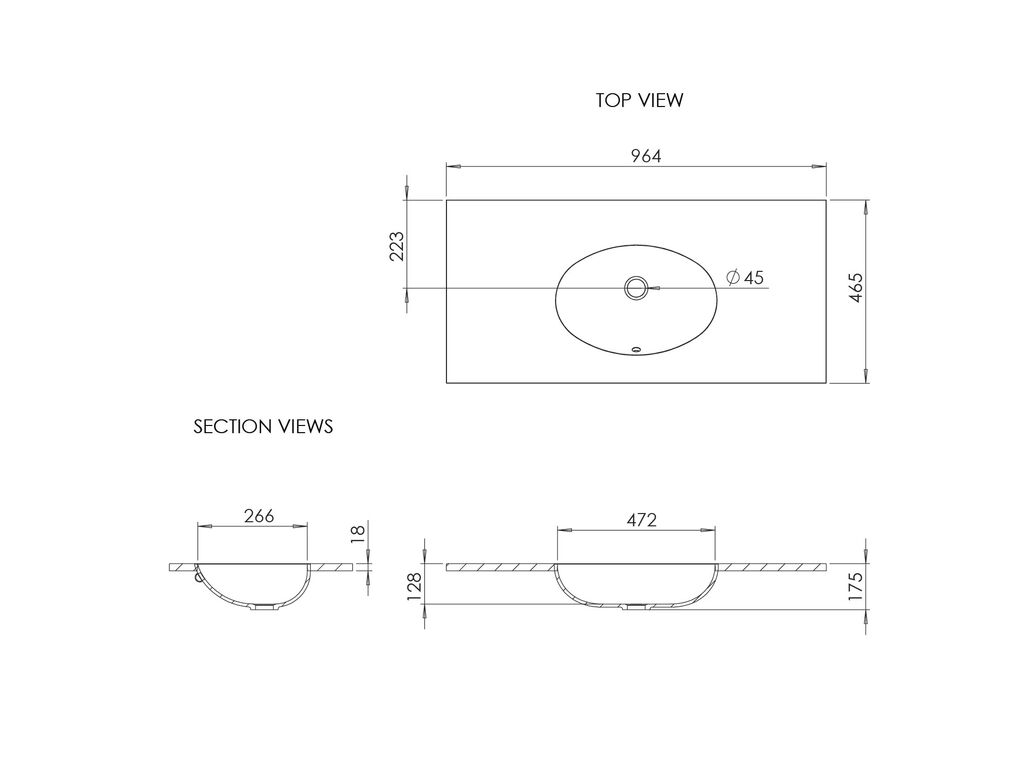

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
964 x 465 x 175mm
Weight:
12.68 kg
Basin Type:
Worktop with Undermount Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Worktop:
Calypstone
Overall Shape:
Rectangular
Bowl Shape:
Oval
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
410 x 276 x 104mm
Depth at Centre:
465mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Calypstone Worktop with Undermount Basin 964
