Technical Data Sheet

Charlbury Washstand 795 One Drawer

5920

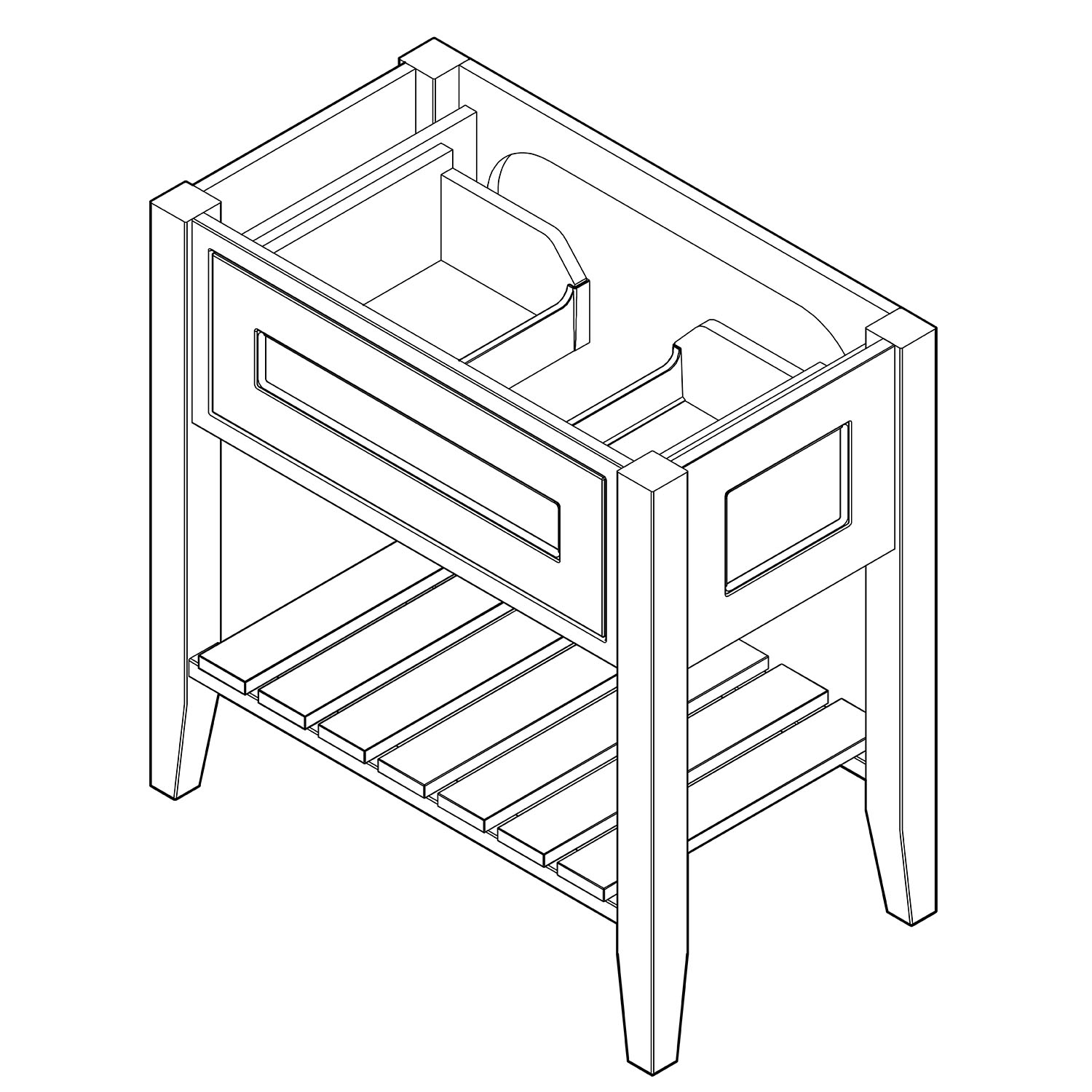

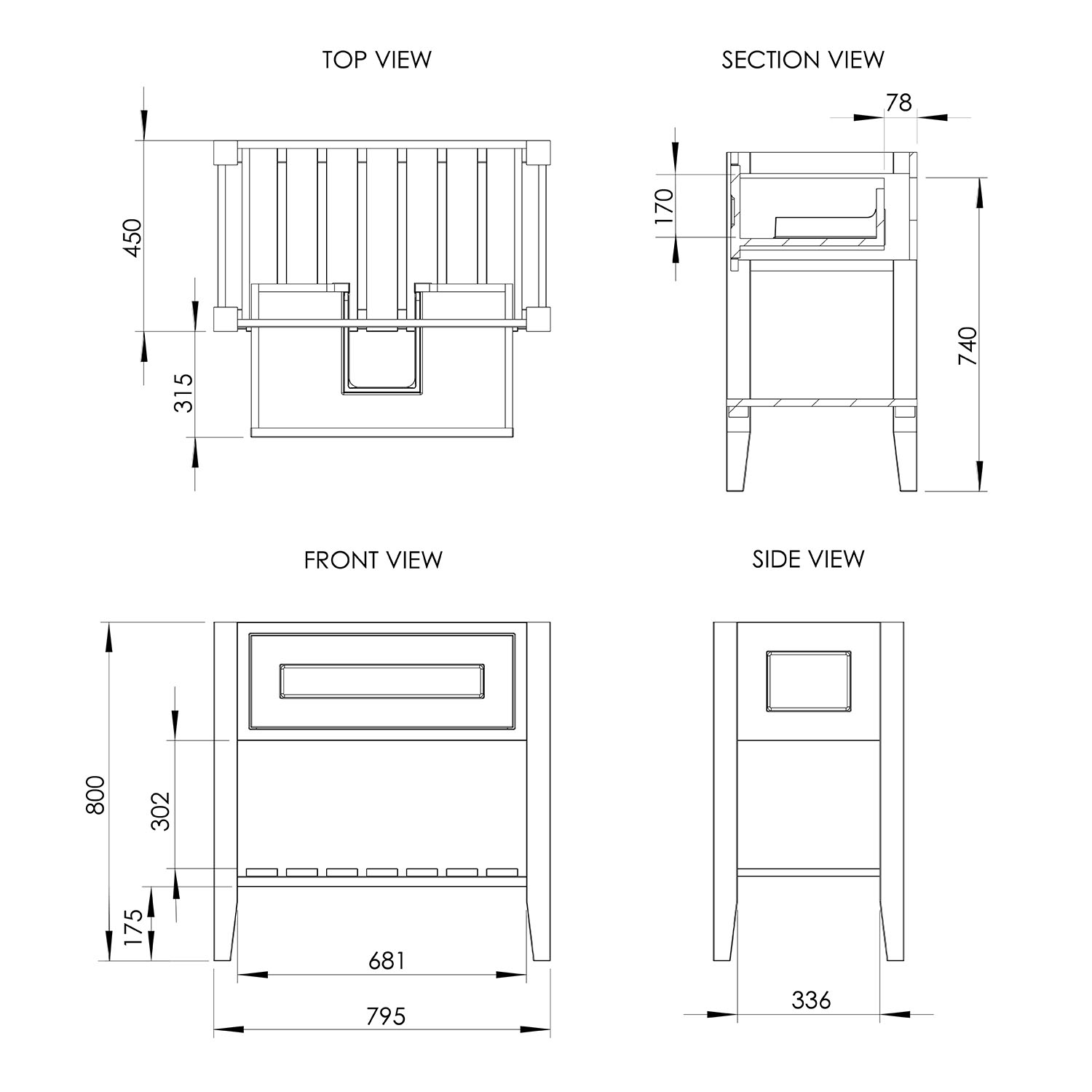

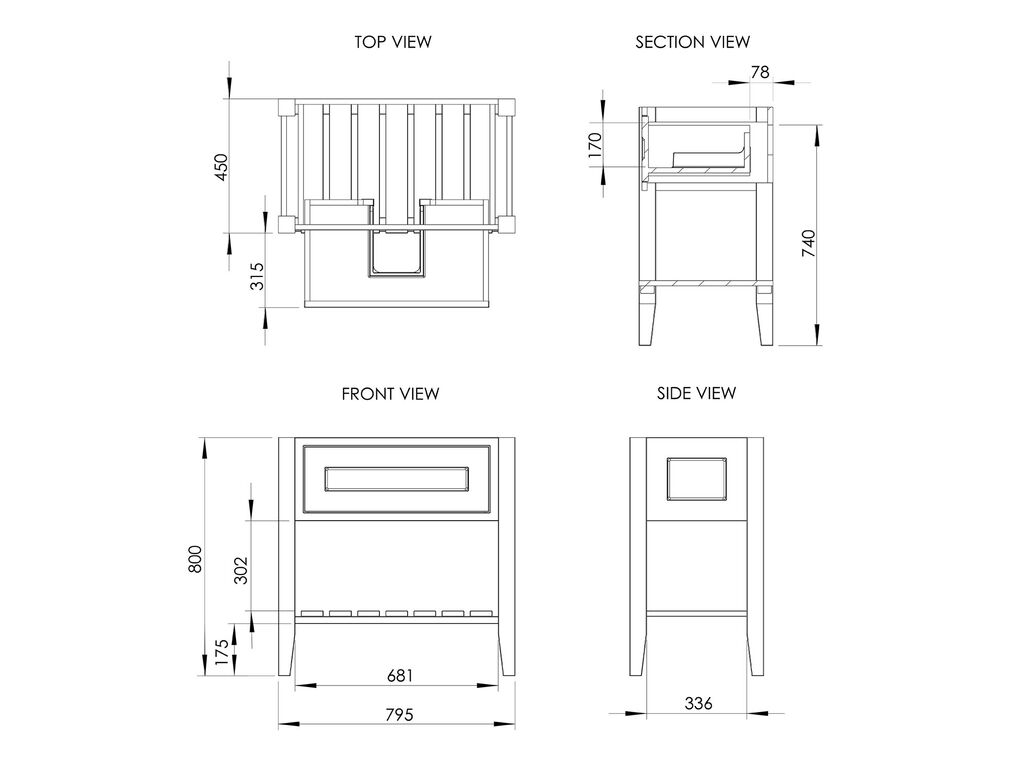

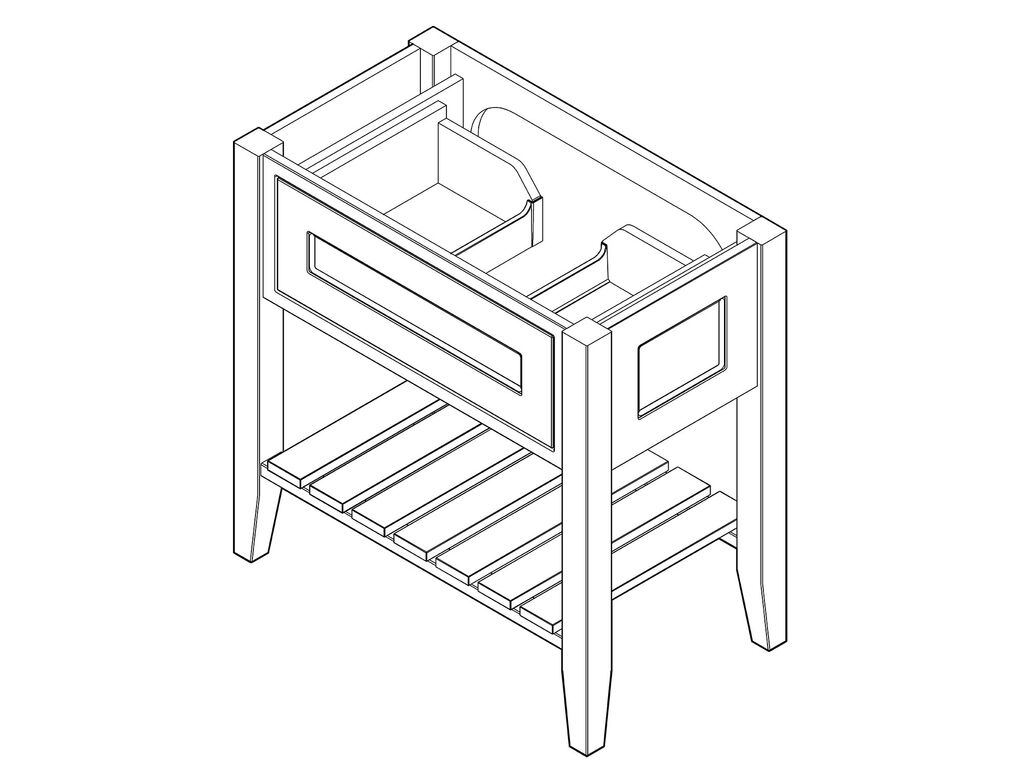

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Furniture Type:

Floor Standing Vanity Unit

Dimensions (WxDxH):

795 x 450 x 800mm

Weight:

26.27 kg

Carcass Material:

MDF 18mm

Carcass Edging:

Matched Edging

Carcass Colour:

Matched to Fascia

Carcass Service Area:

Open Back

Fascia Style:

MDF 22mm Shaker

Fascia Detail:

Shaker frame

End Panel Material:

MDF 19mm

End Panel Detail:

Shaker

Handle Type:

Handle Not Included

Drawers:

1 drawer, Soft Close, 350mm runners

Shelves:

1 fixed - MDF 18mm

Fixation Method:

Fixed Through Rear Rail, 30mm from top @ 400mm centres

Leg / Foot Type:

Pre-attached, Feet Included

Compatible Basins:

3583, 9069, 3584, 3585, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 3320SY, 3320, 9202

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:
