Technical Data Sheet
Calypstone Worktop with Undermount Basin 820 Storm Grey
3320

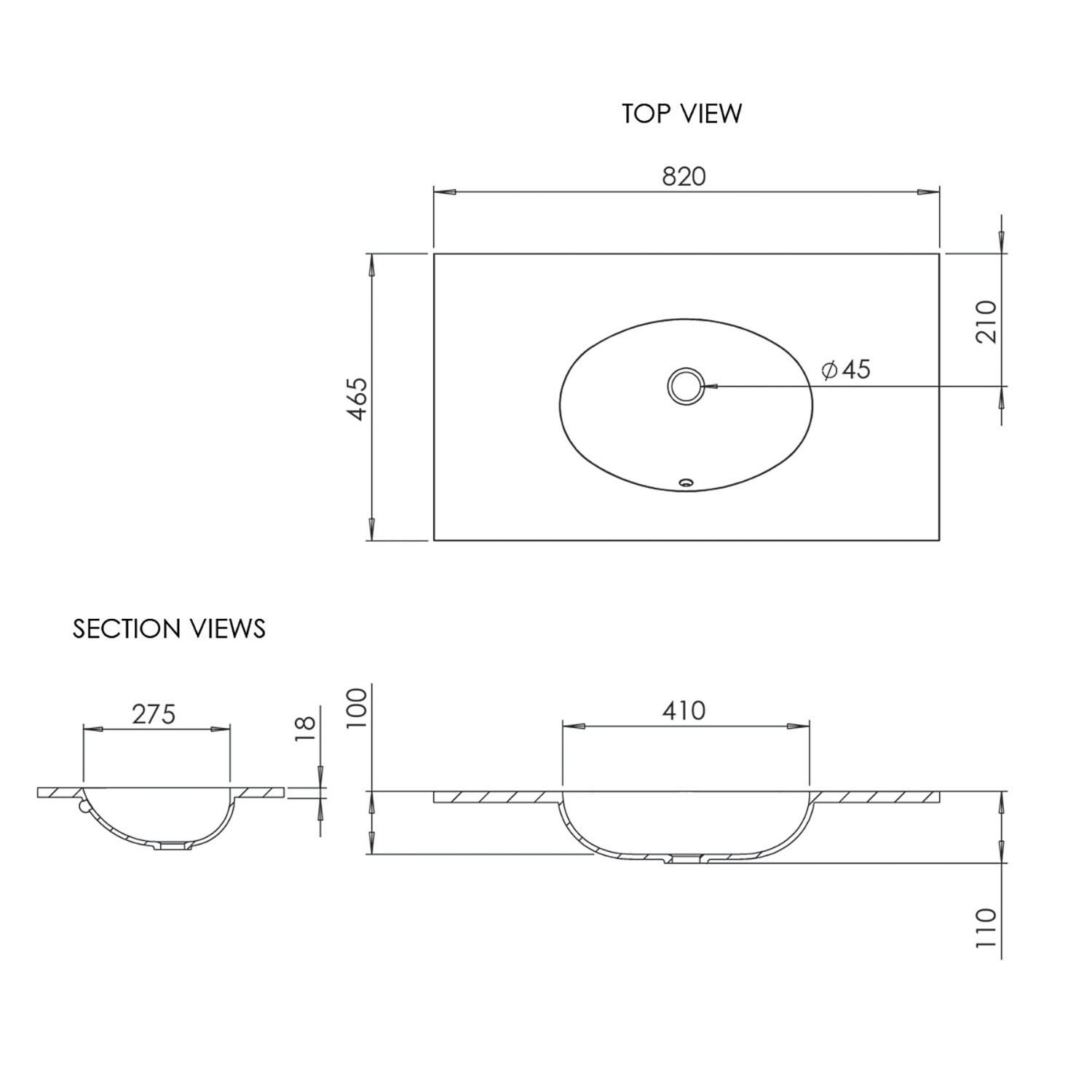

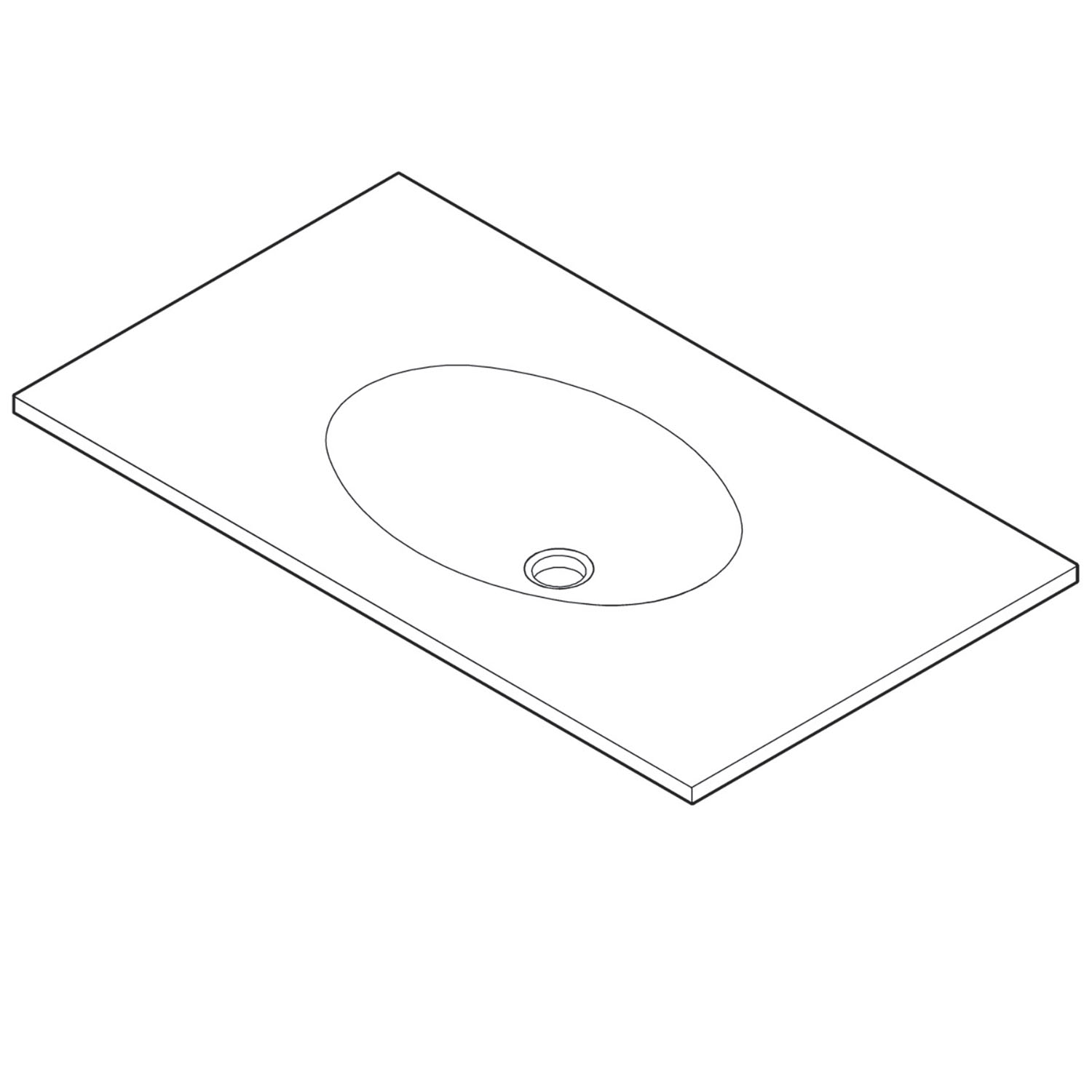

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
820 x 465 x 110mm
Weight:
10.88 kg
Basin Type:
Worktop with Undermount Basin
Basin Construction Material:
Cast Marble
Basin Interior:
Storm Grey Matt
Basin Exterior:
White Matt
Worktop:
Natural Aglomerate Marble
Overall Shape:
Rectangular with Square Corners
Bowl Shape:
Oval
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
410 x 275 x 100mm
Depth at Centre:
465mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Not Interchangeable
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Calypstone Worktop with Undermount Basin 820
Instructions
Fitting kit
