Technical Data Sheet
Diamante Wall Hung Vanity Unit 800 Two Drawer
5667

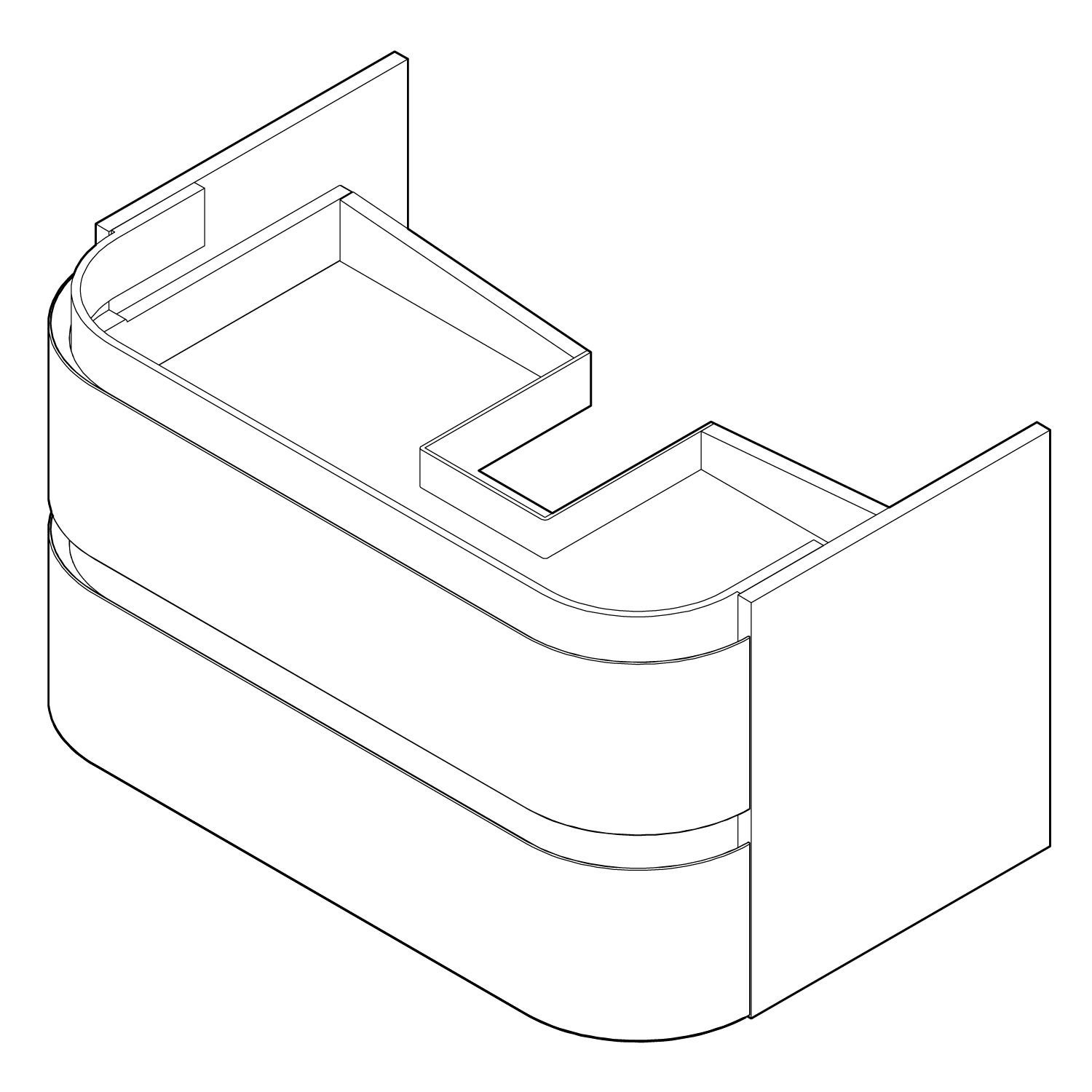

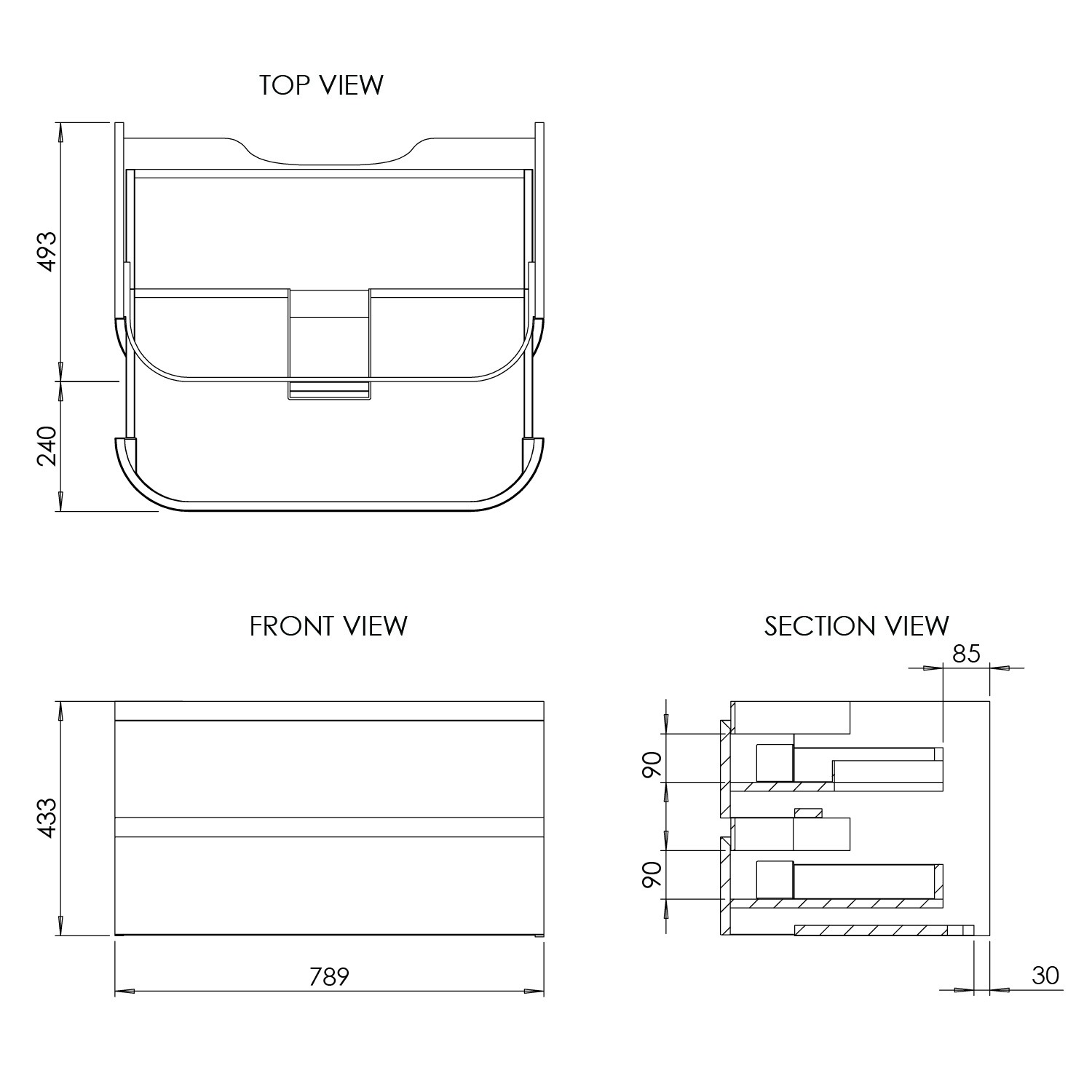

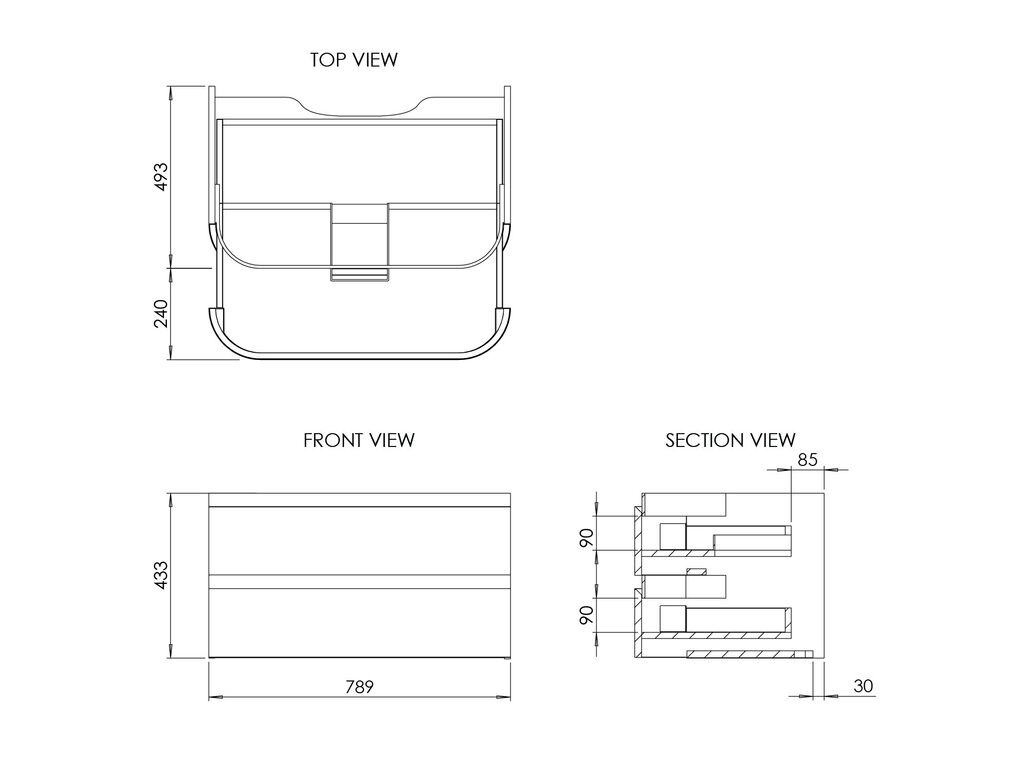

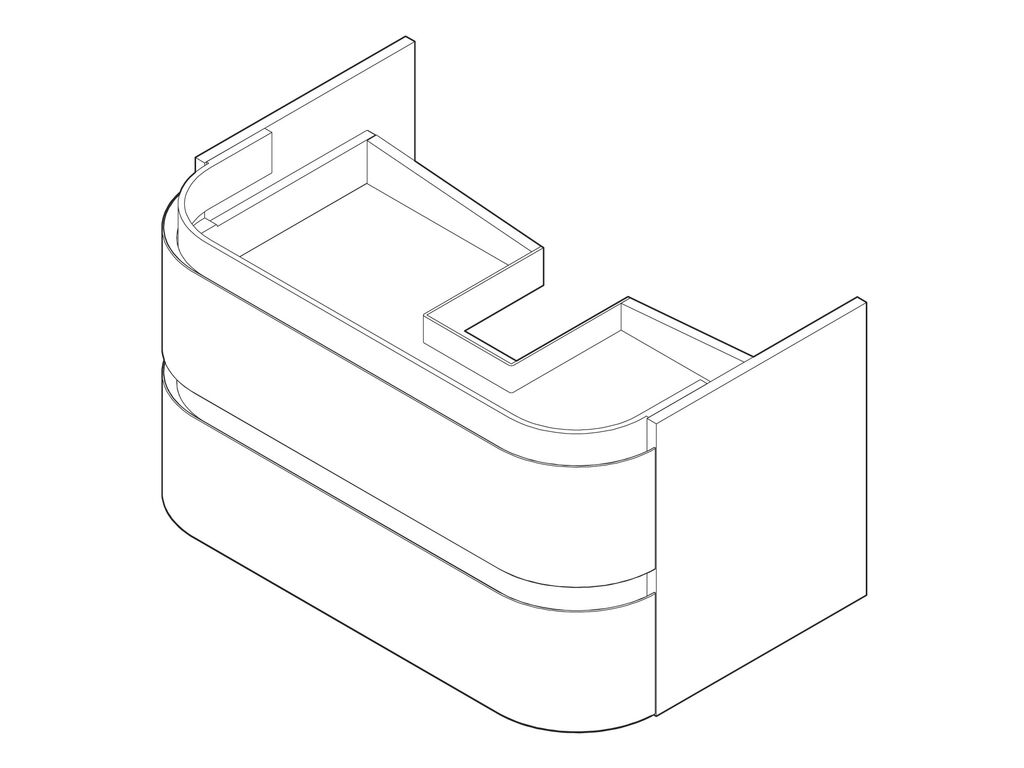

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
789 x 493 x 433mm
Weight:
24 kg
Carcass Material:
MFC 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
ABS 18mm Slab
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 270mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 40mm from top @ 735mm centres
Compatible Basins:
3565, 3698, 3583, 9069, 3584, 3585, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9202
In The Box:
Diamante Wall Hung Vanity Unit 800 Two Drawer
