Technical Data Sheet
Allerona Cast Vanity Basin 800 1TH White
3565

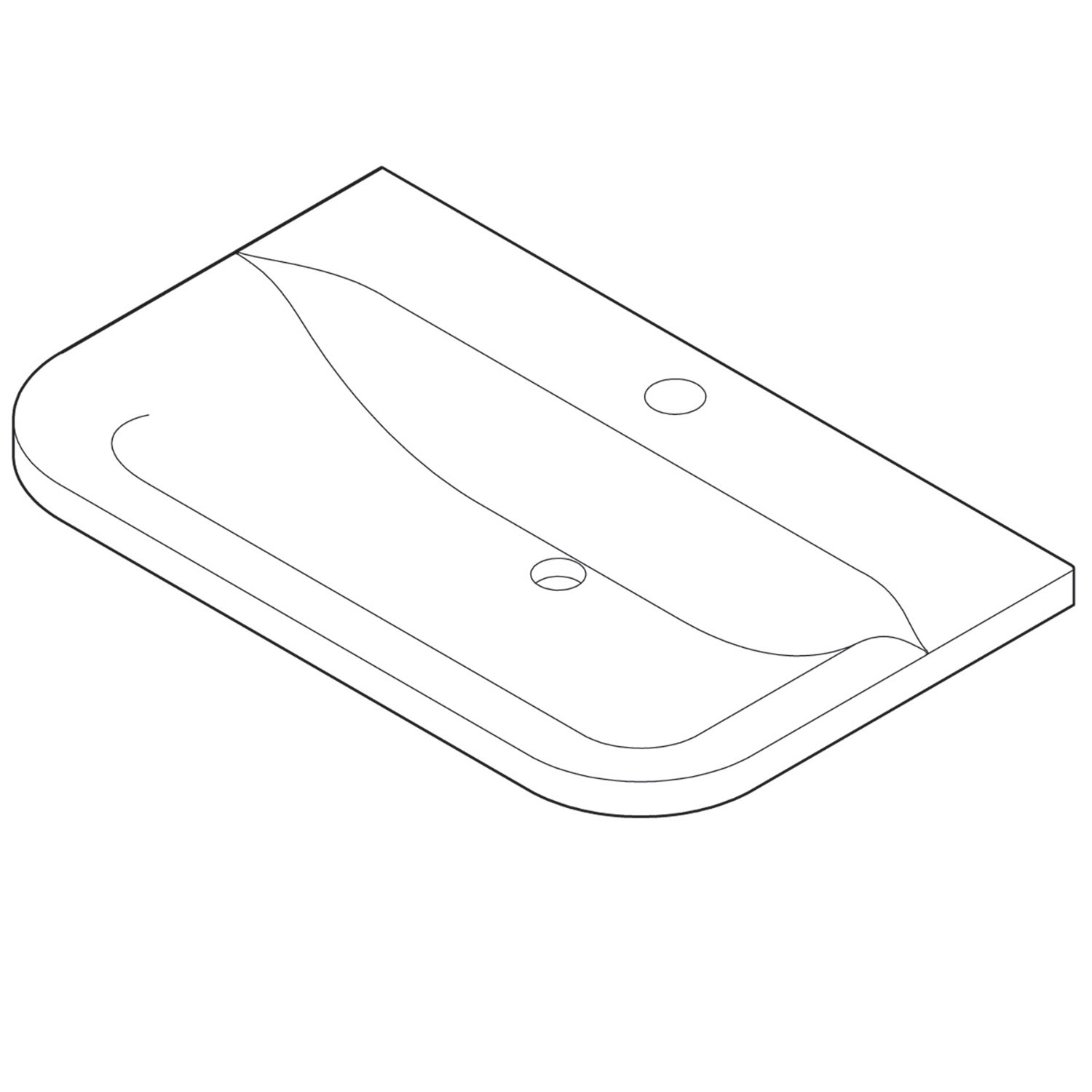

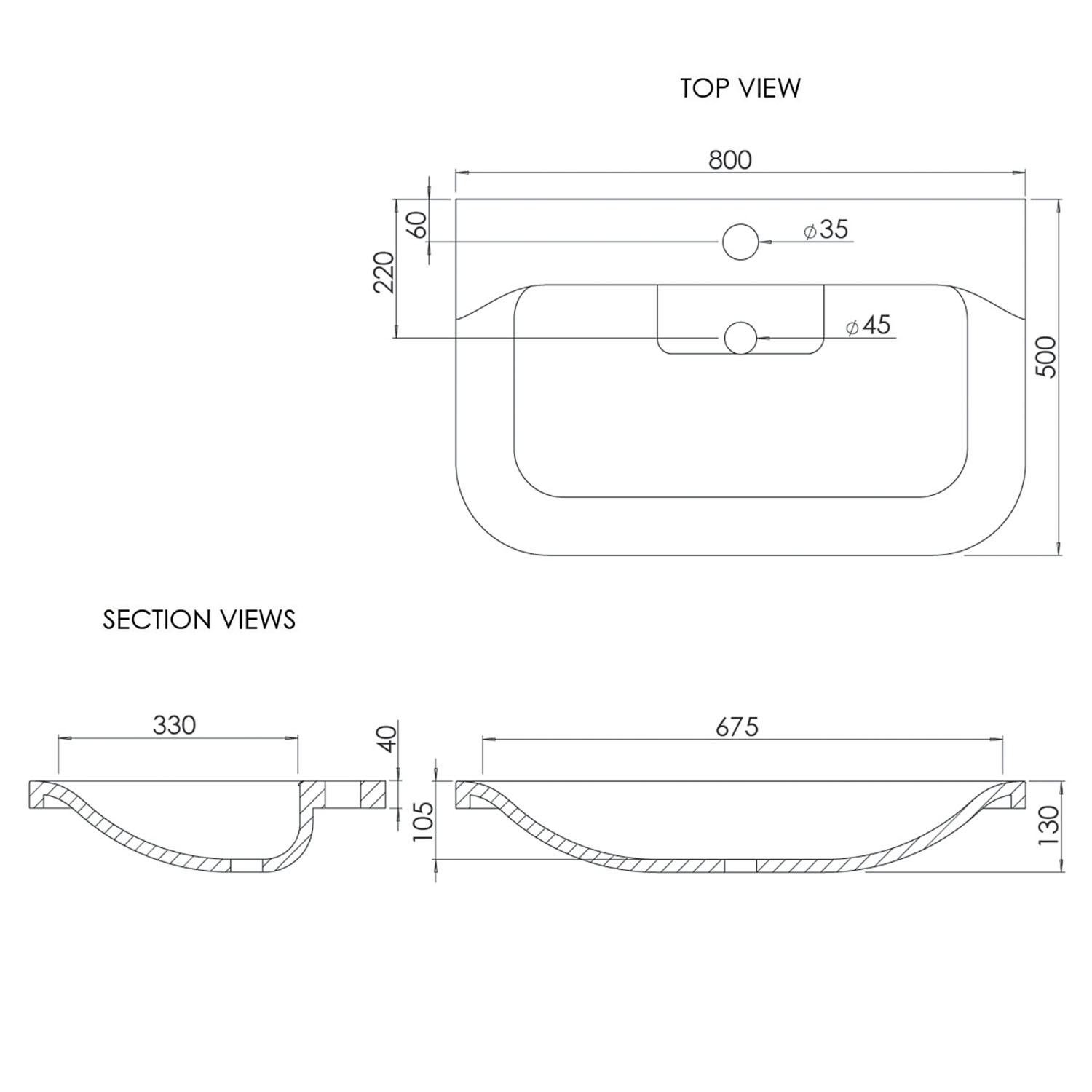

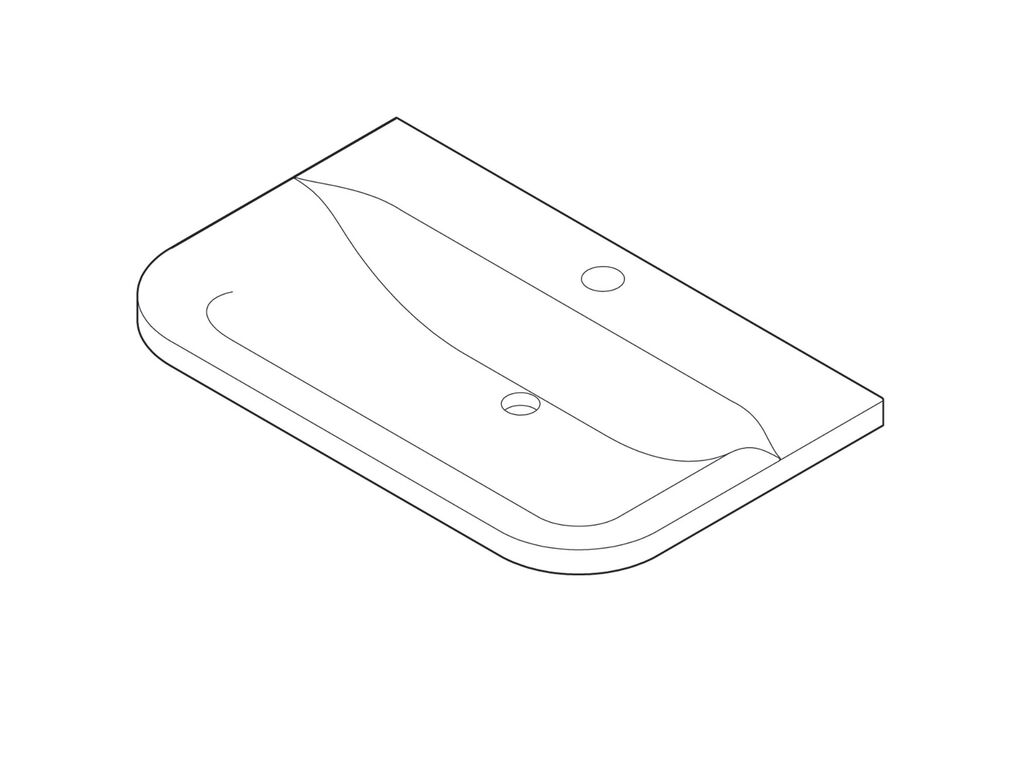

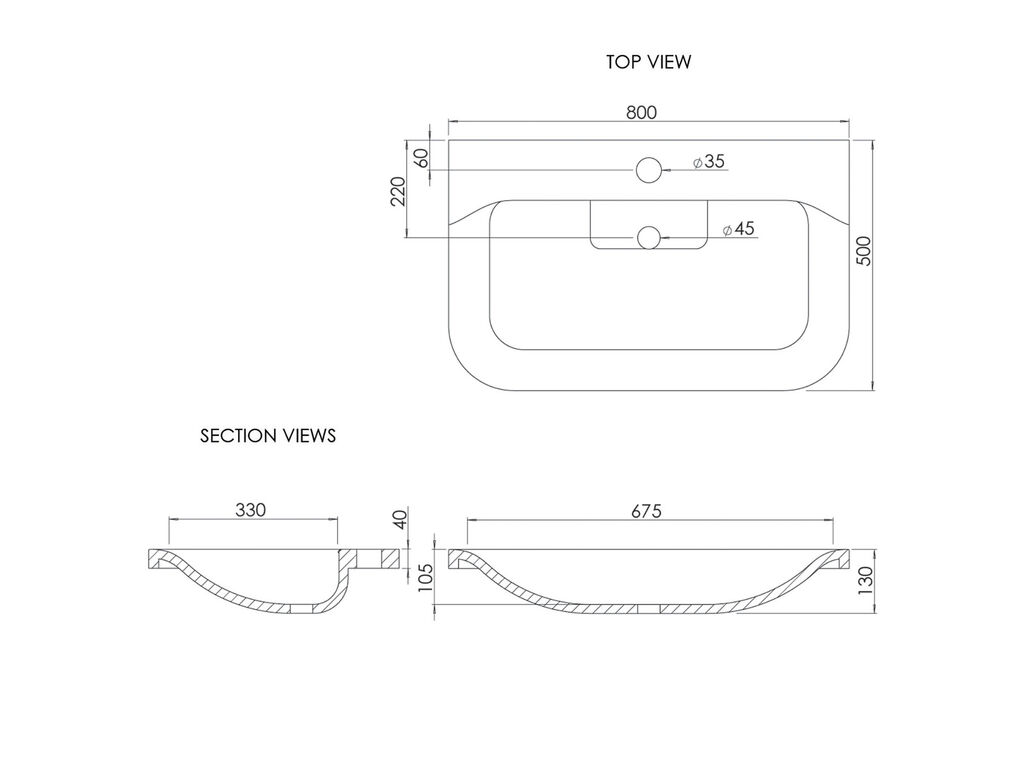

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
800 x 500 x 130mm
Weight:
18.96 kg
Basin Type:
Vanity Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Rounded Front Corners
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
675 x 330 x 105mm
Depth at Centre:
496mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Centre Rear of Top Surface
Max Water Temperature:
65°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Allerona Cast Vanity Basin 800 1TH White
