Technical Data Sheet
Brenta Wall Hung Vanity Unit 1200 Four Drawer
4817

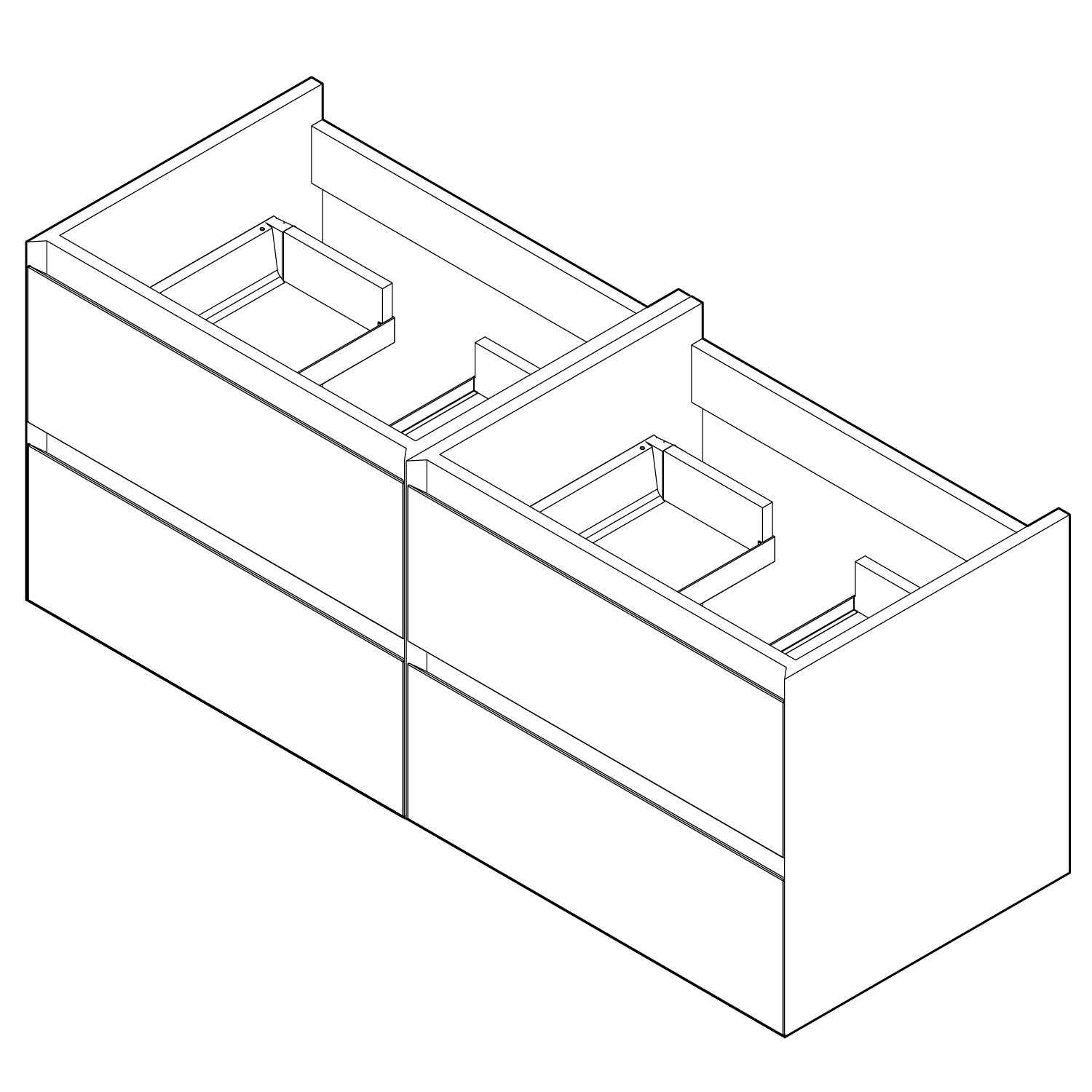

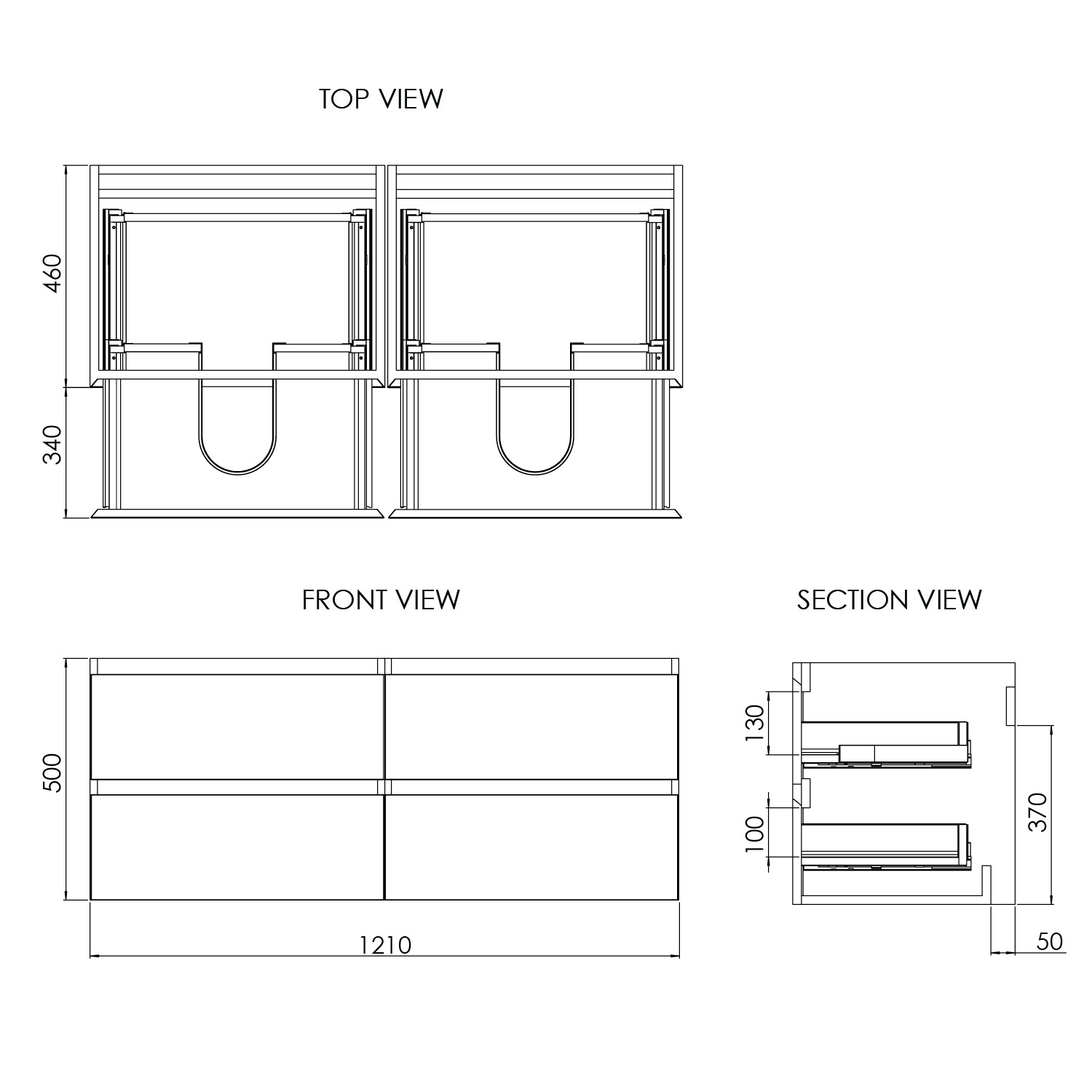

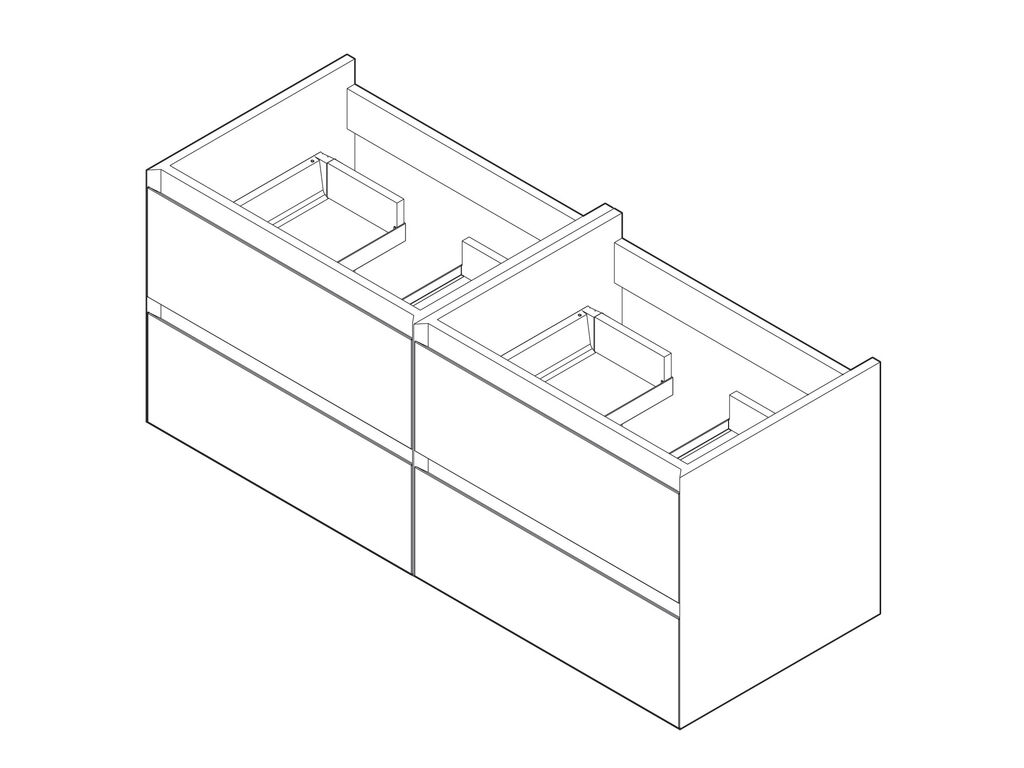

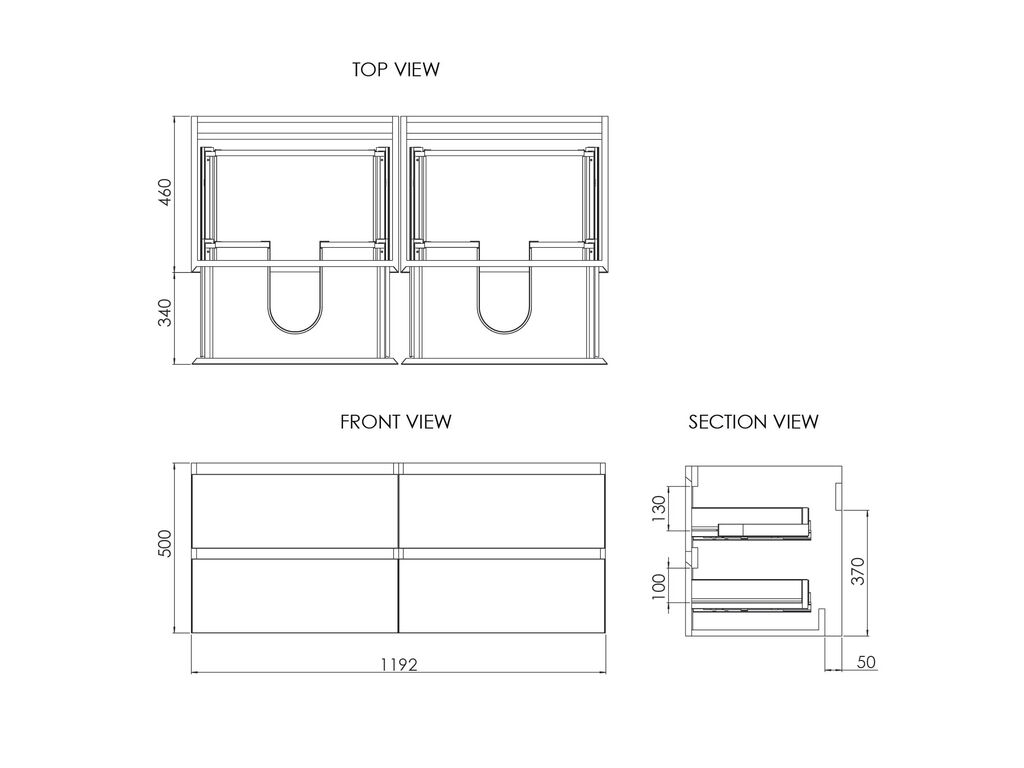

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
1210 x 460 x 500mm
Weight:
46 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
4 drawers, Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 45mm from top @ 1145mm centres
Service Void Depth:
52mm
Compatible Basins:
9238, 9239, 9338, 9339, 9244, 9344, 3583, 9069, 3584, 3585, 9294, 9199, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689
In The Box:
Brenta Wall Hung Vanity Unit 1200 Four Drawer
