Technical Data Sheet
Idro Cast Vanity Basin 1200 Double Bowl Gloss White NTH
9338

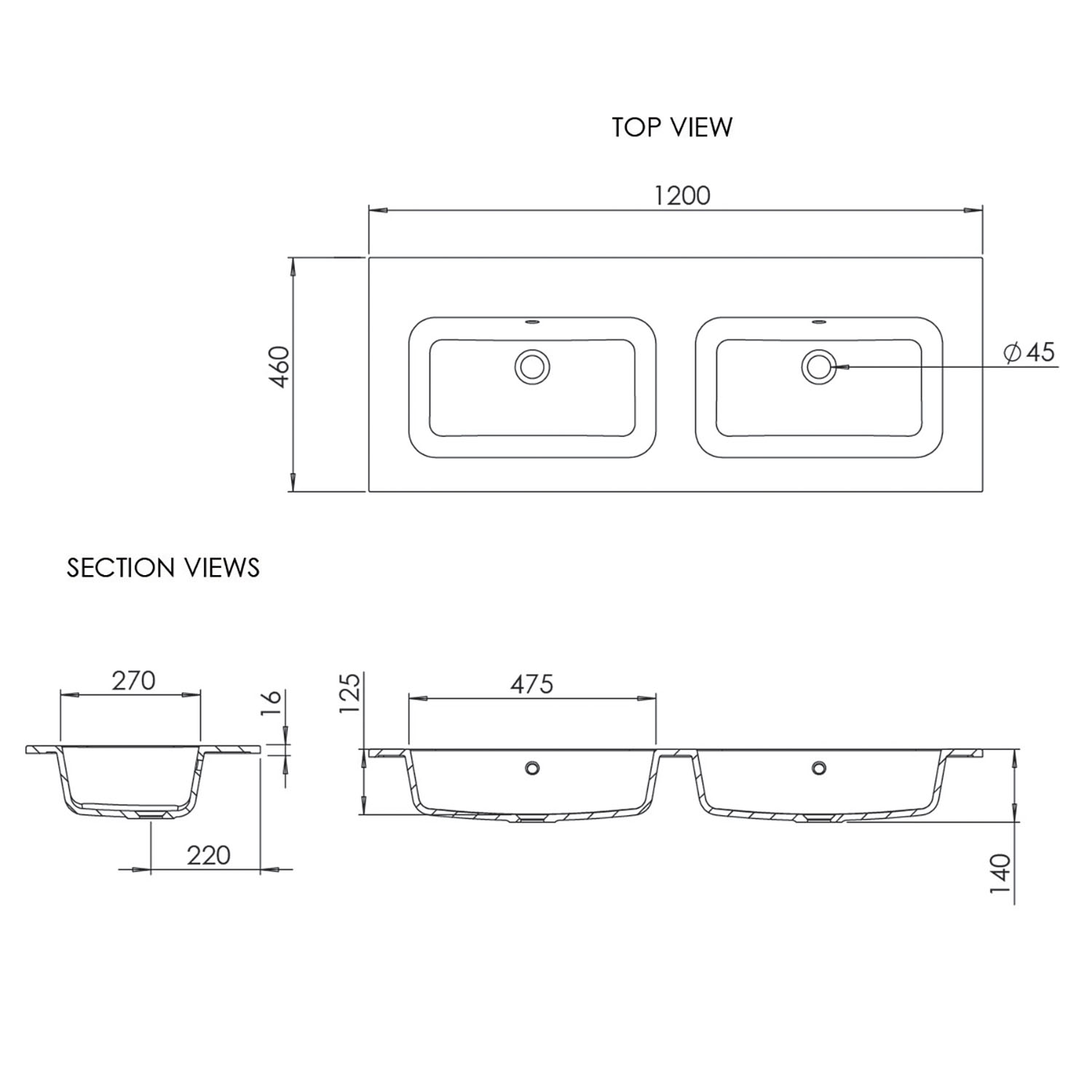

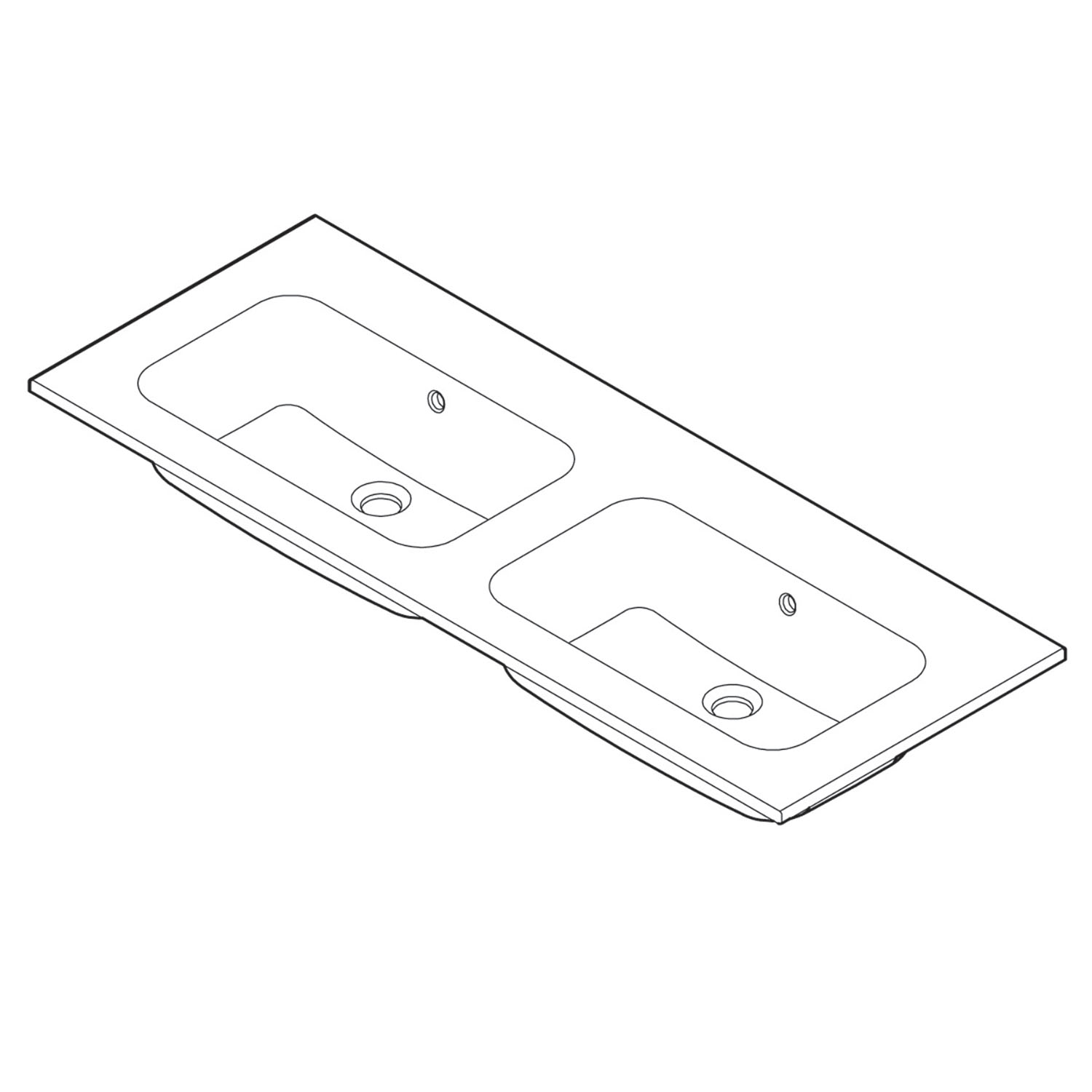

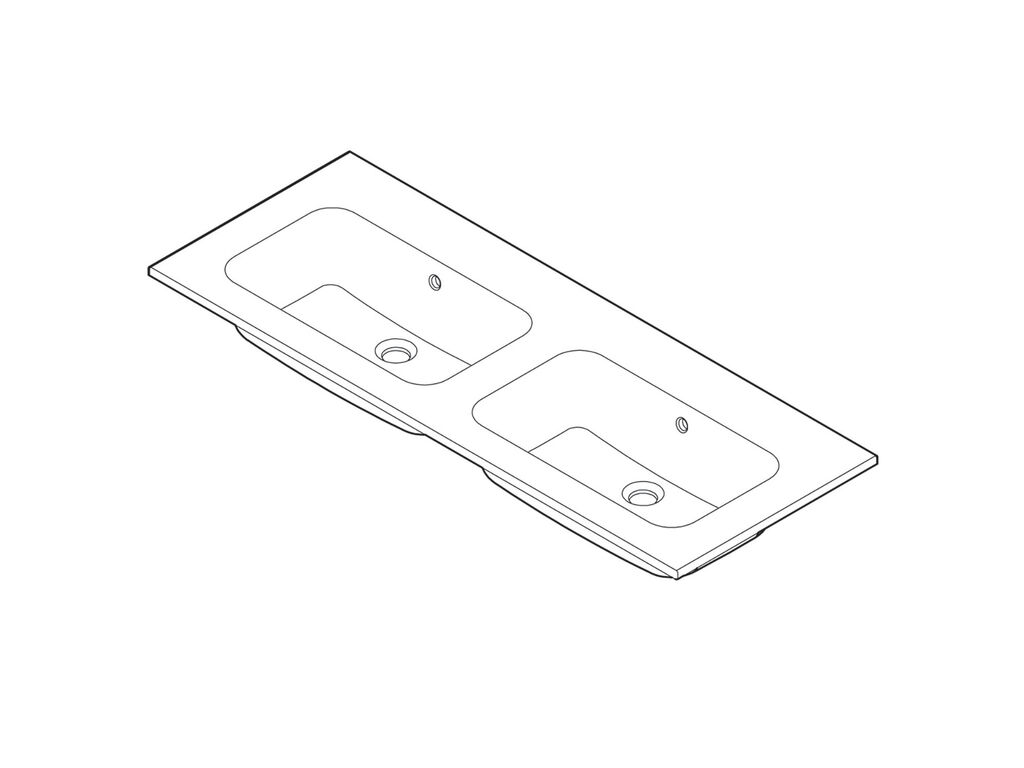

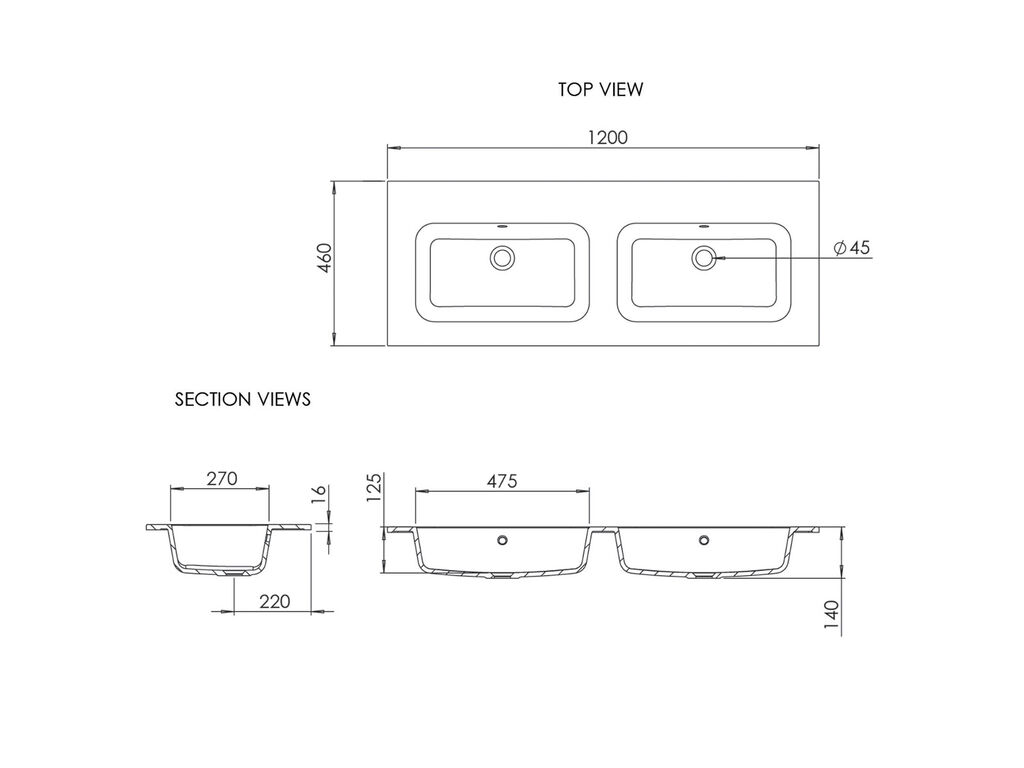

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1200 x 460 x 140mm
Weight:
24.00 kg
Basin Type:
Vanity Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Double Bowl
Number of Bowls:
2
Internal Bowl (WxDxH):
475 x 270 x 125mm
Depth at Centre:
460mm
Number of Tap Holes:
0
Max Water Temperature:
65°C
Overflow Type:
External Overflow
Supplied Overflow Ring Colour:
Chrome,White
Interchangeable Overflow Ring Type:
Type 1
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Idro Cast Vanity Basin 1200 Double Bowl Gloss White NTH
Instructions
Fitting kit
