Technical Data Sheet
Dartmoor Wall Hung Vanity Unit 800 Two Drawer Standard
1616DA

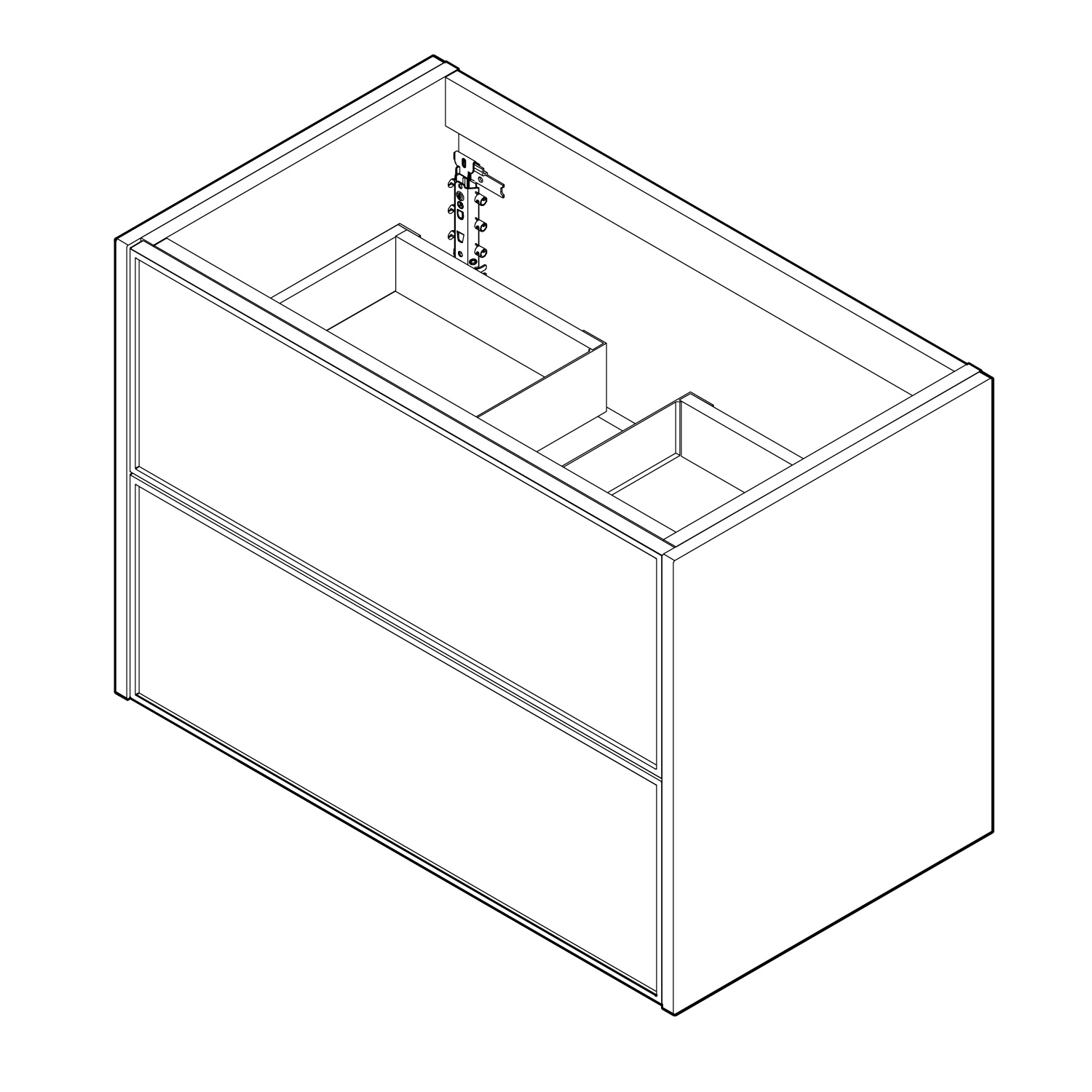

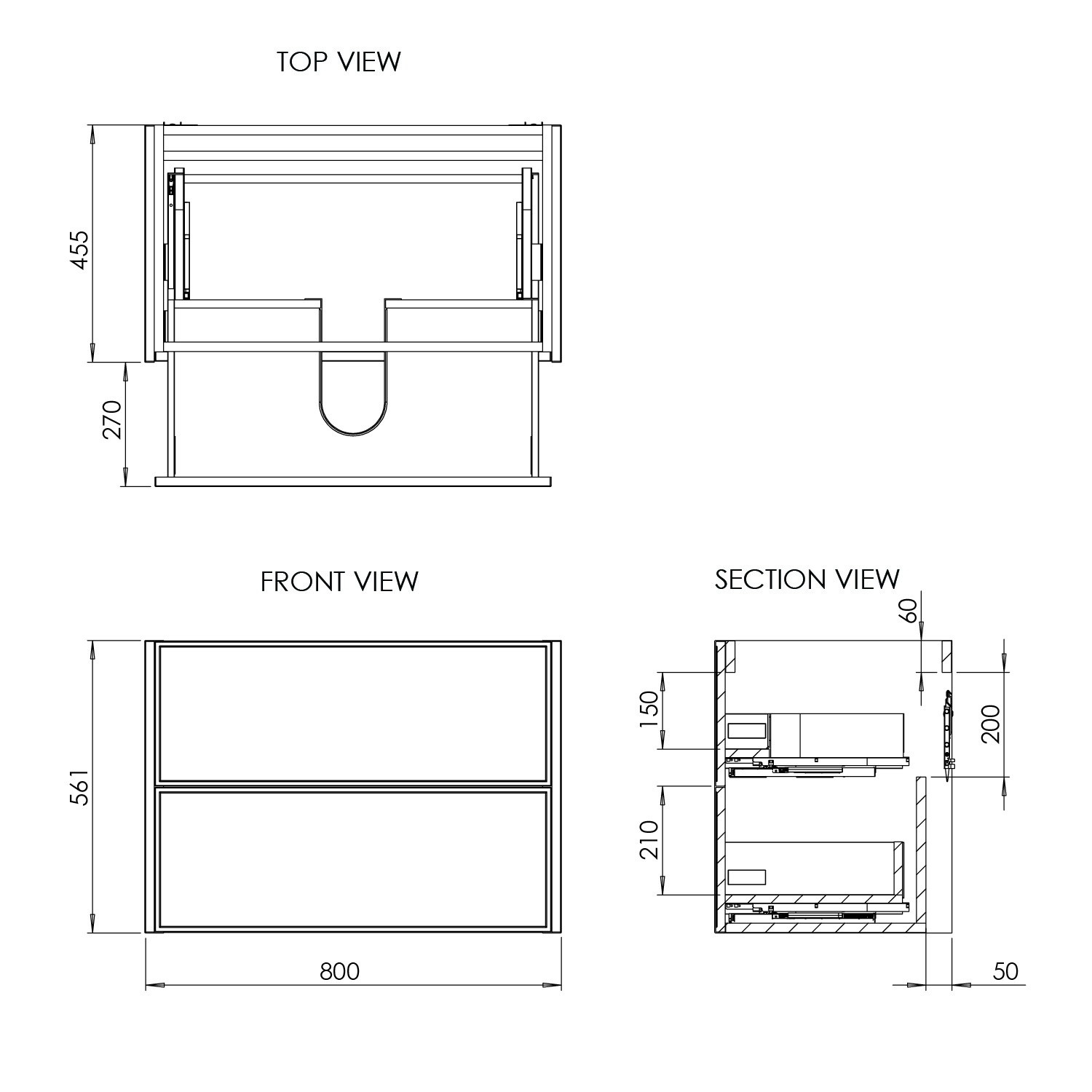

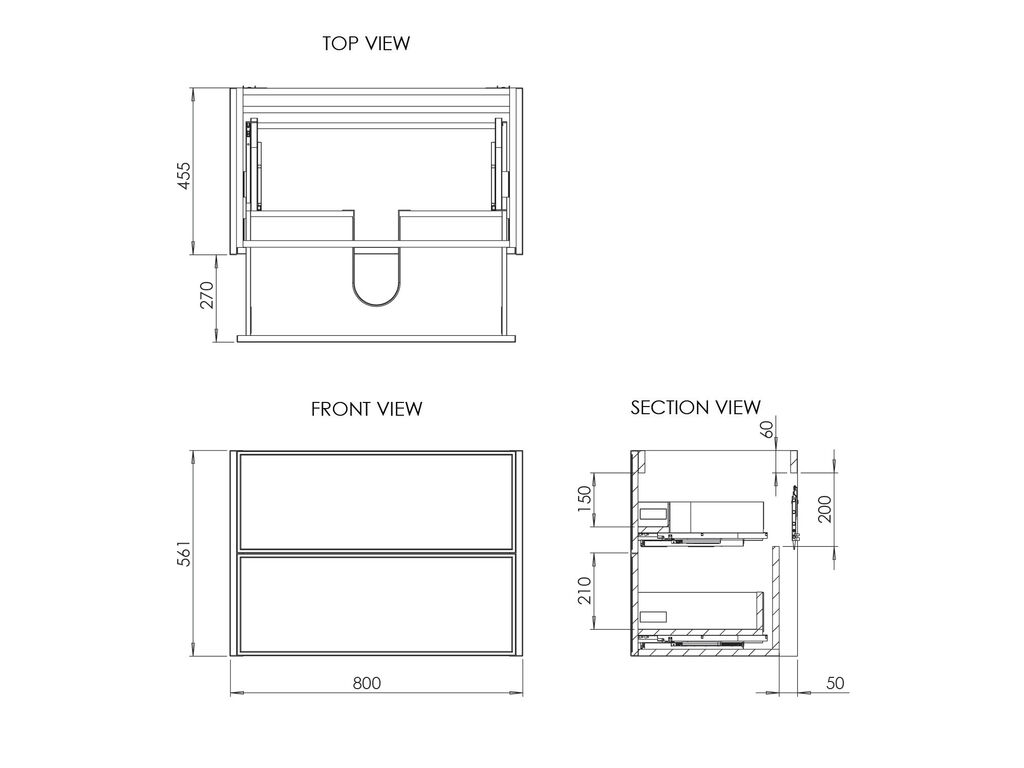

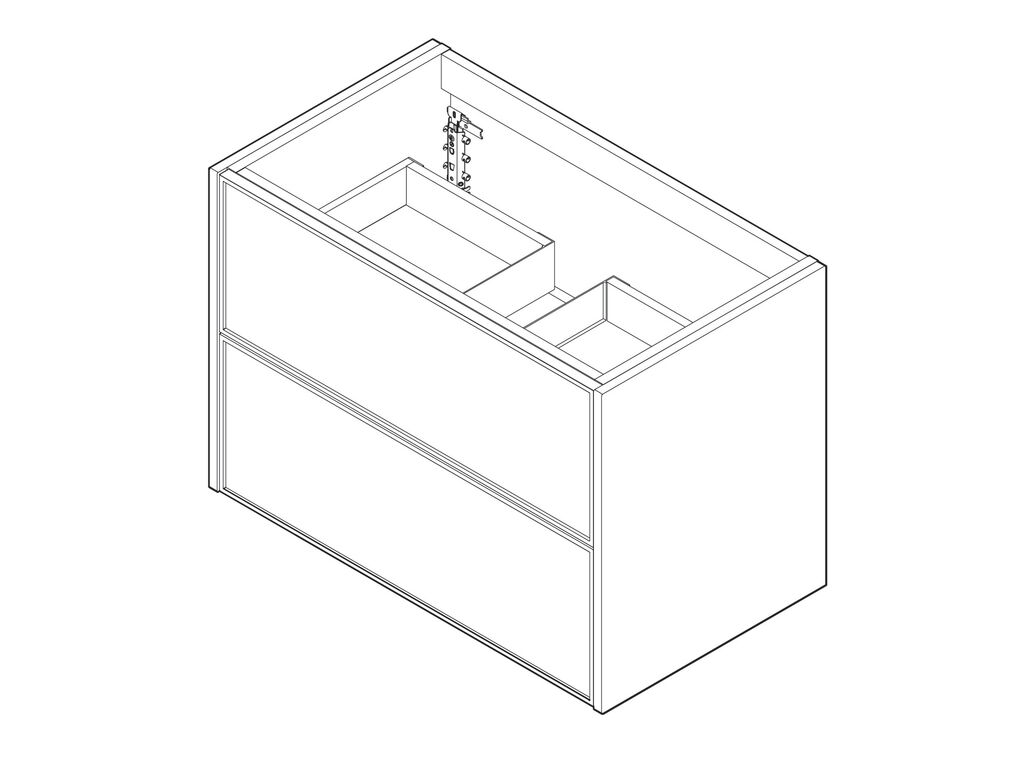

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
800 x 455 x 561mm
Carcass Material:
MFC 18mm
Fascia Style:
MDF 18mm Shaker
Drawers:
2 drawers, Emuca Soft Close, 350mm runners
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Dartmoor Wall Hung Vanity Unit 800 Two Drawer Standard
Instructions
Fitting kit
