Technical Data Sheet
Levanto Wall Hung Vanity Unit 700 Two Drawer Fluted
7890

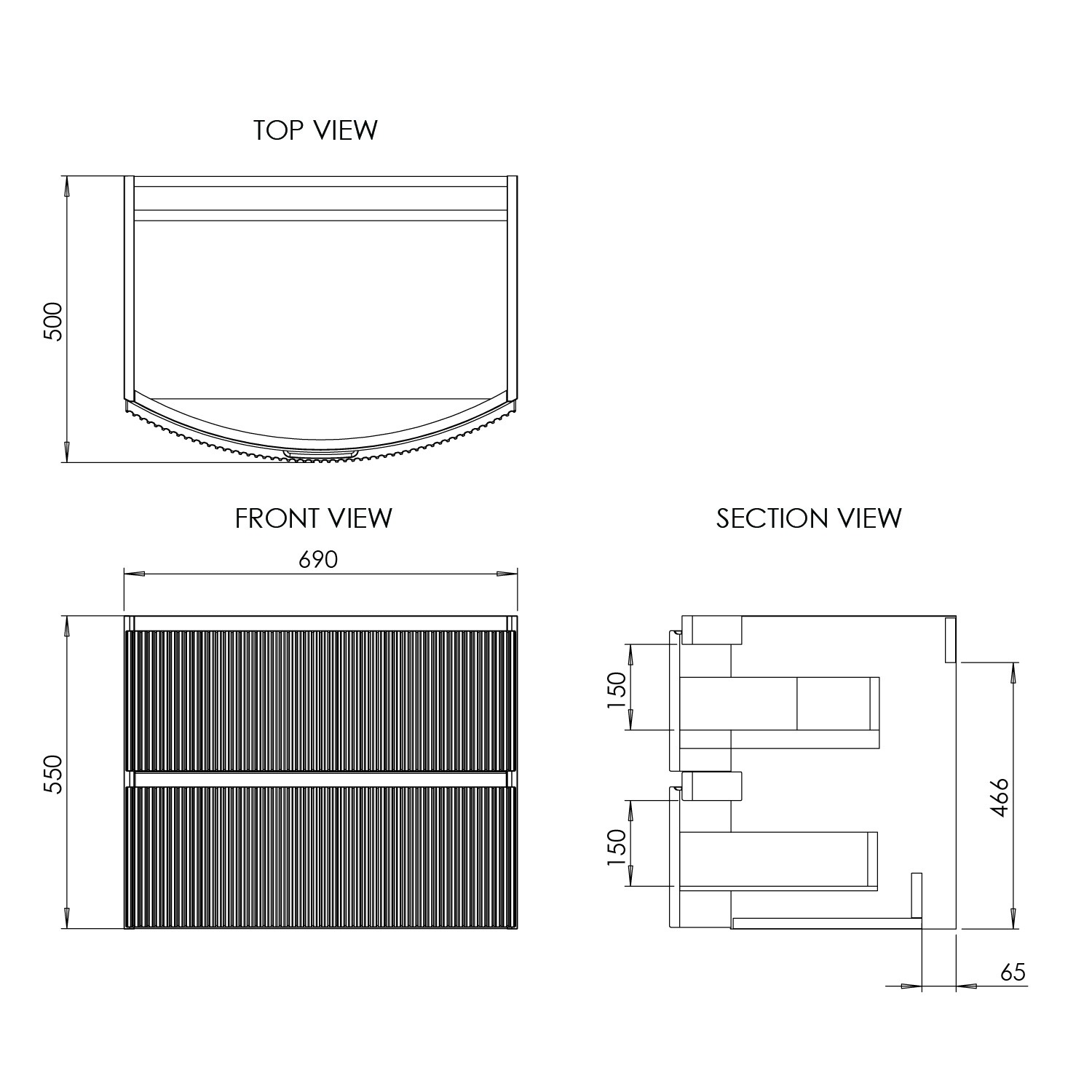

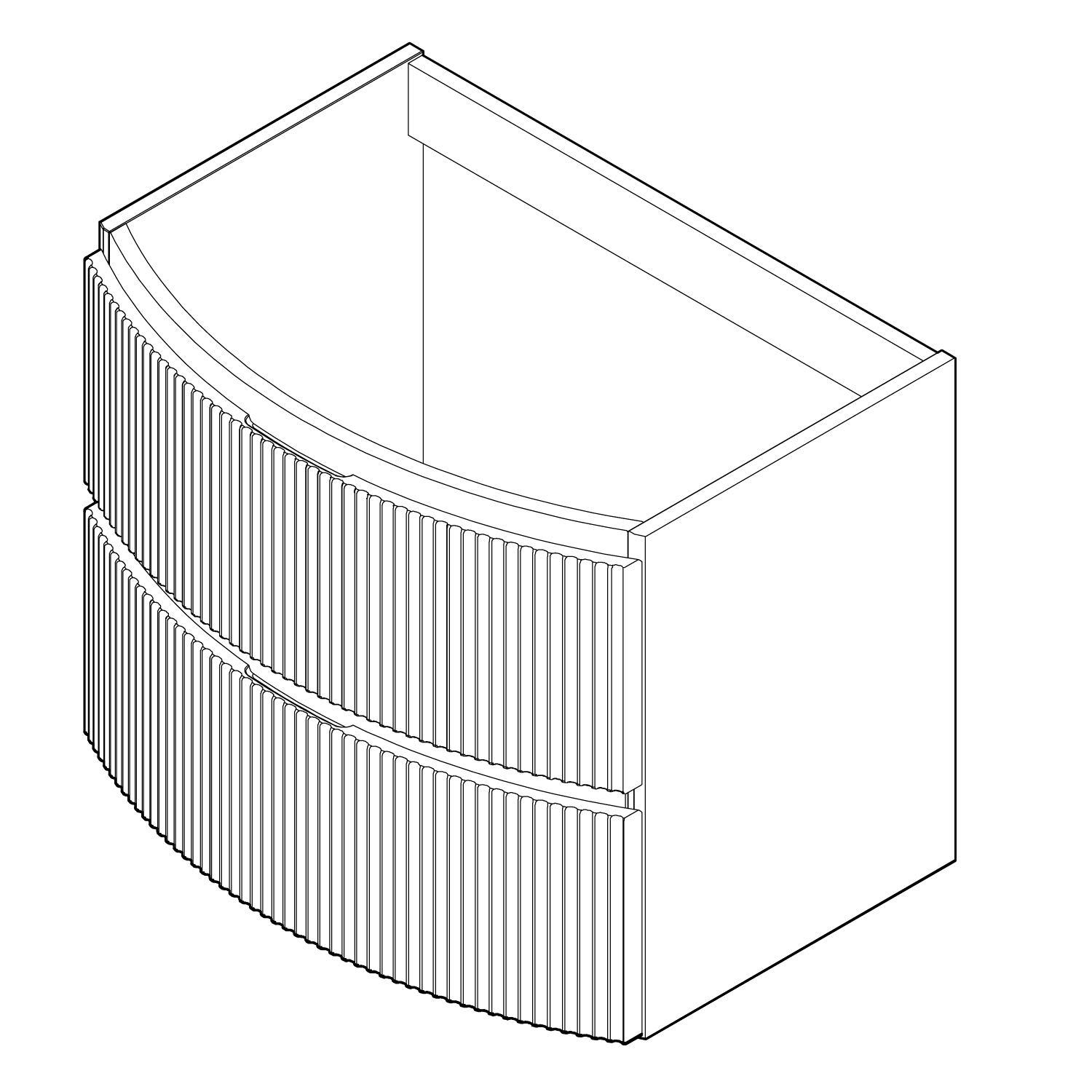

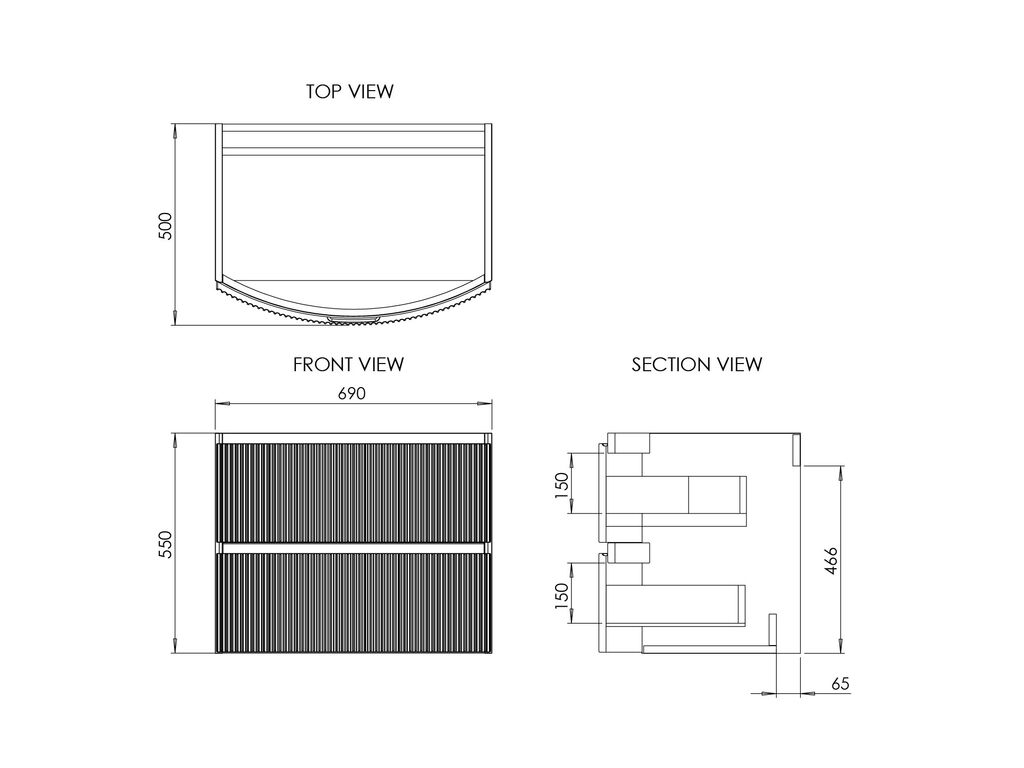

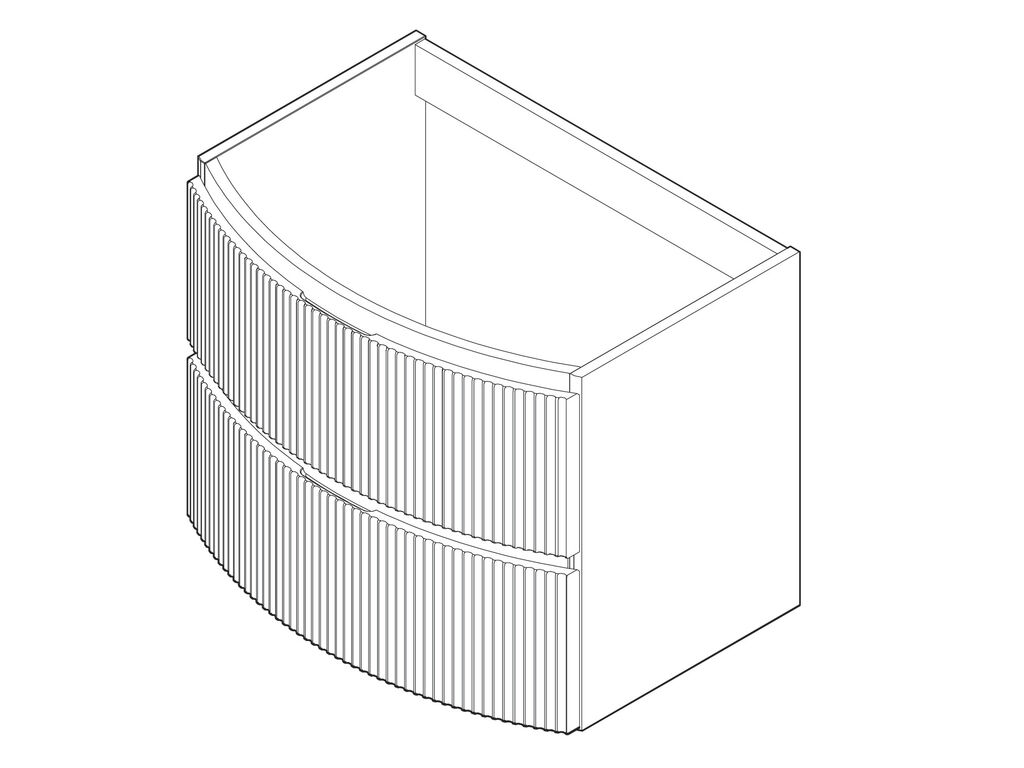

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
690 x 500 x 550mm
Carcass Material:
MDF 16/25mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
MDF 18mm Fluted
Fascia Detail:
Convex Front
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 300mm runners
Fixation Method:
Fixed Through Rear Rail, 50mm from top @ 450mm centres
Service Void Depth:
65mm
Compatible Basins:
9264, 9268, 9215, 9069, 3584, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9202
In The Box:
Levanto Wall Hung Vanity Unit 700 Two Drawer Fluted
