Technical Data Sheet

Valor Washstand 800 Two Drawer Walnut Frame

6968

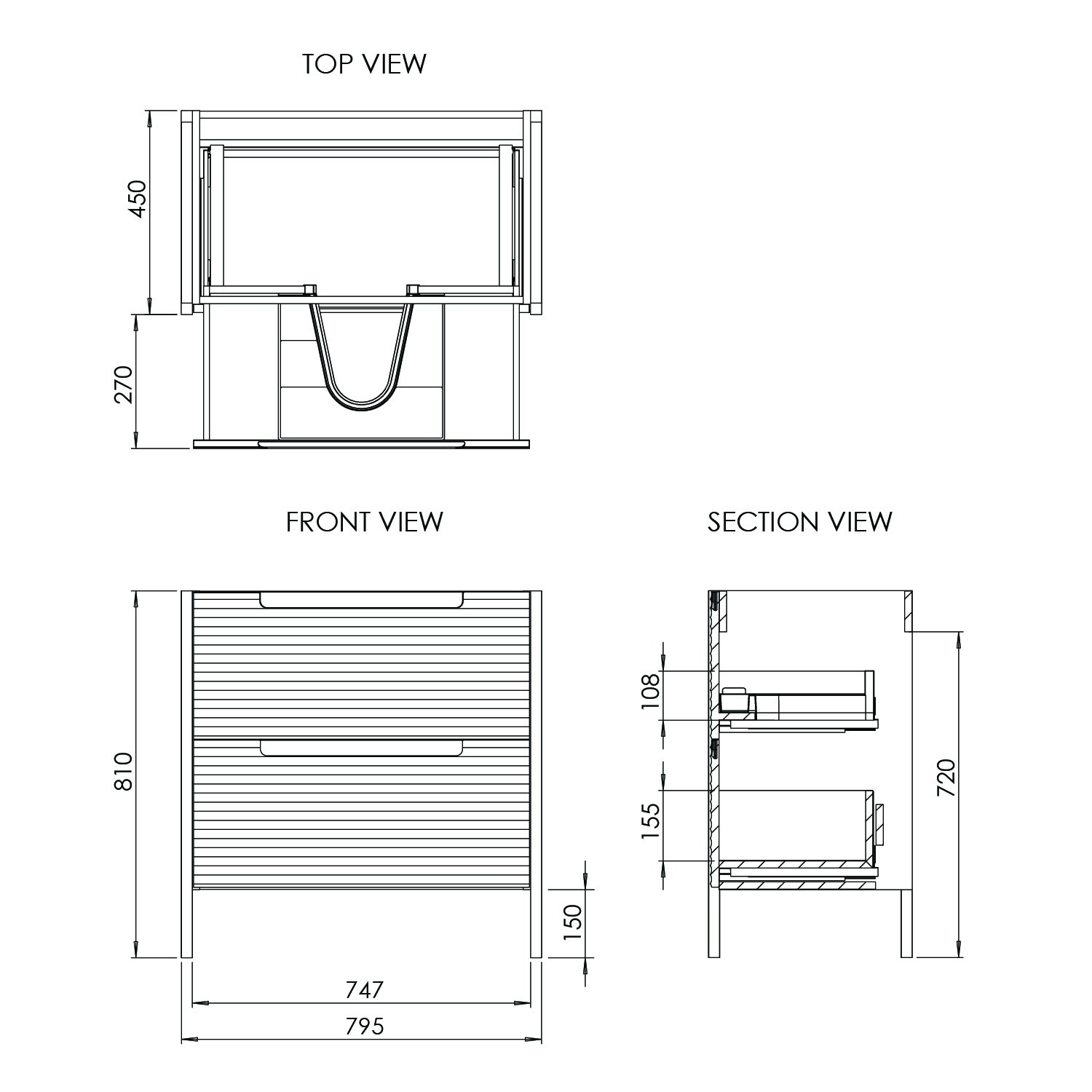

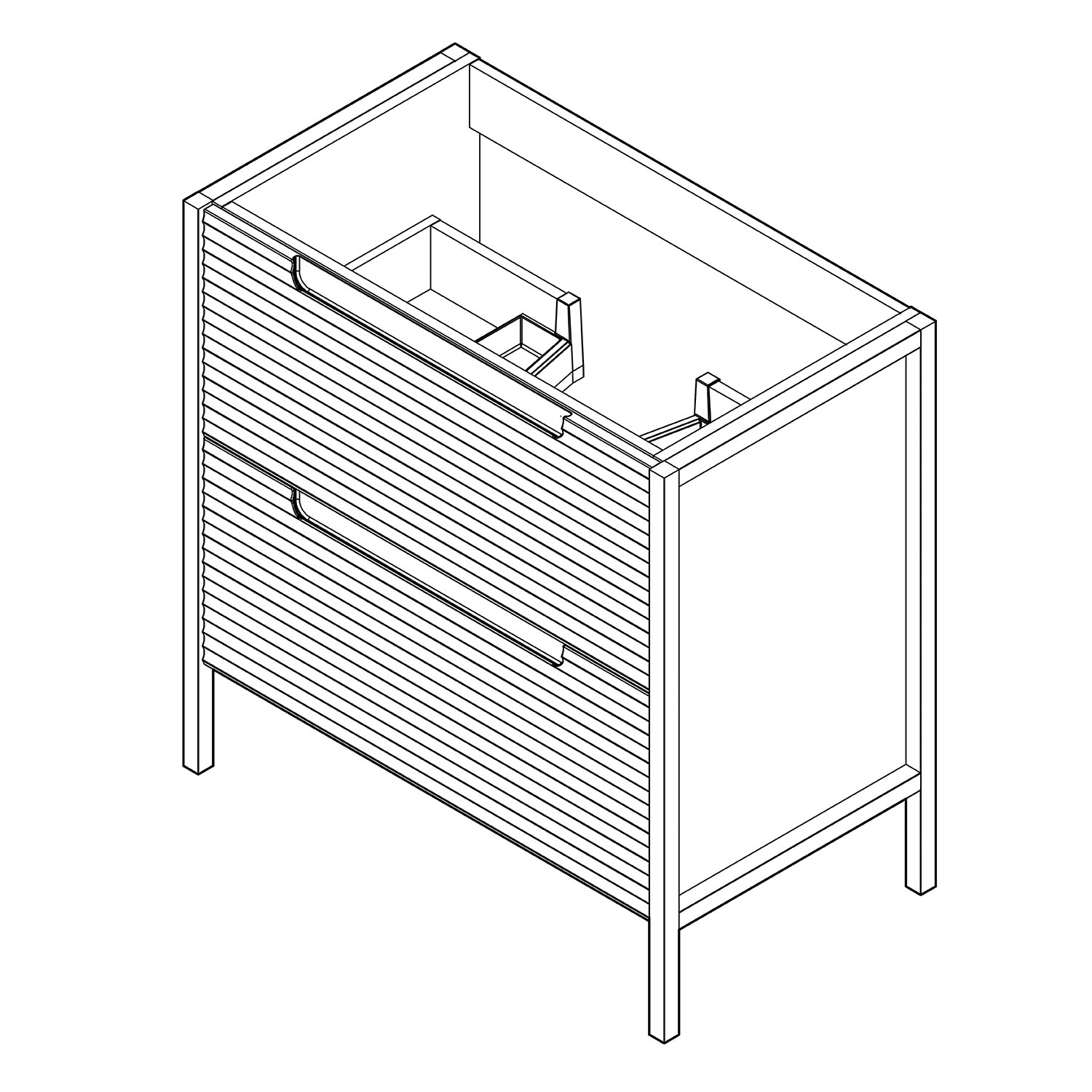

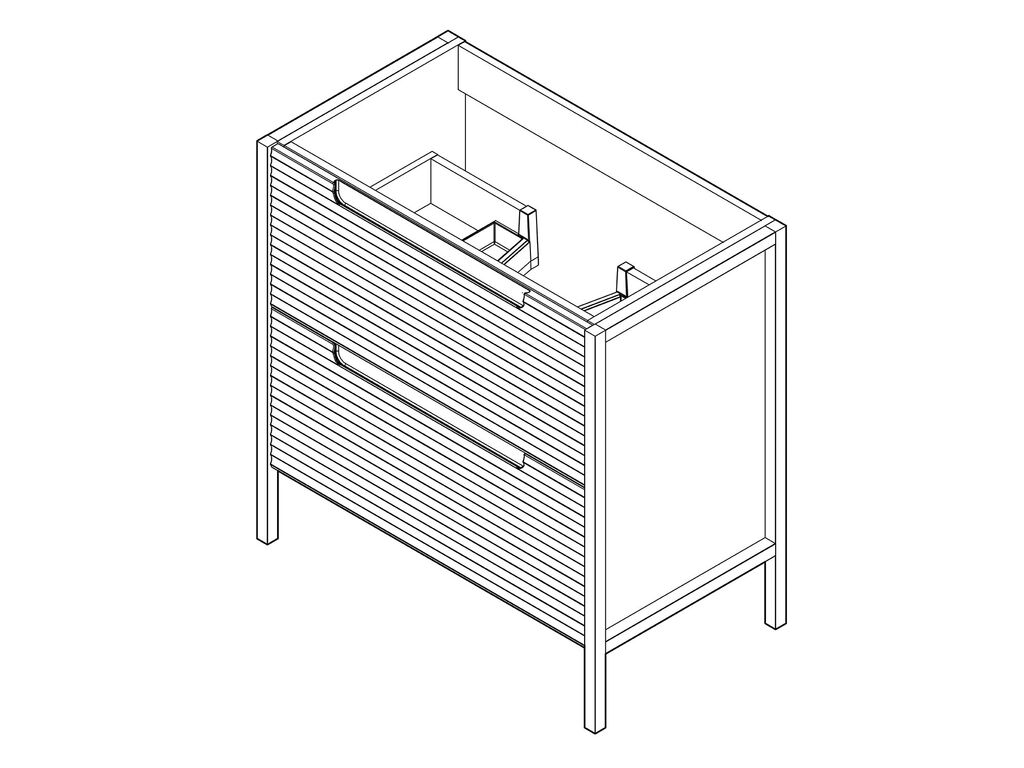

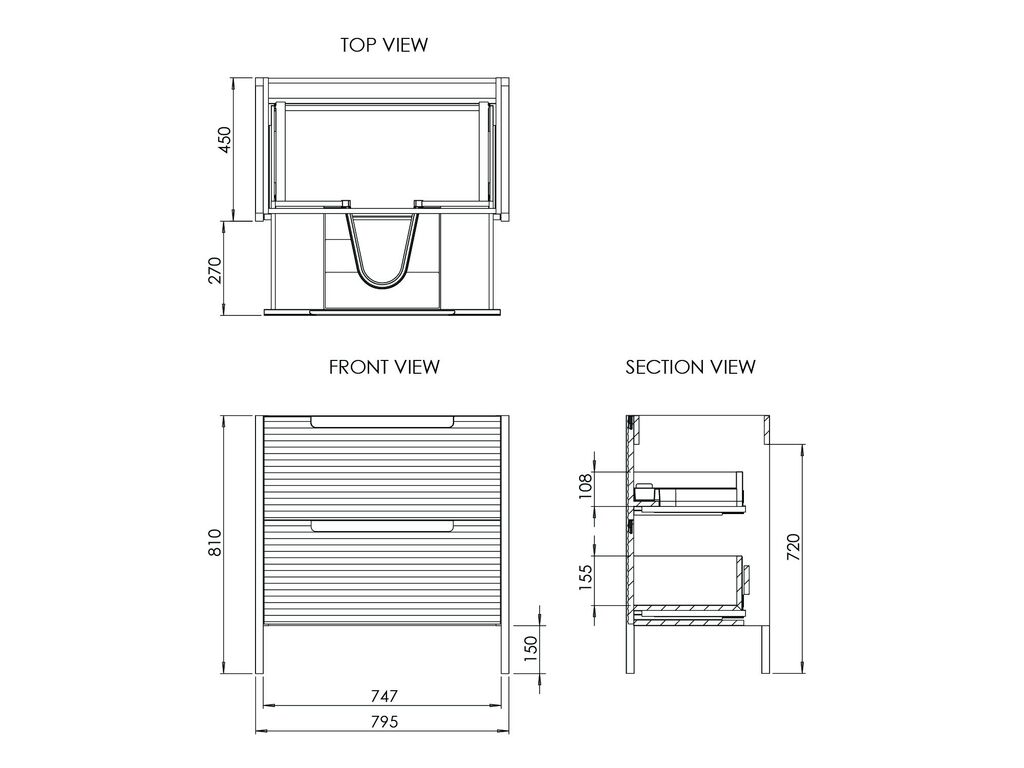

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Furniture Type:

Floor Standing Vanity Unit

Dimensions (WxDxH):

795 x 450 x 810mm

Weight:

31.68 kg

Carcass Material:

MDF 18mm

Carcass Edging:

PVC Edging

Carcass Colour:

Dark Grey

Carcass Service Area:

Open back

Fascia Style:

MDF 18mm Fluted

End Panel Material:

MDF 18mm

End Panel Detail:

Slab

Handle Type:

Integrated Handle

Drawers:

2 drawers, Soft Close, 350mm runners

Shelves:

1 removable - MDF 18mm

Removable Shelf Supports:

Connecting Bolts

Fixation Method:

Fixed Through Rear Rail, 45mm from top @ 512mm centres

Leg / Foot Type:

Pre-attached, Feet Included

Service Void Depth:

87mm

Compatible Basins:

9280, 9316, 9201, 3583, 9069, 3584, 3585, 9294, 9199, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:
