Technical Data Sheet
Firova Wall Hung Vanity Unit 800 Three Drawer Fluted
5969

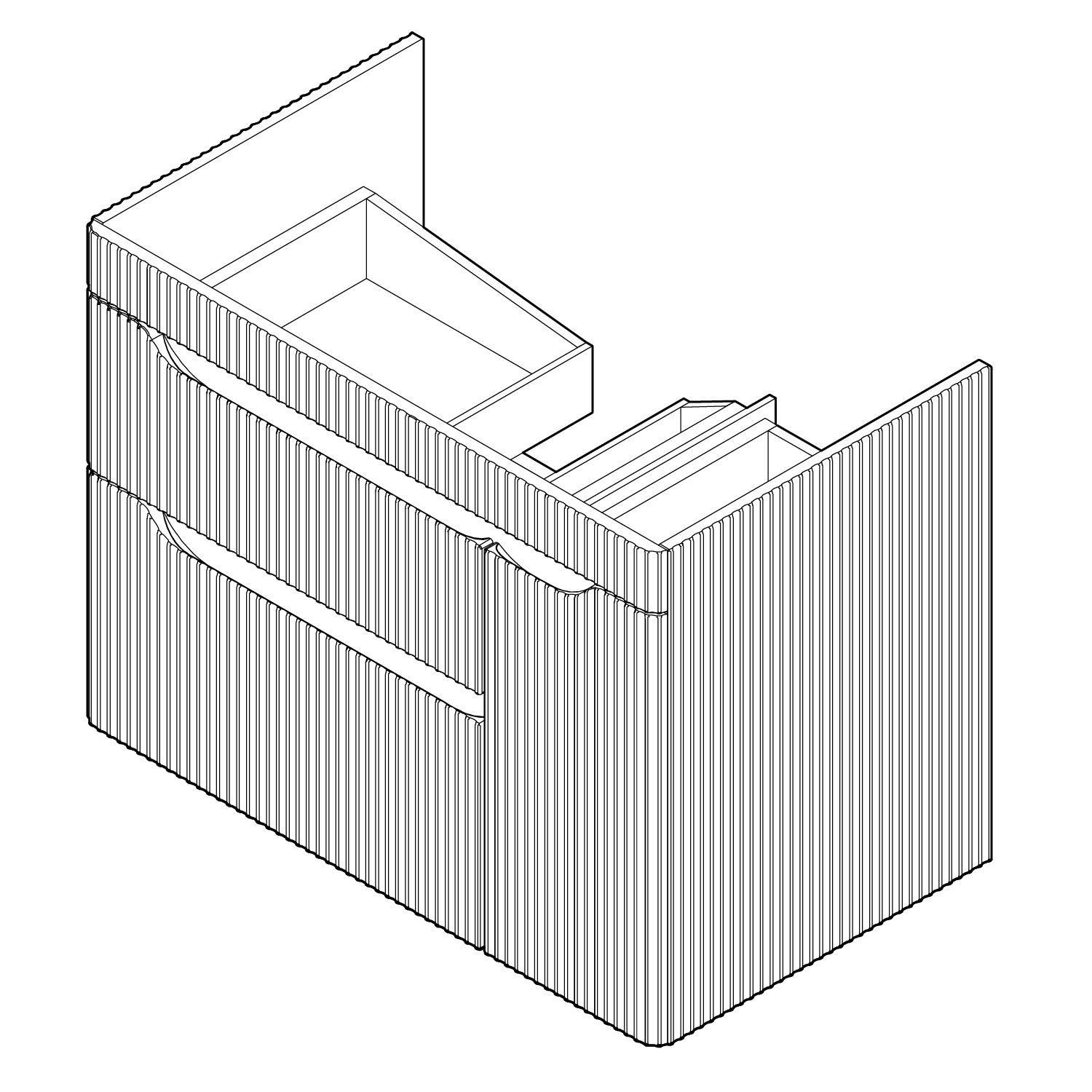

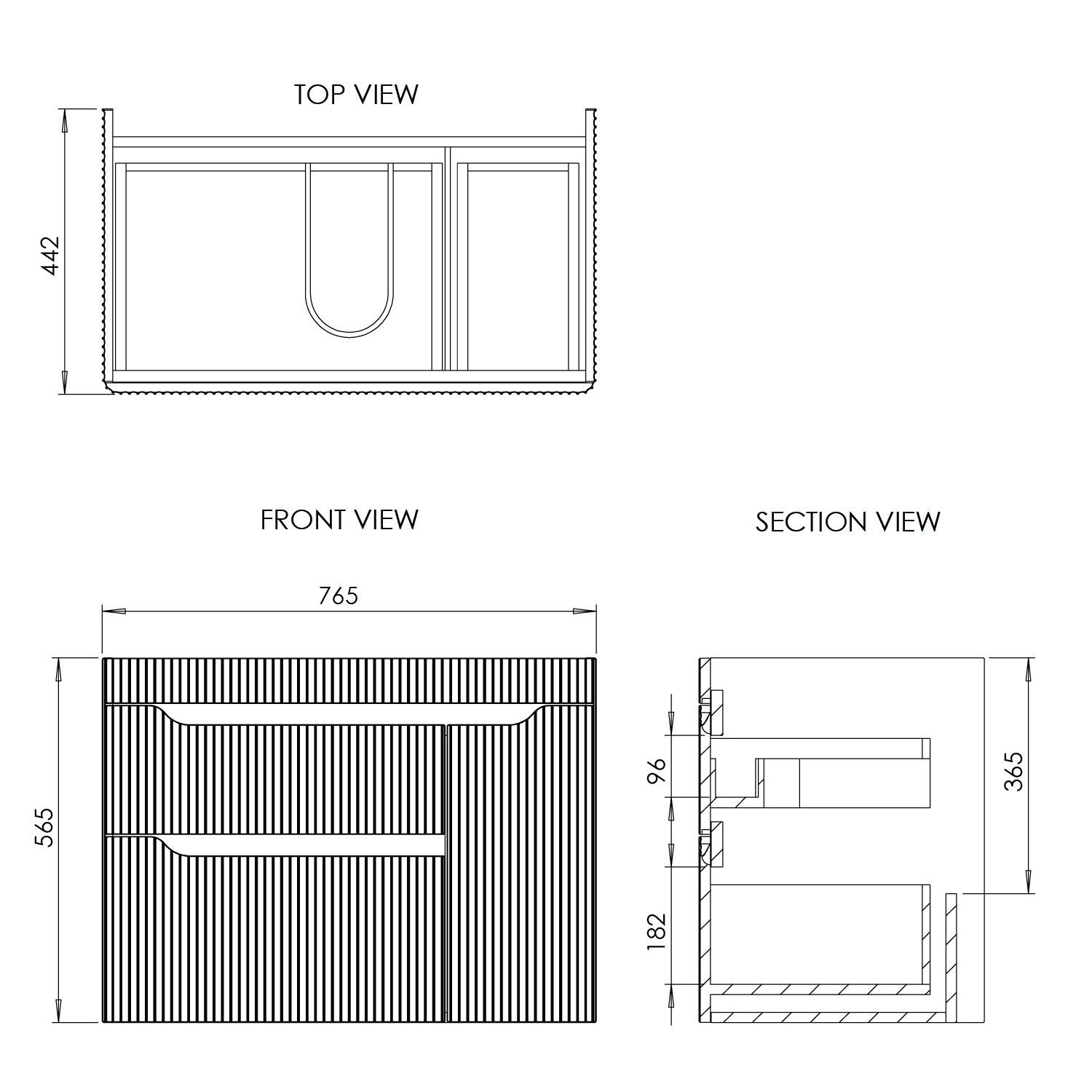

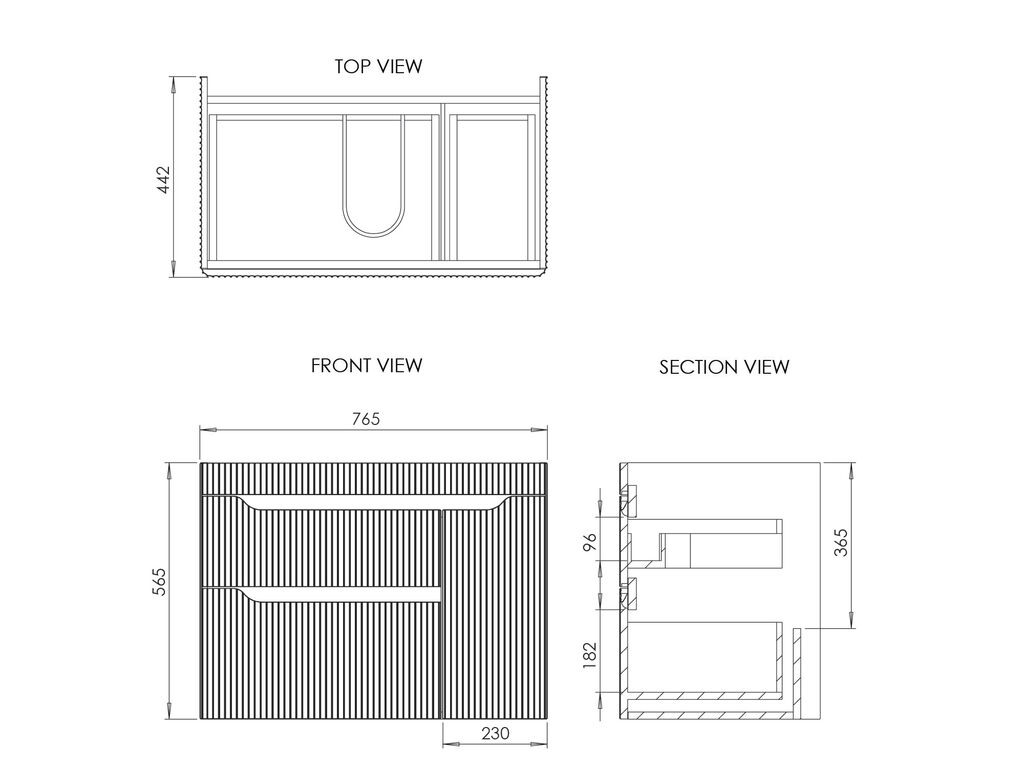

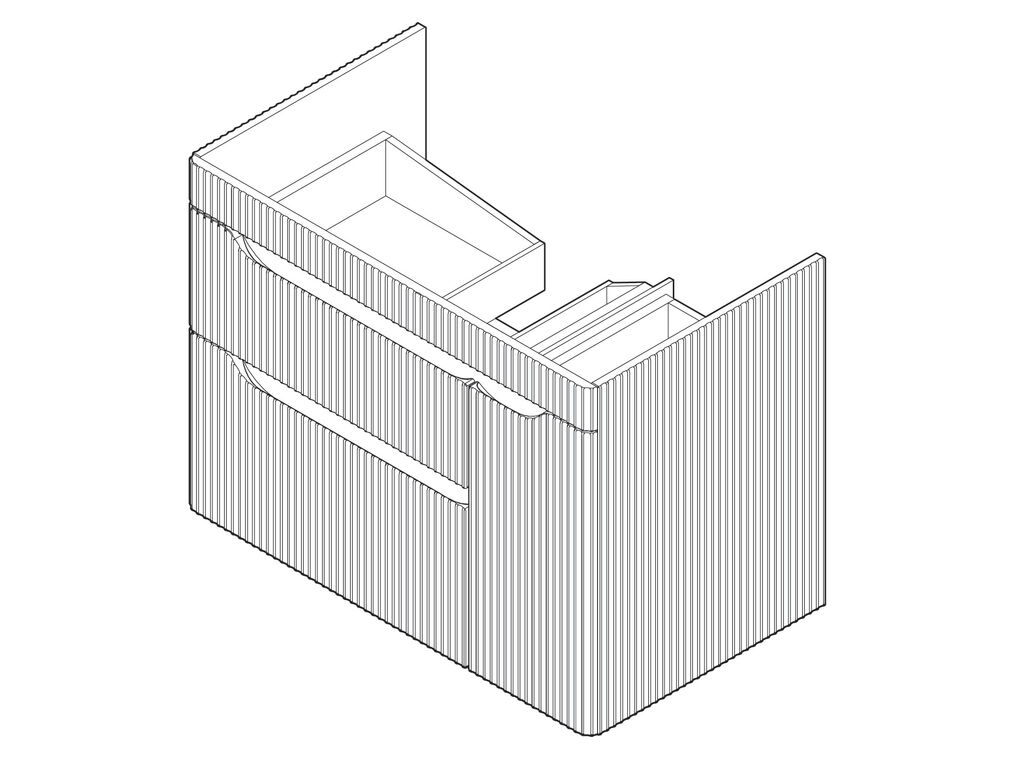

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
765 x 442 x 565mm
Carcass Material:
MDF 18mm
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 18mm Fluted
End Panel Material:
MDF 18mm
End Panel Detail:
Fluted
Handle Type:
Integrated Handle
Drawers:
3 drawers, 270mm runners
Compatible Basins:
9352, 3583, 8952, 9069, 3584, 3585, 9294, 8928, 8929, 8951, 9114, 9113, 9318, 9317, 3593, 9208, 9319, 9285, 9282, 9283, 9169, 3689, 8967, 8966, 9202
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Firova Wall Hung Vanity Unit 800 Three Drawer Fluted
