Technical Data Sheet
Charlbury Washstand 1244 Two Door Four Drawer
5921

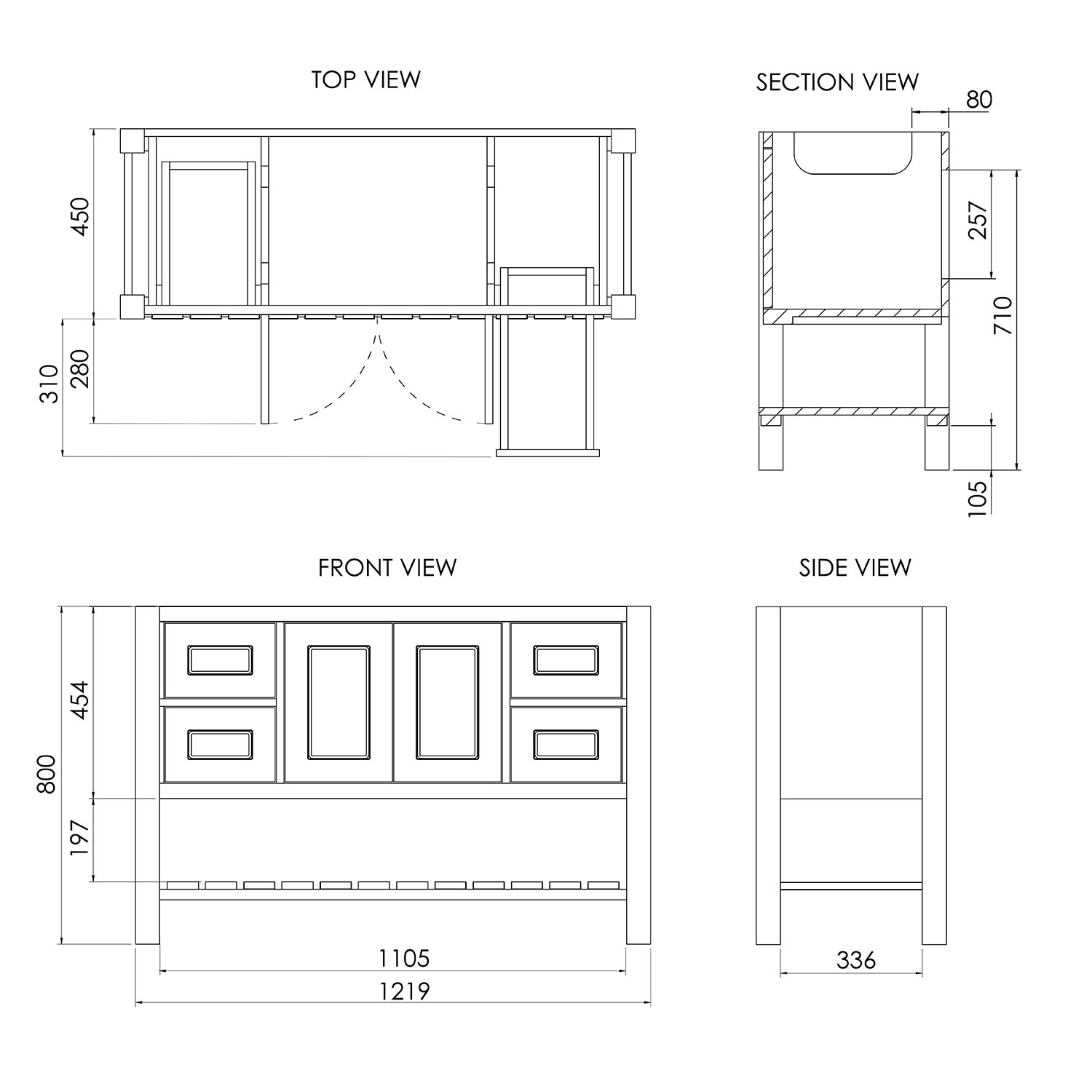

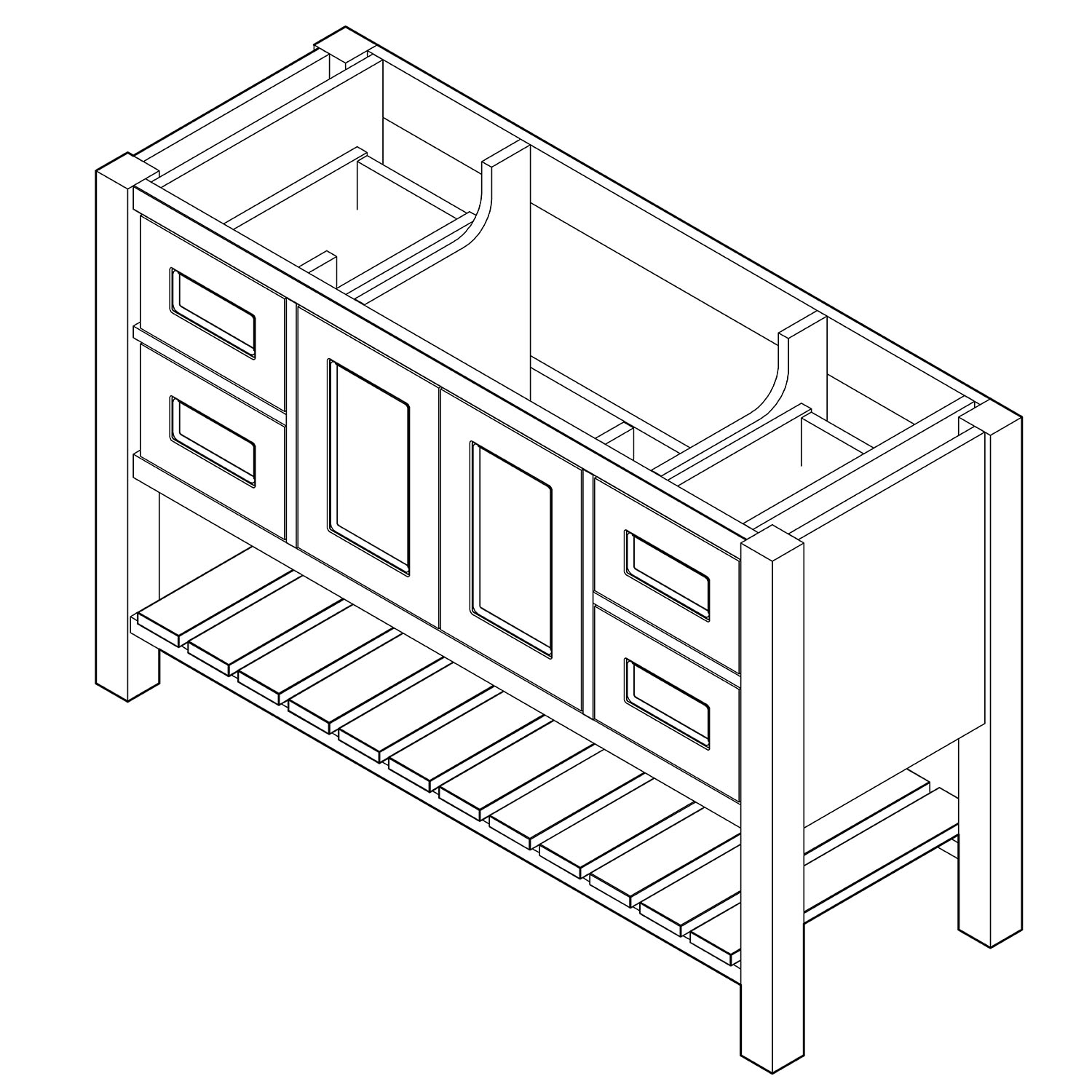

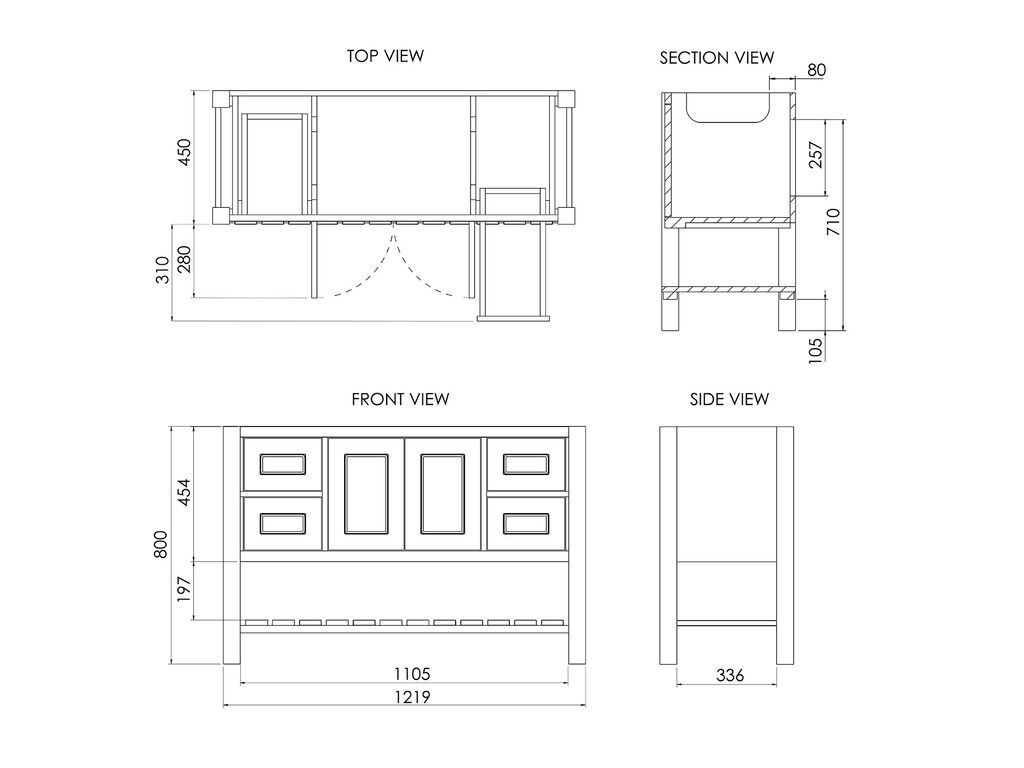

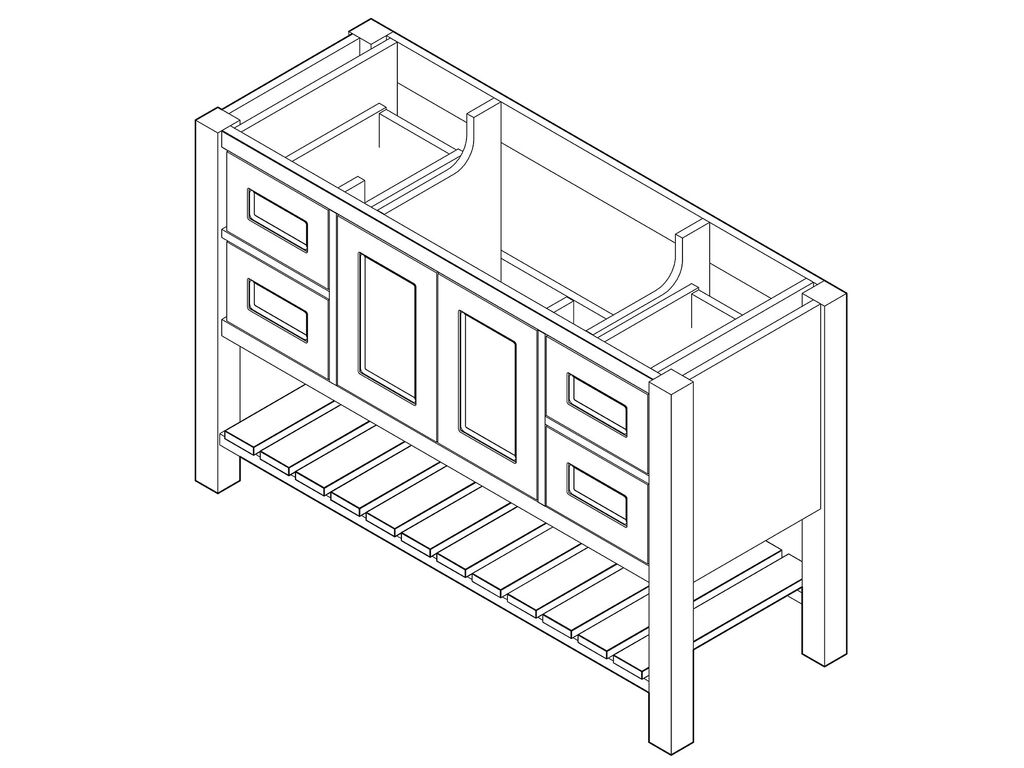

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Washstand Unit
Dimensions (WxDxH):
1220 x 450 x 800mm
Weight:
57.92 kg
Carcass Material:
MDF 18mm
Carcass Edging:
Matched Edging
Carcass Colour:
Matched to Fascia
Carcass Service Area:
Open Back
Fascia Style:
MDF 22mm Shaker
Fascia Detail:
Shaker frame
End Panel Material:
MDF 20mm
End Panel Detail:
Shaker
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Inset,Soft Close
Hinge Bracket Cover Plates:
Not Included
Handle Type:
Handle Not Included
Drawers:
4 drawers, Soft Close, 350mm runners
Shelves:
1 fixed - MDF 18mm
Fixation Method:
Fixed Through Rear Rail, 50mm from top @ 350mm centres
Leg / Foot Type:
Pre-attached, Feet Included
Door Open Unit Depth:
677mm
Compatible Basins:
3583, 9069, 3584, 3585, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 3510SY, 3510, 9202
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Charlbury Washstand 1244 Two Door Four Drawer
Instructions
