Technical Data Sheet
Petra Wall Hung Vanity Unit 645 One Drawer
5846

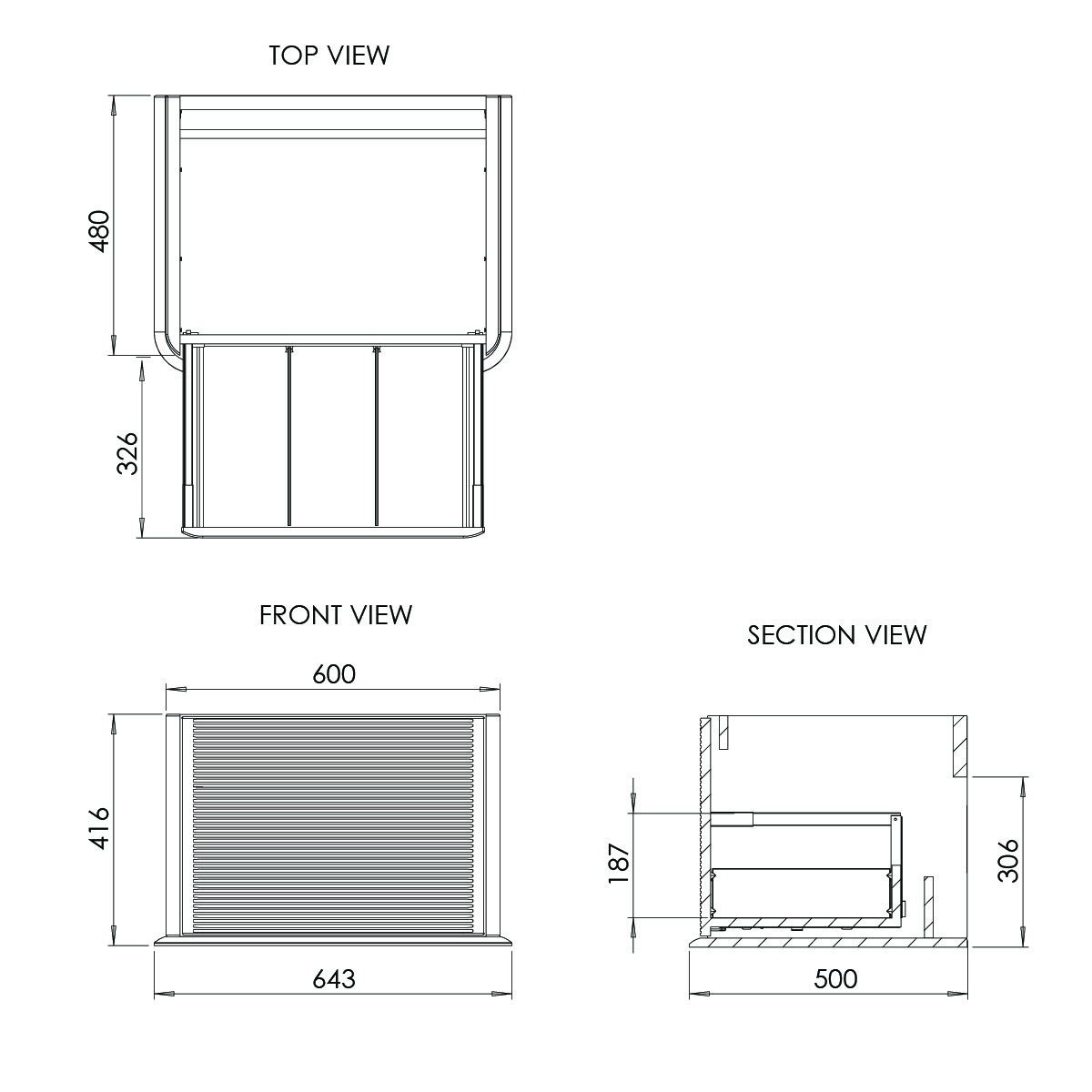

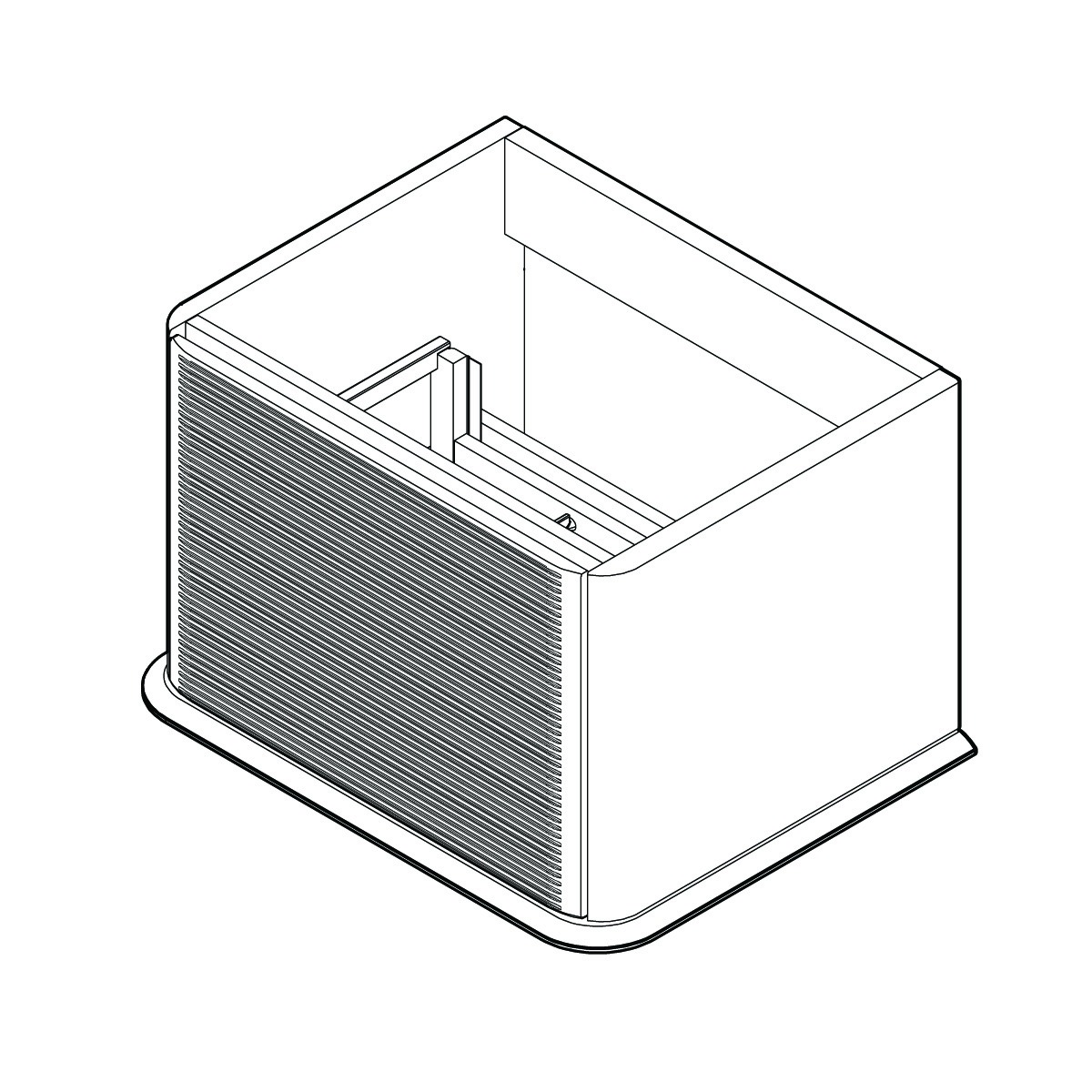

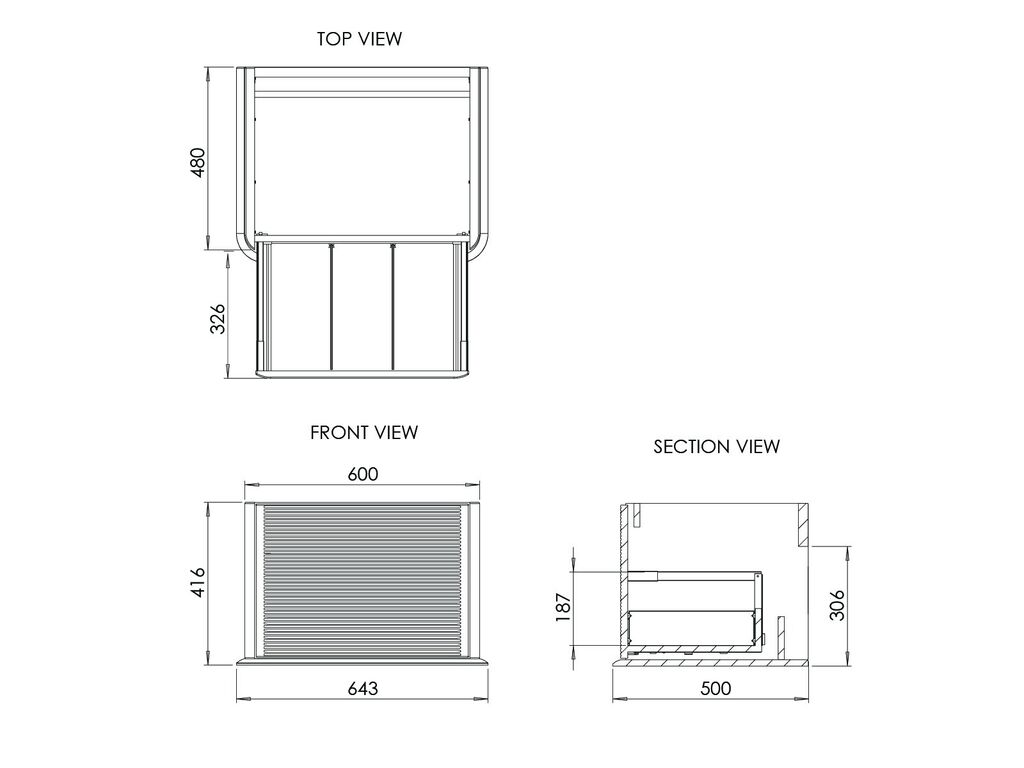

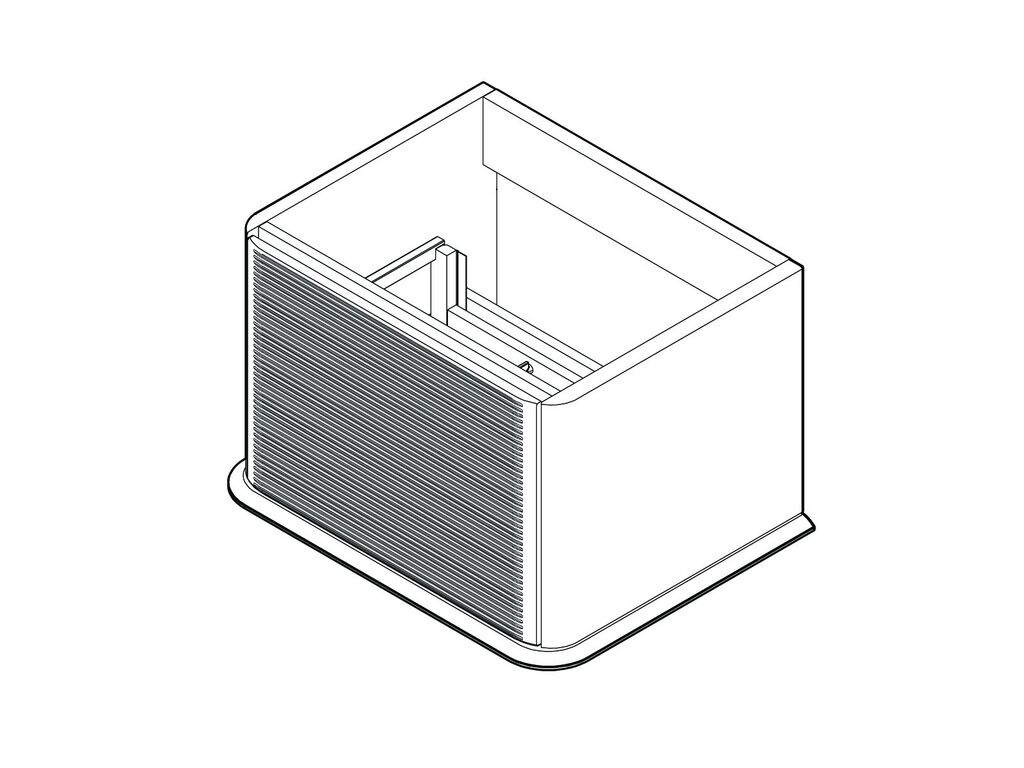

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
643 x 500 x 416mm
Weight:
22 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
MDF 18mm Fluted
Fascia Detail:
Bow Fronted
End Panel Material:
MDF 18mm
End Panel Detail:
Fluted
Handle Type:
Handle Not Included
Drawers:
1 drawer, Soft Close, 350mm runners
Fixation Method:
Fixed angle brackets, 222mm from top @ 580mm centres
Compatible Basins:
3583, 9069, 3584, 3585, 9294, 9199, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 5925, 5898DS, 5898GC, 5898
In The Box:
Petra Wall Hung Vanity Unit 645 One Drawer
