Technical Data Sheet
Tesima Wall Hung Vanity Unit 915 Two Drawer
5687

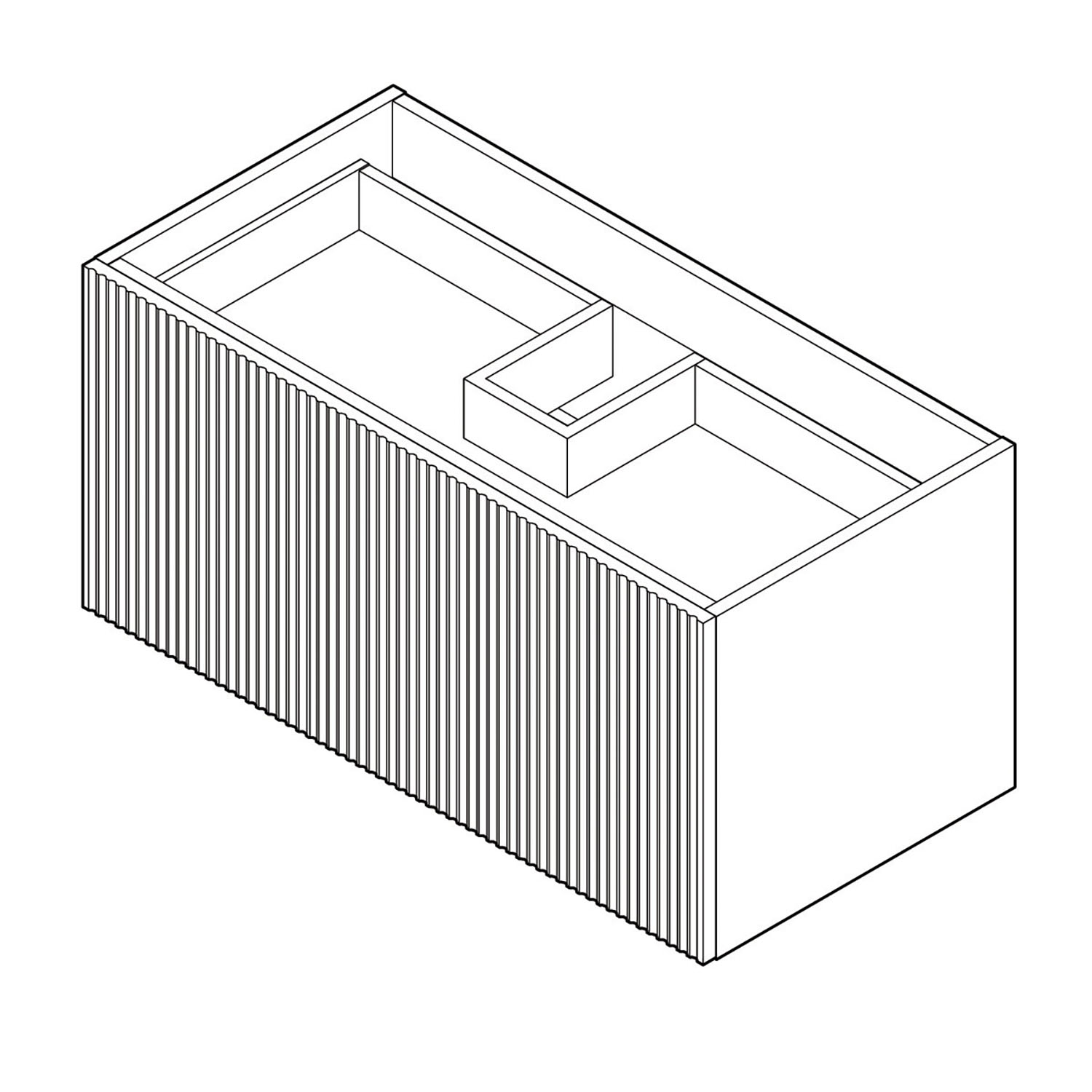

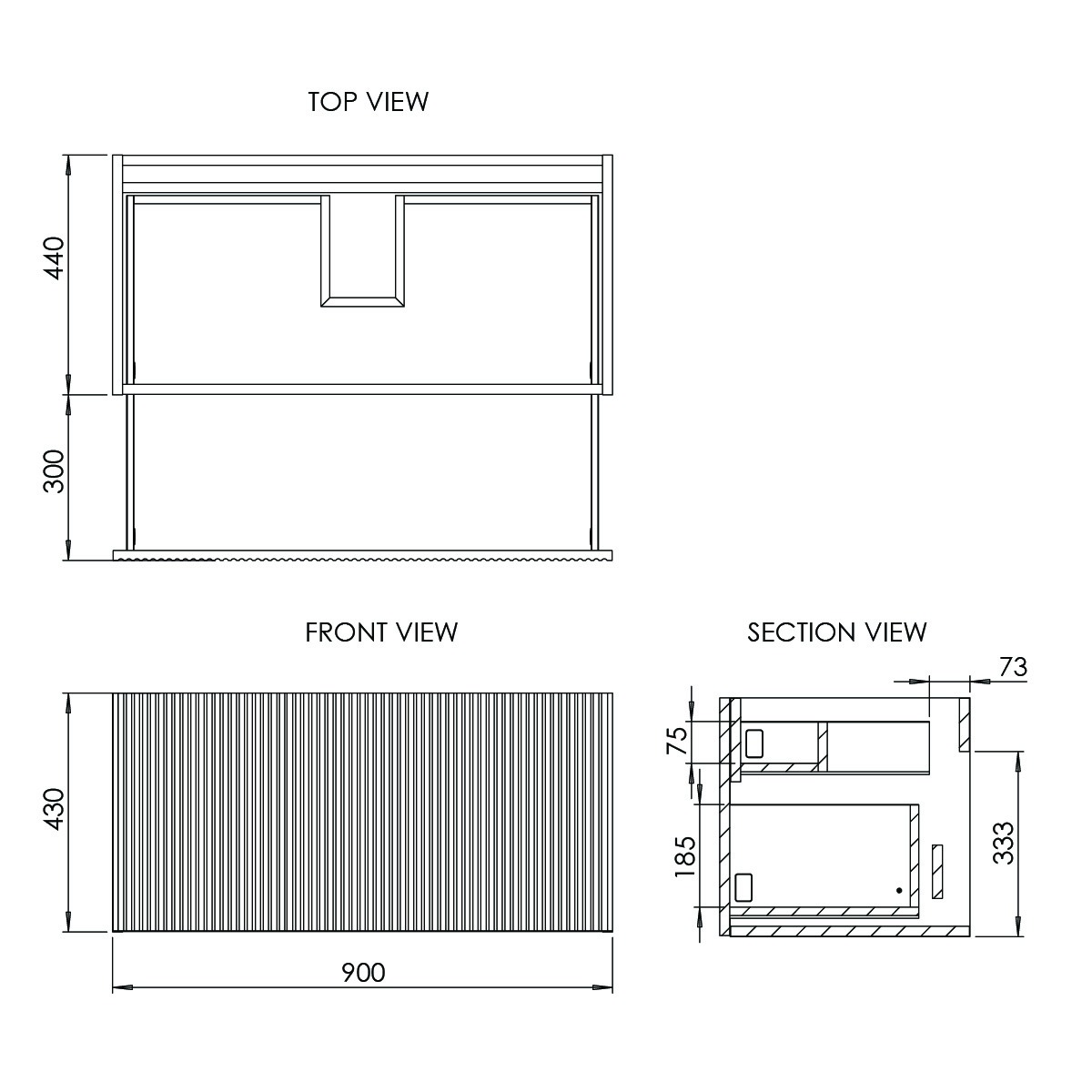

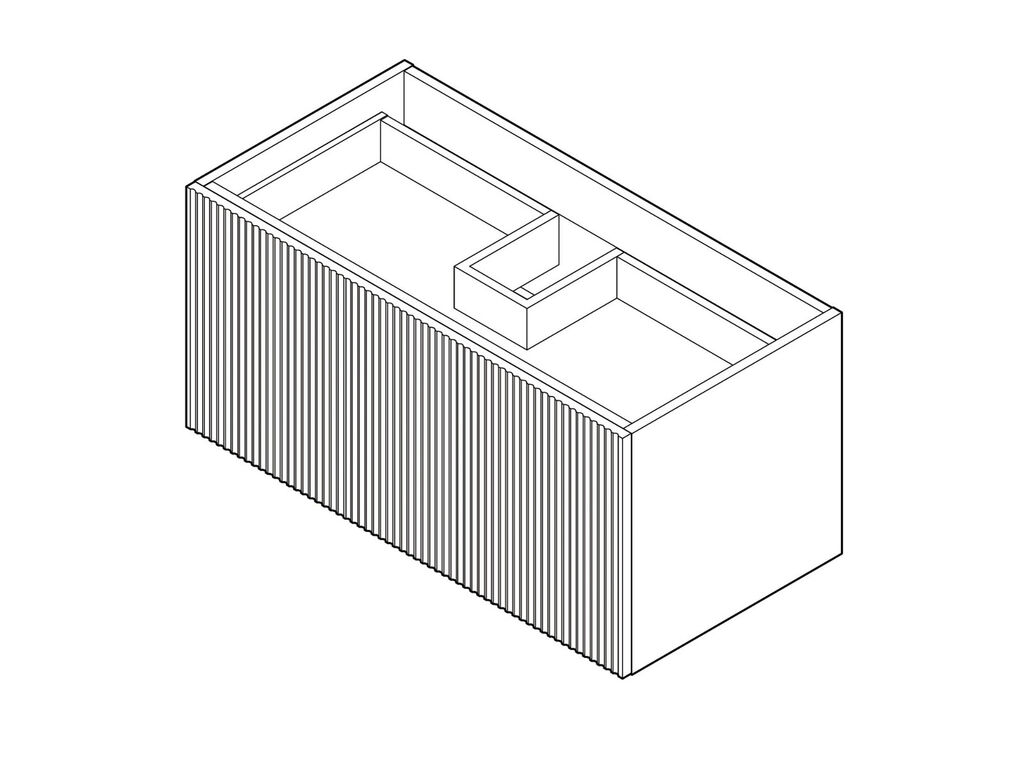

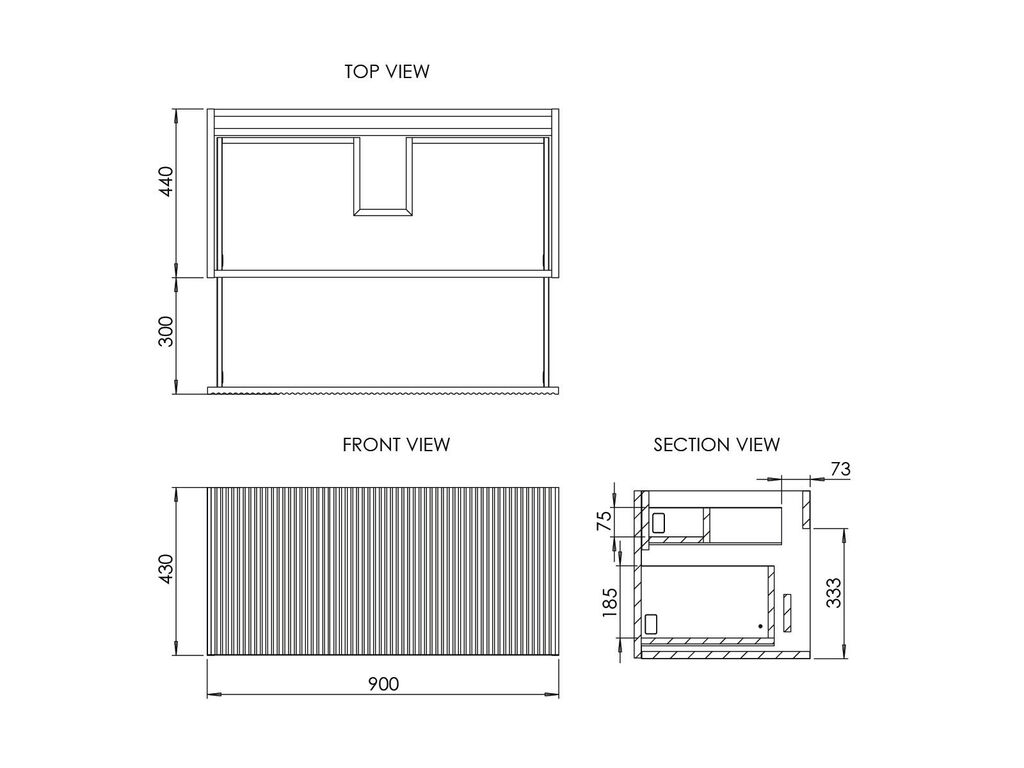

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
900 x 440 x 430mm
Weight:
35.16 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 19mm Fluted
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Handle Type:
Handle Not Included
Drawers:
2 drawers, Soft Close, 350mm runners
Fixation Method:
Fixed angle brackets, 250mm from top @ 837mm centres
Service Void Depth:
58mm
Compatible Basins:
9278, 3583, 9069, 3584, 3585, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9202
In The Box:
Tesima Wall Hung Vanity Unit 915 Two Drawer
