Technical Data Sheet
Brenta Wall Hung Vanity Unit 800 Two Drawer
4723

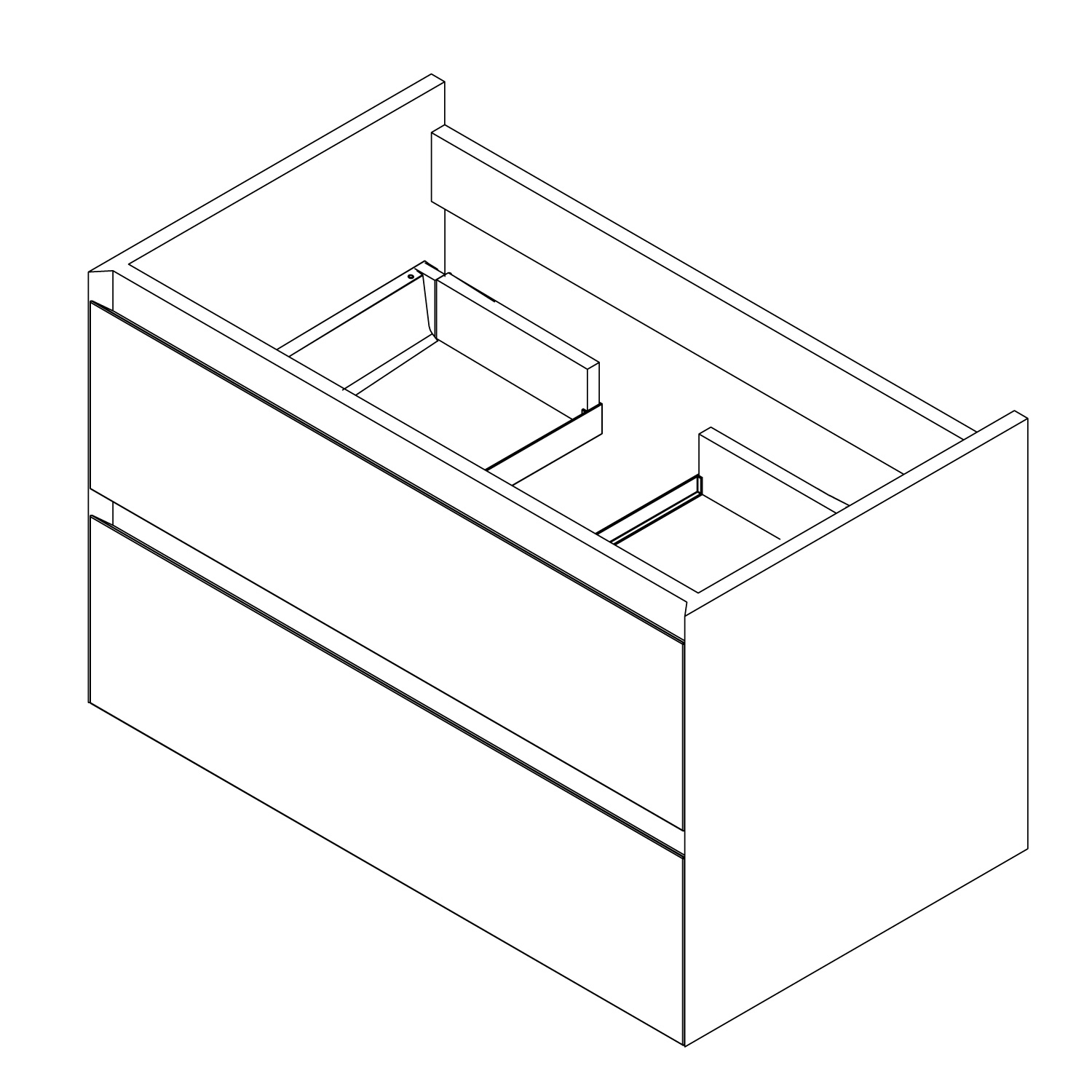

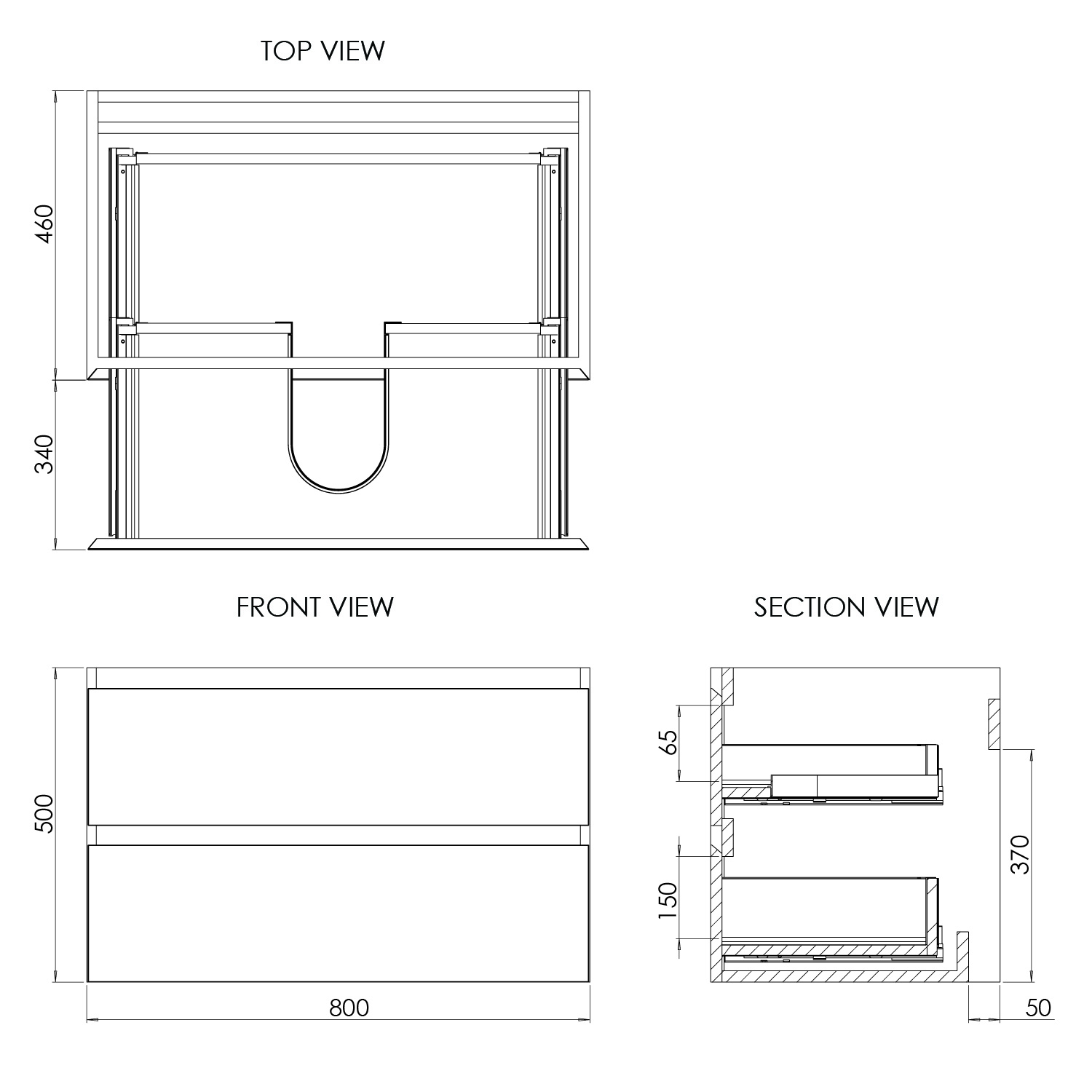

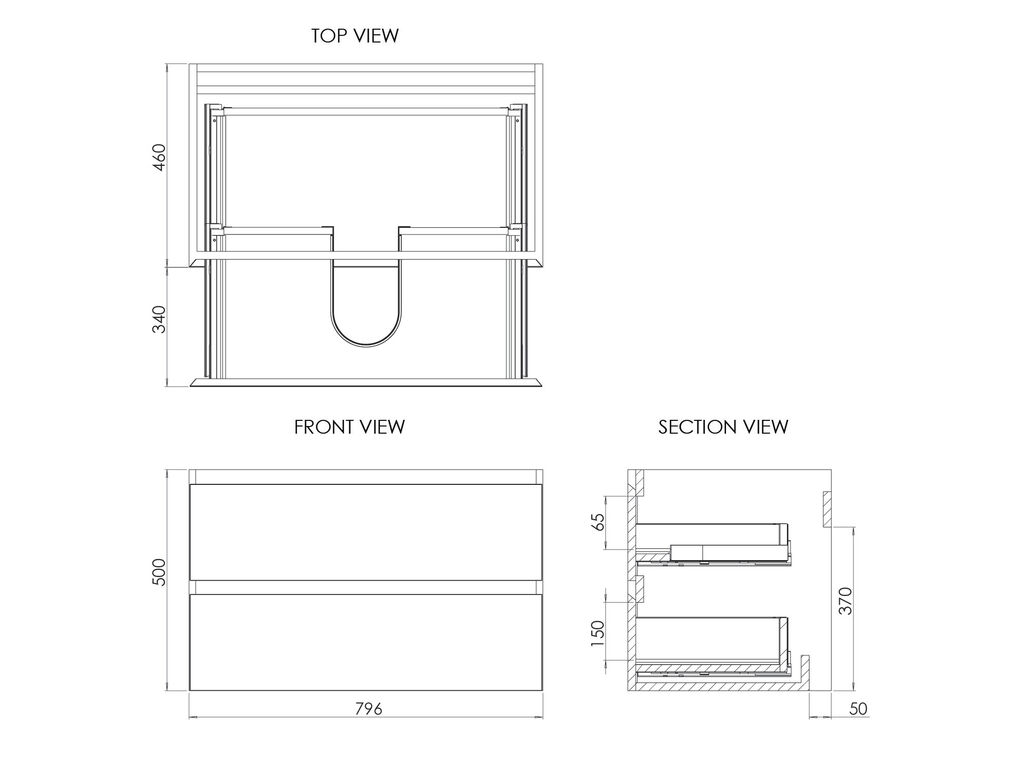

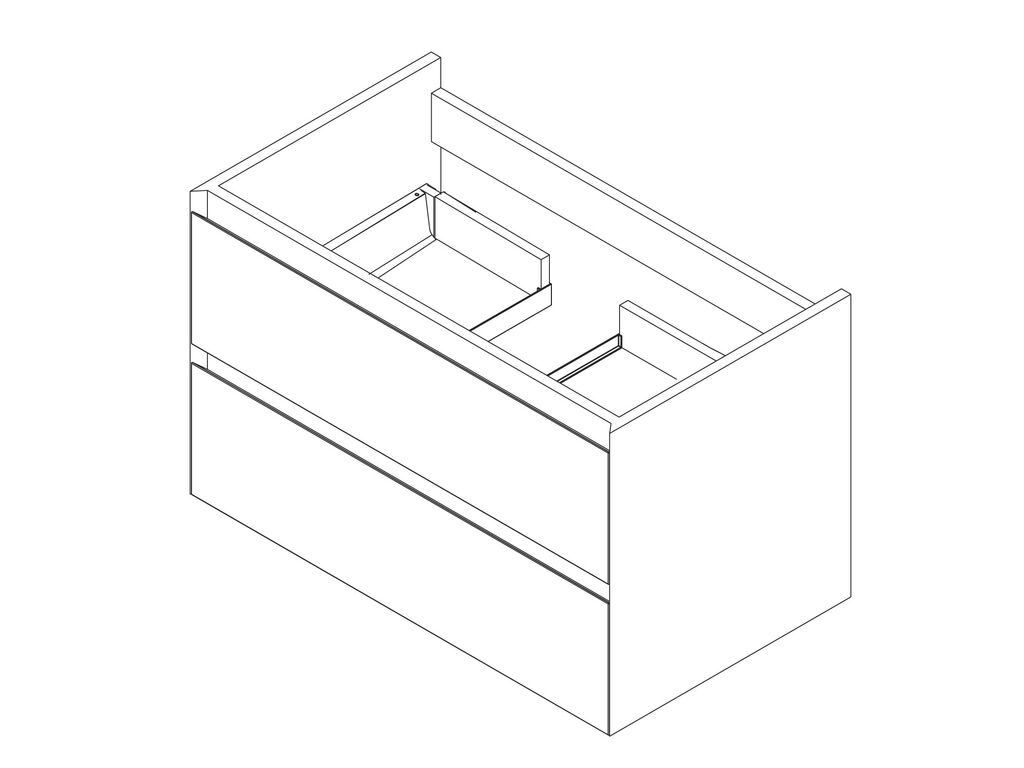

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
796 x 460 x 500mm
Weight:
28 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 45mm from top @ 733mm centres
Service Void Depth:
50mm
Compatible Basins:
9263, 9242, 9243, 9342, 9343, 9201, 3583, 9069, 3584, 3585, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9202
In The Box:
Brenta Wall Hung Vanity Unit 800 Two Drawer
