Technical Data Sheet
Brecon Basin Unit 600 Two Drawer Deep
4606BR

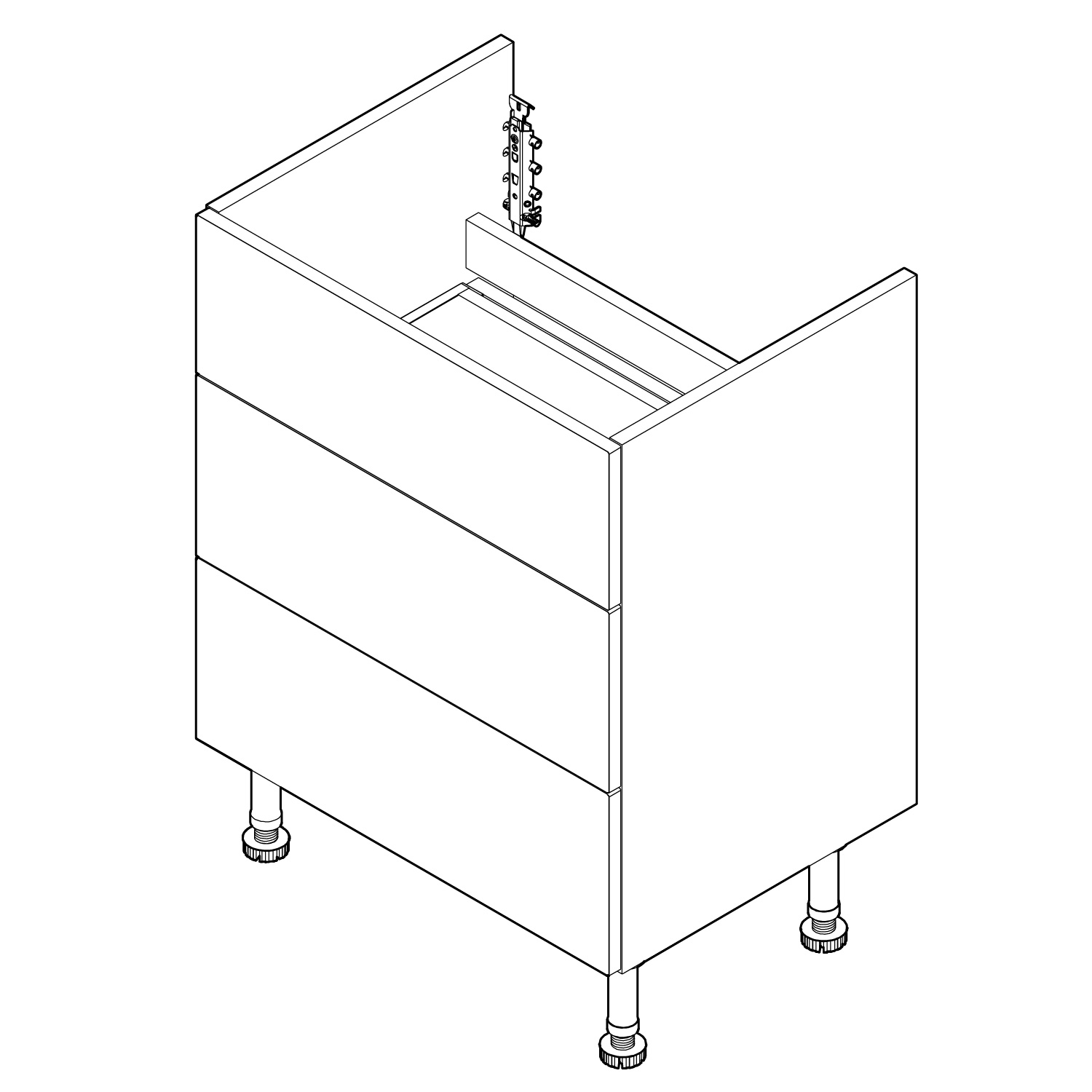

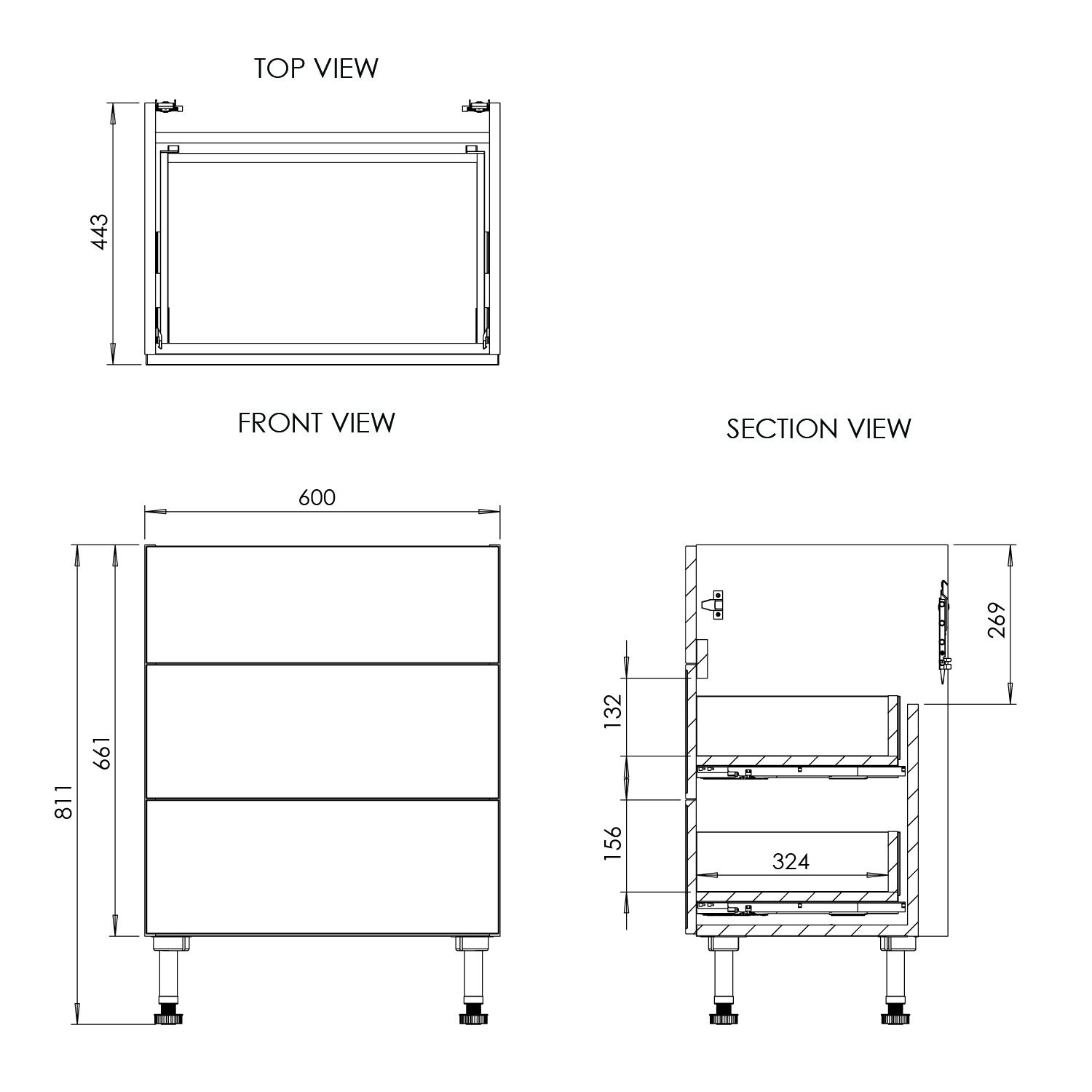

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Basin Unit
Dimensions (WxDxH):
600 x 443 x 811mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 18mm Slab
Handle Type:
Handle Not Included
Drawers:
2 drawers, Emuca Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 80mm from top @ 535mm centres
Leg / Foot Type:
Leg Sockets, Legs Included
Service Void Depth:
50mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Brecon Basin Unit 600 Two Drawer Deep
Instructions
Fitting kit
