Technical Data Sheet

Minori Wall Hung Vanity Unit 800 One Drawer

4505

Calypso Logo

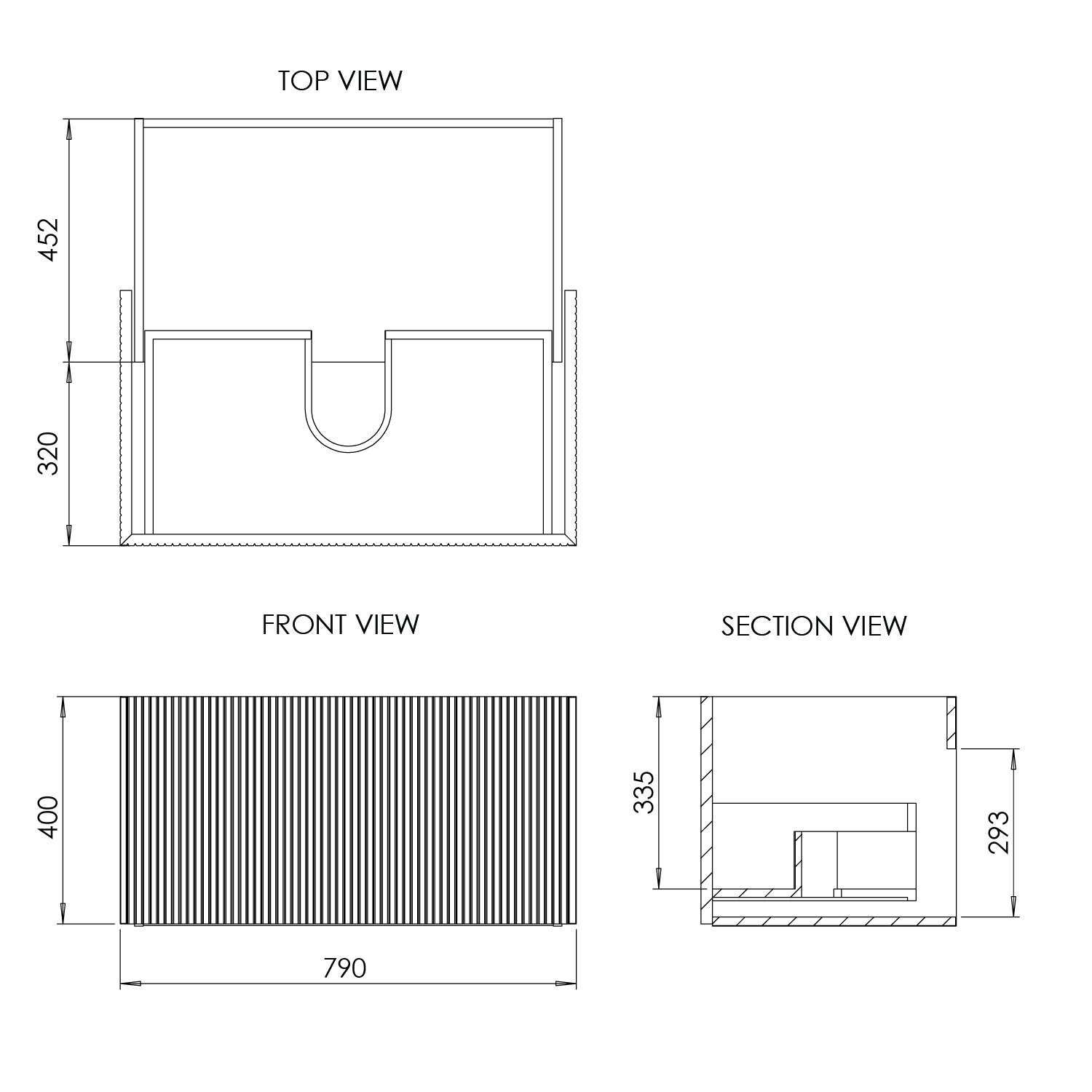

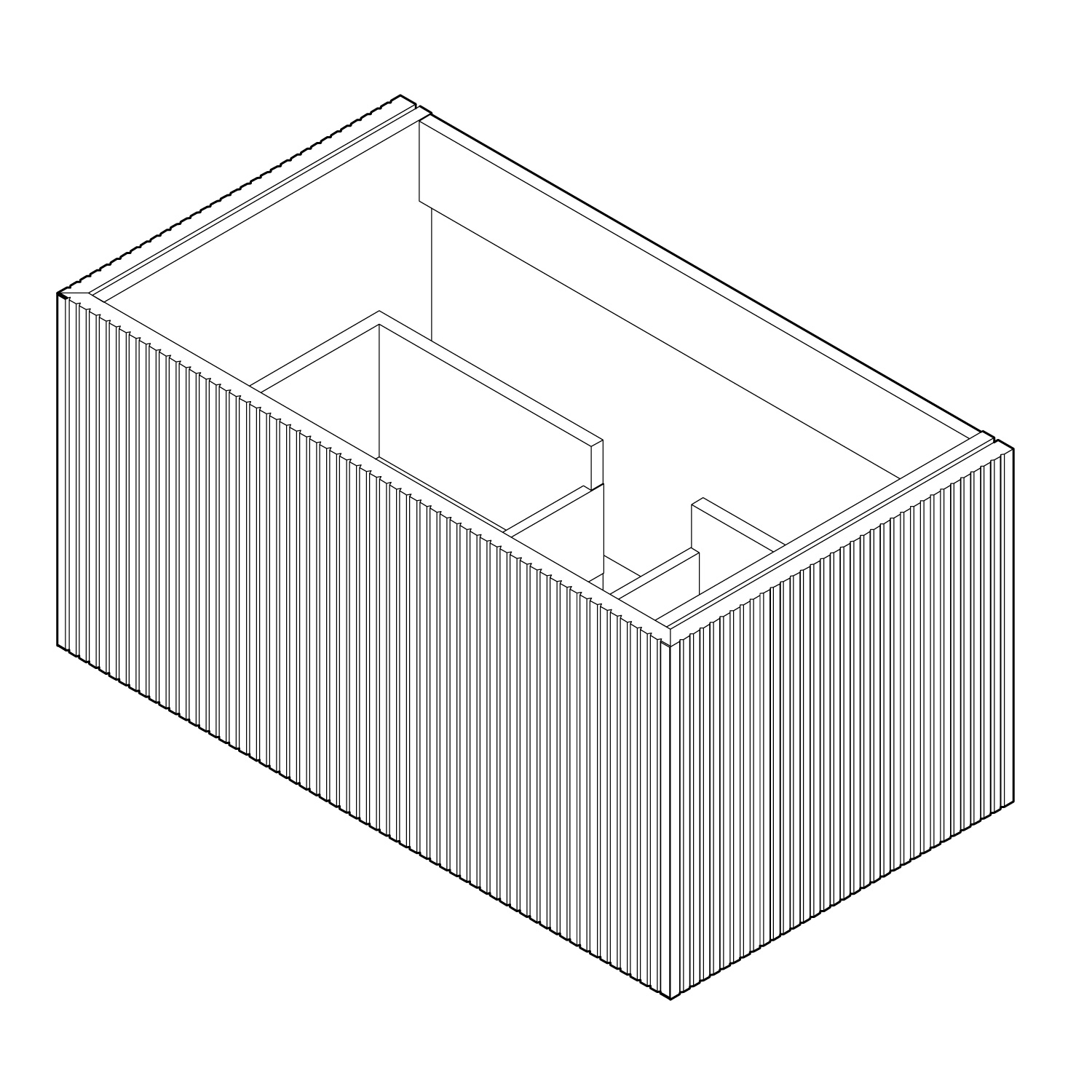

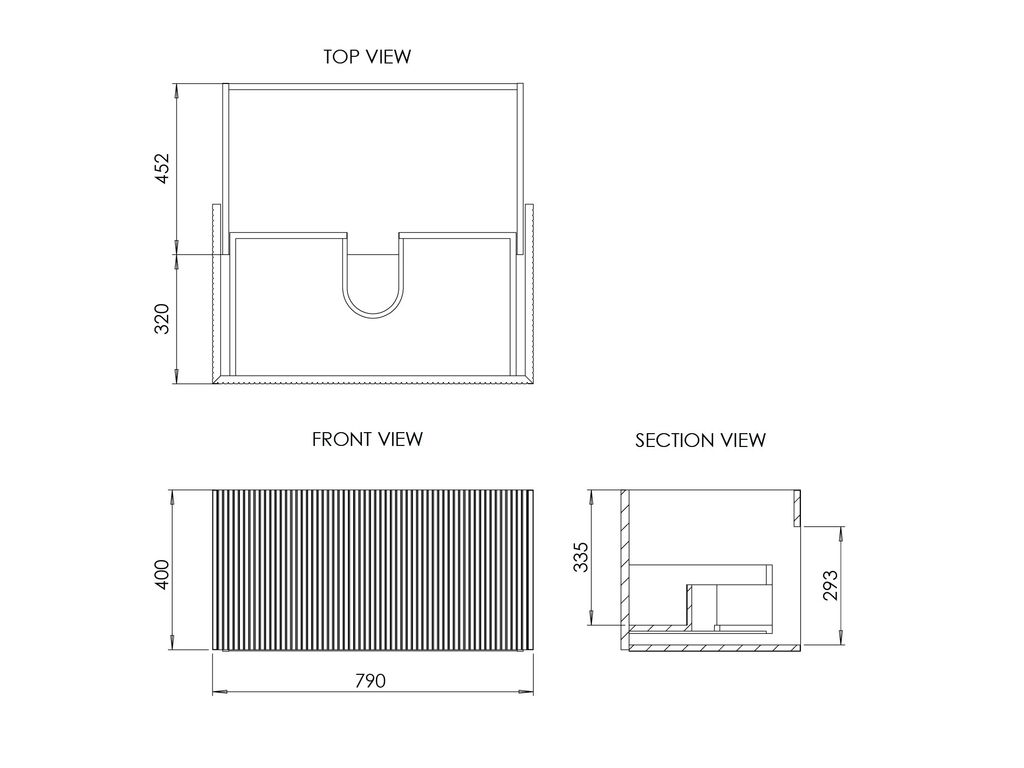

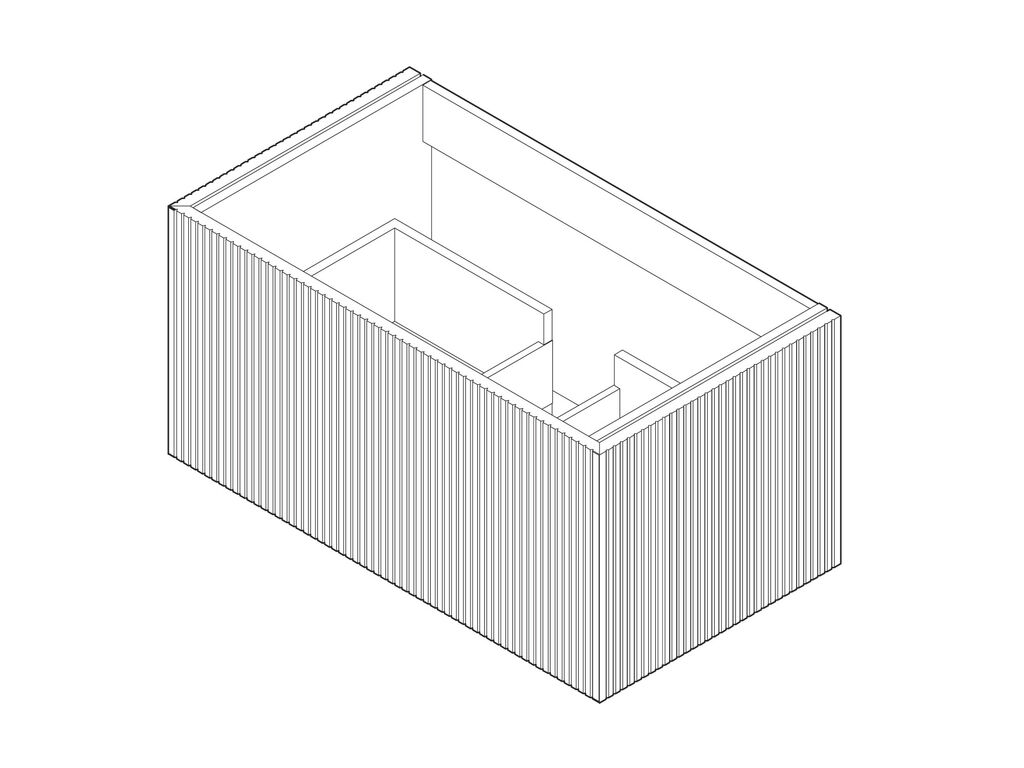

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

3D Line Drawing2D Line Drawing

Technical Details

Furniture Type:

Wall Hung Vanity Unit

Dimensions (WxDxH):

790 x 452 x 400mm

Weight:

24.7 kg

Carcass Material:

MFC 18mm

Carcass Edging:

PVC Edging

Carcass Service Area:

Open back

Fascia Style:

MDF 18mm Fluted

End Panel Material:

MDF 18mm

End Panel Detail:

Slab

Handle Type:

Push to open

Drawers:

1 drawer, Push to open, 345mm runners

Fixation Method:

Adjustable Metal Wall Brackets, 110mm from top @ 695mm centres

Compatible Basins:

In The Box:

Minori Wall Hung Vanity Unit 800 One Drawer
