Technical Data Sheet
Dartmoor Wall Hung Vanity Unit 1200 Four Drawer Standard
1618DA

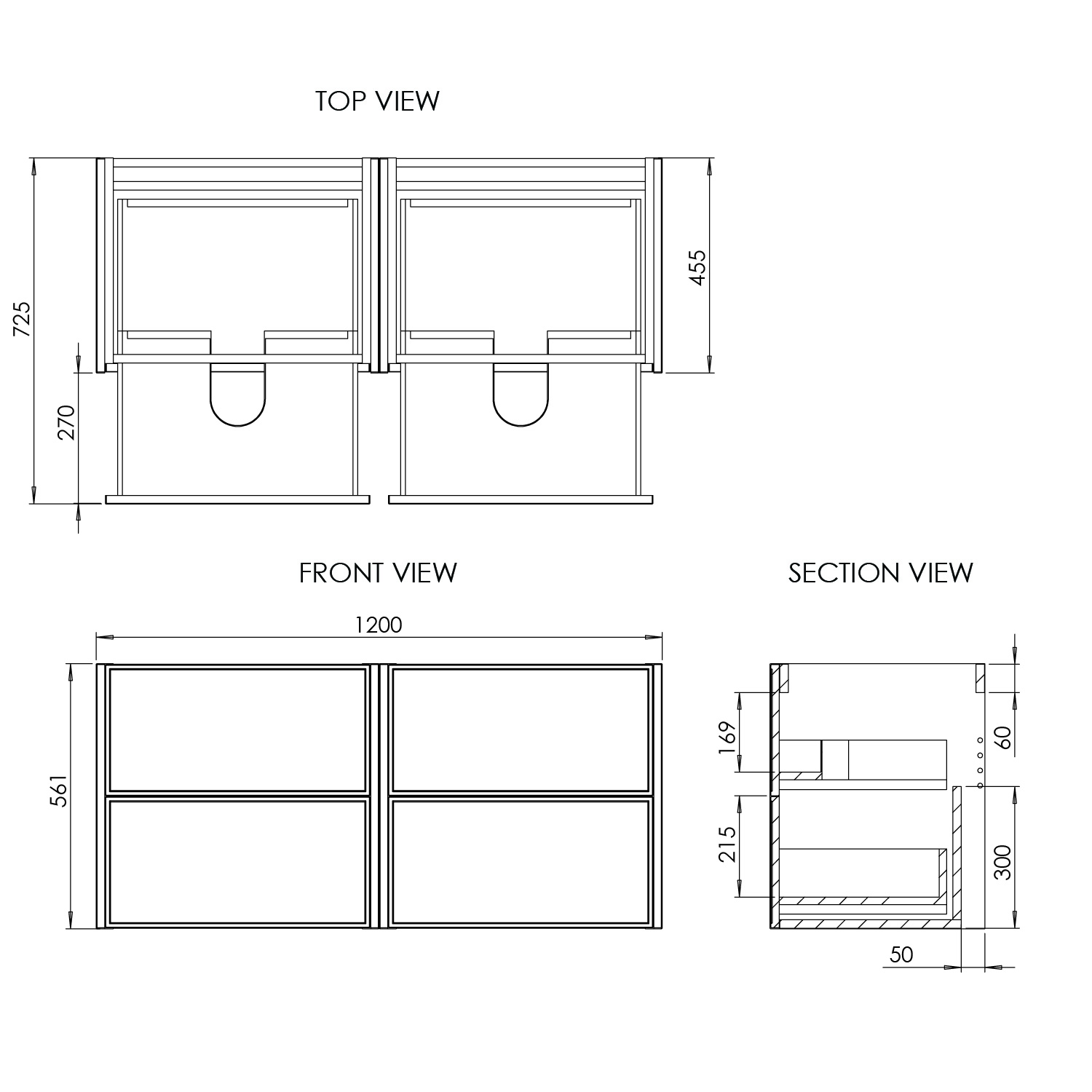

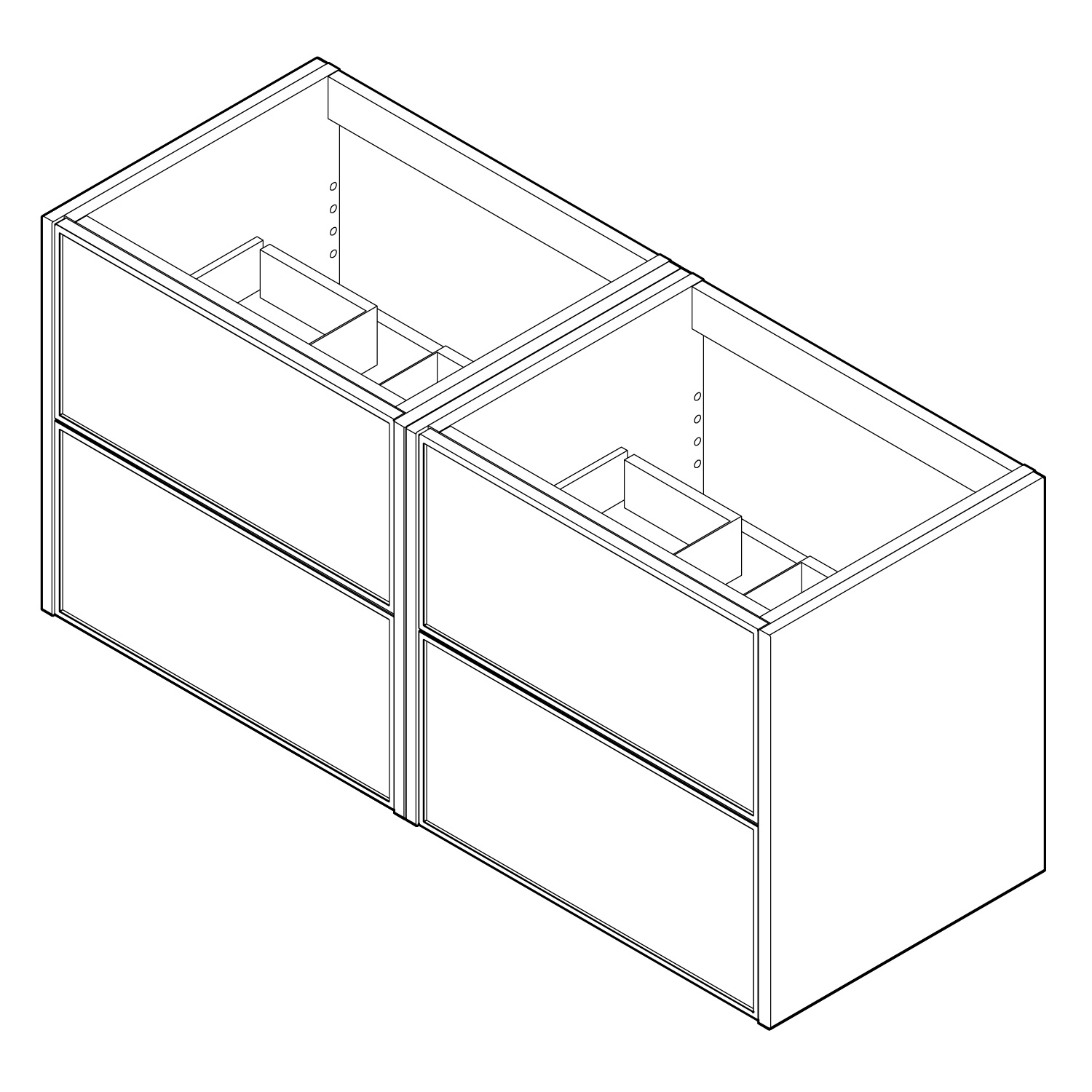

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
1200 x 455 x 561mm
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 18mm Shaker
Fascia Detail:
Slim Shaker Frame
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Handle Type:
Handle Not Included
Drawers:
4 drawers, Emuca Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 142mm from top @ 498mm centres
Service Void Depth:
50mm
Compatible Basins:
9244, 9344, 3583, 9069, 3584, 3585, 9294, 9199, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 3498CS, 3499CS, 3499SY, 3498
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Dartmoor Wall Hung Vanity Unit 1200 Four Drawer Standard
Instructions
Fitting kit
