Technical Data Sheet
Firova Wall hung Vanity Unit 670 Two Drawer Fluted
5967

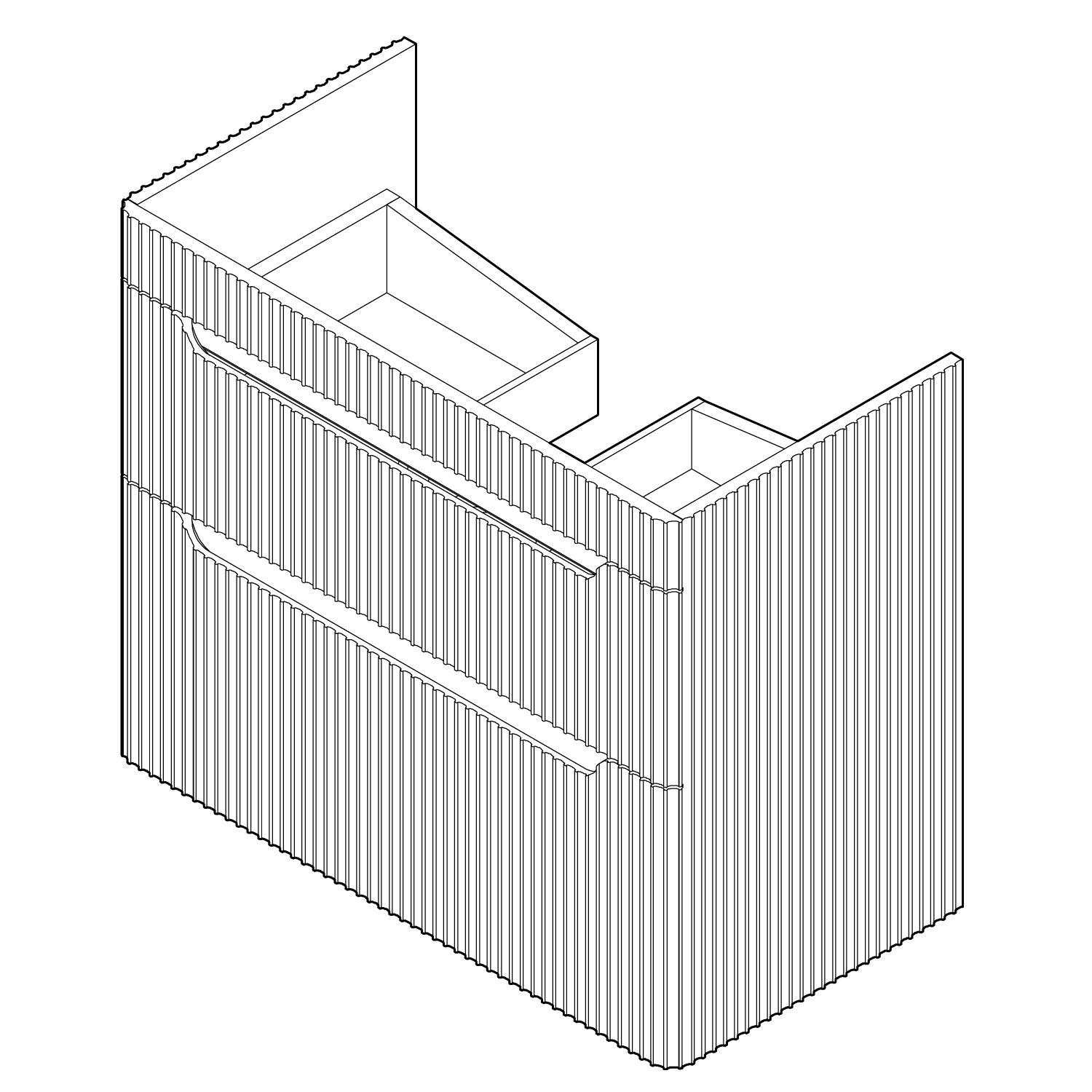

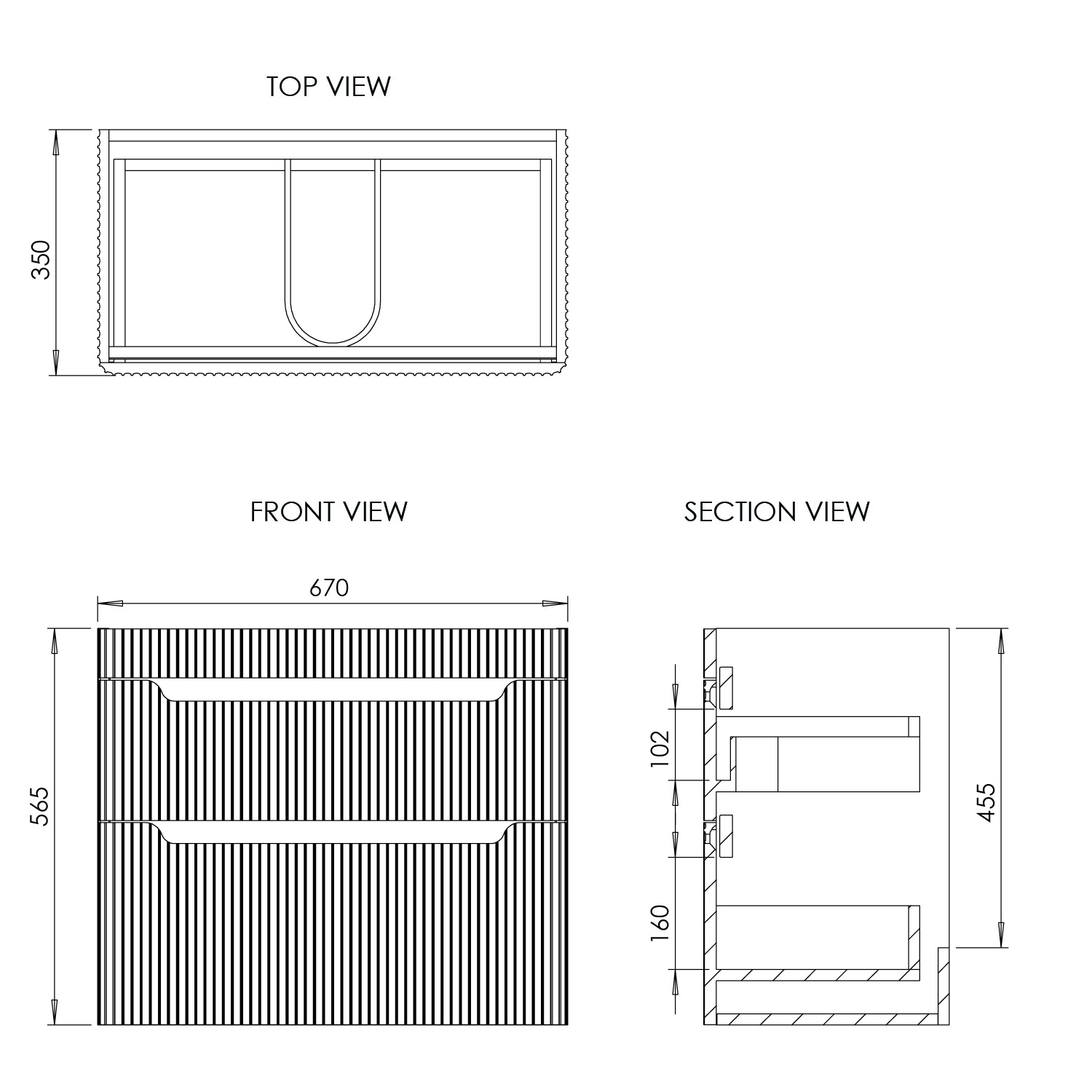

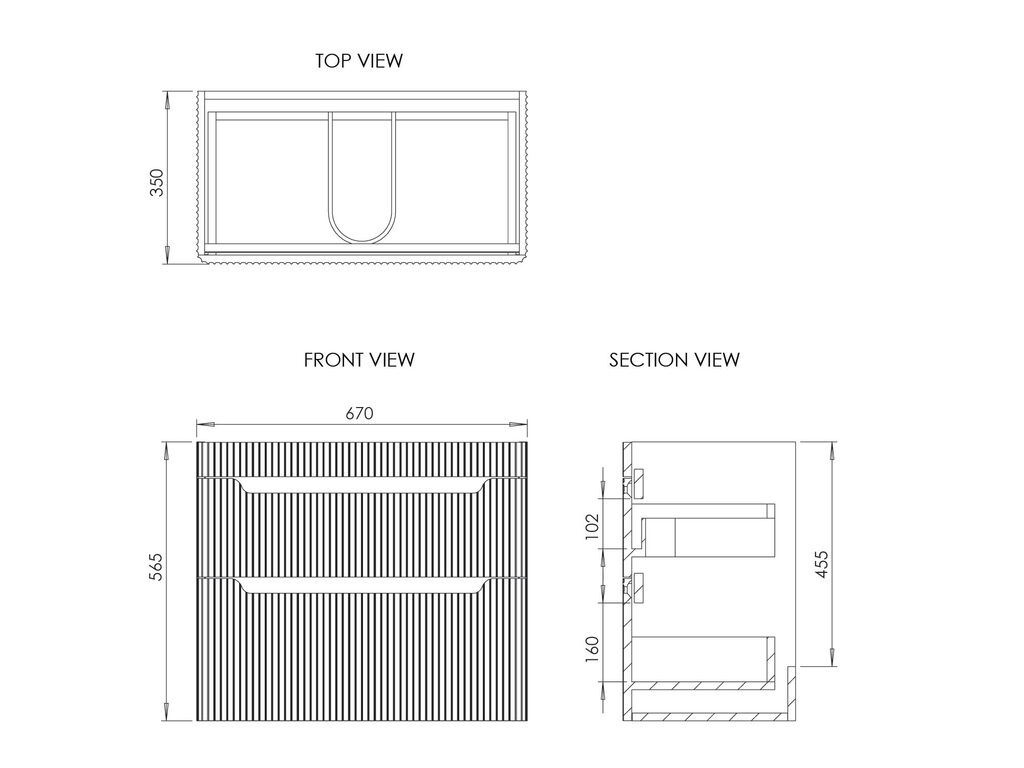

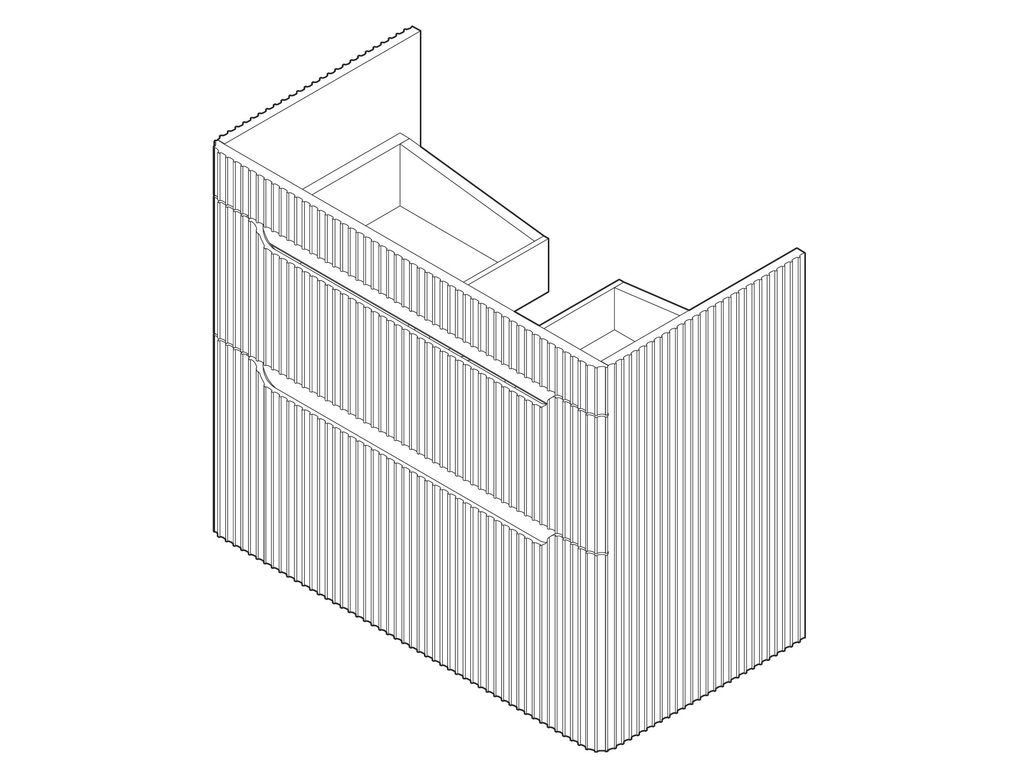

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
670 x 350 x 565mm
Carcass Material:
MDF 18mm
Carcass Service Area:
Open back
Fascia Style:
MDF 18mm Fluted
End Panel Material:
MDF 18mm
End Panel Detail:
Fluted
Handle Type:
Integrated Handle
Drawers:
2 drawers, 270mm runners
Compatible Basins:
9347, 9350, 9069, 3584, 9294, 8929, 8928, 8951, 9114, 9113, 9318, 9317, 3689, 8967, 8952, 8966, 9283, 9169, 9319, 9285, 9208, 9202
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Firova Wall hung Vanity Unit 670 Two Drawer Fluted
