Technical Data Sheet
Aurelia Wall Hung Vanity Unit 600 Two Drawer
5802

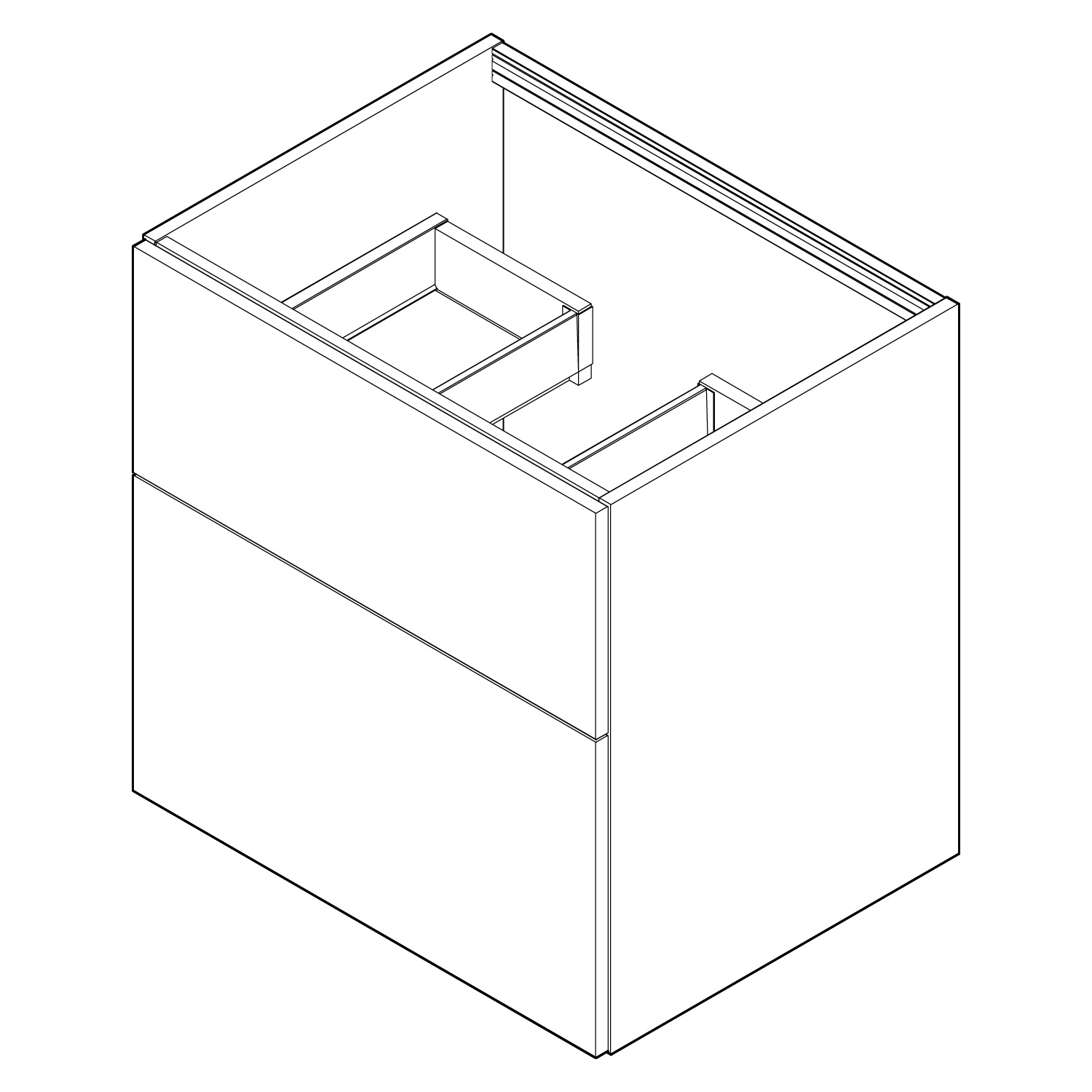

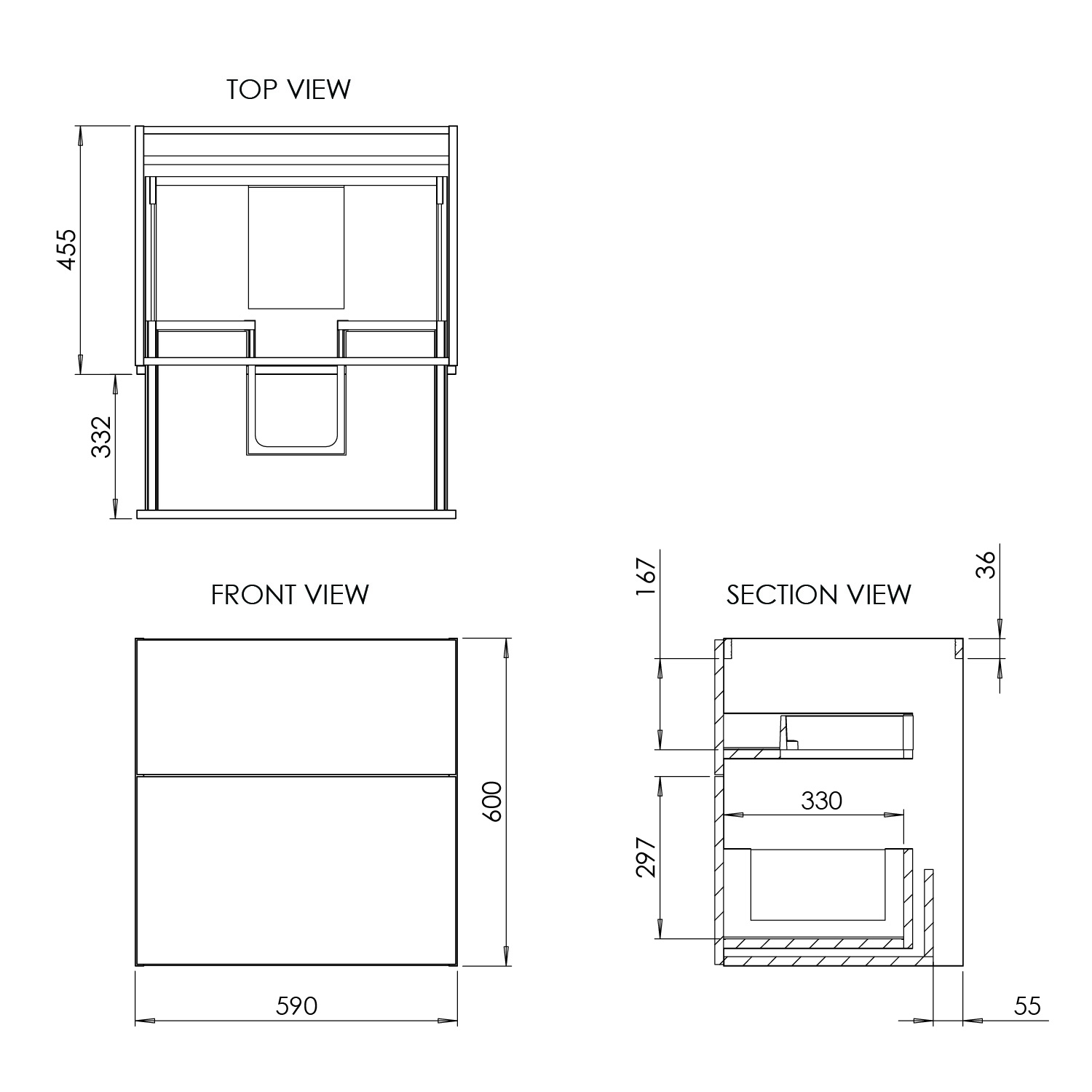

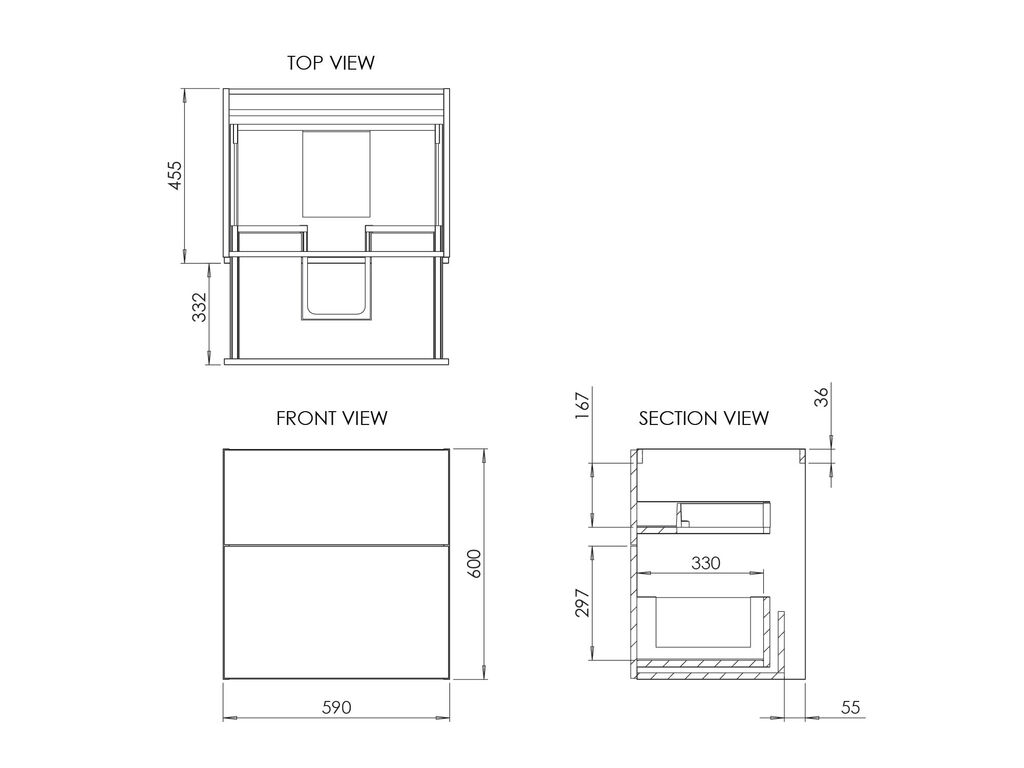

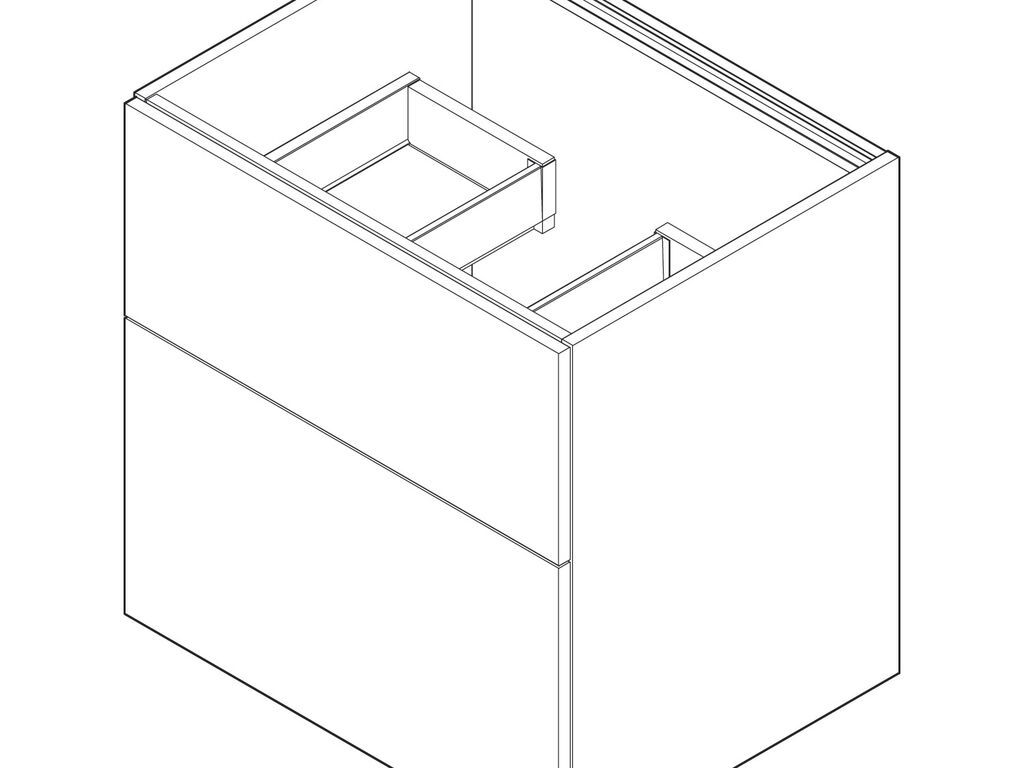

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
590 x 455 x 600mm
Weight:
26 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 16mm Slab
End Panel Material:
MDF 20mm
End Panel Detail:
Slab
Handle Type:
Handle Not Included
Drawers:
2 drawers, Soft Close, 340mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 100mm from top @ 525mm centres
Service Void Depth:
60mm
Compatible Basins:
9279, 9200, 9069, 3584, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9354, 9202
In The Box:
Aurelia Wall Hung Vanity Unit 600 Two Drawer
