Technical Data Sheet
Tesima Wall Hung Vanity Unit 1010 Four Drawer
5768

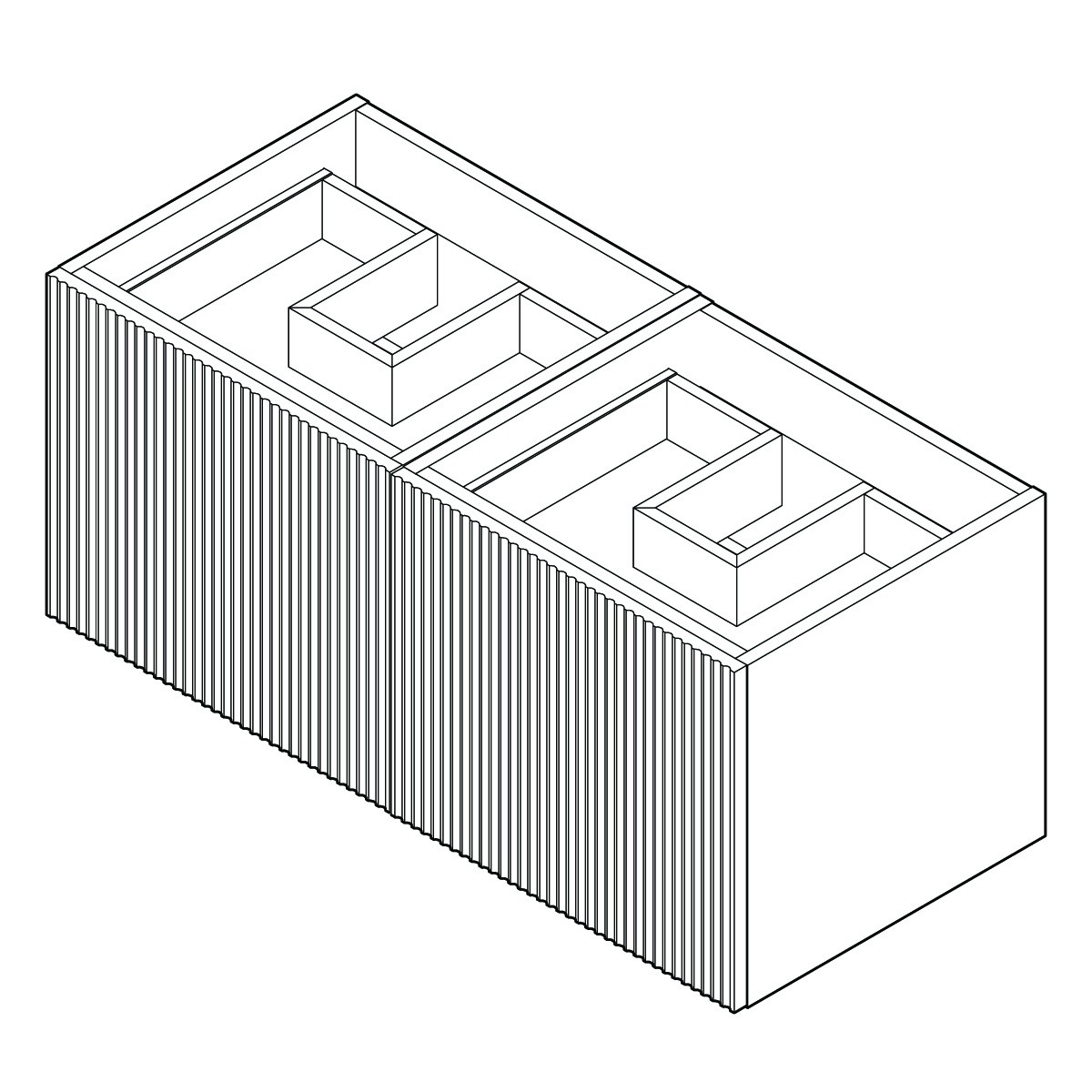

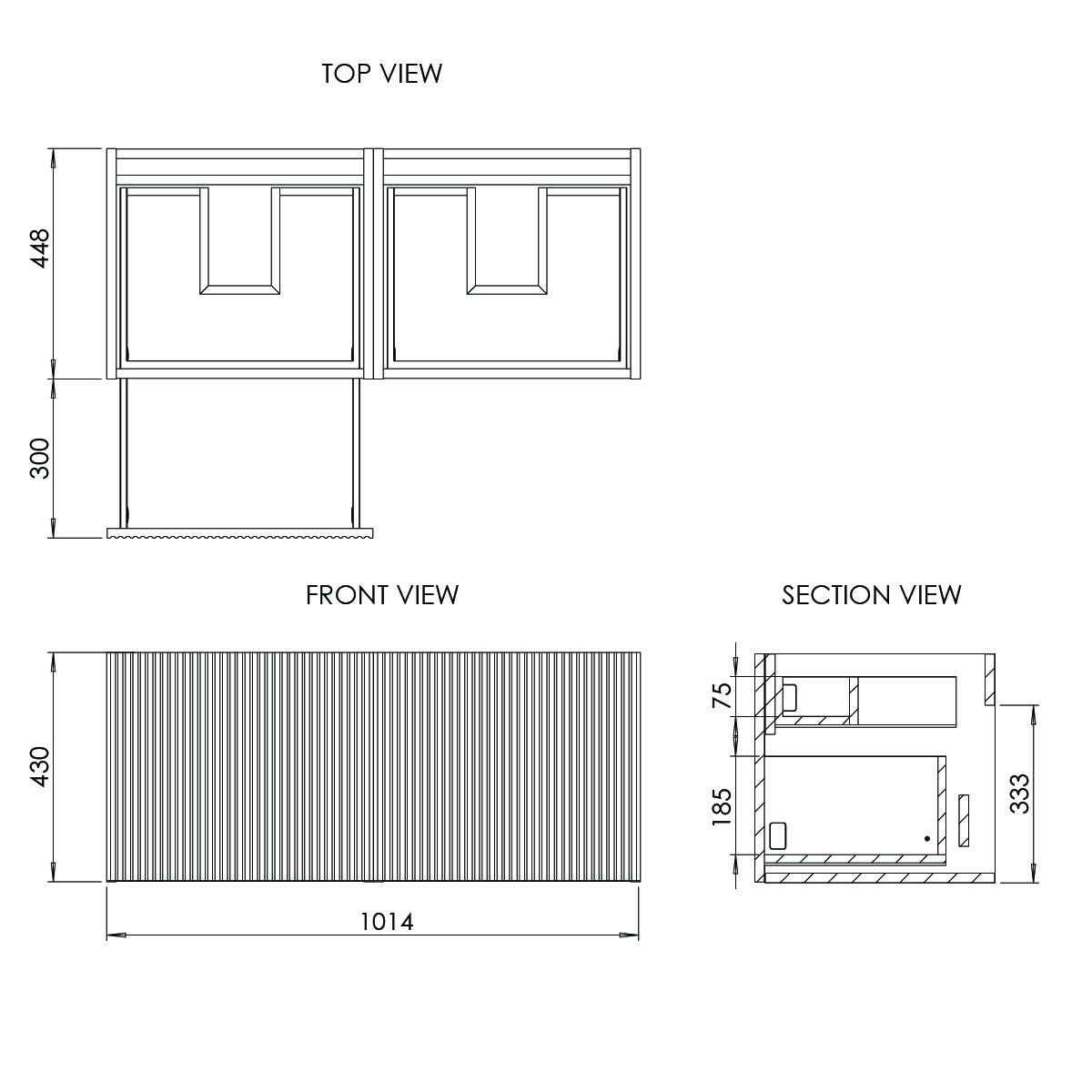

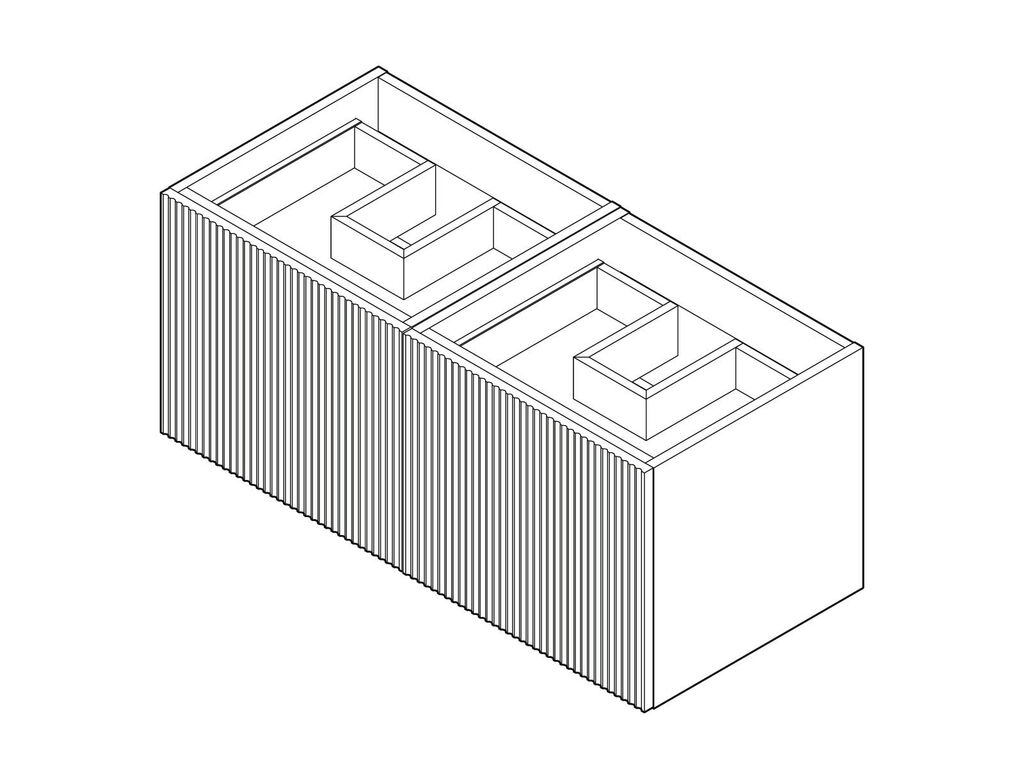

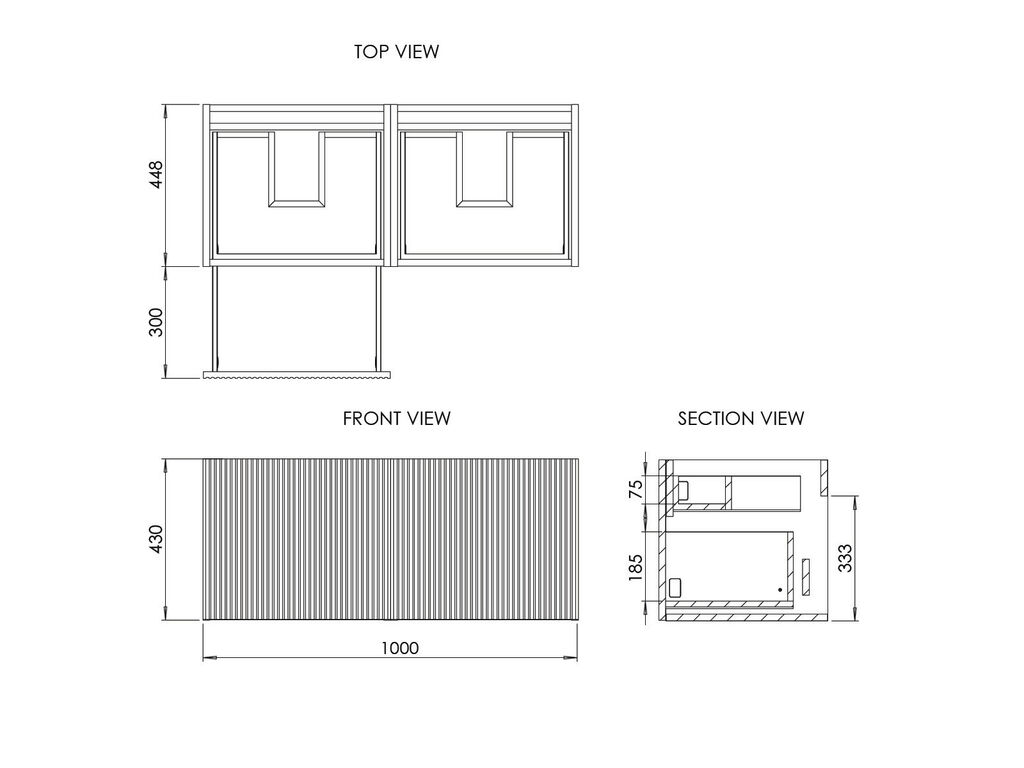

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
1000 x 448 x 430mm
Weight:
47 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Part Open back
Fascia Style:
MDF 19mm Fluted
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
4 drawers, Soft Close, 350mm runners
Fixation Method:
Fixed angle brackets, 250mm from top @ 437mm centres
Compatible Basins:
In The Box:
Tesima Wall Hung Vanity Unit 1010 Four Drawer
