Technical Data Sheet
Brenta Wall Hung Vanity Unit 600 Two Drawer
4722

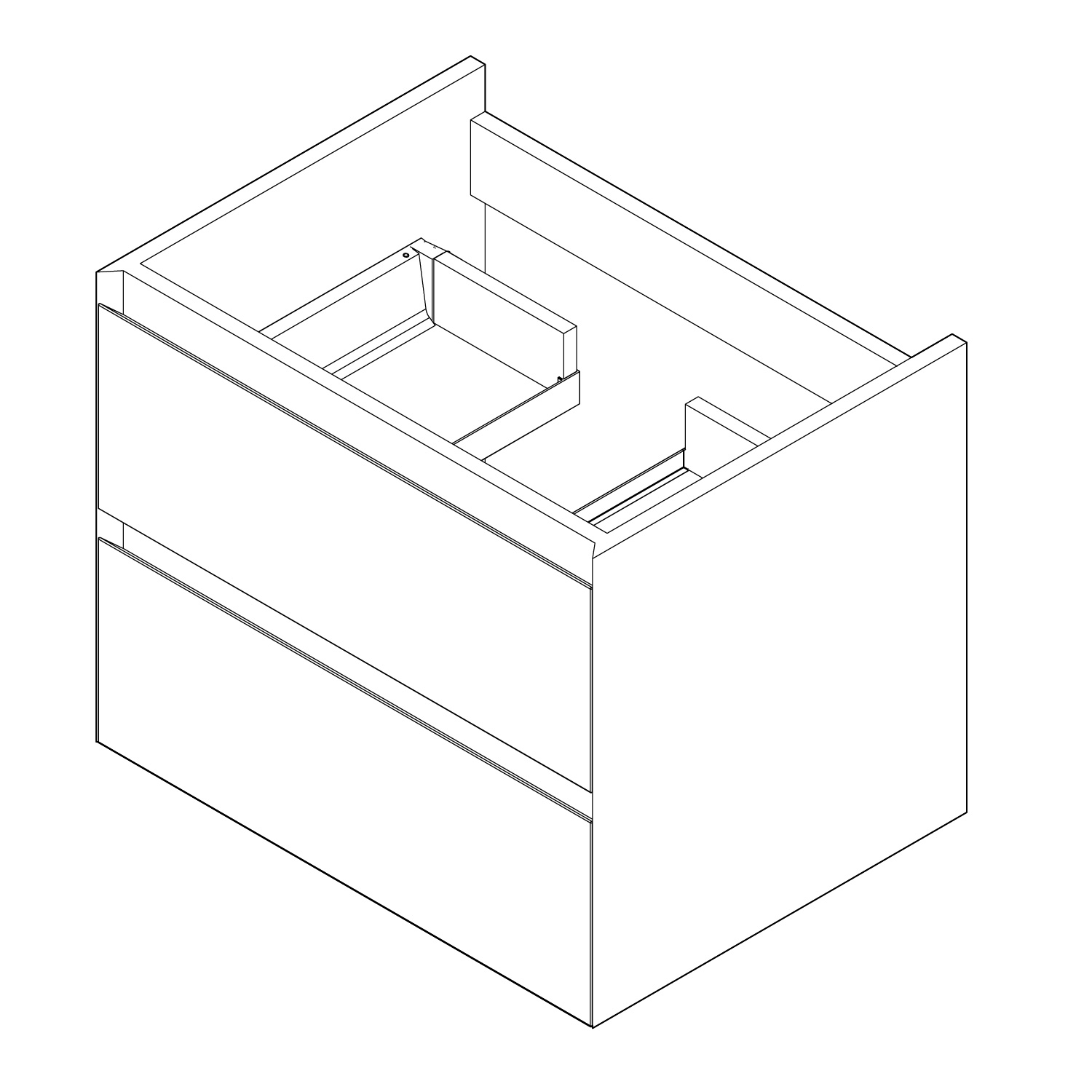

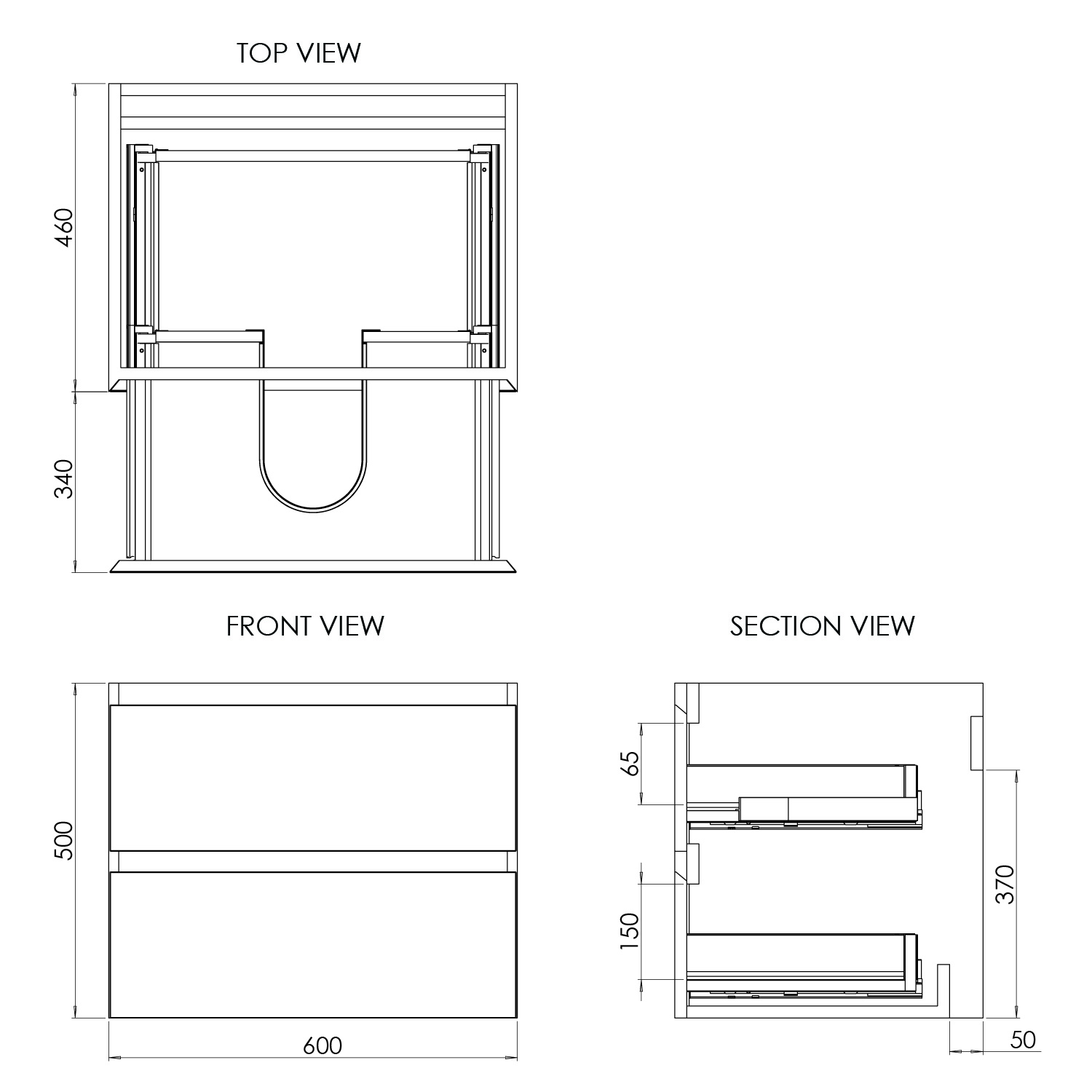

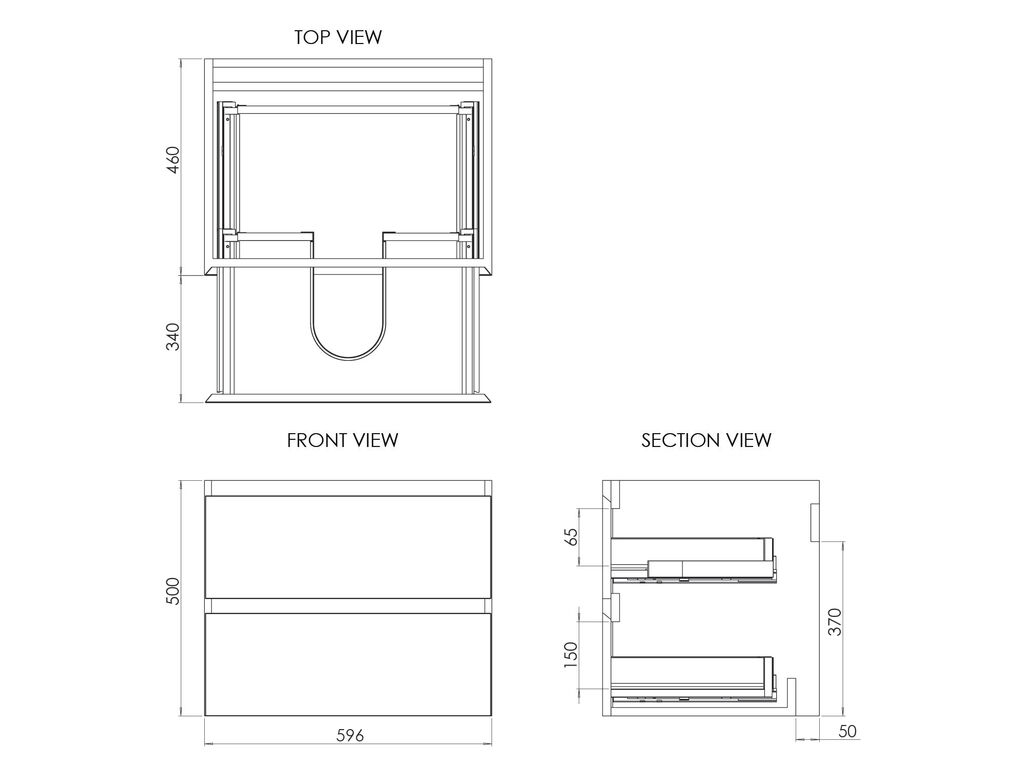

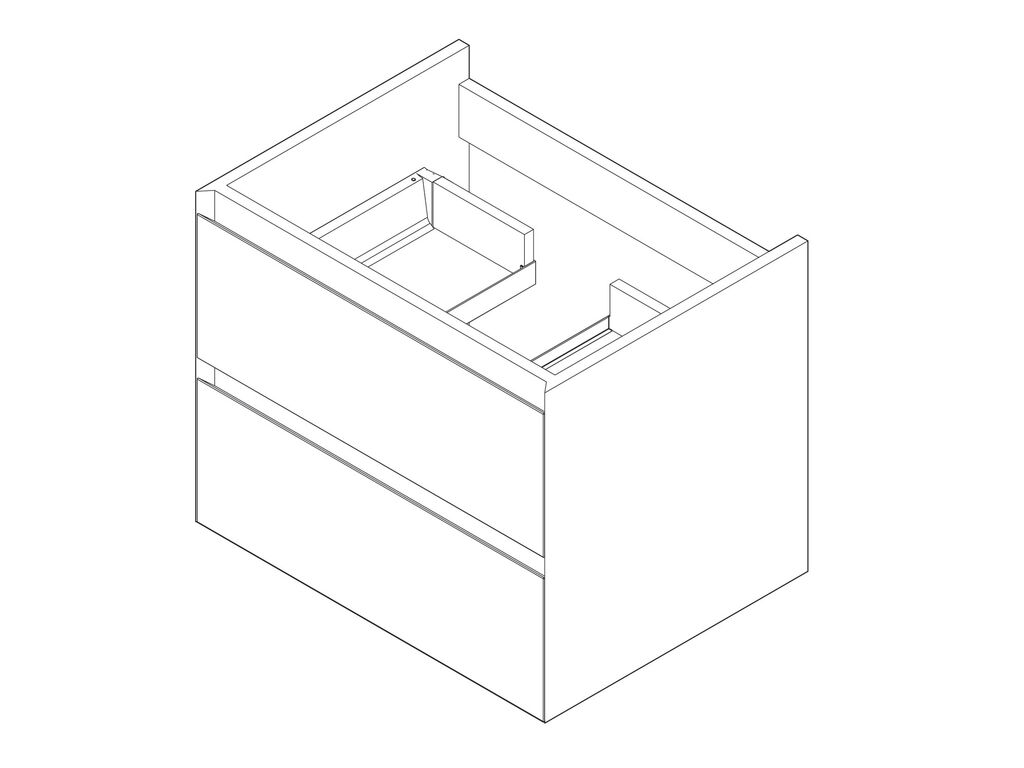

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
596 x 460 x 500mm
Weight:
24 kg
Carcass Material:
MDF 16mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open Back
Fascia Style:
MDF 18mm Slab
End Panel Material:
MDF 19mm
End Panel Detail:
Slab
Handle Type:
Integrated Handle
Drawers:
2 drawers, Soft Close, 350mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 45mm from top @ 535mm centres
Service Void Depth:
52mm
Compatible Basins:
9232, 9233, 9332, 9333, 9240, 9241, 9340, 9341, 9200, 9069, 3584, 9294, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689, 9202
In The Box:
Brenta Wall Hung Vanity Unit 600 Two Drawer
