Technical Data Sheet
Minori Wall Hung Vanity Unit 600 One Drawer
4502

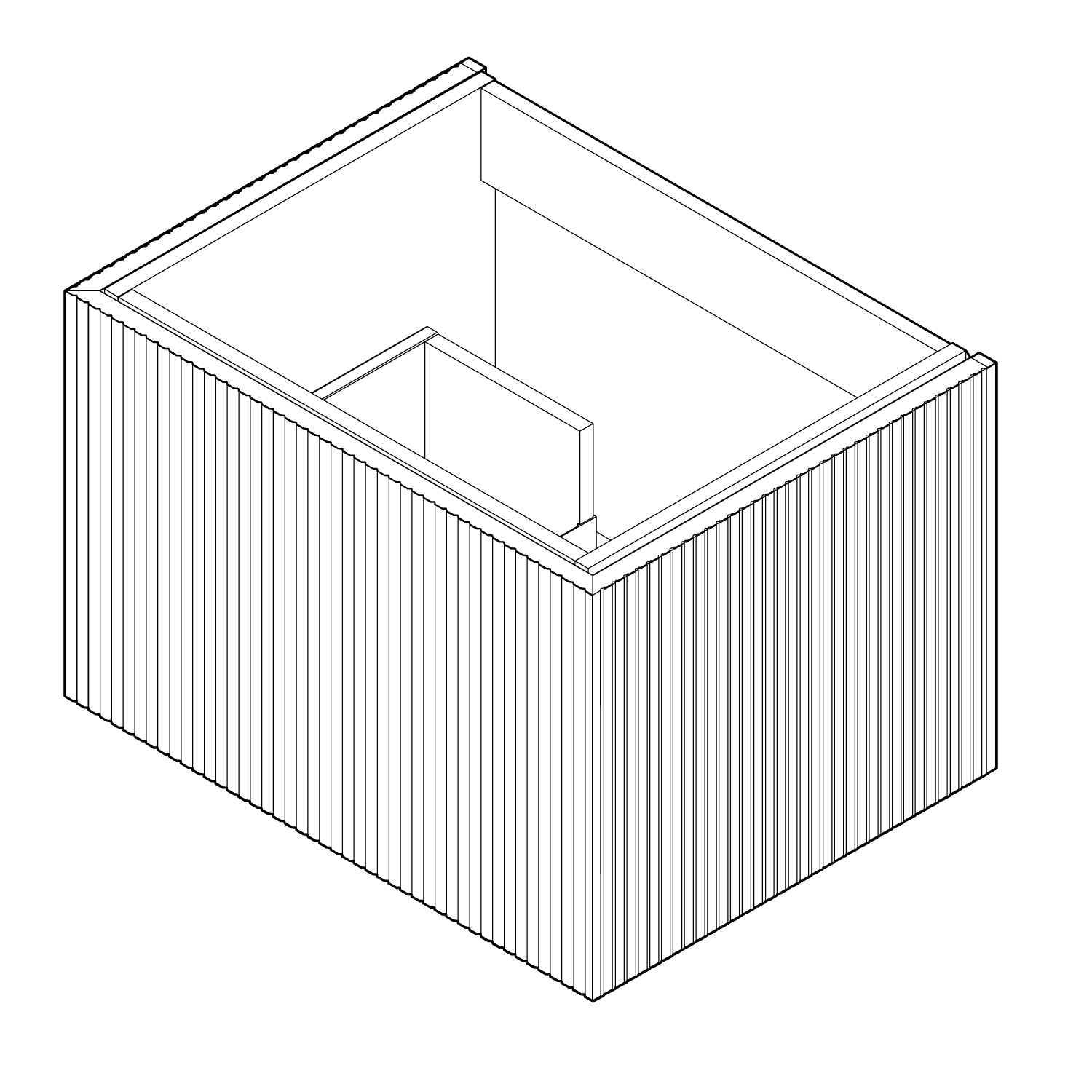

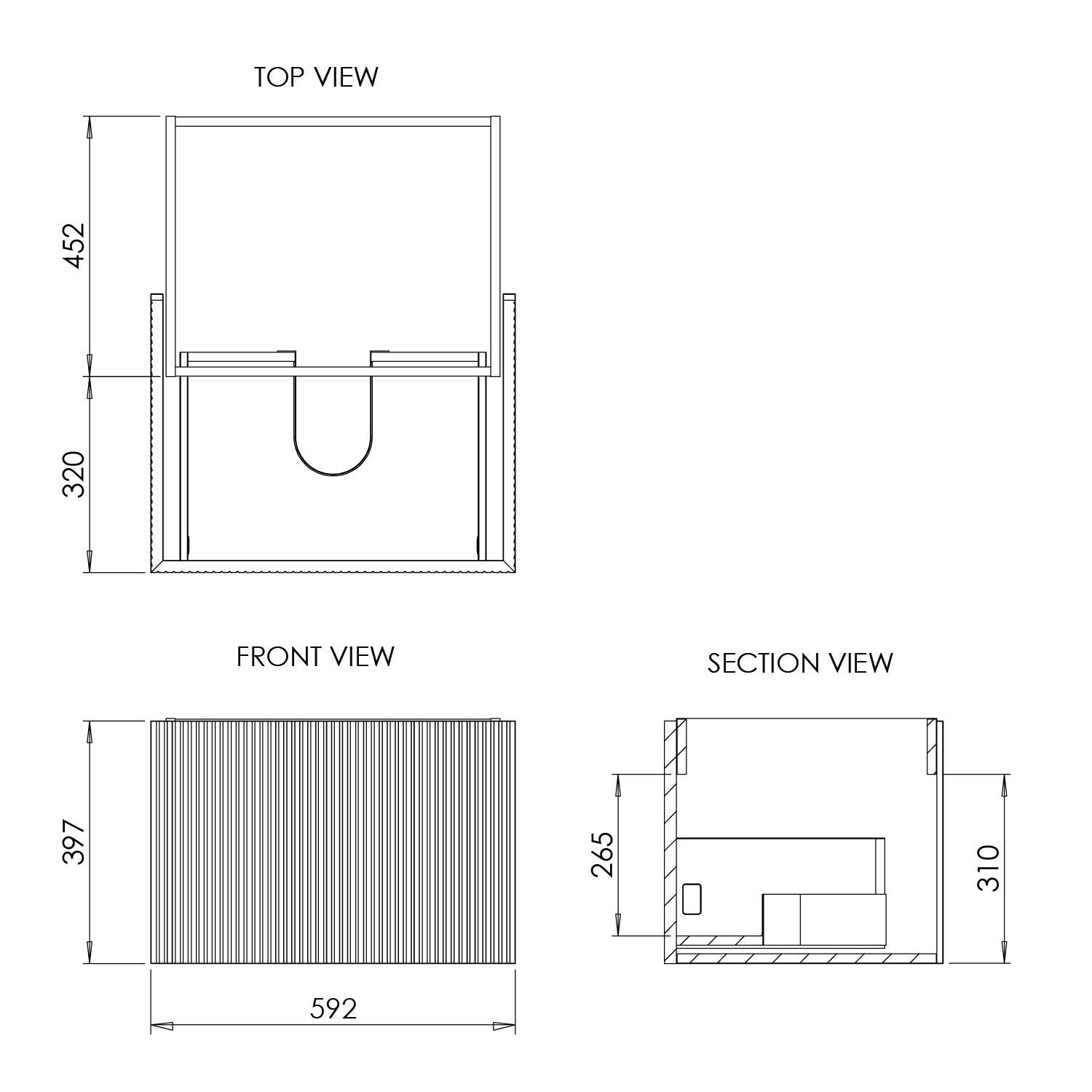

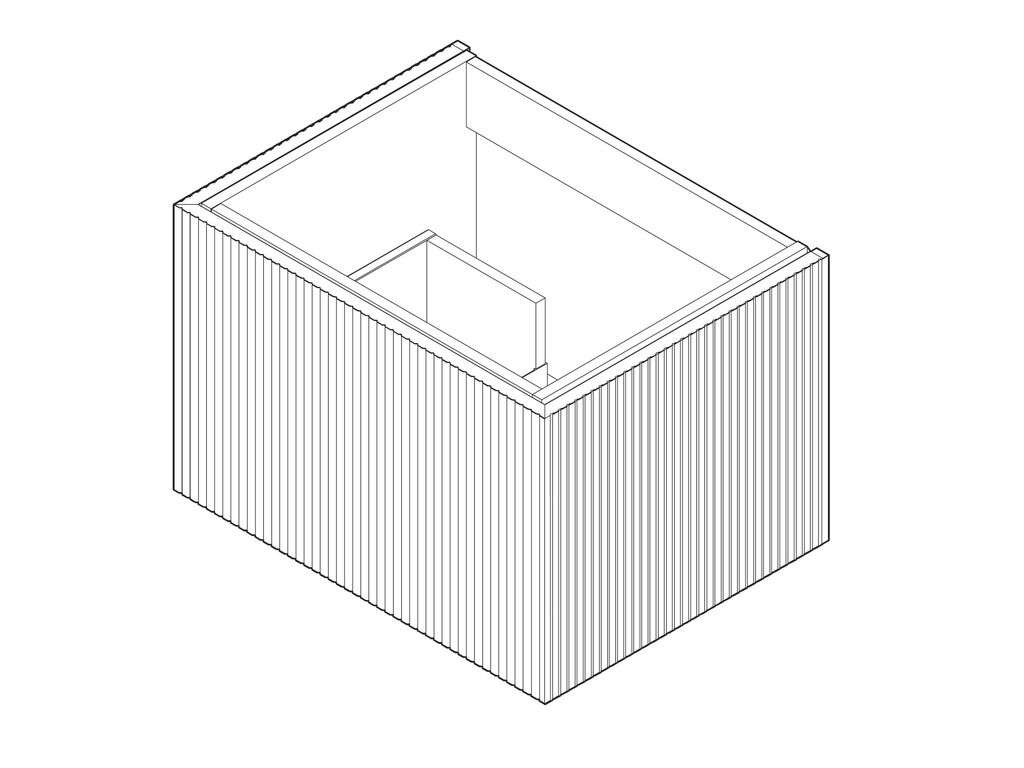

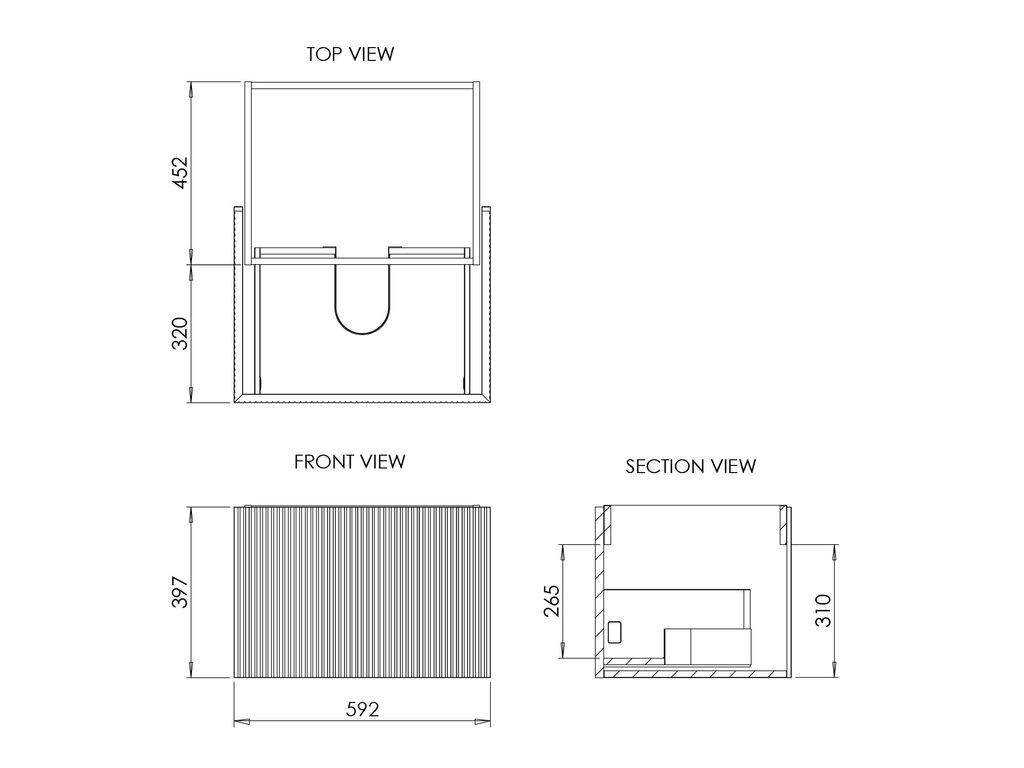

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
592 x 452 x 397mm
Weight:
20.96 kg
Carcass Material:
MFC 18mm
Carcass Edging:
PVC Edging
Carcass Service Area:
Open back
Fascia Style:
MDF 18mm Fluted
End Panel Material:
MDF 18mm
End Panel Detail:
Slab
Handle Type:
Push to open
Drawers:
1 drawer, Push to open, 345mm runners
Fixation Method:
Adjustable Metal Wall Brackets, 110mm from top @ 495mm centres
Compatible Basins:
9232, 9233, 9332, 9333, 9240, 9241, 9341, 9153, 9069, 3584, 9294, 9199, 9113, 9114, 9318, 9317, 9319, 9285, 9282, 9283, 9169, 3689
In The Box:
Minori Wall Hung Vanity Unit 600 One Drawer
