Technical Data Sheet
Chiltern Basin Unit 600 Two Drawer Standard
4406CH

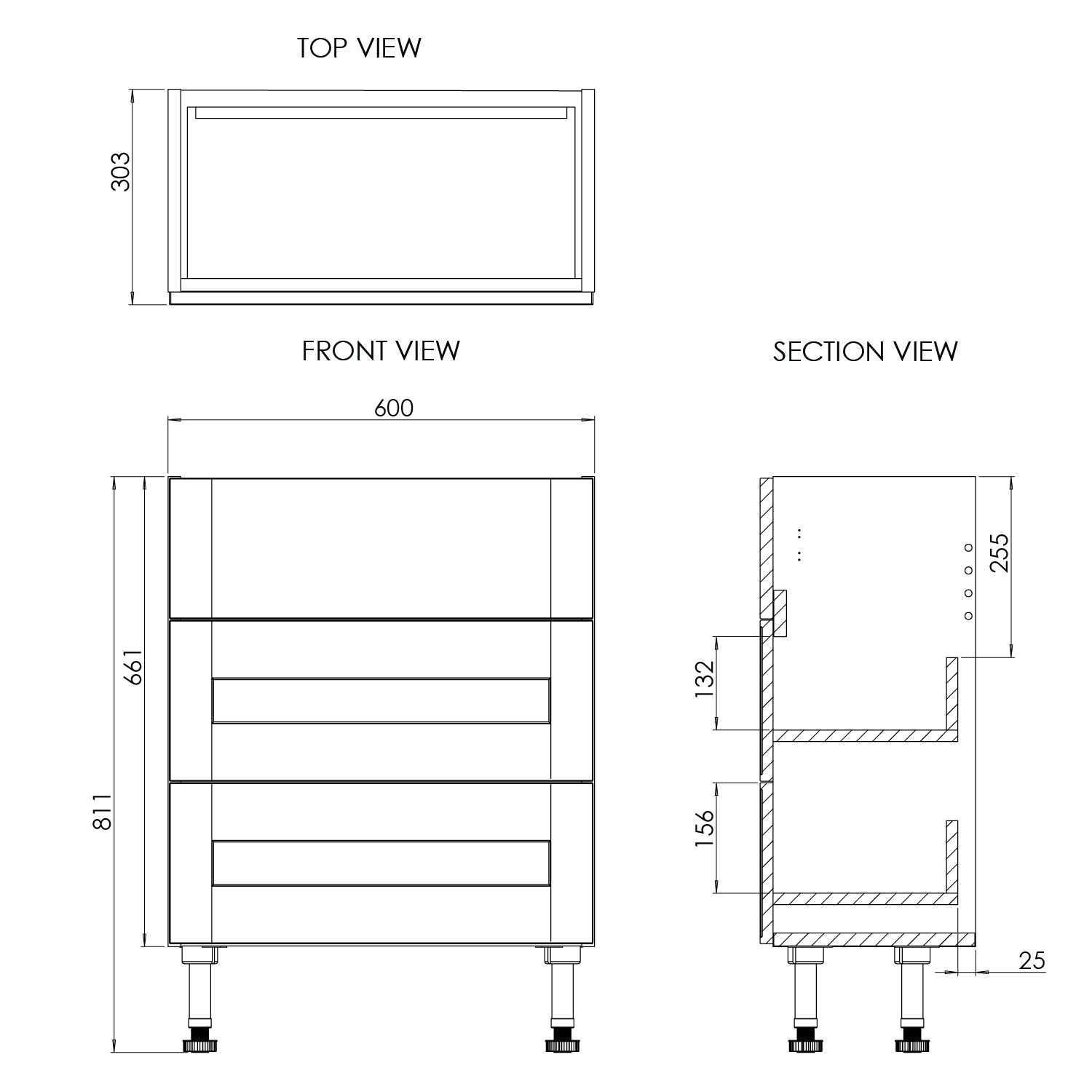

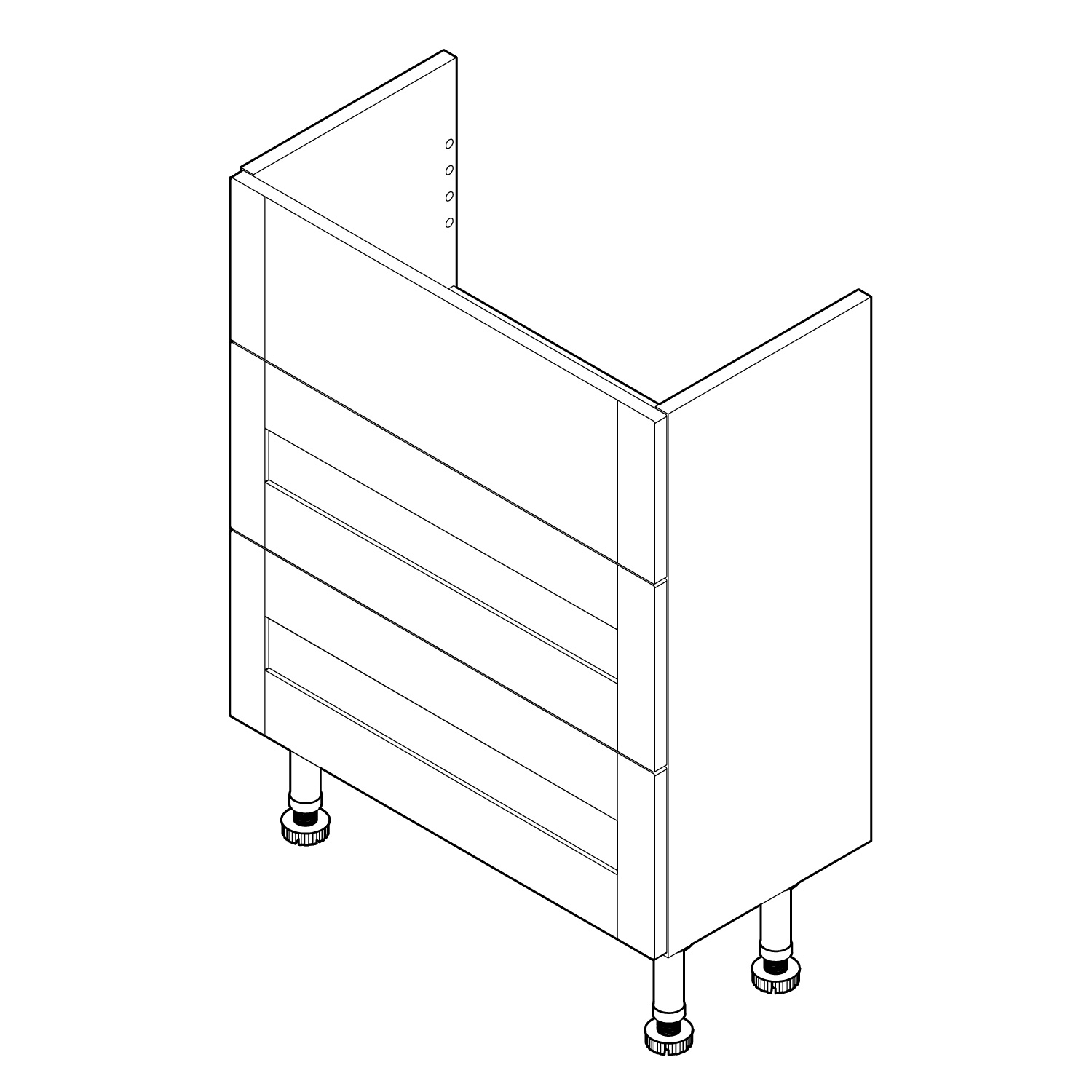

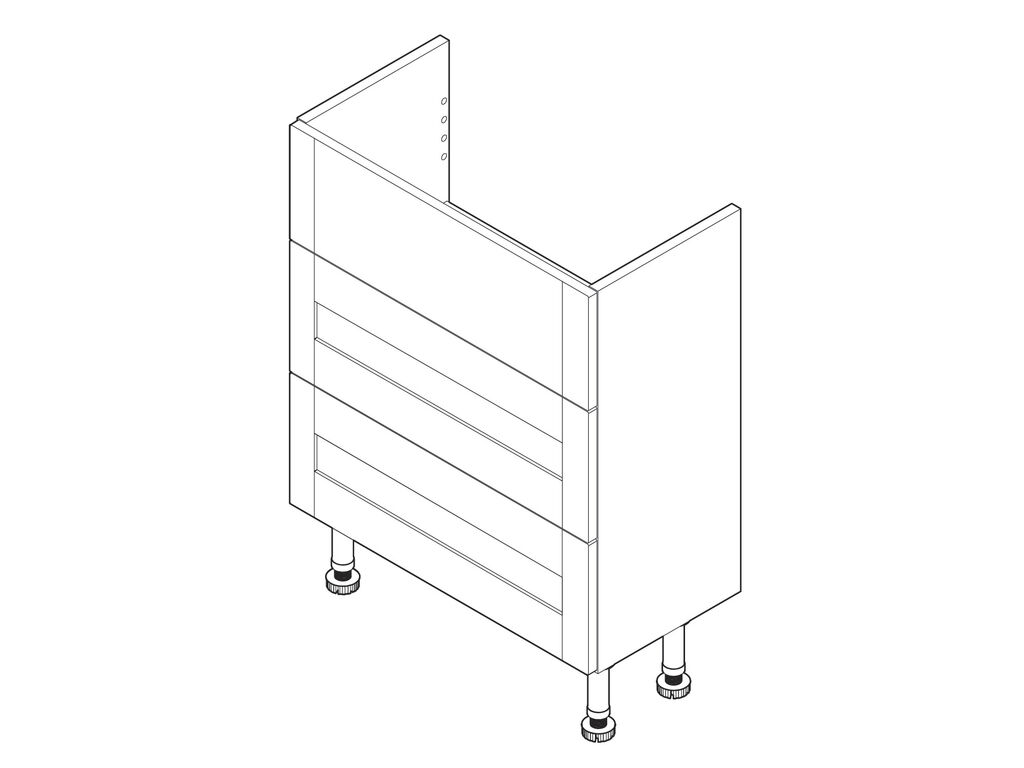

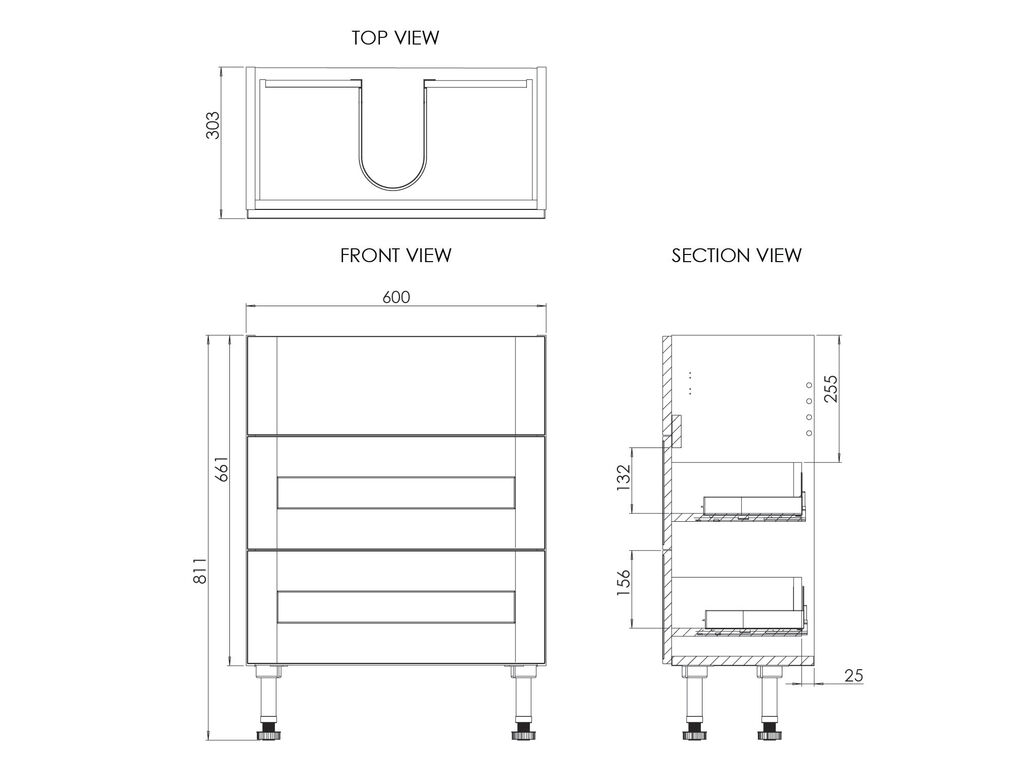

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Basin Unit
Dimensions (WxDxH):
600 x 303 x 811mm
Carcass Material:
MFC 18mm
Fascia Style:
MDF 18mm Shaker
Drawers:
2 drawers, Emuca Soft Close, 350mm runners
Leg / Foot Type:
Leg Sockets, Legs Included
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Chiltern Basin Unit 600 Two Drawer Standard
Instructions
Fitting kit
