Technical Data Sheet
Inari Cast Inline Wing Basin 1844 Left Bowl White
3687

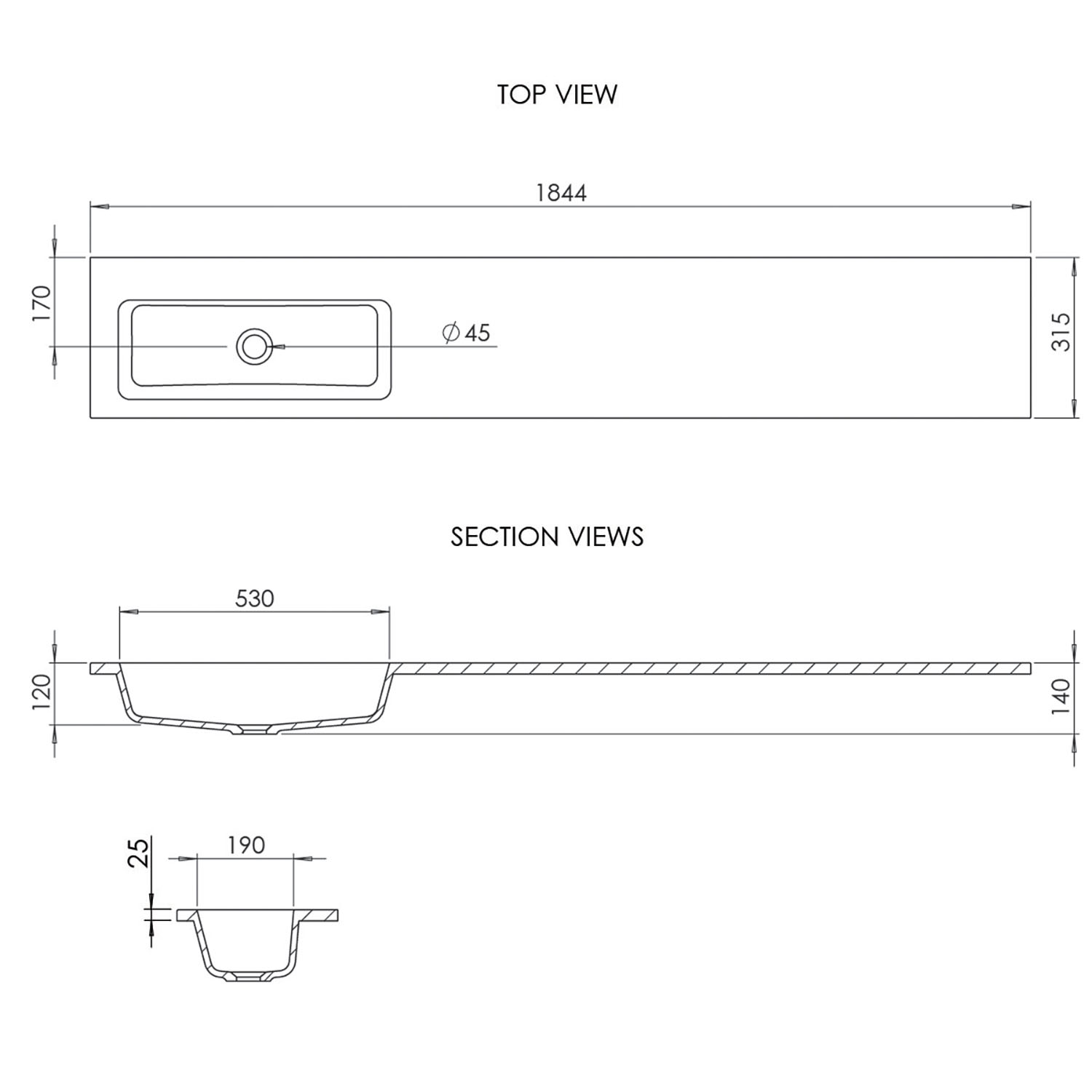

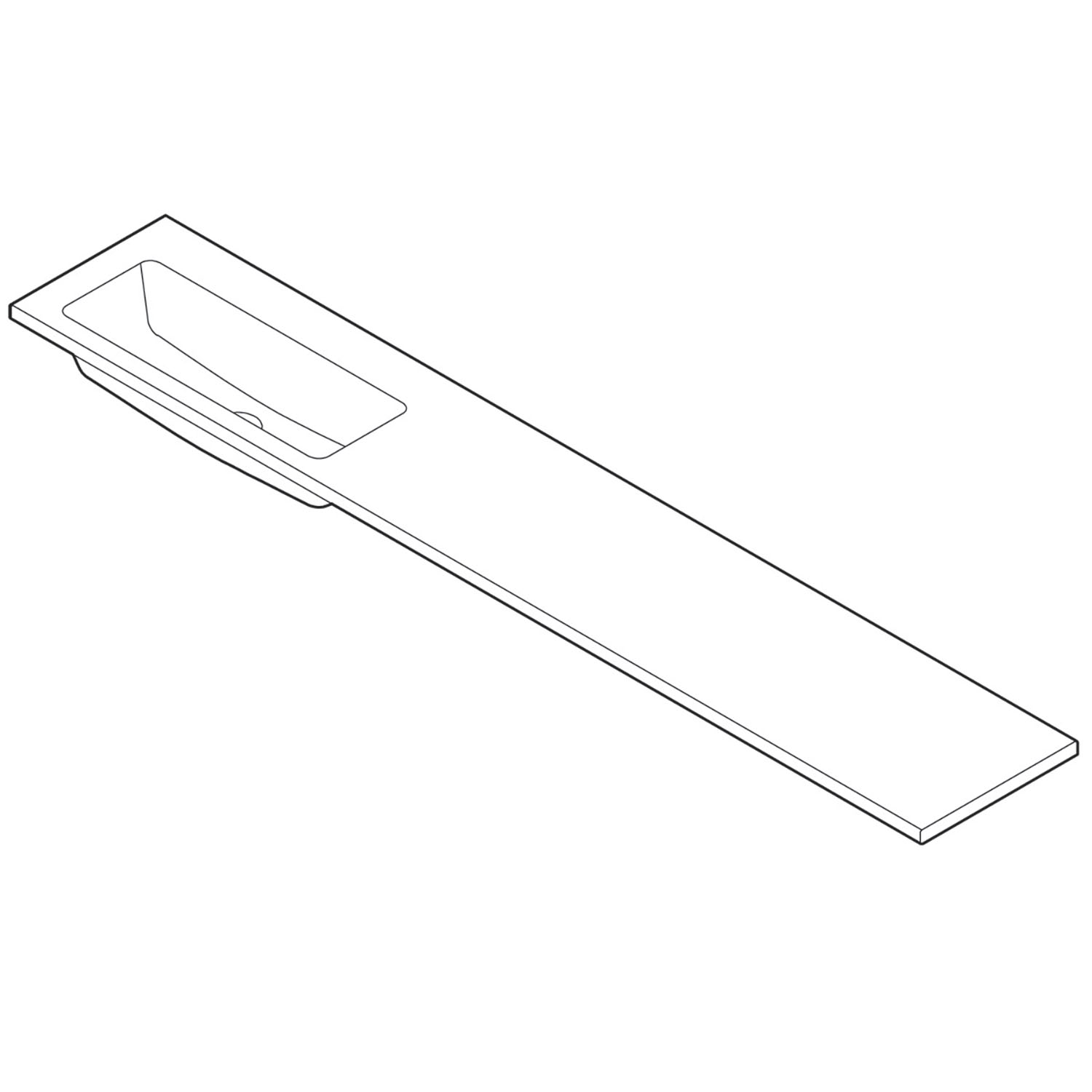

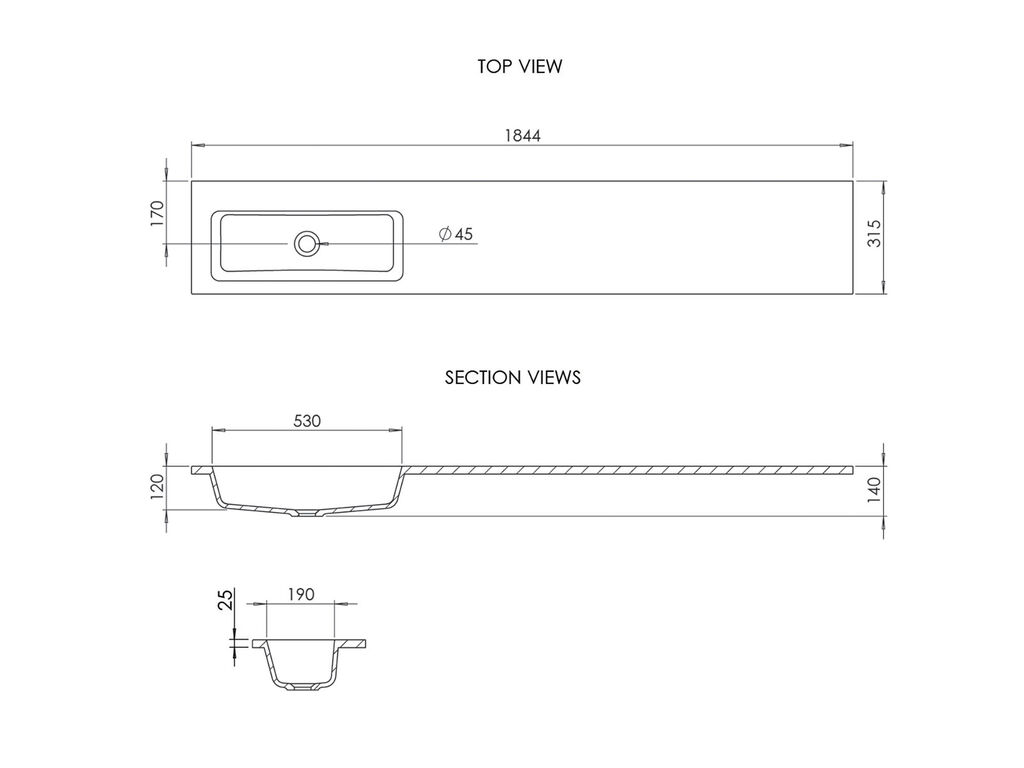

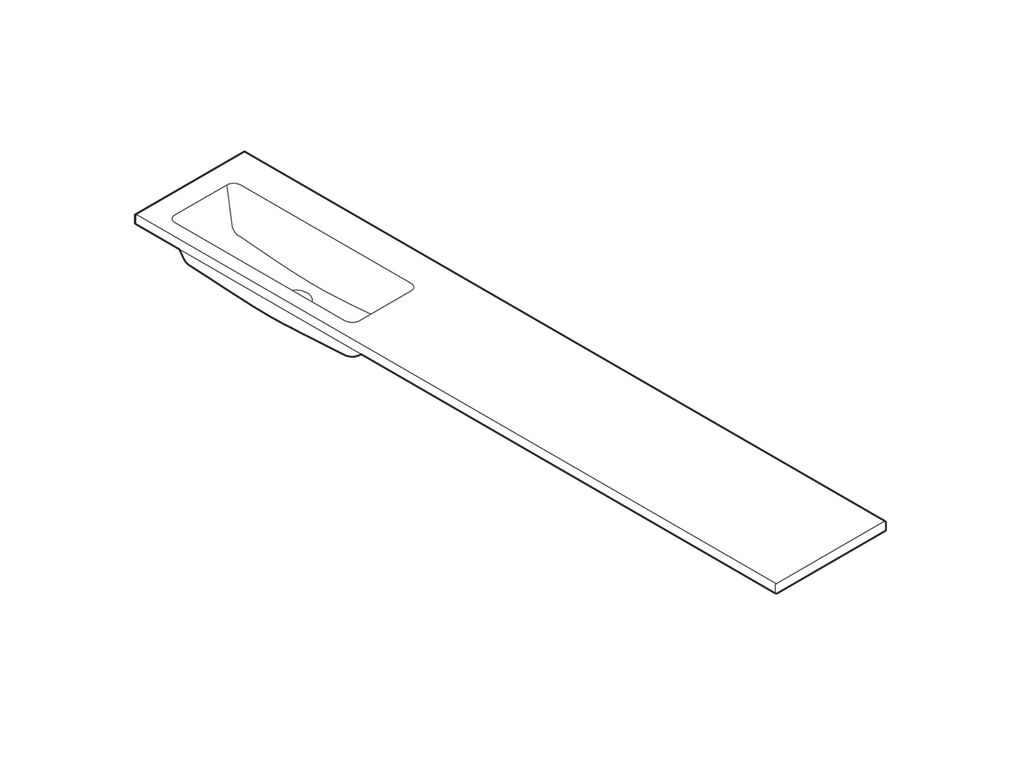

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1844 x 315 x 140mm
Weight:
27.74 kg
Basin Type:
Inline Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Number of Bowls:
1
Number of Tap Holes:
0
Max Water Temperature (°C):
65
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Inari Cast Inline Wing Basin 1844 Left Bowl White
Instructions
Fitting kit
