Technical Data Sheet

Charlotte Ceramic Semi-Recessed Basin 550 White

37.9112

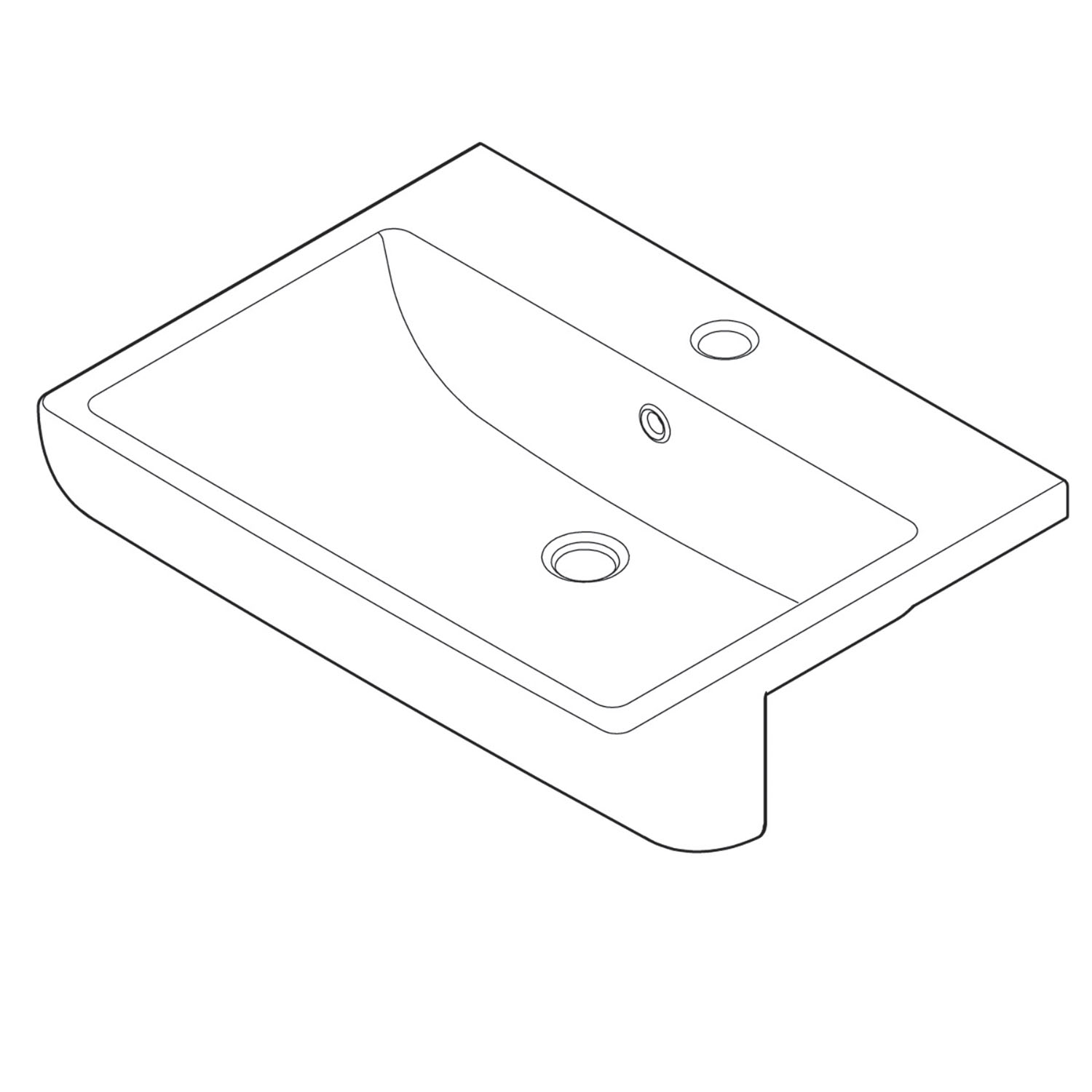

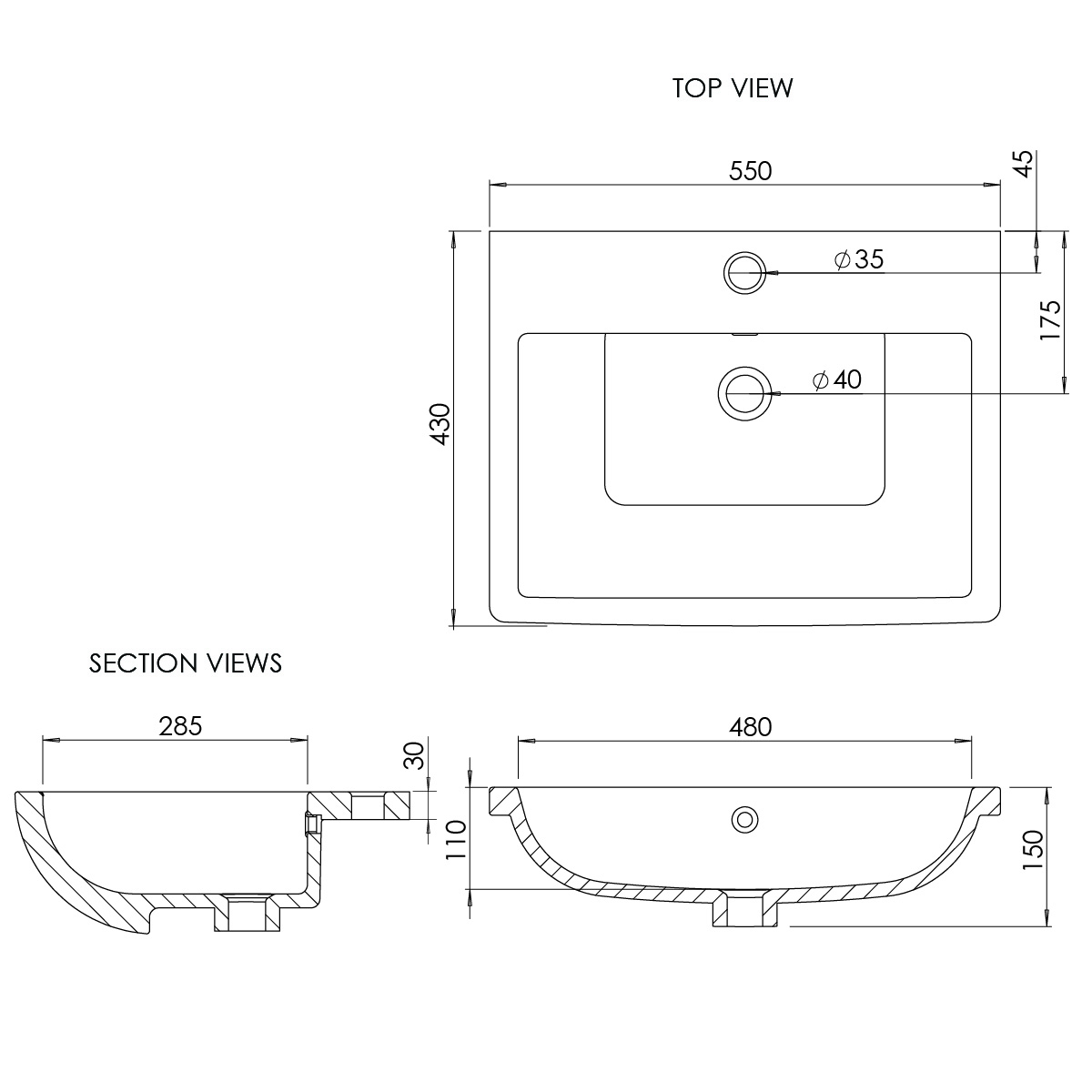

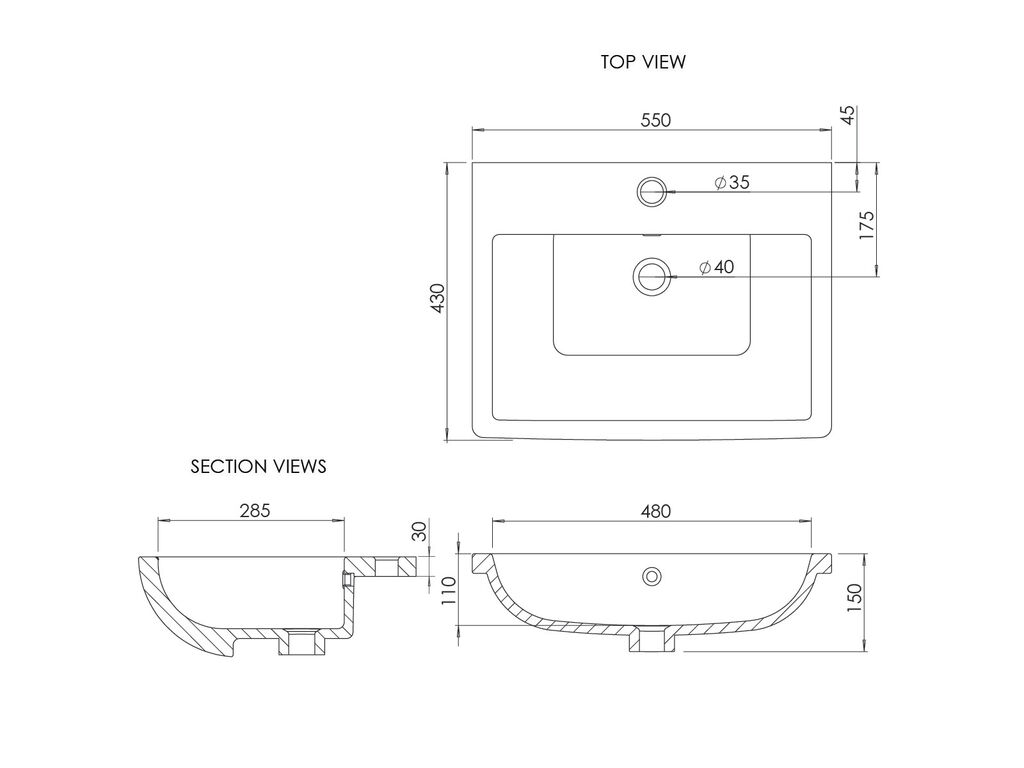

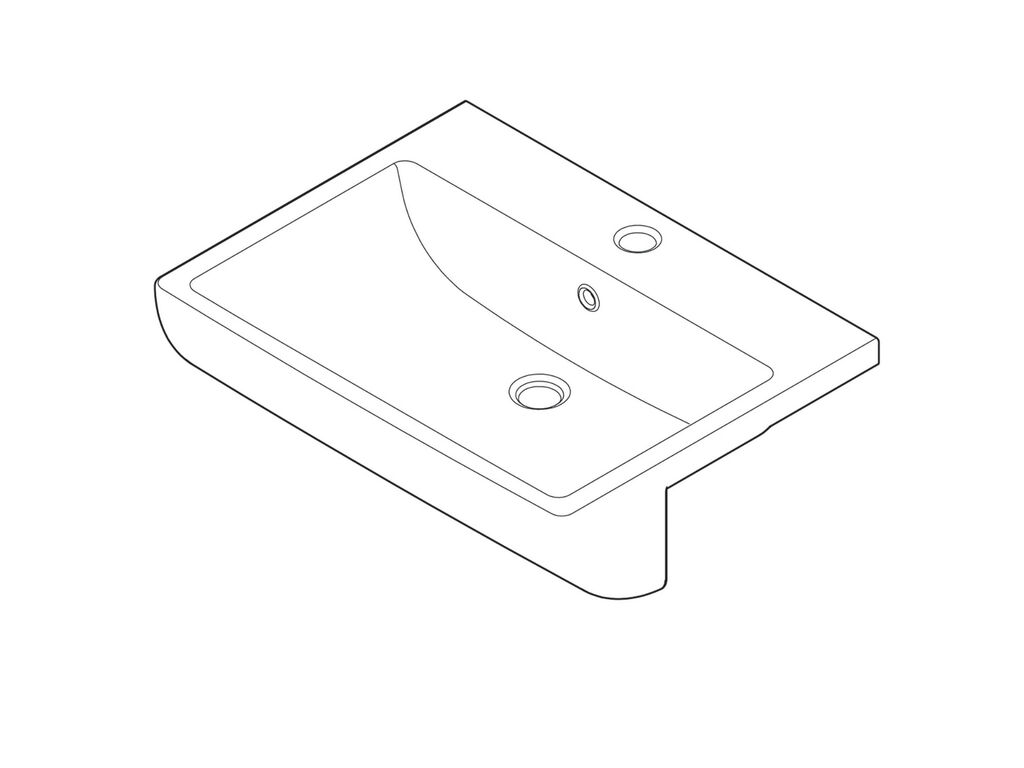

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Dimensions (WxDxH):

550 x 420 x 155mm

Weight:

13.92 kg

Basin Type:

Semi Recessed Basin

Basin Construction Material:

Ceramic

Basin Interior:

White Gloss

Basin Exterior:

White Gloss

Overall Shape:

Rectangular

Bowl Shape:

Rectangular with Rounded Corners

Configuration:

Centre Bowl

Number of Bowls:

Internal Bowl (WxDxH):

490 x 260 x 110mm

Depth at Centre:

422mm

Number of Tap Holes:

Tap Hole Diameter:

35 mm

Tap Hole Position:

Centre Rear of Top Surface

Max Water Temperature:

100°C

Overflow Type:

Integrated Overflow

Supplied Overflow Ring Colour:

Chrome

Interchangeable Overflow Ring Type:

Type 3

Waste Hole Diameter:

45 mm

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 5mm.

In The Box:
