Technical Data Sheet
Caluso Composite Semi-Recessed Wing Basin 1844 Centre Basin NTH Matt White
37.3538

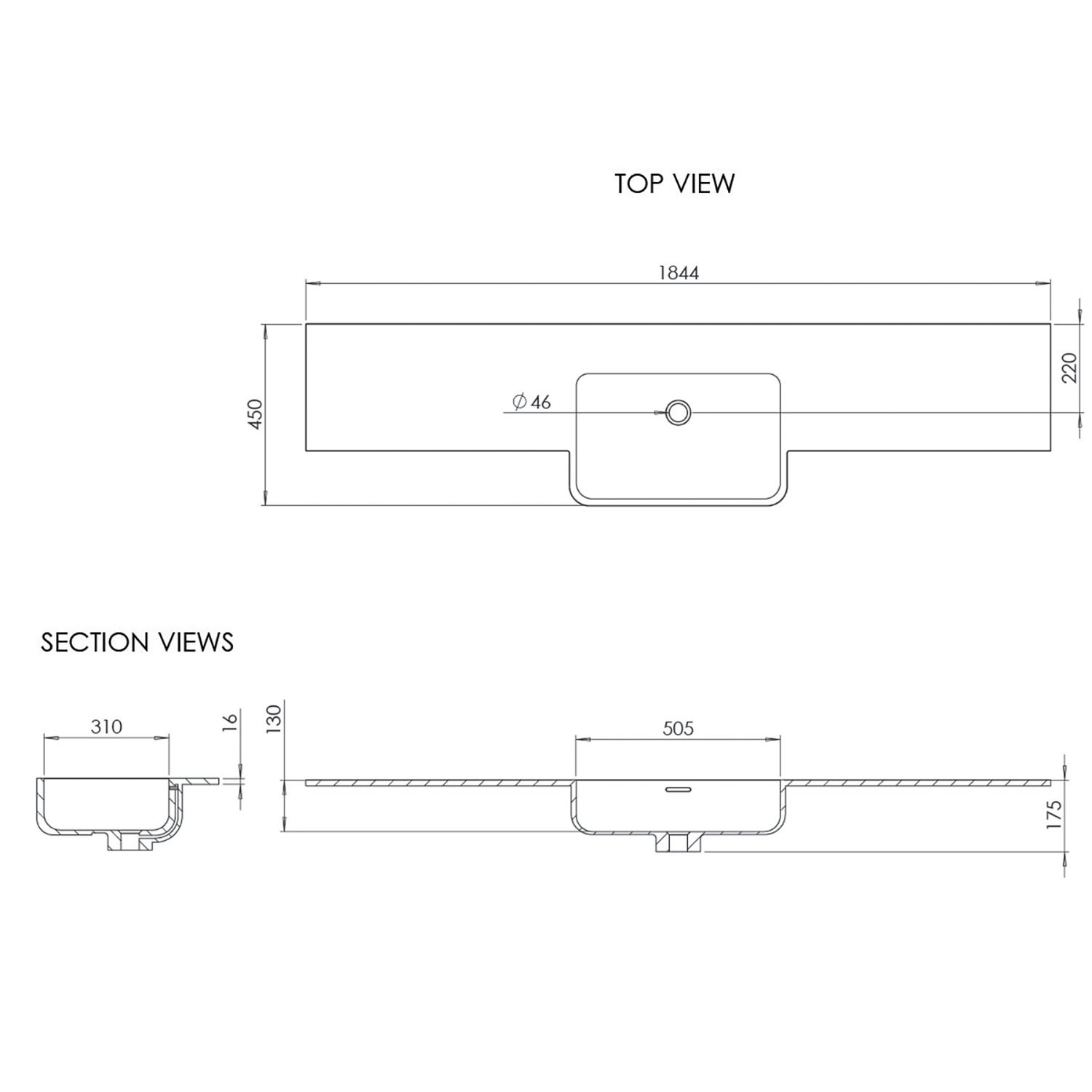

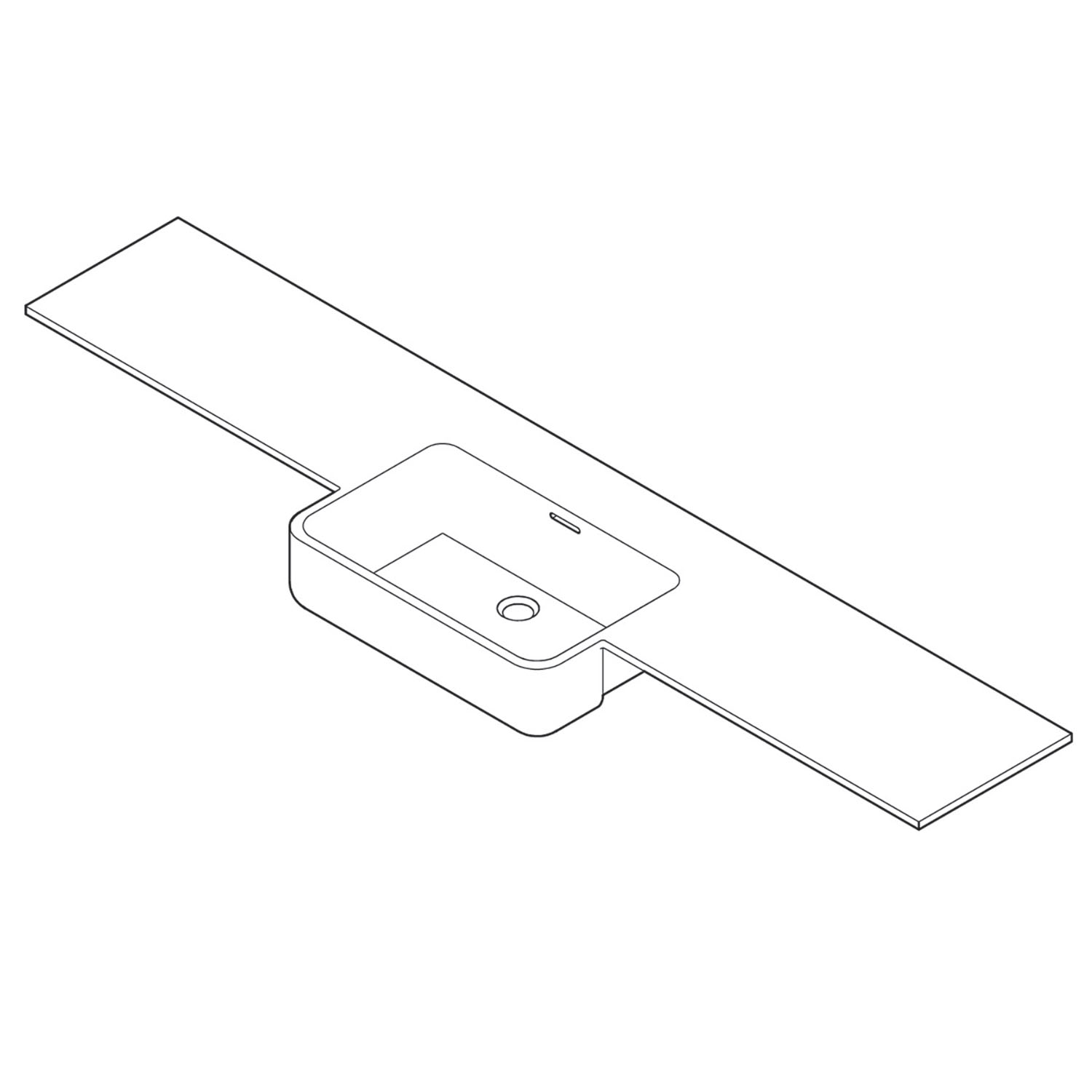

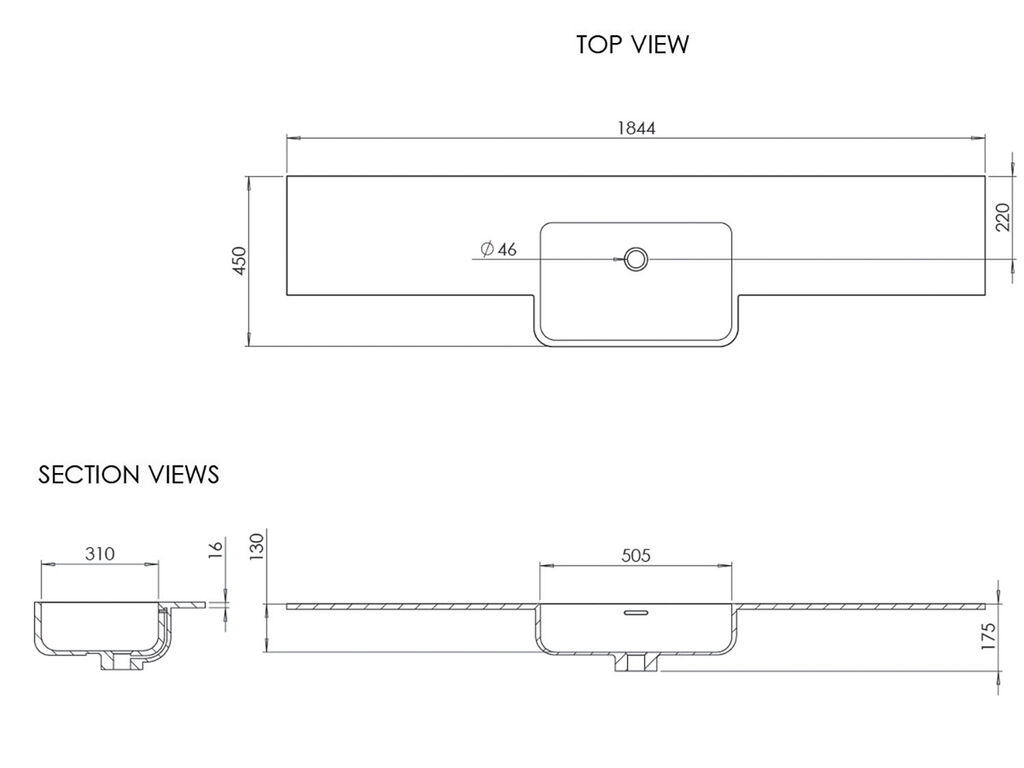

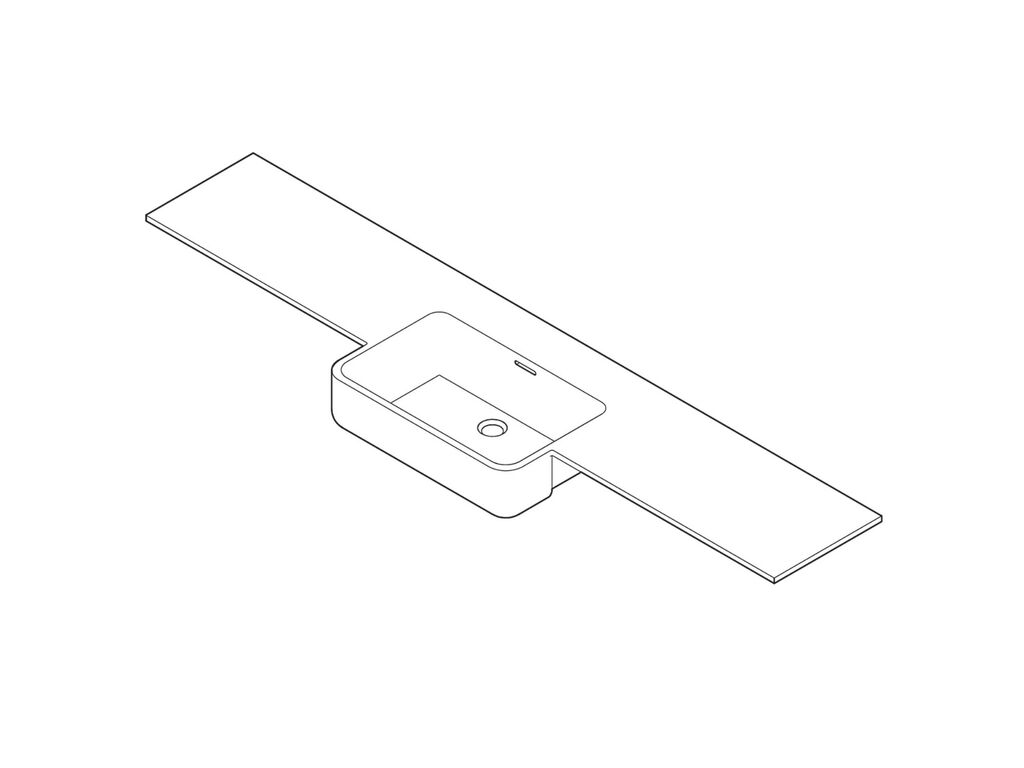

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1844 x 450 x 175mm
Weight:
22.80 kg
Basin Type:
Semi Recessed Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Matt
Basin Exterior:
White Matt
Overall Shape:
Rectangular
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
505 x 310 x 130mm
Depth at Centre:
451mm
Number of Tap Holes:
0
Tap Hole Position:
No Tap Hole
Max Water Temperature:
65°C
Overflow Type:
Integrated Overflow
Interchangeable Overflow Ring Type:
No overflow ring required
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Caluso Composite Semi-Recessed Wing Basin 1844 Centre Basin NTH Matt White
Instructions
Fitting kit
