Technical Data Sheet
Inari Cast Inline Wing Basin 1844 Centre Bowl White
3686

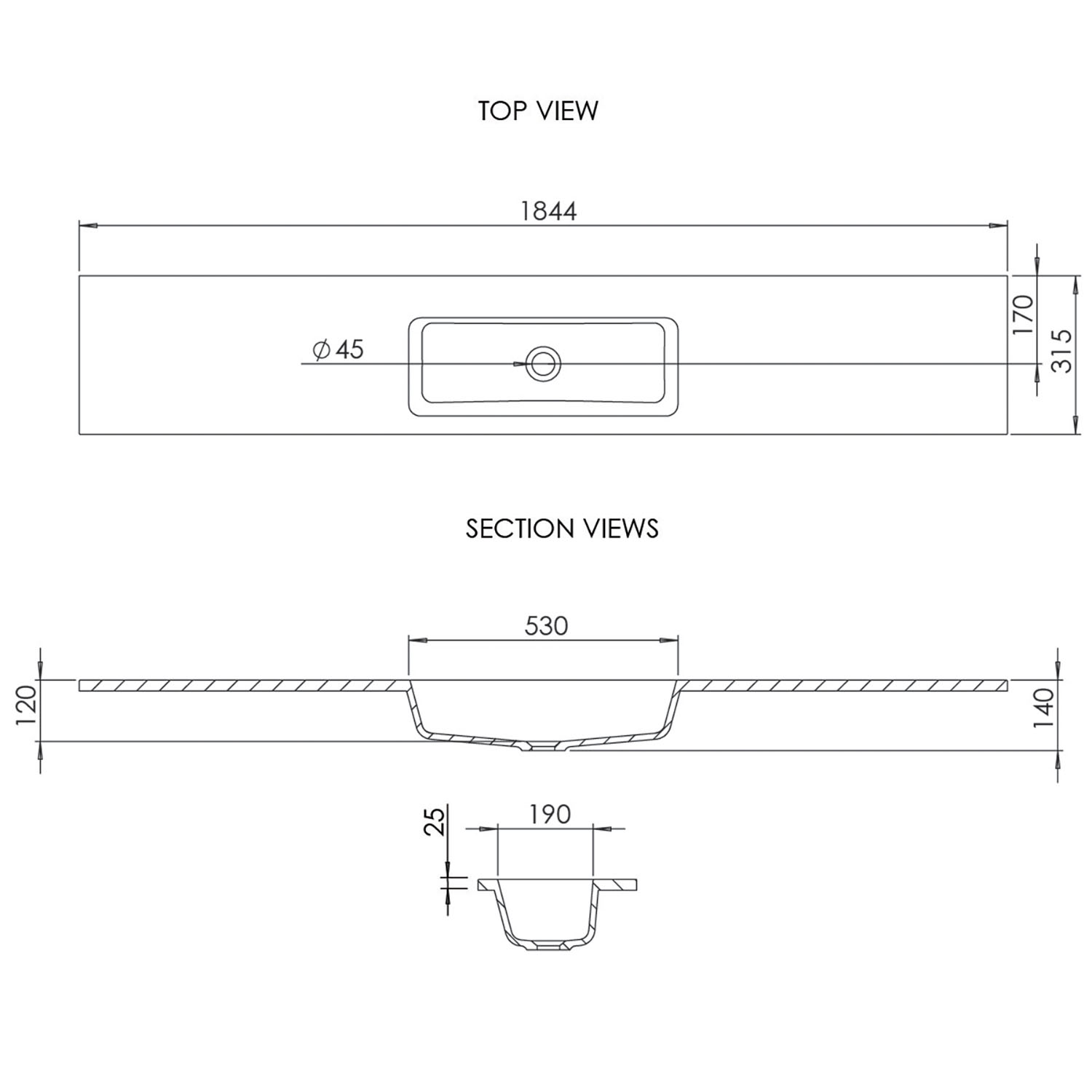

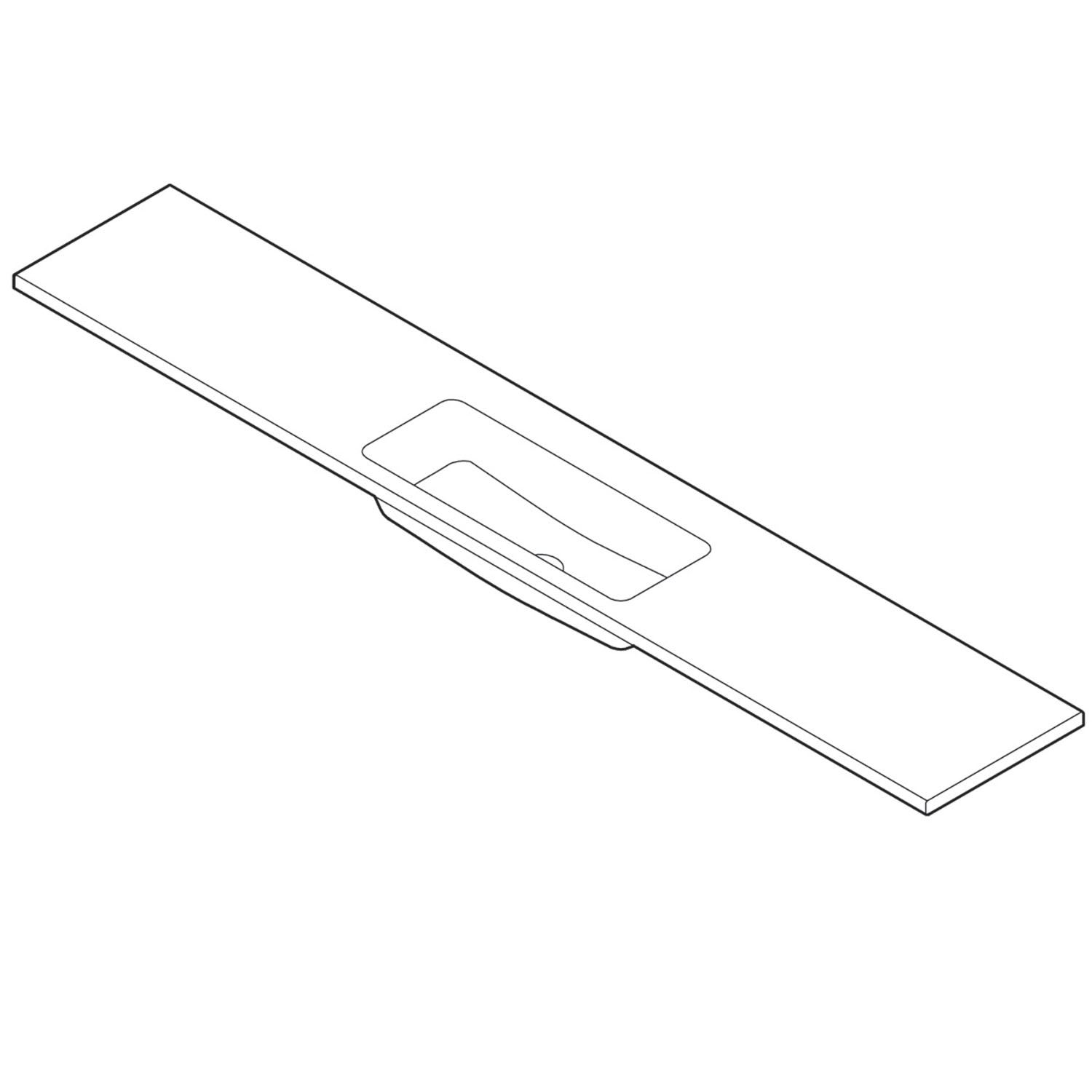

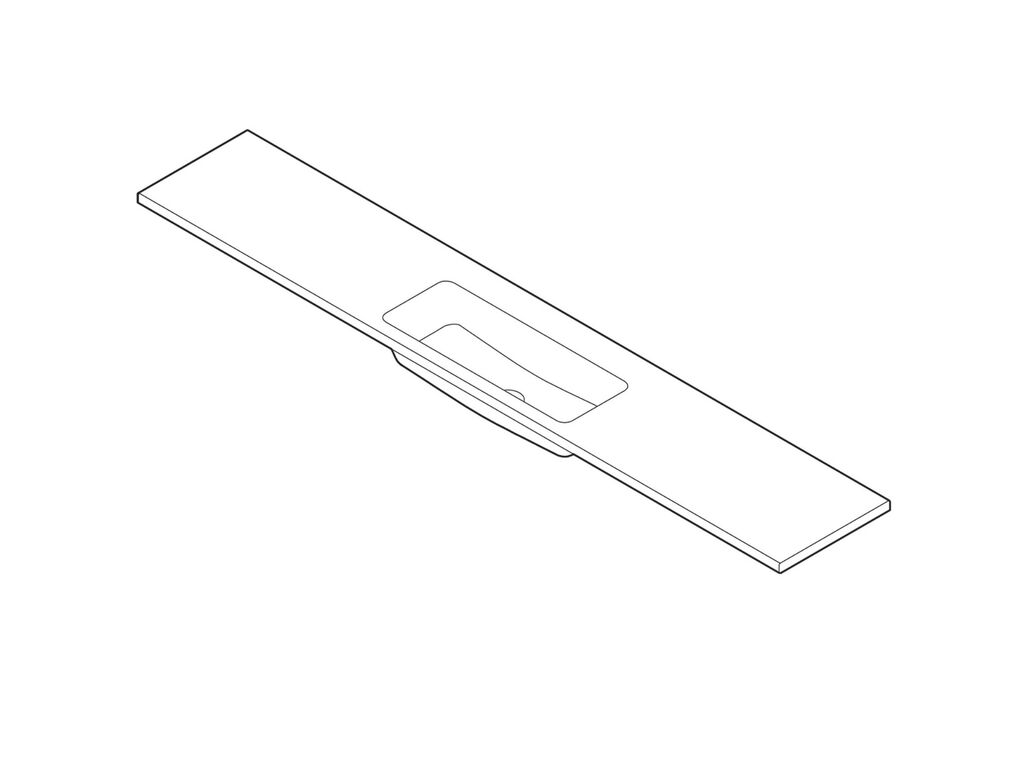

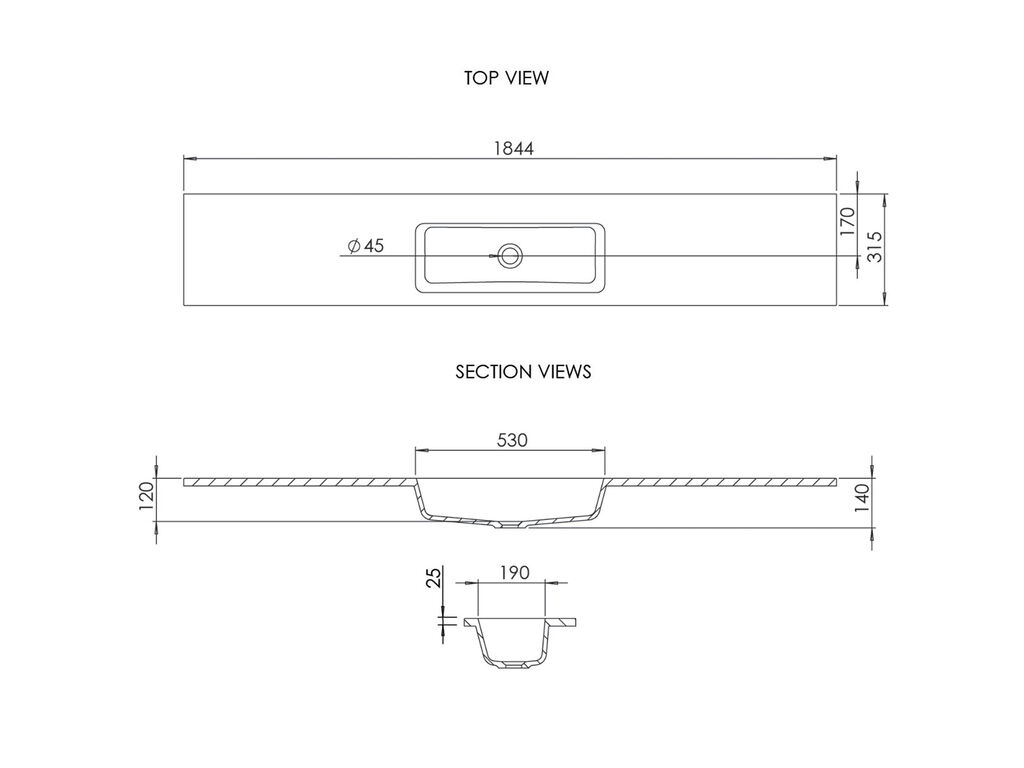

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1844 x 315 x 140mm
Weight:
27.86 kg
Basin Type:
Inline Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Square Corners
Bowl Shape:
Rectangular with Rounded Corners
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
530 x 190 x 120mm
Depth at Centre:
315mm
Number of Tap Holes:
0
Tap Hole Position:
No Tap Hole
Max Water Temperature:
65°C
Overflow Type:
No Overflow
Waste Hole Diameter:
45 mm
Approvals:
CE/UKCA Marked, EN 14688
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
Inari Cast Inline Wing Basin 1844 Centre Bowl White
Instructions
