Technical Data Sheet
Denver Ceramic Semi-Recessed Basin 500 Slim White
37.9075

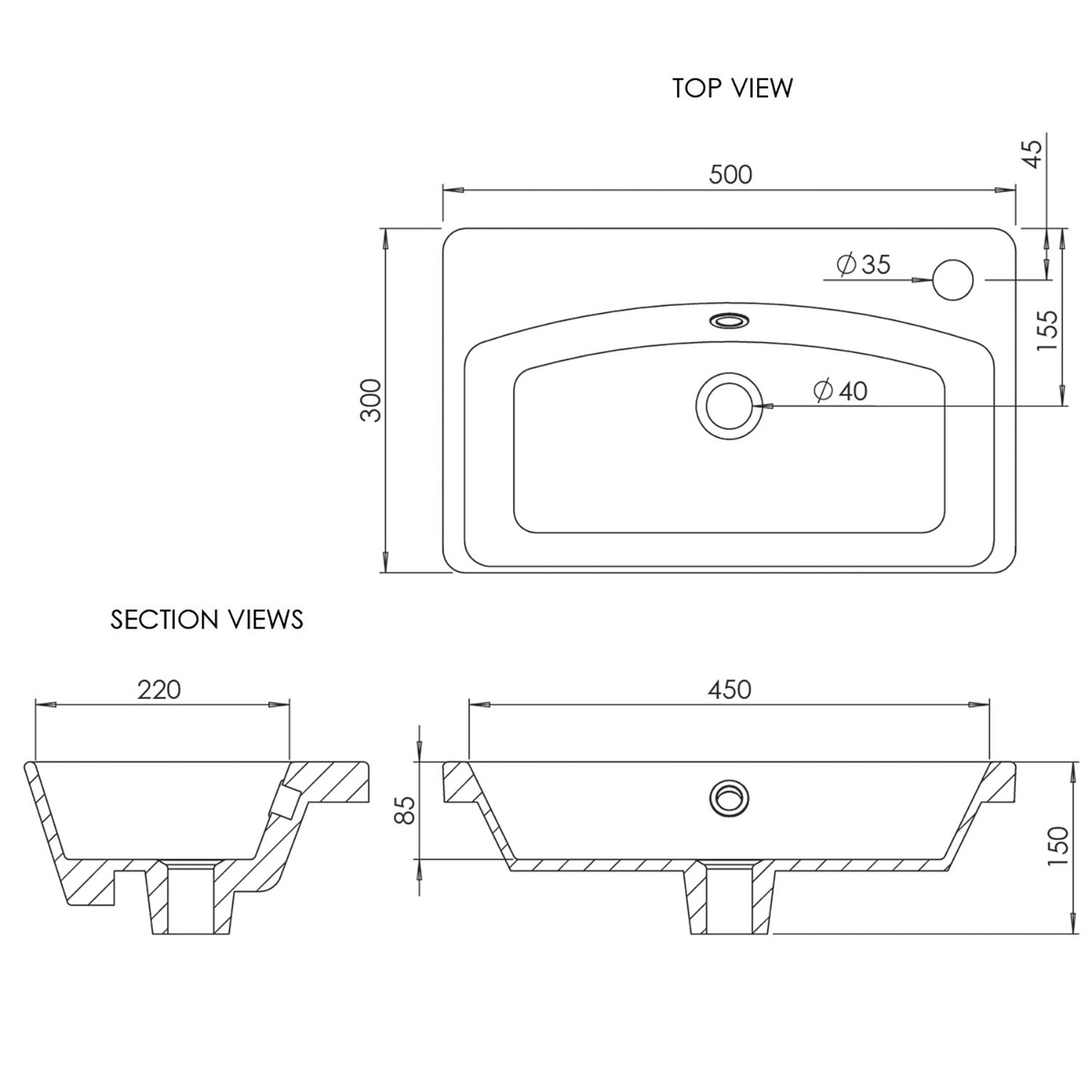

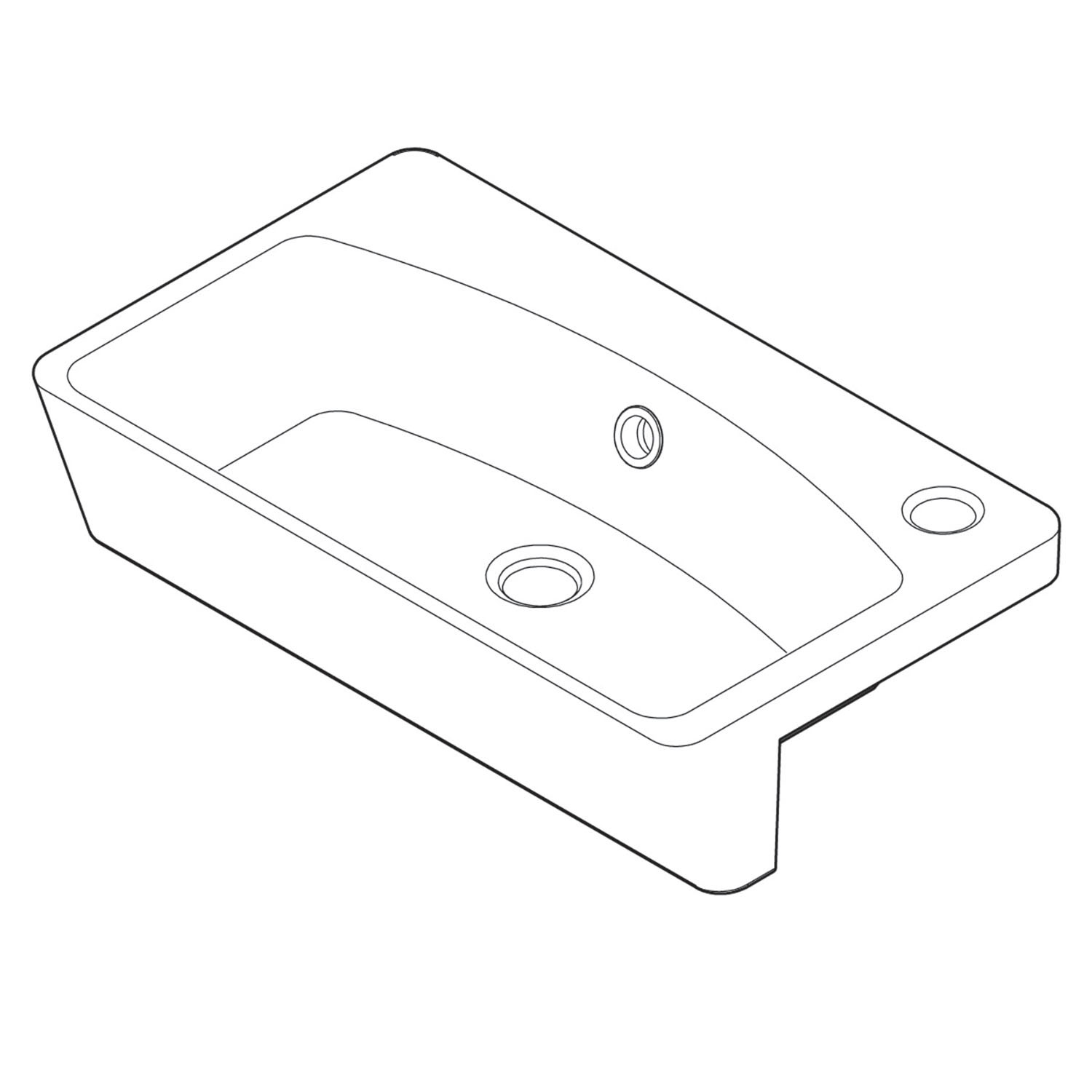

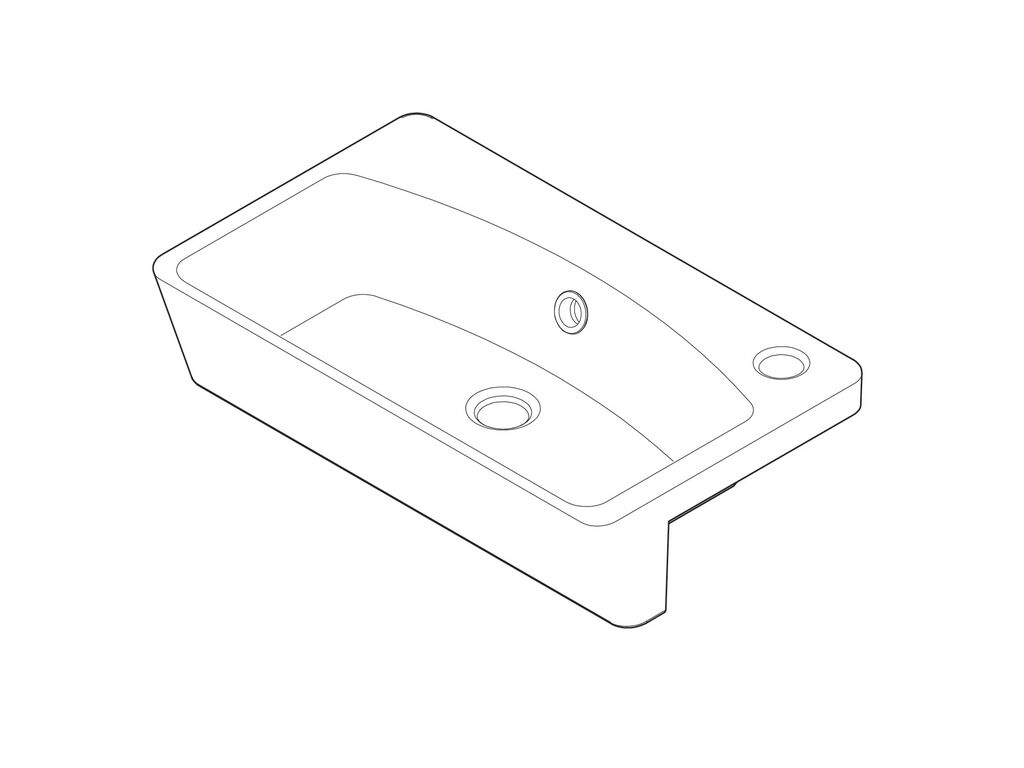

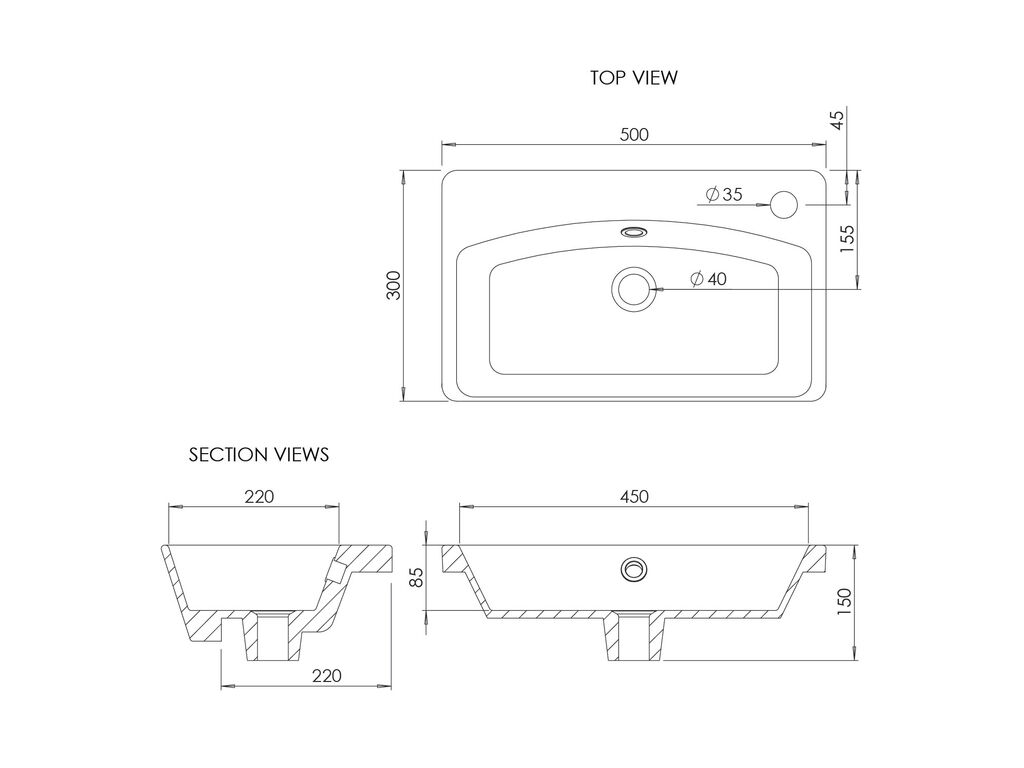

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
500 x 305 x 145mm
Weight:
9.24 kg
Basin Type:
Semi Recessed Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular
Bowl Shape:
Rectangular
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
480 x 230 x 100mm
Depth at Centre:
305mm
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Tap Hole Position:
Right Rear of Top Surface
Max Water Temperature:
100°C
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 3
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Denver Ceramic Semi-Recessed Basin 500 Slim White
