Technical Data Sheet
ART Cast Semi-Recessed Wing Basin 1244 Left Bowl White
37.3191

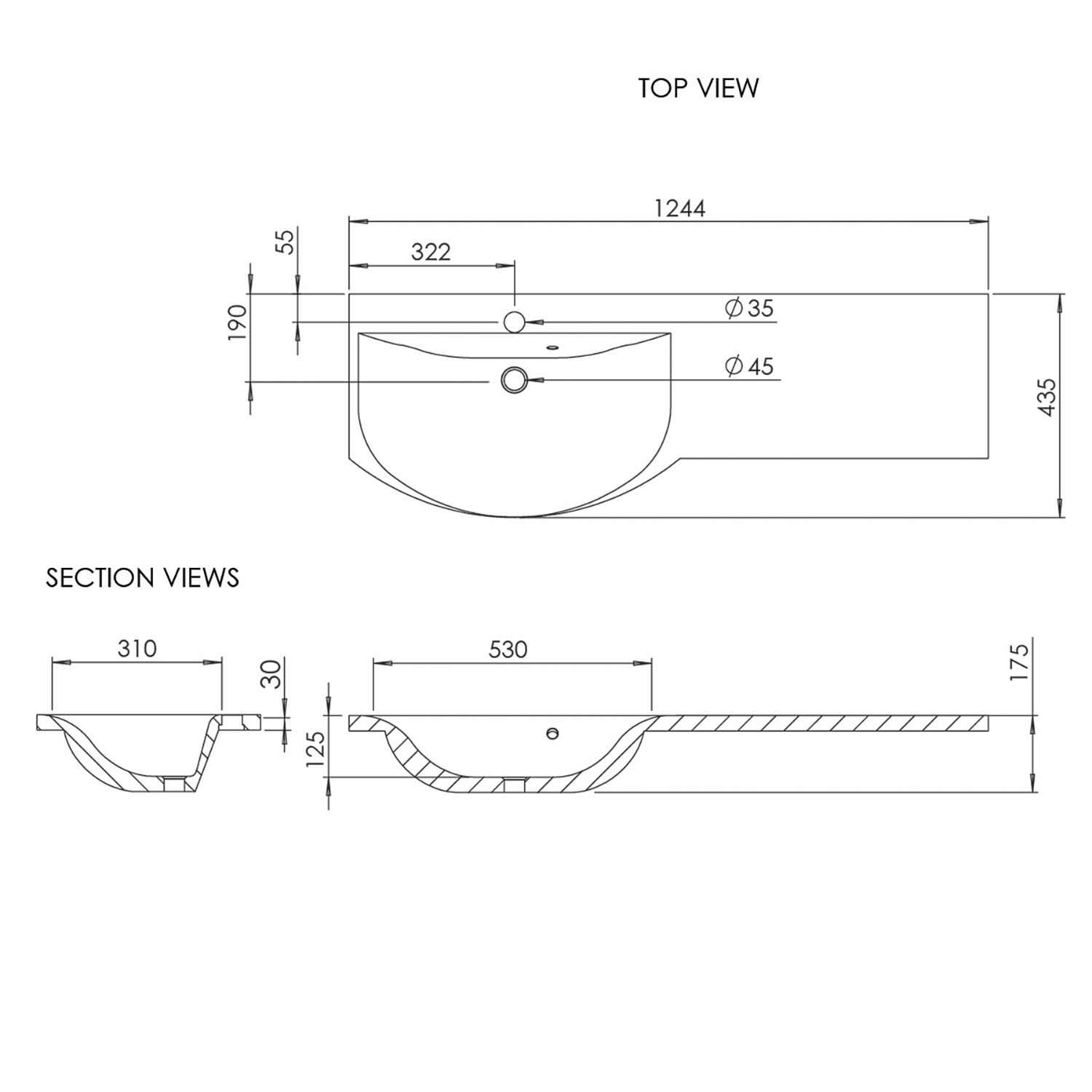

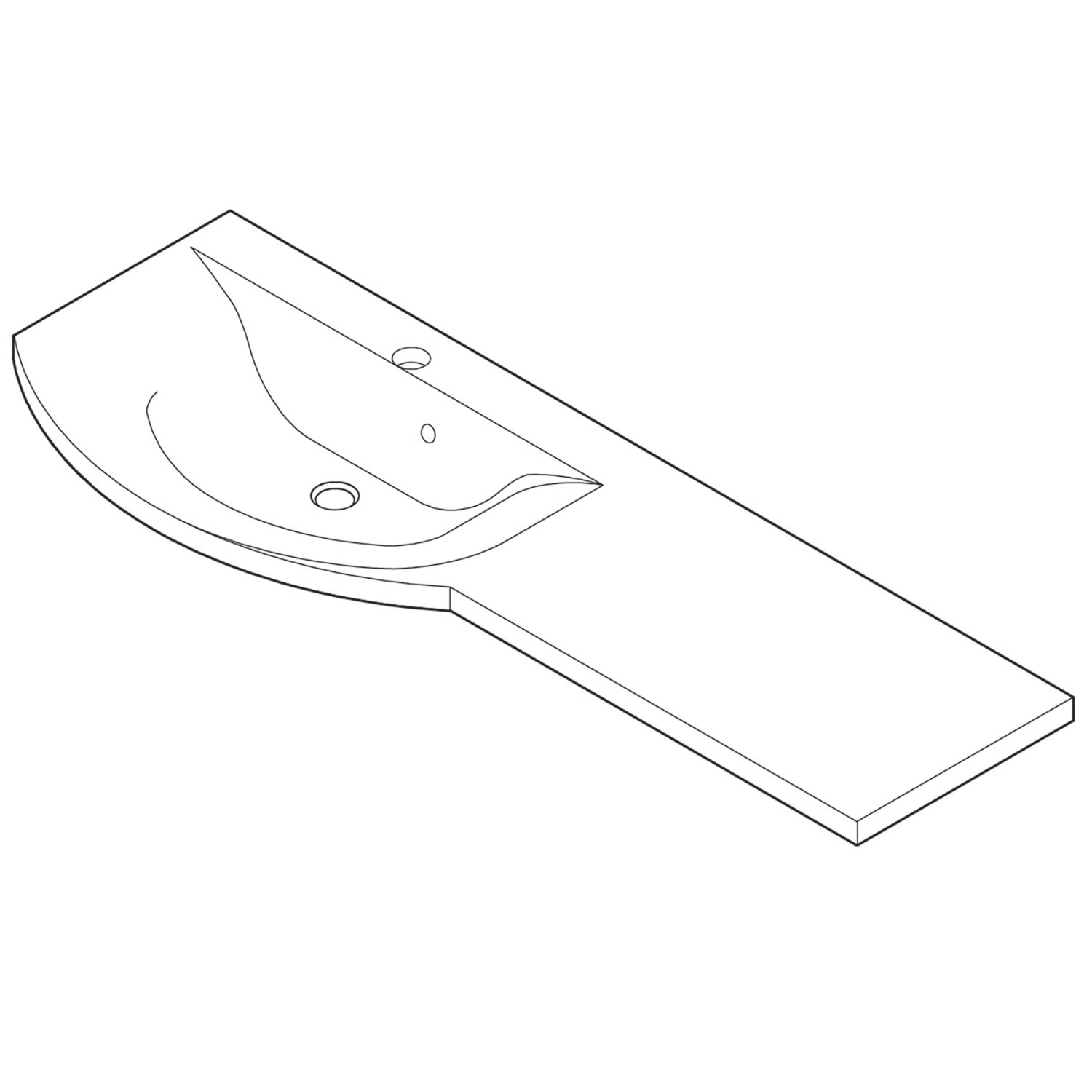

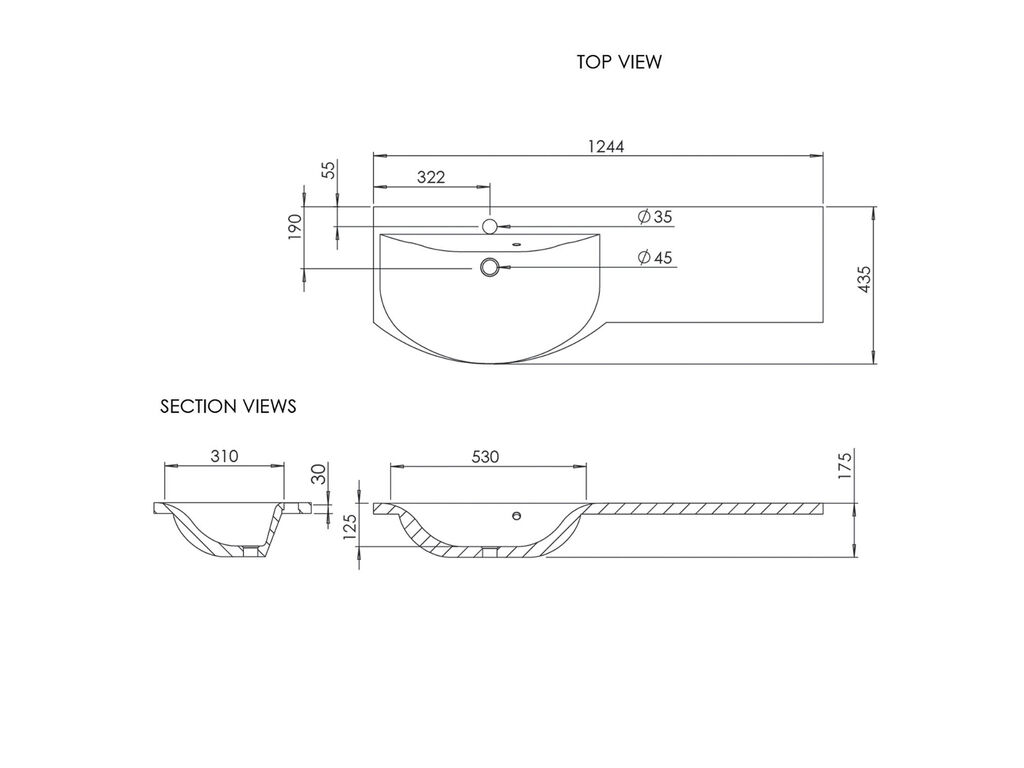

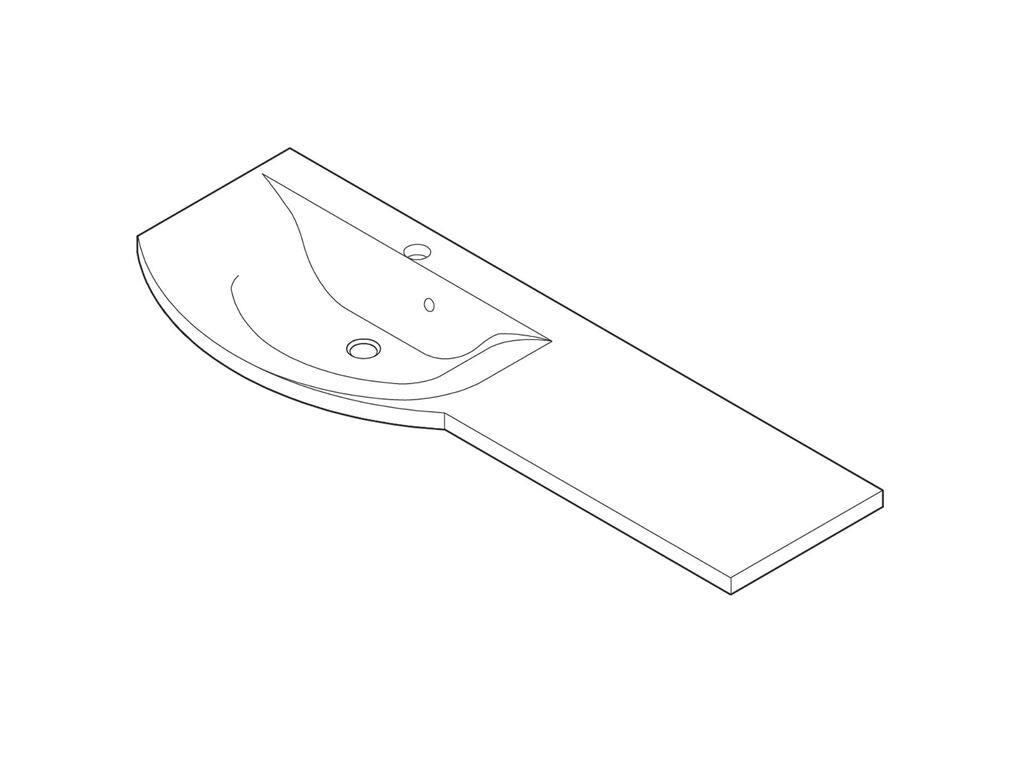

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
1244 x 435 x 175mm
Weight:
21.00 kg
Basin Type:
Semi Recessed Wing Basin
Basin Construction Material:
Cast Marble
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Number of Bowls:
1
Number of Tap Holes:
1
Tap Hole Diameter:
35 mm
Max Water Temperature (°C):
65
Overflow Type:
Integrated Overflow
Supplied Overflow Ring Colour:
Chrome
Interchangeable Overflow Ring Type:
Type 2, Type 3
Waste Hole Diameter:
45 mm
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 3mm.
In The Box:
ART Cast Semi-Recessed Wing Basin 1244 Left Bowl White
Instructions
Fitting kit
Basin Template
