Technical Data Sheet
Dartmoor Basin Unit 600 Two Door Standard
4404DA

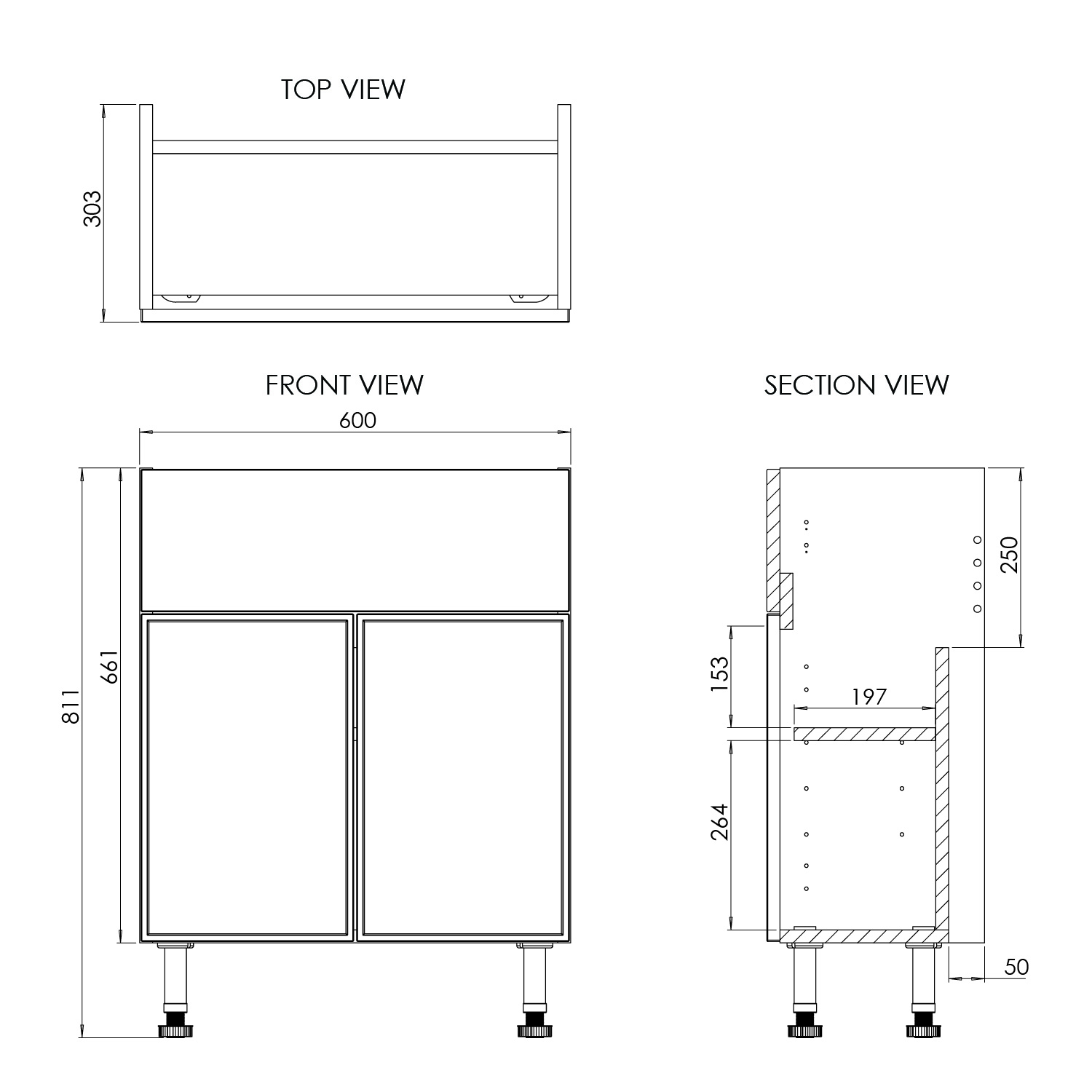

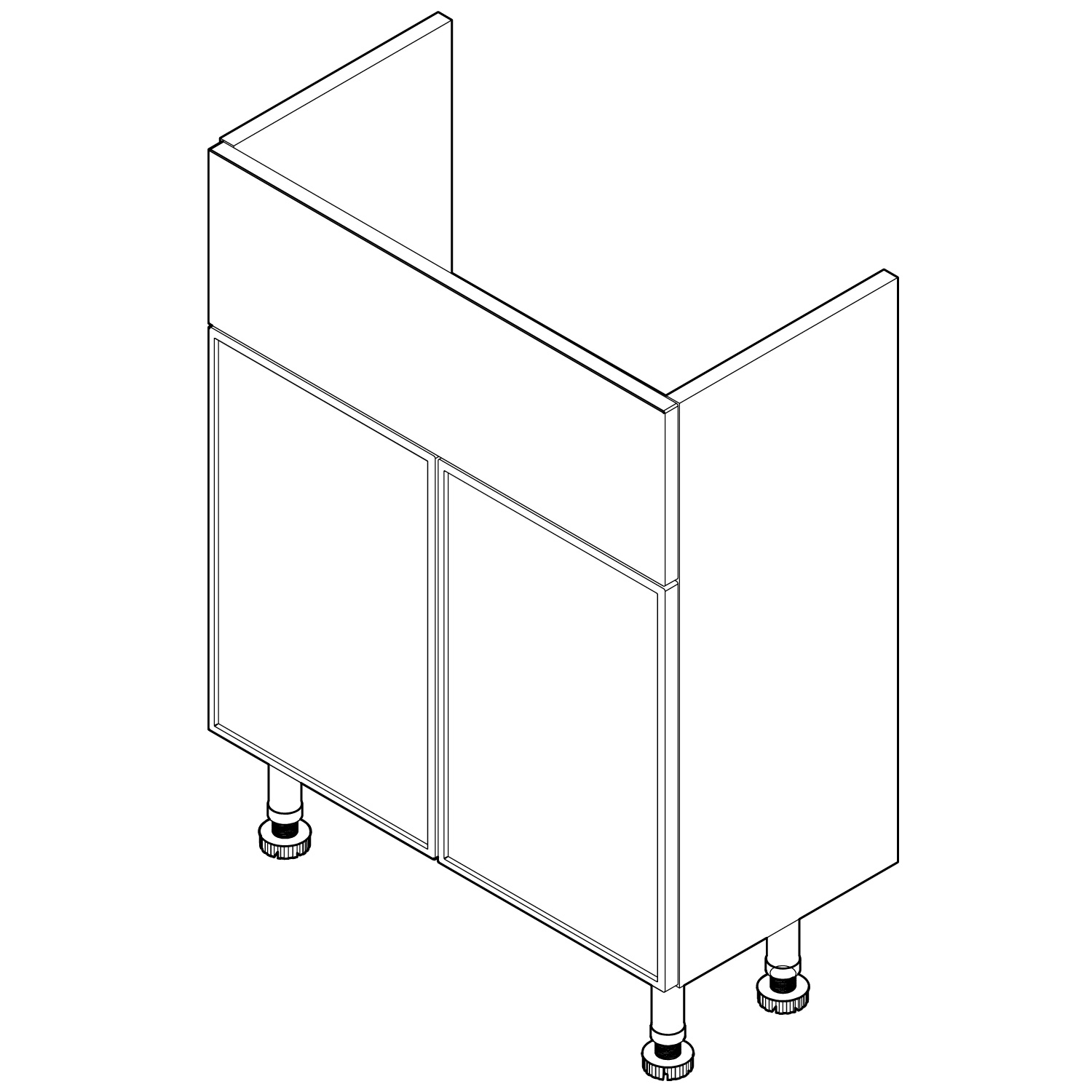

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Basin Unit
Dimensions (WxDxH):
600 x 303 x 811mm
Carcass Material:
MFC 18mm
Fascia Style:
MDF 18mm Shaker
Door Openings:
2
Door(s) Hinge Side:
Both
Shelves:
1 removable - MFC 18mm
Leg / Foot Type:
Leg Sockets, Legs Included
Guarantee Period:
5 Years
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Dartmoor Basin Unit 600 Two Door Standard
Instructions
Fitting kit
