Technical Data Sheet

Cheviot Basin Unit 600 Two Door Standard

4404CT

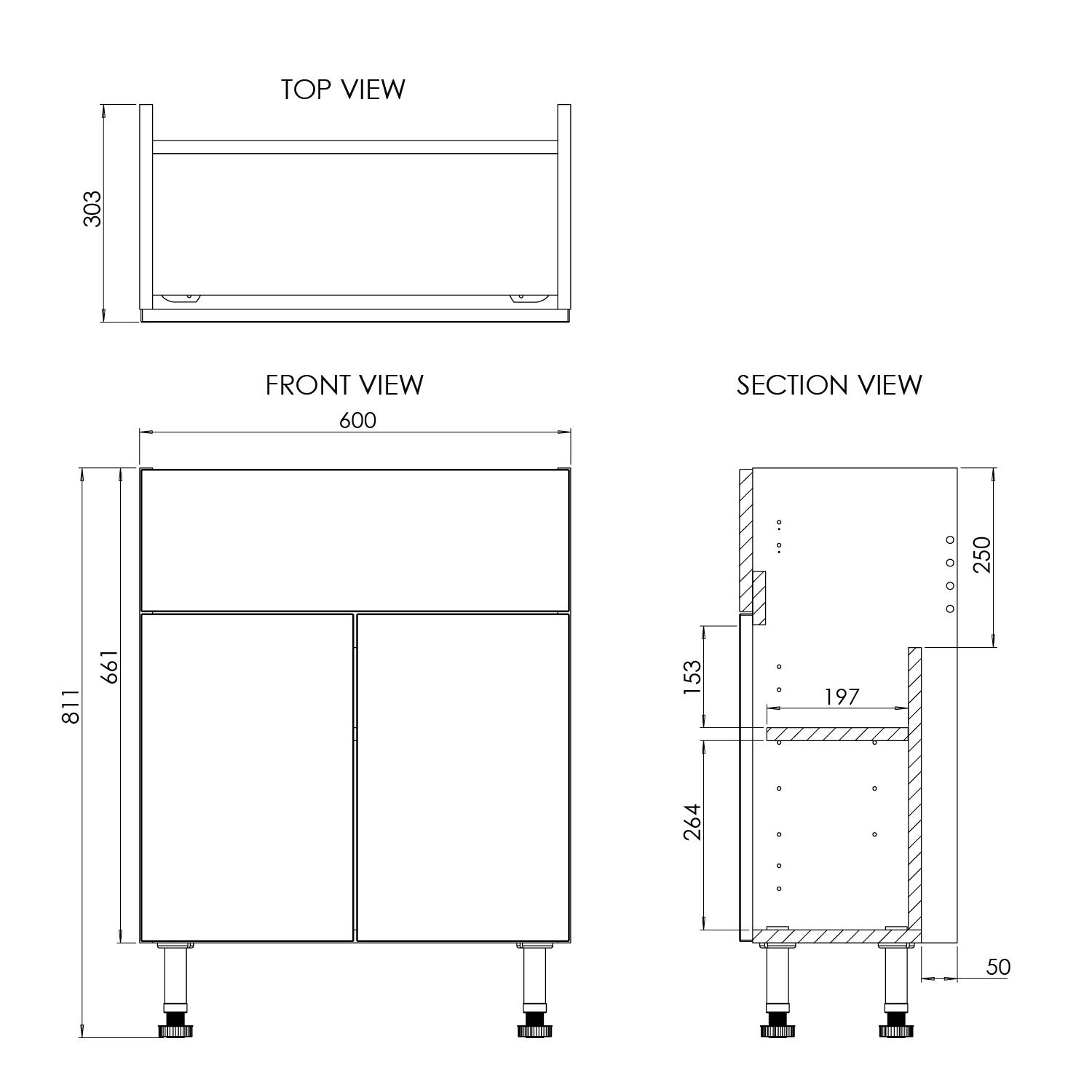

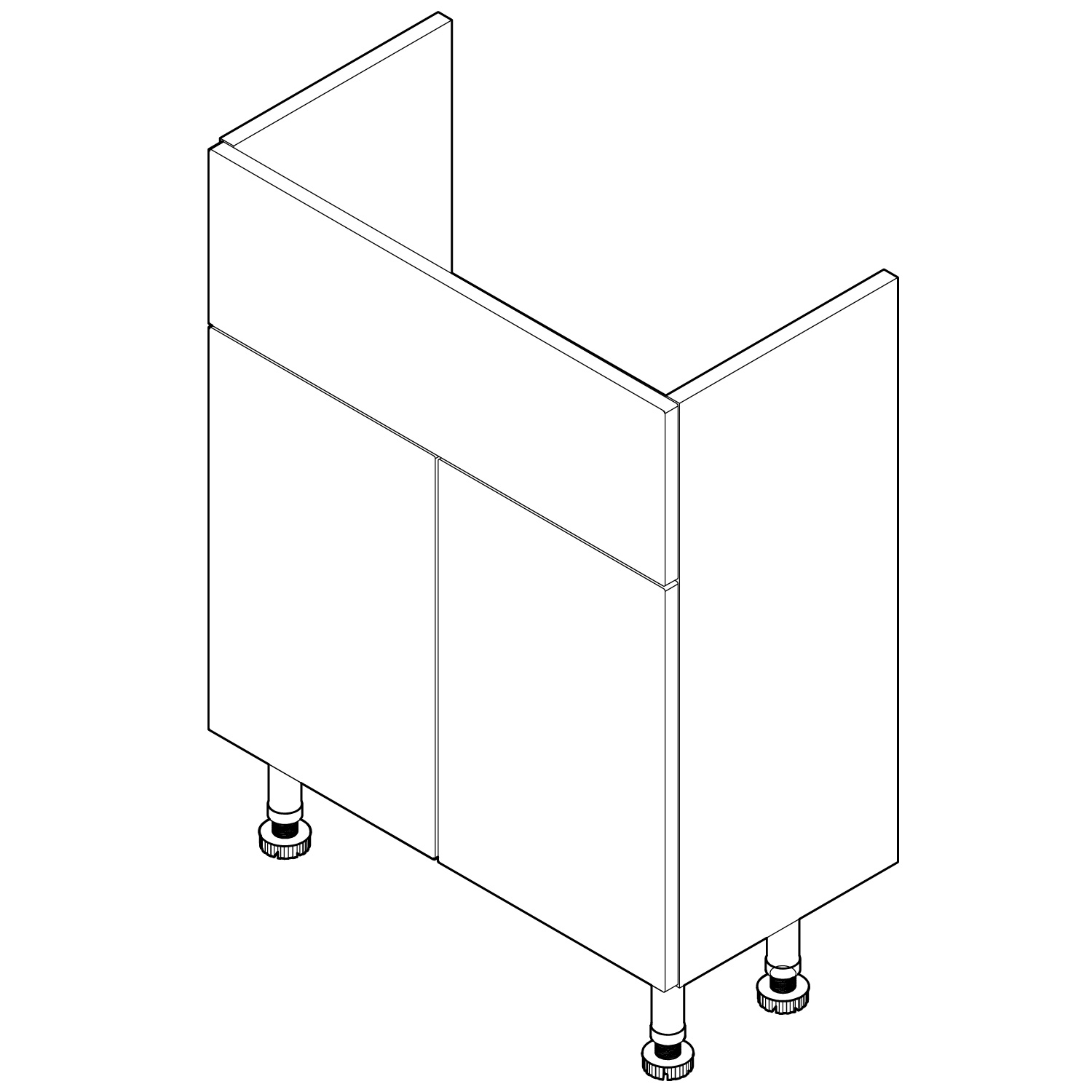

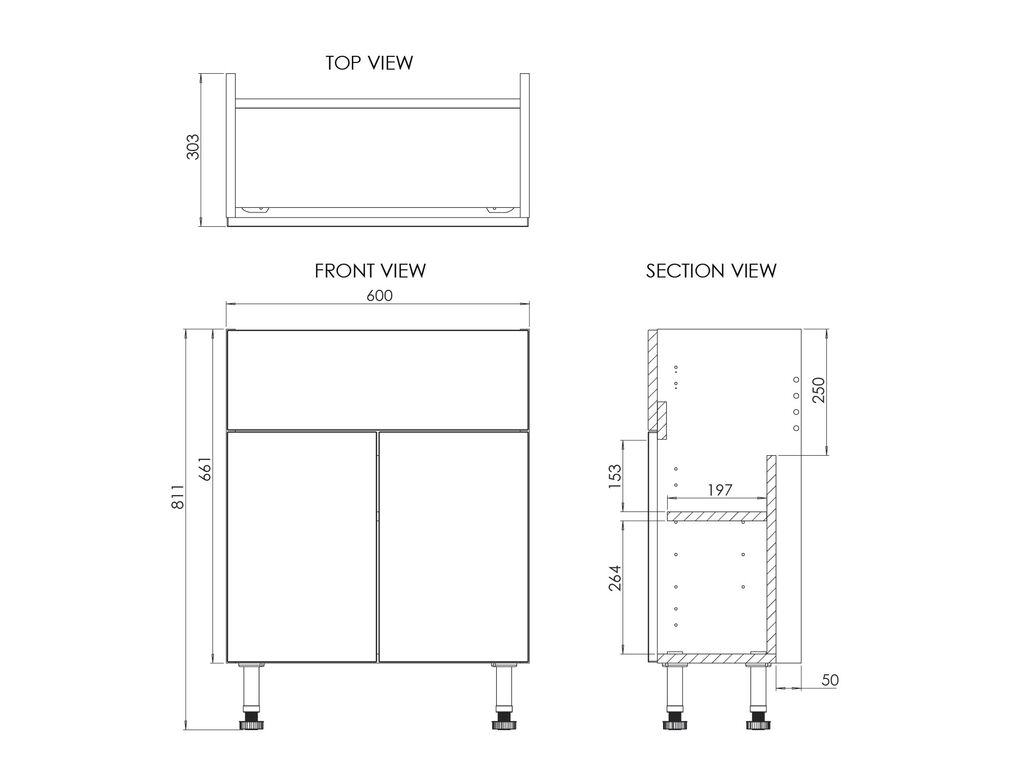

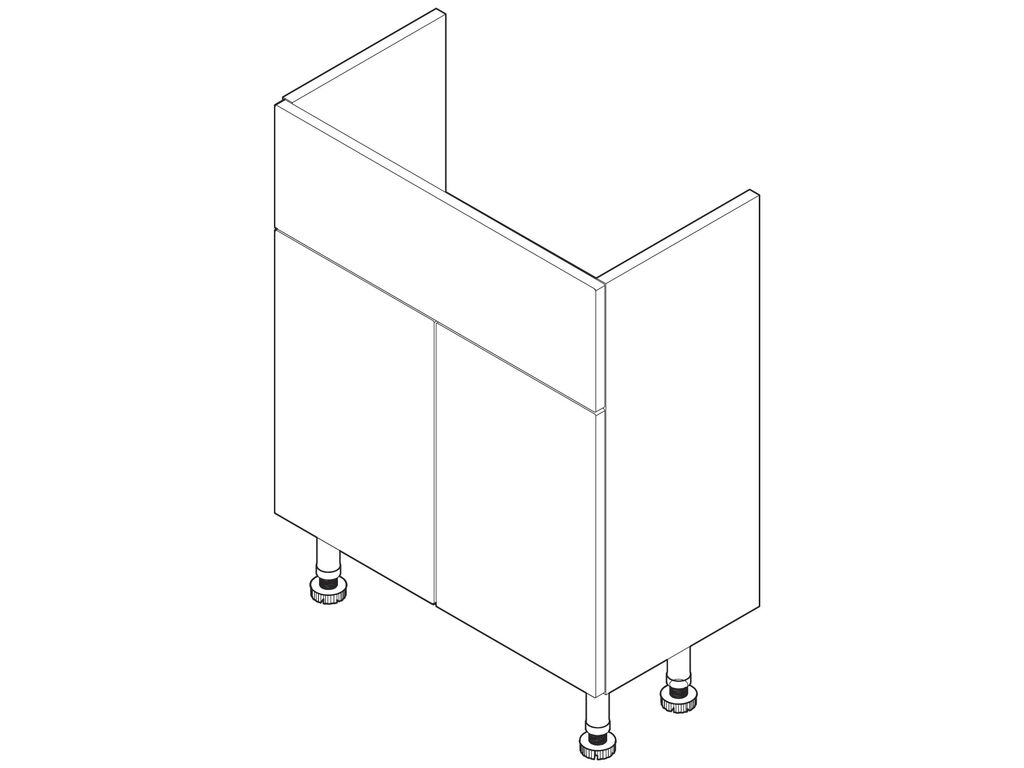

Technical Drawings

All dimensions in mm. Please check dimensions prior to installation.

Technical Details

Furniture Type:

Basin Unit

Dimensions (WxDxH):

600 x 303 x 811mm

Carcass Material:

MFC 18mm

Carcass Edging:

PVC Edging

Carcass Service Area:

Closed Back

Fascia Style:

MDF 18mm Slab

Door Openings:

Door(s) Hinge Side:

Both

Hinges Detail:

Soft close

Hinge Bracket Cover Plates:

Yes

Handle Type:

Handle Not Included

Shelves:

1 removable - MFC 18mm

Removable Shelf Supports:

Studs

Fixation Method:

Adjustable Metal Wall Brackets, 80mm from top @ 535mm centres

Leg / Foot Type:

Leg Sockets, Legs Included

Door Open Unit Depth:

585mm

Service Void Depth:

50mm

Compatible Basins:

37.3173, 37.3113, 37.3095, 37.3853, 37.9172, 37.9112, 37.9177, 37.9321, 37.9075, 37.9175, 37.3506, 37.3507, 37.9171, 37.9163, 37.9324, 37.3191, 37.3192, 37.3195, 37.3196, 37.3538, 37.3072, 37.3071, 37.307, 37.3608, 37.3601, 37.3602, 37.3603, 37.3604, 37.3607, 37.3605, 37.3606, 3080, 3540, 3687, 3688, 3686

Dimensional Tolerance:

Please note that all dimensions have a tolerance of +/- 2mm.

In The Box:
