Technical Data Sheet
Firova Wall hung Vanity Unit 470 Two Door Fluted
5971

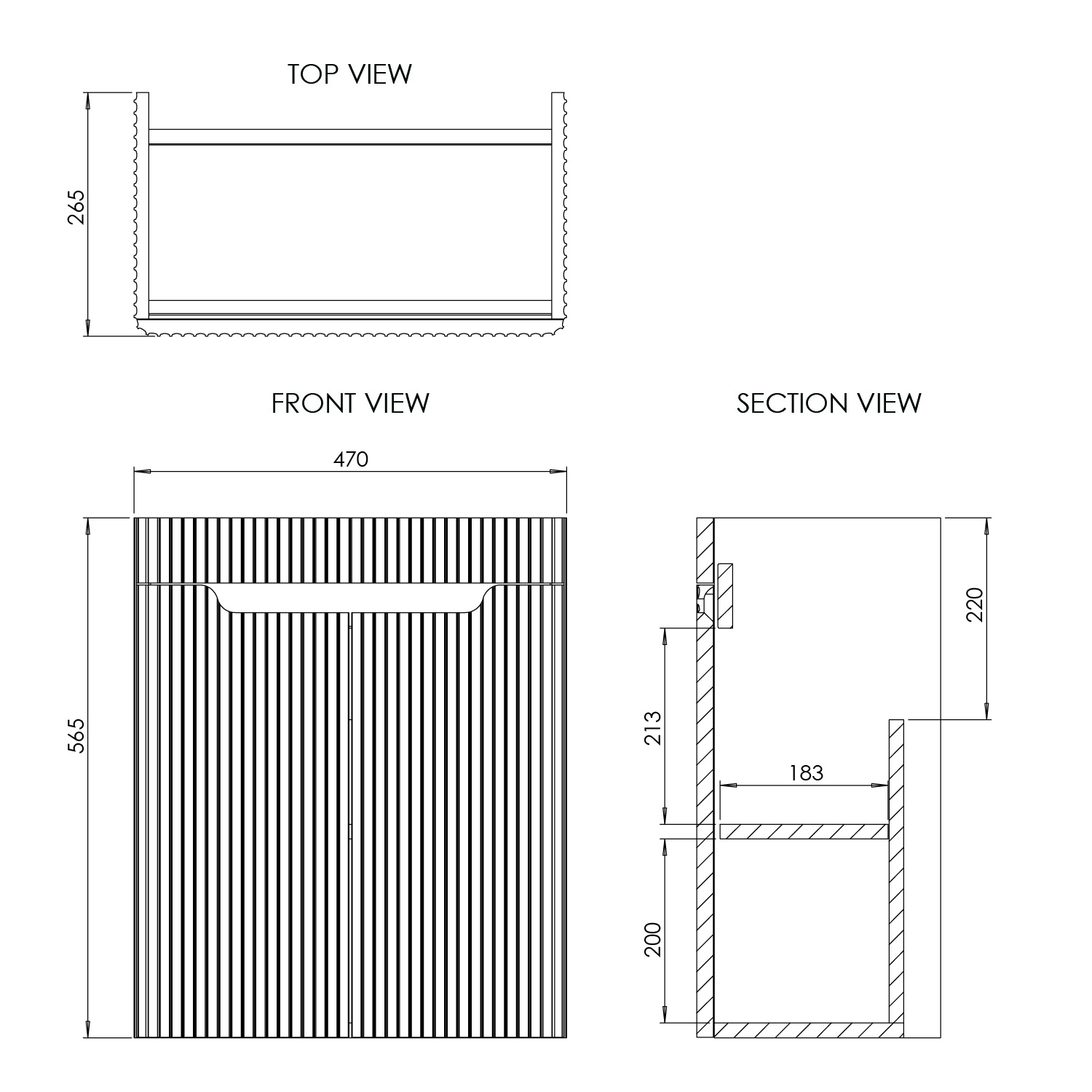

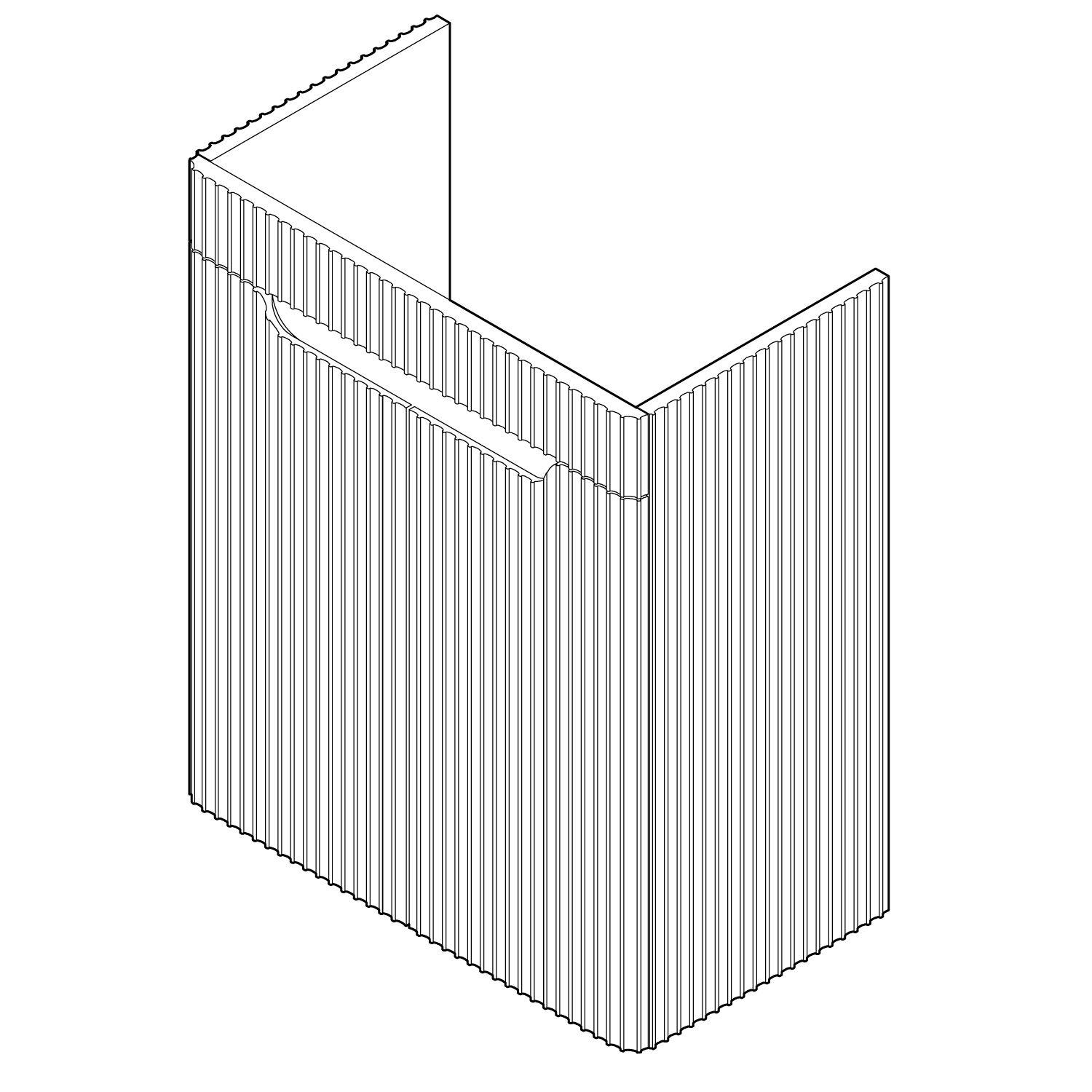

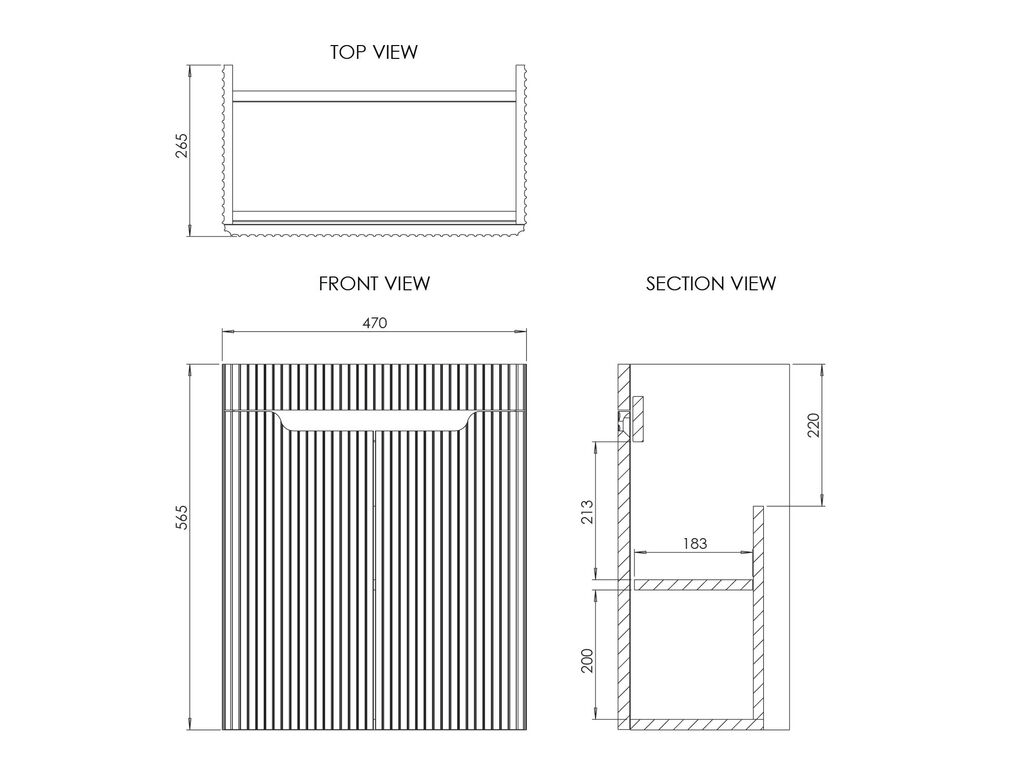

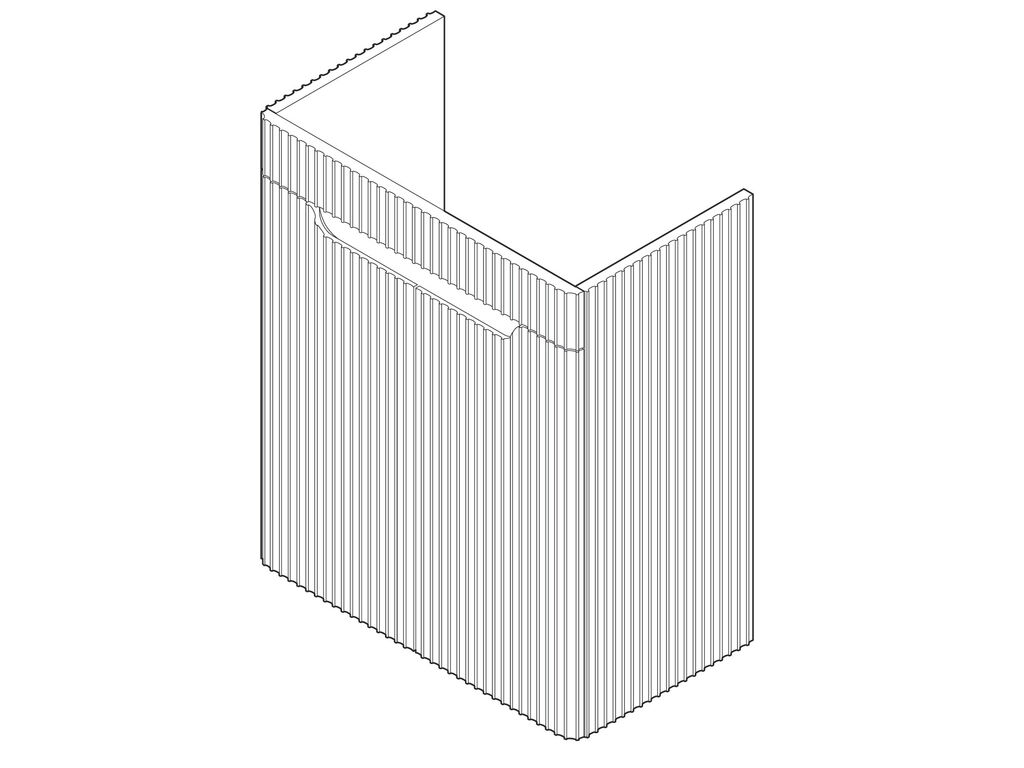

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Furniture Type:
Wall Hung Vanity Unit
Dimensions (WxDxH):
470 x 265 x 565mm
Carcass Material:
MDF 18mm
Carcass Service Area:
Part Open Back
Fascia Style:
MDF 18mm Fluted
End Panel Material:
MDF 18mm
End Panel Detail:
Fluted
Door Openings:
2
Door(s) Hinge Side:
Both
Hinges Detail:
Soft close
Handle Type:
Integrated Handle
Shelves:
1 removable
Removable Shelf Supports:
Studs
Service Void Depth:
40mm
Compatible Basins:
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 2mm.
In The Box:
Firova Wall hung Vanity Unit 470 Two Door Fluted
