Technical Data Sheet
Ambra Ceramic Vanity Basin 500 White 1TH
9309

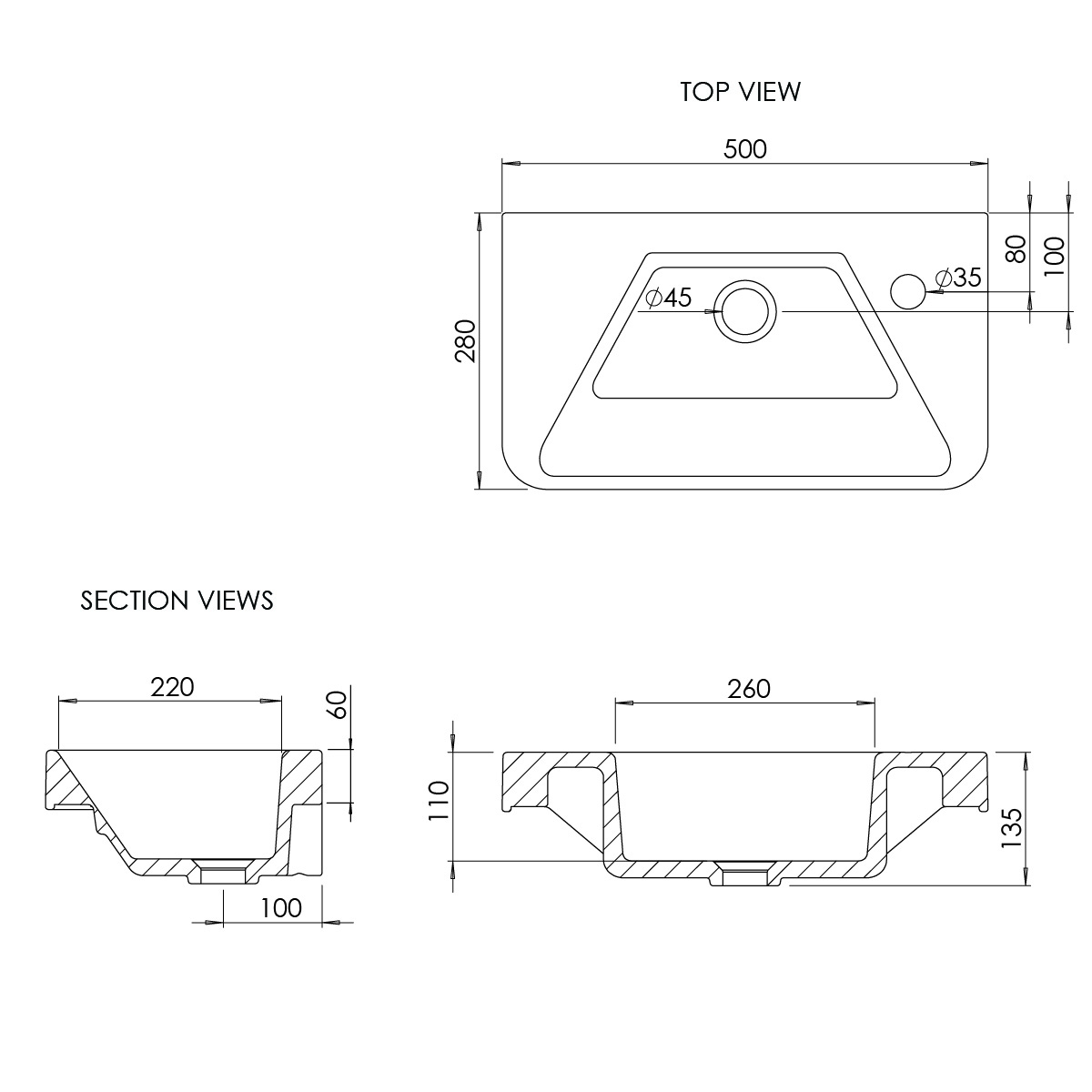

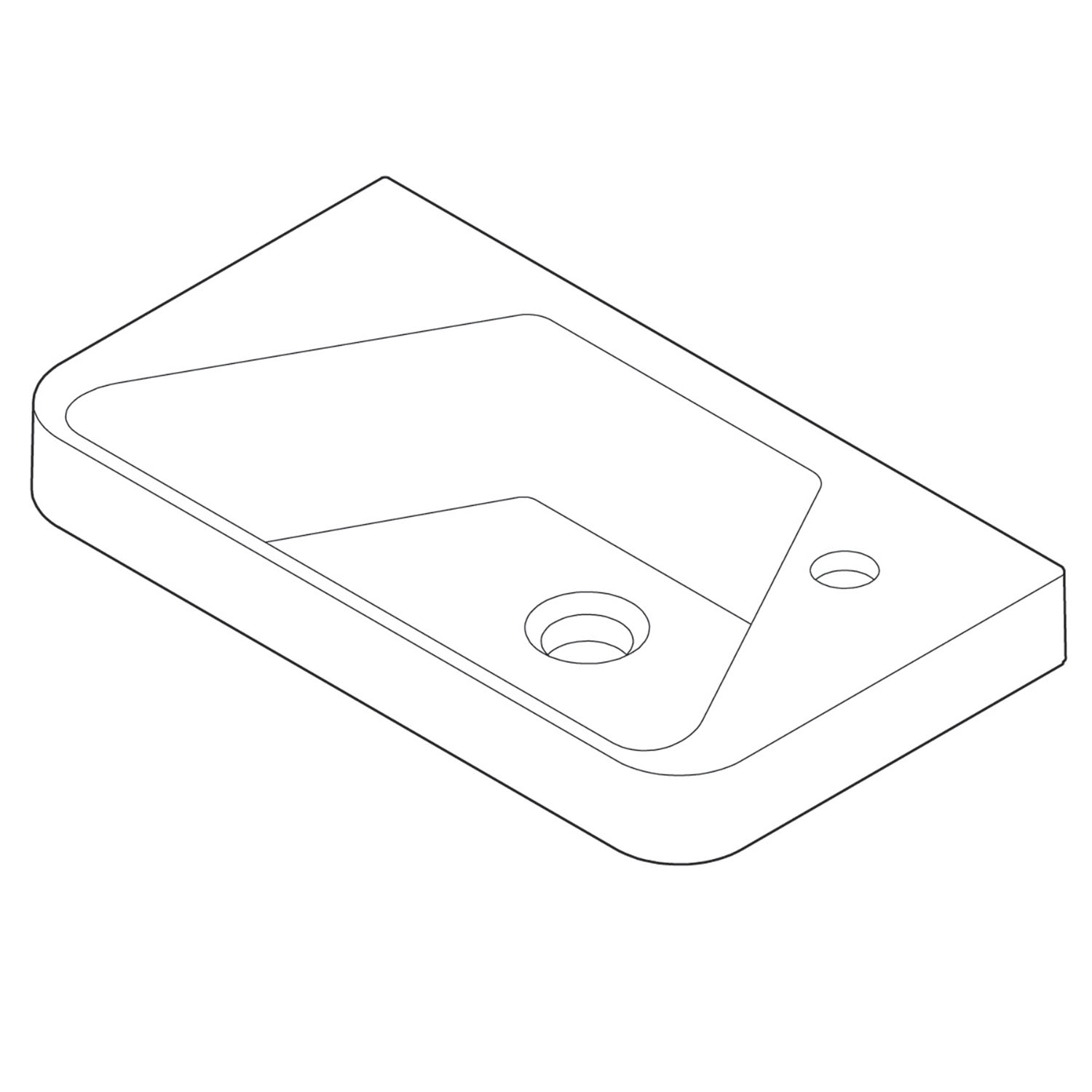

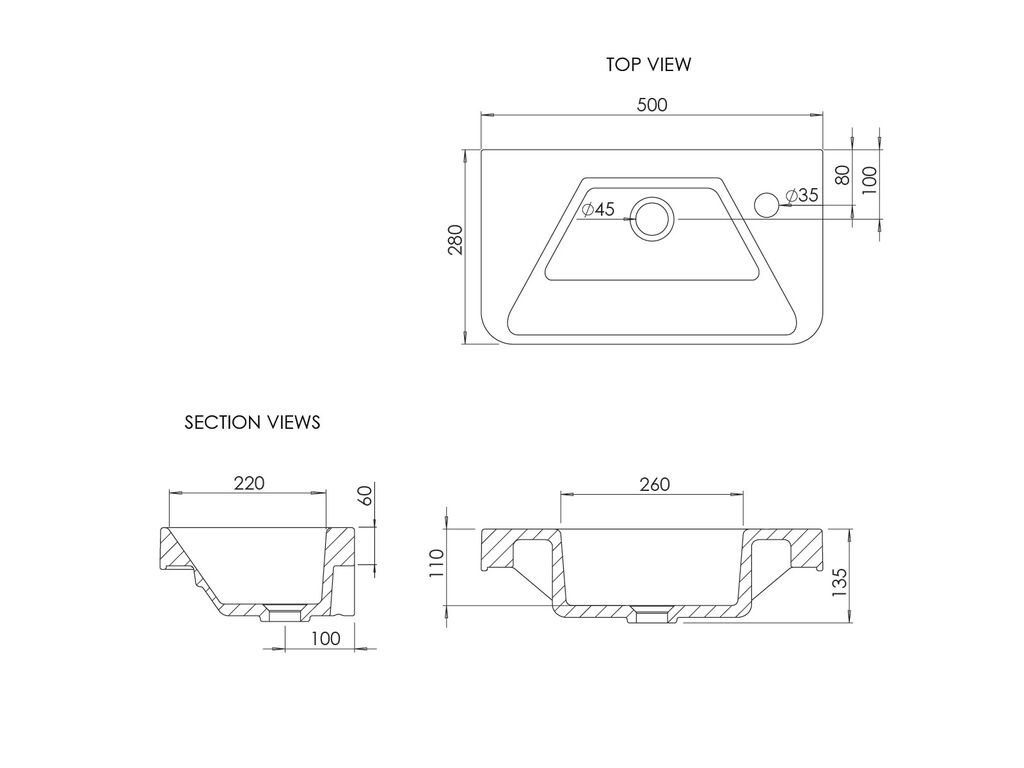

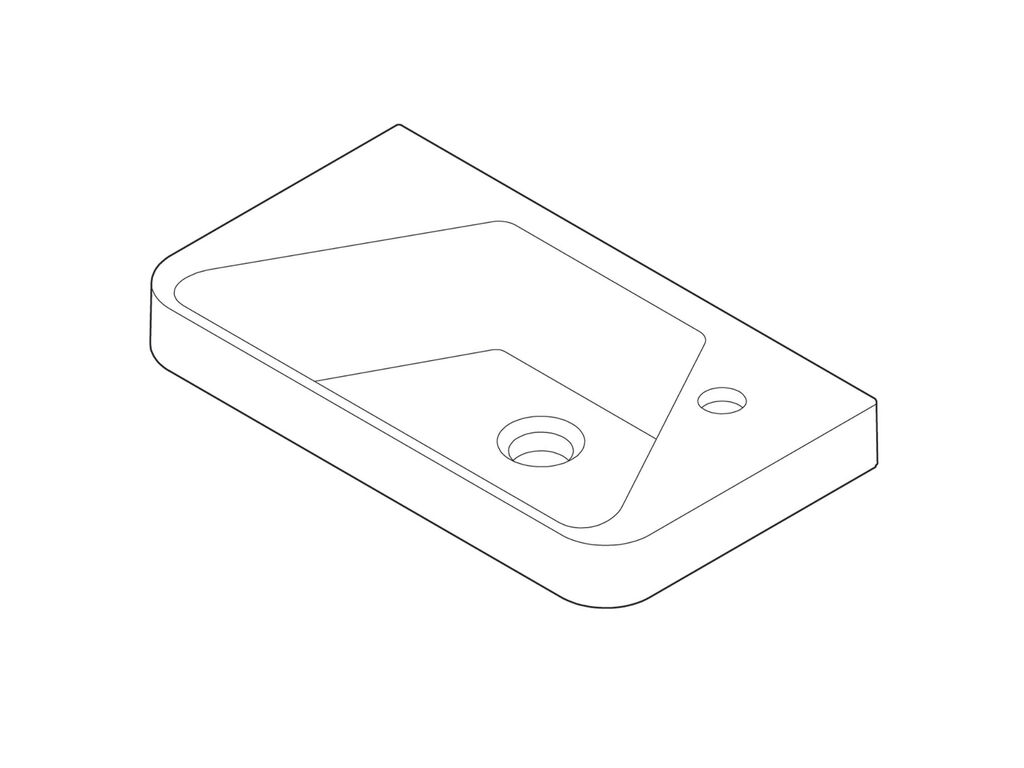

Technical Drawings
All dimensions in mm. Please check dimensions prior to installation.
Technical Details
Dimensions (WxDxH):
500 x 280 x 135mm
Weight:
8.26 kg
Basin Type:
Vanity Basin
Basin Construction Material:
Ceramic
Basin Interior:
White Gloss
Basin Exterior:
White Gloss
Overall Shape:
Rectangular with Rounded Front Corners
Bowl Shape:
Irregular
Configuration:
Centre Bowl
Number of Bowls:
1
Internal Bowl (WxDxH):
440 x 240 x 110mm
Depth at Centre:
282mm
Number of Tap Holes:
1
Tap Hole Position:
Centre Rear of Top Surface
Max Water Temperature:
100°C
Overflow Type:
No Overflow
Interchangeable Overflow Ring Type:
Type 3,Type 4
Waste Hole Diameter:
45 mm
Dimensional Tolerance:
Please note that all dimensions have a tolerance of +/- 5mm.
In The Box:
Ambra Ceramic Vanity Basin 500 White 1TH
